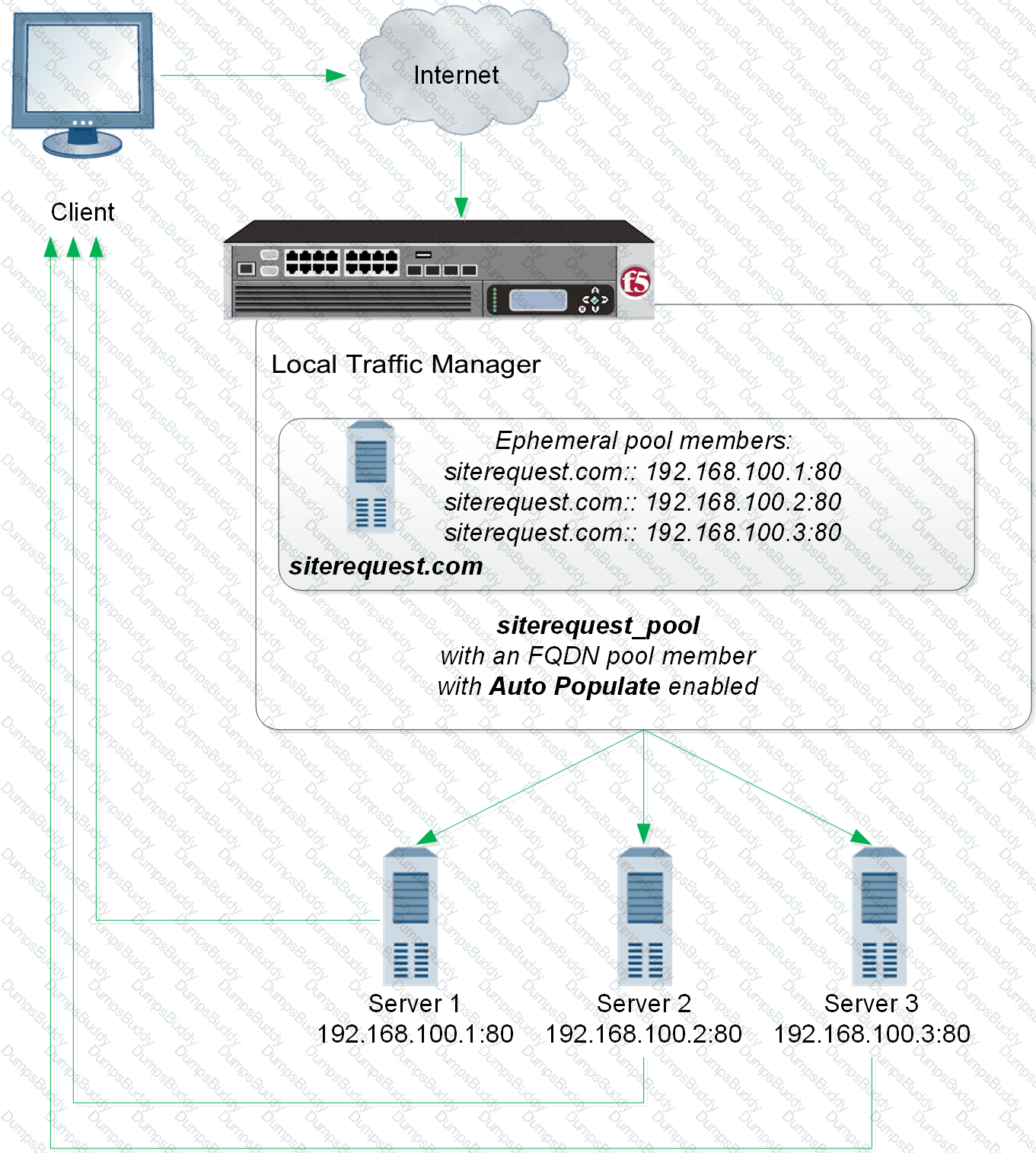

F5CAB2 BIG-IP Administration Data Plane Concepts (F5CAB2) exam Questions and Answers

In this scenario, two specific High Availability and Persistence requirements must be met to ensure session continuity during a failover.

Persistence Mirroring:By default, persistence records (which map a client to a specific server) exist only on the memory of the active BIG-IP. If a failover occurs, the standby unit has no knowledge of these sessions and will re-load-balance the client, likely to a different server. EnablingPersistence Mirroringensures that the persistence table is synchronized in real-time to the standby peer.

Match Across Services:The requirement specifies that the session must persist across bothHTTPandFTP. These are different Virtual Servers (and likely different ports). TheMatch Across Servicessetting in the persistence profile allows the BIG-IP to use the same persistence record for any Virtual Server that shares the same IP address and pool, regardless of the service port.

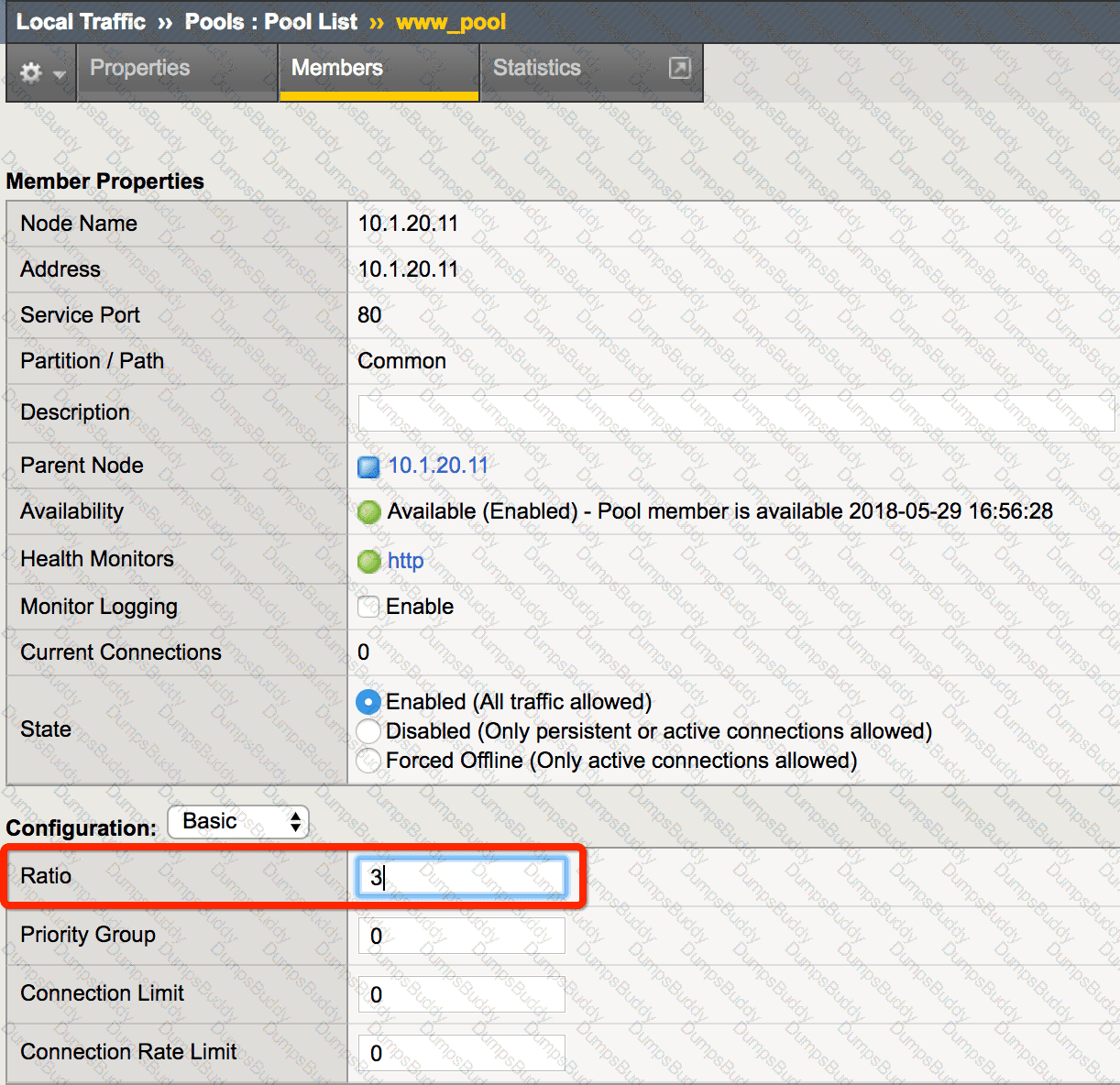

In BIG-IP LTM, apool member statedirectly affects how traffic is handled at the data plane level. When a pool member ismanually disabled, BIG-IP changes the member’s availability state todisabled, which has specific and predictable traffic-handling consequences.

According to BIG-IP Administration Data Plane Concepts:

Adisabled pool member:

Doesnot accept new connections

Continues to processexisting non-persistent connectionsuntil they naturally close

Isremoved from load-balancing decisions, including persistence lookups

Most importantly for this question:

Persistent connections(such as those created using source-address persistence, cookie persistence, or SSL persistence) arenot honoredfor a disabled pool member

BIG-IP willnot send new persistent trafficto a disabled member, even if persistence records exist

Therefore, when a pool member is manually disabled, itstops processing persistent connections, while allowing existing non-persistent flows to drain gracefully.

Why the Other Options Are Incorrect:

B– Persistent connections are not honored for a disabled pool member

C– Existing connections are not immediately terminated when a pool member is disabled

D– Only the disabled pool member stops accepting new connections, not all pool members

Key Data Plane Concept Reinforced:

Manually disabling a pool member is agraceful administrative actionthat prevents new and persistent traffic from reaching the member while allowing existing connections to complete, which is critical for maintenance and troubleshooting scenarios.

===========

6

TheEnd7User Diagnostics (EUD)utility is a software tool designed to test the hardware components of a BIG-IP system. Because the EUD must run when the standard Traffic Management Microkernel (TMM) and Operating System (TMOS) are not fully loaded (especially in "fail to boot" scenarios), it is accessed at the boot level.

Access Requirements:To run the EUD, the administrator must reboot the BIG-IP system and select the EUD option from theGRUB boot menu. Because the network interfaces (Internal, External, and Management) require a running operating system and drivers to function, they are unavailable during this pre-boot phase.

The Console Port:TheConsole Portprovides a direct out-of-band serial connection to the hardware's BIOS and bootloader. This is the only interface that allows an administrator to interact with the system during the early stages of the power-on self-test (POST) and boot sequence to initiate diagnostic tests.

Purpose:The EUD performs a series of tests on the CPU, memory, hard drives, and physical interfaces to identify hardware-level failures before the data plane is even initialized.

In the F5 BIG-IP ecosystem, atrunkis a logical grouping of two or more physical interfaces that the system treats as a single data path. This configuration is based on the Link Aggregation Control Protocol (LACP) or static link aggregation.

Trunks provide two primary benefits to the data plane:

Increased Bandwidth:By aggregating multiple physical interfaces (e.g., combining two 10Gbps interfaces), the aggregate throughput of the logical connection is increased. This allows the BIG-IP to handle higher traffic volumes than a single interface could support.

Link Redundancy:Trunks provide high availability at the physical layer. If one physical interface within the trunk fails or the cable is disconnected, the BIG-IP system automatically redistributes traffic across the remaining active interfaces in the trunk. This prevents a single cable or port failure from causing a network outage.

Why the other options are incorrect:

Option C:While VLAN tags are often usedontrunks, the ability to use tagged VLANs is a property of theVLANconfiguration and 802.1Q tagging, not the trunk itself. A single interface can support tagged VLANs without being part of a trunk.

Option D:Trunks are agnostic to the type of application traffic (such as VoIP) passing through them. They operate at Layer 2 to provide a reliable pipe for any Layer 3+ traffic.

In a BIG-IP high availability (HA) configuration,Auto-Syncis a device trust feature that automatically synchronizes configuration changesfrom the Active device to the Standby devicewithin a Sync-Failover device group.

Key principles from BIG-IP Administration Data Plane Concepts:

TheActive device is always the authoritative source of configuration

Configuration changes are intended to be madeonly on the Active device

WithAuto-Sync enabled, any time the Active device configuration changes, the system automatically pushes the configuration to all Standby members of the device group

Configuration changes made directly on aStandby device are not preserved

In this scenario:

The administrator modifies a Virtual Server on theStandbydevice

That change islocal onlyand does not alter the device group’s synchronized configuration

When Auto-Sync next runs (triggered by a change on the Active device or an internal sync event), theActive device configuration overwrites the Standby configuration

As a result, the configuration change made on the Standby device isundone.

Why the Other Options Are Incorrect:

A– The change is not undone only when another change is made; it is undone during the next Auto-Sync operation

B– Changes made on the Standby device are never propagated to the Active device

D– Auto-Sync does not merge or promote Standby changes into the HA pair configuration

Best Practice Reinforced:

Always perform configuration changes on theActive BIG-IP devicewhen Auto-Sync is enabled to ensure consistent and predictable HA behavior.

===========

The configuration shown matches aPerformance Layer 4virtual server because it is explicitly using aFastL4profile:

The screenshot showsProtocol: TCPandProtocol Profile (Client): fastL4.In BIG-IP data plane terms,FastL4is the hallmark of aPerformance (Layer 4)virtual server, designed to process connections at Layer 4 with minimal overhead (high throughput/low latency) compared to full proxy L7 processing.

The screenshot also showsHTTP Profile (Client): None(and HTTP server profile effectively not in use).AStandardvirtual server commonly usesfull-proxyfeatures and frequently includesL7 profiles(like HTTP) when doing HTTP-aware load balancing, header manipulation, cookie persistence, etc. In contrast, aPerformance L4virtual server typically doesnotuse an HTTP profile because it is not doing HTTP-aware (Layer 7) processing.

It isnotaForwarding IPvirtual server:AForwarding (IP)virtual server is used toroute/forward packets(often without load balancing to pool members in the same way as Standard/Performance VS) and is selected by choosing a forwarding type. The presence of aTCP protocol with a FastL4 client profilealigns with aLayer 4 load-balancing stylevirtual server, not a packet-forwarding virtual server type.

Conclusion:Because the configuration is TCP-based and explicitly usesfastL4with no HTTP profile, the expected BIG-IP virtual server type isPerformance Layer 4 (Option C).

In BIG-IP LTM, aWildcardvirtual server is defined by using a destination IP address of 0.0.0.0. These virtual servers are designed to handle traffic that does not match any more specific Virtual Server destination address.

0.0.0.0 Destination:This address acts as a "catch-all" for IP traffic.

VLAN Specificity:While the destination address is generic, a Wildcard virtual server is typically restricted to a specificVLAN(such as the Internal VLAN) to process outbound traffic from backend servers.

Service Ports:A wildcard virtual server can be configured for a specific port (e.g., 0.0.0.0:80) or for all ports (0.0.0.0:0).

Data Plane Usage:It is commonly used for transparently intercepting outbound traffic for the purpose of Source NAT (SNAT), bandwidth shaping, or directing traffic to a gateway pool.

In BIG-IP, atrunkis a Layer 2 network object used to aggregate multiple physicalinterfacesinto a single logical link. This aggregation providesincreased bandwidthandlink resiliency, commonly in conjunction with LACP.

Key concepts that apply here:

Trunks are managed under the/net trunktmsh hierarchy

Physical interfaces are added or removed using themodifycommand

Thecreatecommand is used only when defining a brand-new trunk, not when updating an existing one

Because the trunk already exists and the goal is toadd interfaces, the correct operation is:

tmsh modify /net trunk trunk_A interfaces add {1.3 1.4}

This command:

Modifies the existing trunk named trunk_A

Adds interfaces 1.3 and 1.4 to the trunk

Immediately increases available bandwidth and redundancy

Why the Other Options Are Incorrect

Buses the /sys hierarchy, which is not used for trunks

Cattempts to create a trunk that already exists

Duses an incorrect hierarchy and an incorrect operation

To meet the requirement offault tolerance when one interface goes down, BIG-IP must uselink aggregationso that loss of a single physical link does not isolate the VLAN(s).

How the objects relate (data plane view)

Interfaces= physical links.

Trunk (LACP)= bundles multiple interfaces into one logical link that providesredundancy(and possibly bandwidth aggregation).

VLANsare assigned to interfaces or trunks. If you needmultiple VLANs on the same trunk, they must use802.1Q tagging(because you can only have one untagged VLAN per interface/trunk).

Self IPsare then placed on the VLANs to provide BIG-IP presence and routing/ARP functions, but self IPs are not what provides link resiliency—the trunk does.

Why Option D is correct

You havetwo physical interfacesand you want resiliency if one fails → put both interfaces intoone trunk with LACP enabled.

You needboth external and internal VLANson those same two links → both VLANs should be configured astaggedon that trunk, so they can coexist on the same aggregated link.

If either physical interface fails, the trunk remains up via the remaining interface, keepingboth VLANs operational.

Why the other options are incorrect

A: Two VLANs cannot both beuntaggedon the same trunk/interface. Only one untagged VLAN is possible; additional VLANs must be tagged.

B: Two trunks “each with one VLAN” would typically mean splitting VLANs across separate trunks. With only two interfaces total, that becomes one interface per trunk—if one interface goes down, the VLAN on that interface is down (no redundancy for that VLAN).

C: Same redundancy problem as B, and disabling LACP removes the negotiated aggregation behavior expected when the switch engineer specifically requested LACP.

===========

This question tests understanding ofPriority Group Activation (PGA)and how BIG-IP determines which pool members are eligible to receive traffic.

Key BIG-IP Priority Group Concepts:

Higher priority group numbers = higher priority

BIG-IP willonly send traffic to the highest priority groupthat meets thePriority Group Activationcondition

Lower priority groups areactivated only when the condition is met

Onlyavailable (green)members count toward the activation threshold

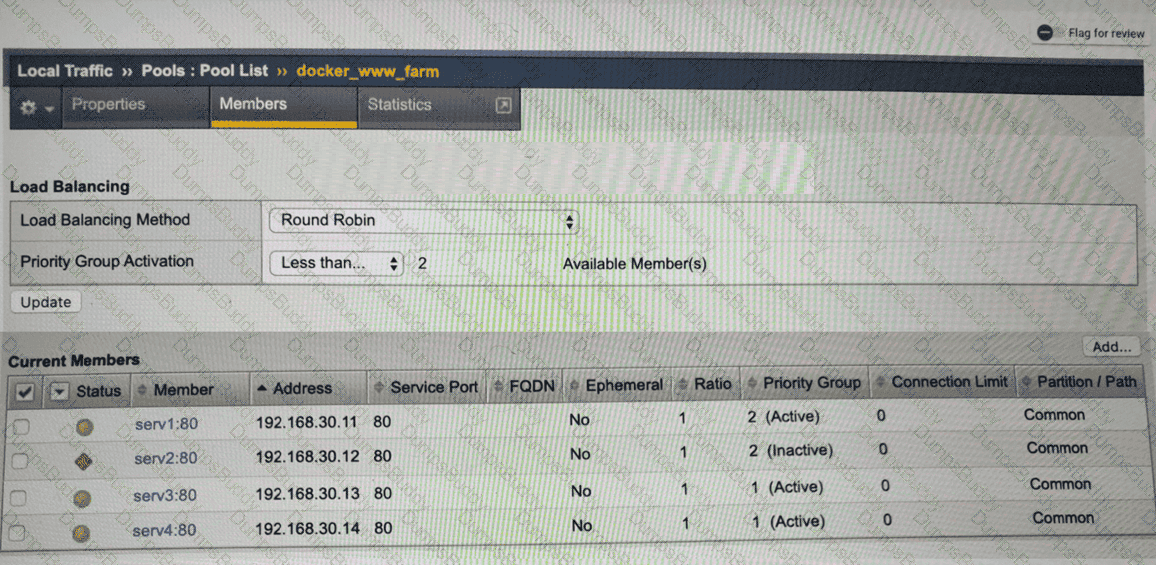

Configuration from the Exhibit:

Priority Group Activation:Less than 2 available members

Pool Members and Status:

Pool Member

Priority Group

Status

serv1

2

Active (available)

serv2

2

Inactive (down)

serv3

1

Active (available)

serv4

1

Active (available)

Step-by-Step Traffic Decision:

BIG-IP first evaluates thehighest priority group (Priority Group 2)

Priority Group 2 has:

serv1 → available

serv2 → unavailable

Total available members = 1

Activation rule isLess than 2 available members

Condition istrue(1 < 2)

BIG-IPactivates the next lower priority group (Priority Group 1)

Traffic is now sent to:

serv1 (Priority Group 2)

serv3 and serv4 (Priority Group 1)

Final Result:

Traffic is distributed toserv1, serv3, and serv4

Why the Other Options Are Incorrect:

A– Ignores activation of the lower priority group

B– serv4 is also active and eligible

C– serv2 is down and cannot receive traffic

Key Data Plane Concept Reinforced:

Priority Group Activation controls when lower-priority pool members are allowed to receive traffic, based strictly on the number ofavailable membersin the higher-priority group. In this case, the failure of one high-priority member caused BIG-IP toexpand traffic distributionto lower-priority members to maintain availability.

===========

In BIG-IP architecture,link aggregation and redundancyat Layer 2 are implemented usingTrunks, not virtual servers or pools.

According to BIG-IP Administration Data Plane Concepts:

Interfacesare the physical network ports on the BIG-IP device

ATrunkis a logical grouping of multiple interfaces

Trunks can be configured to useLACP (Link Aggregation Control Protocol)to:

Provide link redundancy

Increase aggregate bandwidth

Allow automatic detection of link failures

VLANs are thenassigned to the trunk, not directly to individual interfaces, once aggregation is in place

Correct Design for the Scenario:

To connect BIG-IP totwo upstream switcheswith LACP:

One physical interface from BIG-IP connects toSwitch A

Another physical interface from BIG-IP connects toSwitch B

Both interfaces are placed intothe same trunk

LACP is enabled on the trunk and on the switches

This configuration allows:

Traffic to continue flowing if one interface or switch fails

Proper LACP negotiation between BIG-IP and the upstream switches

Clean separation of responsibilities (Layer 2 handled by trunking, Layer 4–7 by virtual servers)

Why Option D Is Correct:

ATrunk containing an interface connected to each switchis exactly how BIG-IP implements LACP-based interface binding

The trunk handles link state, load distribution, and failover at the data plane

Why the Other Options Are Incorrect:

A & B– Virtual servers operate at Layers 4–7 and have nothing to do with physical link aggregation or LACP

C– VLAN IDs and MAC addresses are not configuredinsidea trunk definition; trunks aggregate interfaces, and VLANs are appliedtotrunks

Key Data Plane Concept Reinforced:

On BIG-IP systems,LACP is always configured on a Trunk, which aggregates physical interfaces to provideLayer 2 resiliency and bandwidth aggregation. Virtual servers and pools are not involved in physical interface binding.

===========

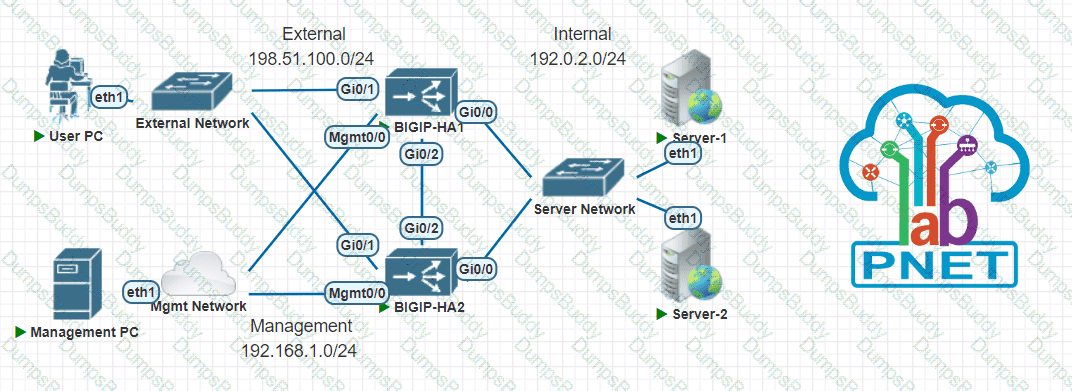

When establishing a redundant pair, each device must know where to send its health heartbeats and sync data.

The Peer IP:TheFailover Peer IPis the IP address belonging to theotherBIG-IP device in the HA pair. This is typically a34Self-IP on a dedicated "HA" or "Internal" VLAN, or the Management IP.

Purpose:It identifies the destination for the "Heartbeat" (the "Are you alive?" check).

Setup Context:During the initial setup, you tell Device A to look for Device B at its "Failover Peer IP," and you tell Device B to look for Device A at its respective "Failover Peer IP."

In BIG-IP terminology, aTrunkis the object used to implement Link Aggregation (IEEE 802.3ad/802.1AX). When a network engineer refers to "interface binding" or "EtherChannel" with LACP, the BIG-IP equivalent is a Trunk.

LACP (Link Aggregation Control Protocol):This is a protocol that allows the BIG-IP system to communicate with the upstream switches to negotiate the bundling of multiple physical links into a single logical link.

Resilience and Redundancy:By creating a trunk that includes interfaces connected to two different switches (typically configured as a VPC, VSS, or MLAG cluster on the switch side), the administrator ensures that the BIG-IP remains reachable even if one physical interface or one switch fails.

Data Plane Logic:The BIG-IP treats the trunk as a single Layer 2 interface. VLANs are then associated with the trunk rather than individual physical ports.

Why the other options are incorrect:

Option B:Trunks aggregate physical interfaces. While VLANs are associated with trunks, the trunk configuration itself does not "list" MAC addresses of the switches; it uses LACP to negotiate the connection.

Options C & D:Virtual Servers are Layer 4-7 objects used for traffic processing and load balancing. They do not possess "LACP profiles," nor are physical interfaces or management IPs treated as pool members for the purpose of link aggregation.

When handling high-volume UDP traffic where the BIG-IP does not need to maintain any session history or relationship between packets, aStatelessvirtual server is the appropriate choice.

No Connection Tracking:A stateless virtual server does not create or maintain entries in the BIG-IP connection table. This means the system processes each packet as an individual event, without "considering previous connections" or packets from the same source.

High Performance:Because the system bypasses the overhead of state management, stateless virtual servers provide the highest possible throughput for UDP and ICMP traffic.

Use Cases:This is ideal for services like DNS (stateless queries) or some types of syslog traffic where each packet is independent and doesn't require the persistence or protocol inspection typically provided by a full-proxy.

Why other options are incorrect:

Forwarding:While a Forwarding (IP) virtual server can handle UDP, it still maintains a state entry in the connection table to ensure return traffic is handled correctly.

Standard:This is a full-proxy virtual server. It is inherently stateful and requires a connection table entry for every flow it manages.

Reject:This is a special virtual server type that simply drops incoming traffic and, in the case of TCP, sends a reset (RST) or, for UDP, sends an ICMP unreachable message. It is not a load balancing type.

iRules are event-driven scripts that allow for advanced traffic manipulation.

Universality of Events:Every packet that passes through t21he BIG-IP data plane triggers events. Even non-HTTP traffic triggers events such as CLIENT_ACCEPTED (when the TCP connection is established22) or CLIENT_DATA (when raw data is received). Therefore, all client traffic—regardless of protocol—has data that can trigger an iRule event.

Event Specificity:Events are not universal (Option C is false). For example, HTTP_REQUEST only occurs after a full HTTP header is parsed. You cannot trigger an HTTP_RESPONSE event before a request has been sent to a server.

Protocol Agnostic:iRules are not limited to HTTP (Option A is false); they can handle TCP, UDP, DNS, FTP, SIP, and more.

Error Handling:If an iRule references an event that never triggers (e.g., an HTTP_REQUEST event in a purely TCP virtual server), the iRule code for that event simply never executes. It doesnotterminate the connection (Option D is false).

According to F5 BIG-IP documentation regarding High Availability and MAC Masquerade behavior, the system allows for more granular control over Layer 2 addresses during failover events.

Standard MAC Masquerade:By default, when a traffic group is assigned a MAC masquerade address (like 02:12:34:56:00:00), the BIG-IP system uses that exact MAC address for all traffic associated with that traffic group across all VLANs. This ensures that upstream switches do not need to relearn ARP entries for the Virtual IP, but it can cause issues in environments where multiple VLANs share the same physical infrastructure or monitoring tools that flag identical MACs across segments.

Per-VLAN MAC Masquerade:When the system database variable tm.macmasqaddr_per_vlan is set to true, the BIG-IP system calculates a unique MAC address for each VLAN. It does this by taking the base MAC masquerade address configured in the traffic group and adding theVLAN ID (tag)to it.

Calculation Logic:

Base MAC: 02:12:34:56:00:00

VLAN ID: 1501

To find the suffix, the VLAN ID is converted from decimal to hexadecimal:

$1501$ in decimal = 05DD in hex.

The system then applies this offset to the last two octets of the base MAC address.

00:00 + 05:DD = 05:DD.

Result:The final MAC address for VLAN 1501 becomes 02:12:34:56:05:dd.

This ensures that every VLAN has a unique Layer 2 identity while still reaping the benefits of "gratuitous ARP-less" failover provided by MAC masquerading.
