BIM_MGT_101 Autodesk Certified Professional in BIM Management for Building Design Questions and Answers

The BIM manager should first test whether the client’s data definitions and templates can support consistent production across all participating regions and disciplines. Shared-parameter files and naming conventions must be reviewed because inconsistent parameter definitions, duplicate identifiers, regional naming variations, or conflicting classifications can compromise schedules, model checking, data exports, and asset-information delivery.

The project templates must also be evaluated for units, naming structures, view organization, browser conventions, coordinates, and other coordination-critical settings. On a fast-track project, deficiencies in these baseline resources will be replicated rapidly across many models and become expensive to correct after production begins.

Training and software access are valid mobilization concerns, particularly with a new collaboration platform, but they do not establish whether the client’s actual BIM standards and templates are technically coherent. Sample sheets and title blocks primarily reveal graphical preferences rather than digital-delivery capability. Allowing unrestricted discipline customization would weaken standardization and increase coordination risk.

Options A and B directly assess whether the client’s existing resources provide a consistent data and model-authoring foundation for distributed, high-velocity delivery.

Reference topics: Client-standard assessment; template validation; shared-parameter governance; naming conventions; regional consistency; project mobilization.

===============

The first requirement is a documented governance framework that defines how the participating firms are expected to work together. The identified failures are not limited to unauthorized access; they also include inconsistent data and breakdowns in communication. Coordination protocols must therefore establish model ownership, authorized editing responsibilities, submission requirements, quality-control gates, issue-escalation paths, communication channels, and accountability for approving changes.

Once these rules are agreed, the BIM manager can configure Common Data Environment permissions to enforce them. Implementing tighter access controls before establishing the underlying responsibilities may prevent some unauthorized edits, but it does not determine who should own each dataset, which checks must be performed, or how coordination decisions are communicated.

Option A delegates model maintenance but does not establish consistent cross-team procedures or editing rights. Option D may expose design assumptions, yet it is focused on modelling strategy and conflict identification rather than comprehensive information governance.

Effective BIM coordination depends on both procedural and technical controls. The procedural protocol comes first because it provides the basis for access configuration, quality reviews, issue workflows, model exchange, and audit requirements across the delivery team.

Reference topics: BIM coordination protocols; model ownership; editing authority; Common Data Environment governance; quality control; communication planning; risk mitigation.

===============

A custom coordination view should be created using the applicable published mechanical and structural models and limited to the patient-room zones required by the approved clash matrix. The clash results can then be filtered by model pair, location, object category, and active status before the filtered list is exported. This produces a targeted report containing only the coordination conditions requested by the project leads.

The custom-view approach maintains the relationship between the clash records and the coordinated model geometry. It also makes the review repeatable: the BIM manager can return to the saved view during subsequent coordination cycles and evaluate whether the same discipline and location criteria have been resolved.

Asking individual disciplines to prepare independent reports creates inconsistent evaluation criteria and weakens the centralized coordination record. Exporting every clash and manually filtering the spreadsheet introduces unnecessary effort and increases the risk of omitting or misclassifying issues. Assigning clashes through the Issues tool is appropriate after clashes have been reviewed and determined to require action, but assignment does not itself generate the requested filtered clash report.

Reference topics: Autodesk Model Coordination; custom coordination views; clash filtering; clash matrices; published models; active-clash reporting; location-based coordination.

===============

A view filter can be configured to act only on ceilings meeting specific criteria, such as family name, type name, material, height, or another parameter. Because the missing ceiling is a 2x4 type while the visible ceilings are 2x2 types, a filter targeting the 2x4 ceiling could hide it or override its graphics without affecting the other ceilings.

A Plan Region can also impose a localized View Range that differs from the parent Reflected Ceiling Plan. If the hallway contains a Plan Region with a higher cut plane or an otherwise incompatible view range, the ceiling can fall outside the region’s visible range even though it remains present and visible in a 3D view.

The ceiling was not deleted because it is still visible in 3D. Turning off the Ceilings category through a View Template would ordinarily hide all ceilings governed by that category in the view, contradicting the fact that the 2x2 ceilings remain visible. Similarly, Hide in View by Category affects the entire Ceilings category within that view rather than one ceiling type or a single hallway element.

Reference topics: Reflected Ceiling Plans; View Range; Plan Regions; view filters; category visibility; view-template troubleshooting.

===============

Before information is issued outside the delivery team, the BIM manager must establish exactly what the recipient is authorized and required to use. This means validating the estimator’s defined purpose, required data fields, permitted model content, exchange format, access level, and downstream-use restrictions. Once that scope is confirmed, the BIM manager can produce a controlled deliverable containing quantities and location metadata while excluding unnecessary proprietary geometry, design-development information, linked disciplines, embedded intellectual property, or confidential parameters.

Exporting PDFs does not satisfy the stated requirement because a cost estimator requires structured quantity and location information rather than static graphical documentation. Checking email size is a transmission issue, not an information-governance control. Converting the package to 2D may remove useful model intelligence and still does not establish whether the recipient is entitled to receive the remaining information.

The governing principle is proportional information exchange: provide the information necessary for the authorized BIM use and no more. Permissions and file format must reinforce that boundary. The BIM manager should then validate the resulting package before transmission and document the exchange according to the project’s information-delivery protocol.

Reference topics: Data-management planning; information exchange requirements; model permissions; authorized BIM uses; external information distribution; risk-controlled model sharing.

===============

The BIM manager must first establish the project’s actual information requirements before prescribing models, templates, LOD criteria, or delivery procedures. A structured stakeholder session should identify the owner’s sustainability objectives, operational data needs, required BIM uses, asset-management interfaces, exchange milestones, and responsibility boundaries. This provides the basis for determining what information must be authored, by whom, at what stage, and for which downstream purpose.

Consolidating standard BEPs from different firms would reproduce organization-specific practices rather than create a coherent project strategy. Similarly, adopting an LOD matrix from previous projects risks imposing assumptions that do not match the civic center’s lifecycle and sustainability requirements. Developing templates before requirements are confirmed can embed incorrect parameters, classifications, units, or workflows into the project environment.

The stakeholder session should result in documented BIM objectives, approved use cases, information requirements, mobilization actions, and preliminary modelling responsibilities. Those decisions can then inform the project BEP, Model Element Table, LOD or information-need matrix, delivery plans, training requirements, and Common Data Environment configuration.

Reference topics: Project needs assessment; stakeholder engagement; BIM-use definition; lifecycle information requirements; sustainability goals; BIM mobilization; level of information need.

===============

The BIM manager should restore the linked instance to its previously defined shared-site position. Selecting the appropriate Shared Site and choosing to move the instance to that defined site reapplies the established coordinate transformation, including the intended horizontal position, elevation, and orientation. This is substantially more reliable than attempting to reconstruct the placement manually.

Using the Move command would rely on visual alignment or manually entered offsets and might not reproduce the original coordinate relationship precisely. Even a small positional or rotational error could affect consultant overlays, federated coordination, survey references, and downstream exports.

Publishing coordinates is not the appropriate recovery action after the link instance has been accidentally dragged. Publishing from the incorrectly positioned instance could redefine or overwrite the coordinate relationship based on the displaced location rather than restore the approved position. The source CAD file itself has not changed, so requesting that the consultant revise and resubmit it would not address the actual cause.

After restoring the defined site position, the BIM manager should verify the alignment against known control points and repin the link to prevent further unintended movement.

Reference topics: Shared coordinates; named Shared Sites; linked CAD positioning; coordinate recovery; link pinning; site-control verification.

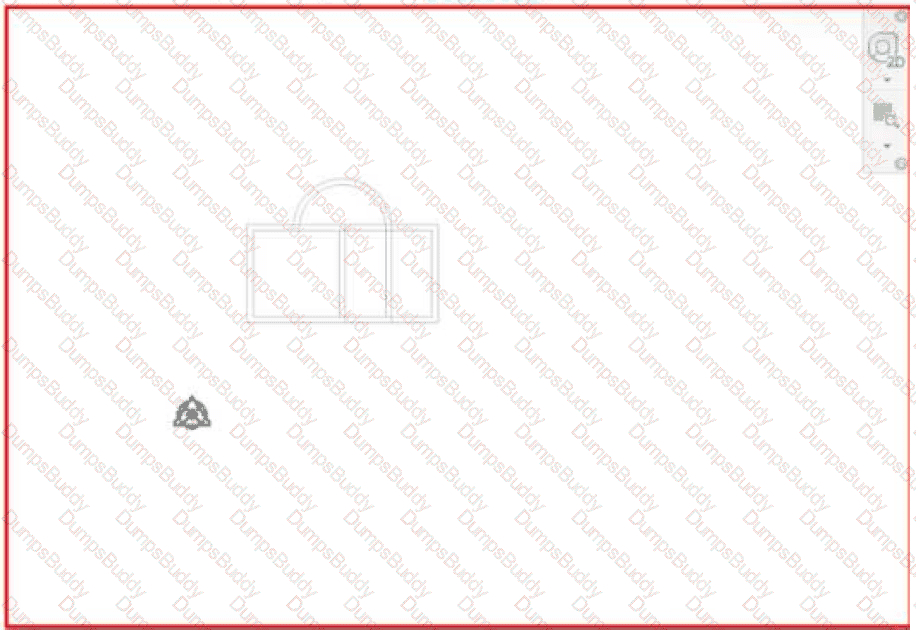

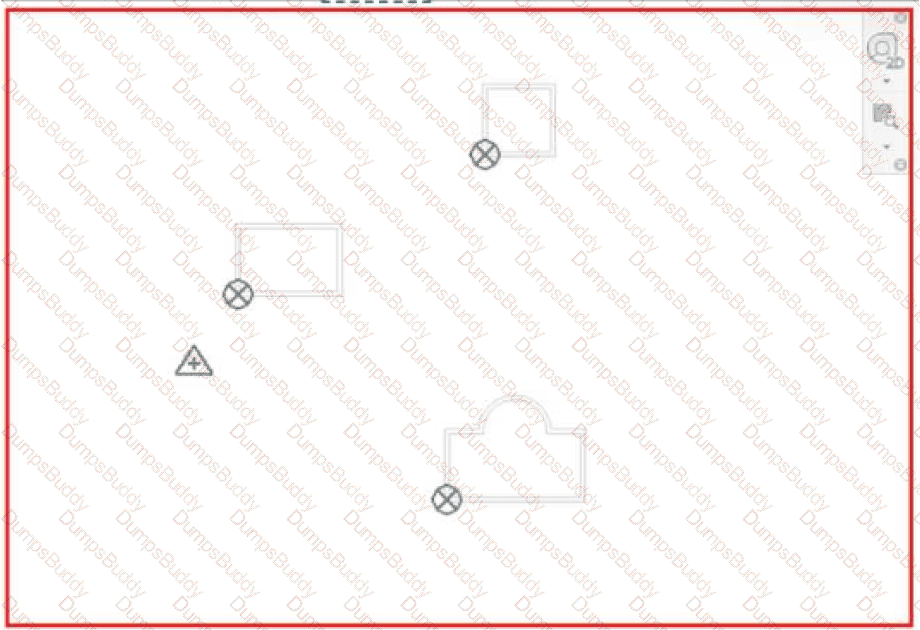

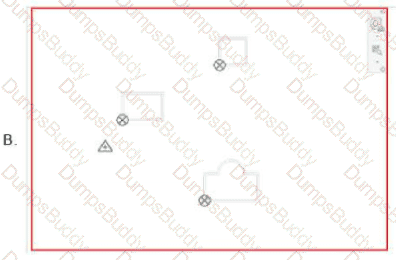

Exhibit 3 represents the correct multi-building coordination condition. It shows the three building models occupying their intended and separate locations while referencing a common site-coordinate framework. Each building retains the model reference required for its individual internal setup, but all models are related to one consolidated site reference, thereby preserving their geographic placement and orientation when linked into the site model.

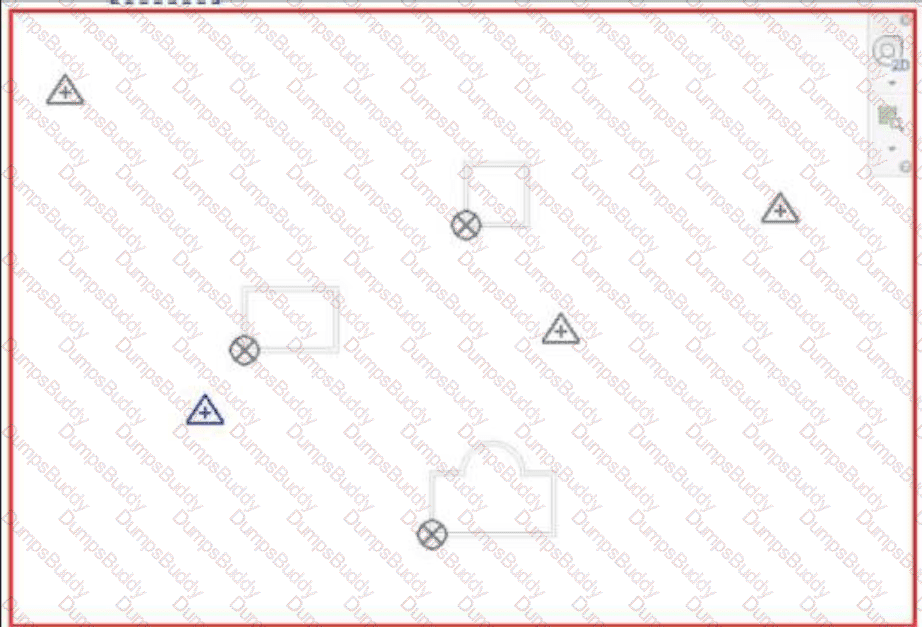

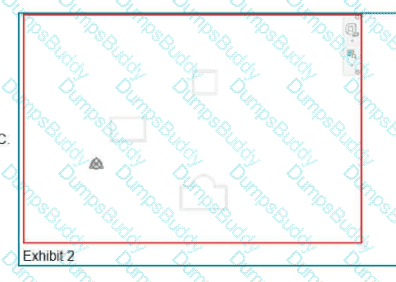

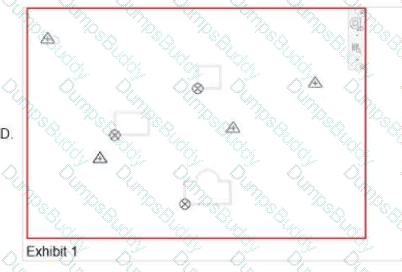

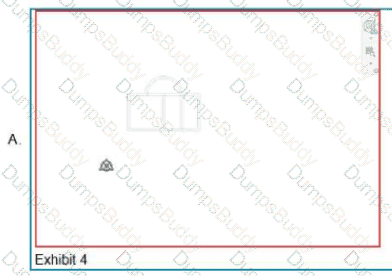

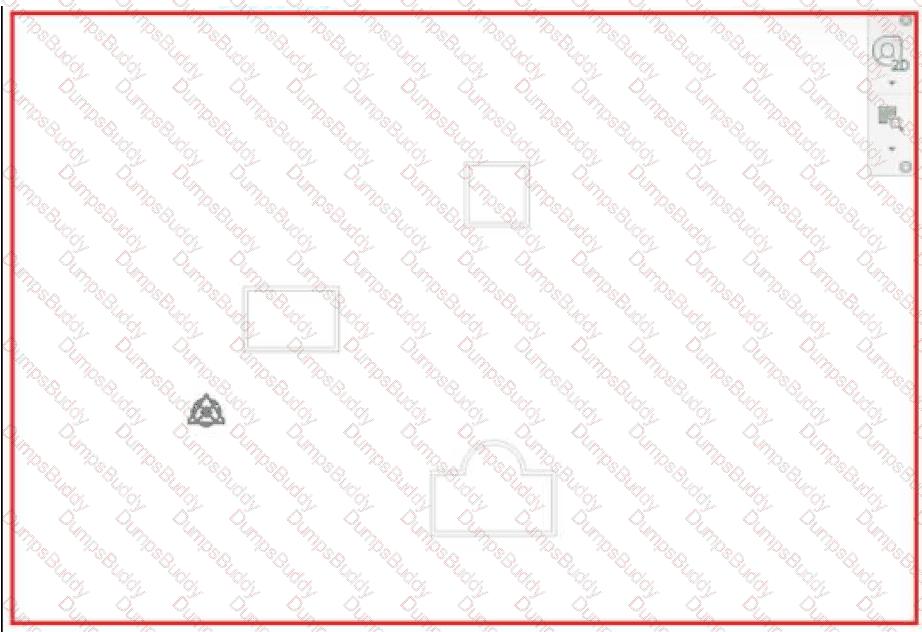

Exhibit 1 displays multiple displaced site-reference indicators, suggesting that the building models have not been reconciled to one authoritative shared-coordinate system. This condition creates a risk that models will appear correctly only when manually positioned and will subsequently shift when reloaded or exchanged. Exhibit 2 does not demonstrate the required relationship between the individual building origins and the shared site reference. Exhibit 4 places the building geometries on top of one another, which is characteristic of models linked using a common internal origin without applying their correct site positions.

For a campus or multi-building project, the site model should function as the authoritative spatial reference. Each building model is positioned against that site definition, and the coordinated relationship is retained through shared positioning rather than repeated manual movement. This allows consistent federation, consultant exchange, reload behavior, and downstream coordination.

Reference topics: Shared coordinates; multi-building projects; site-model authority; linked-model positioning; survey and internal reference management; model federation.

===============

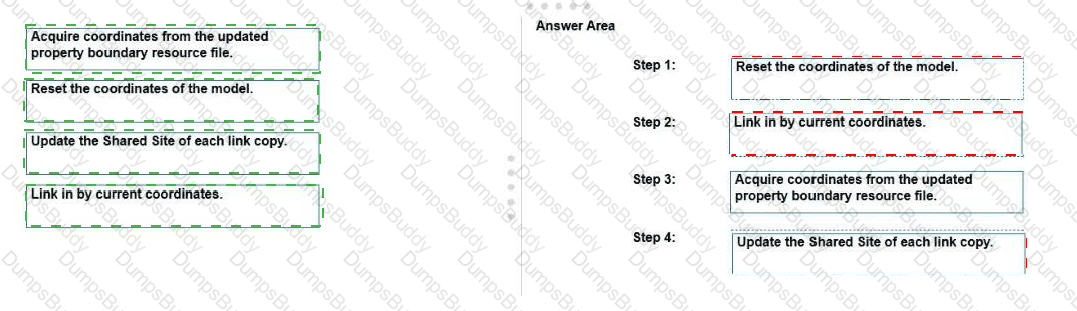

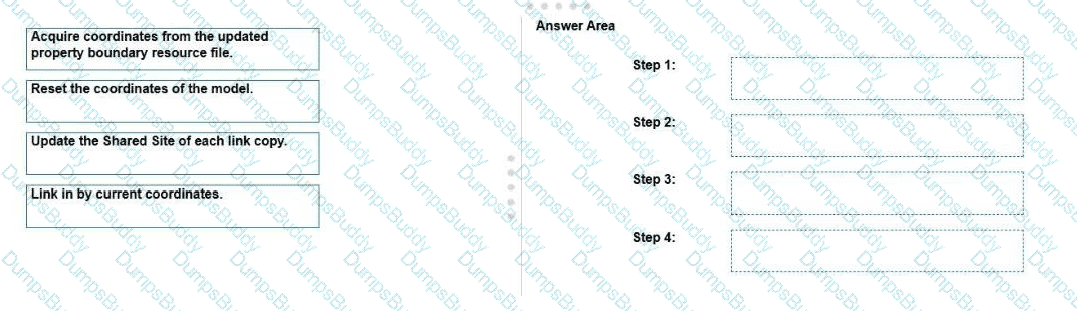

Step 1: Reset the coordinates of the model.

Step 2: Link in by current coordinates.

Step 3: Acquire coordinates from the updated property boundary resource file.

Step 4: Update the Shared Site of each link copy.

The existing shared-coordinate relationship must first be cleared because the authoritative civil background now contains revised GIS positioning. Resetting the model coordinates removes the obsolete relationship and prepares the architectural model to establish a new shared-coordinate system without physically moving its authored building geometry.

The updated property-boundary or civil resource is then linked using its current positioning so that it can serve as the authoritative coordinate source. Once the updated reference is correctly positioned, the architectural model acquires coordinates from that file. Acquiring coordinates transfers the civil model’s survey-coordinate definition into the host while preserving the architectural model’s internal origin and local modelling arrangement.

The final step is to update the Shared Site assigned to each duplicated building-link instance. This is necessary because multiple copies of the same building model may occupy different campus locations or orientations. Each link instance must reference the appropriate named site position so that the copies remain correctly placed after the revised GIS coordinate system is adopted.

Changing link sites before updating the host coordinate framework would apply positions against outdated coordinate data and could displace the campus federation.

Reference topics: Shared coordinates; Acquire Coordinates; named Shared Sites; campus model assembly; GIS and civil-reference updates; duplicated Revit links.

===============

Before releasing an editable or reference model to a contractor, the BIM manager must confirm that the required digital-content release has been executed. Verbal acknowledgement that the construction documents govern does not adequately define permitted model uses, reliance limitations, intellectual-property restrictions, model status, or responsibility for downstream fabrication decisions.

A digital-content release should identify the purpose of the transfer, authorized recipients, accepted file formats, issue date, model-development status, and limitations on modification or redistribution. It should also clarify that the model may contain incomplete, approximate, or non-contractual information and that the recipient remains responsible for verifying fabrication and construction requirements against the governing documents.

Adding the contractor directly to the project environment could expose additional data and does not replace formal release authorization. Sending a copied model immediately bypasses document-control and risk-management procedures. Exporting sheets to DWG may not satisfy the contractor’s stated need for model geometry and does not eliminate the requirement to control digital information distribution.

Once the release is confirmed, the BIM manager should prepare a controlled model package containing only the information required for the authorized purpose.

Reference topics: Digital-content release; external model distribution; contractual reliance; intellectual-property controls; authorized BIM uses; information-risk management.

===============

Exhibit 1 correctly assigns a red dashed line pattern to the Demolished phase status for both Projection/Surface Lines and Cut Lines. This is required because demolished elements may appear either in projection or in section, depending on the view orientation and whether the element is intersected by the view’s cut plane.

Configuring only Projection/Surface Lines would leave demolished elements displayed differently when cut. Conversely, changing only Cut Lines would not produce the required standard in elevations, plans, or other views where the elements are viewed in projection. The phase graphic override must therefore consistently define the colour and line pattern in both graphical conditions.

This setting belongs in the firm’s Revit project template so that future projects inherit the standard. The corresponding phase filters must also be configured to apply the Demolished override in relevant demolition and construction views. A graphic override does not operate independently; the active phase and phase filter determine whether an element is classified and displayed as existing, demolished, new, or temporary.

Reference topics: Revit phasing; Phase Graphic Overrides; demolished-element standards; phase filters; projection and cut graphics; corporate project templates.

===============

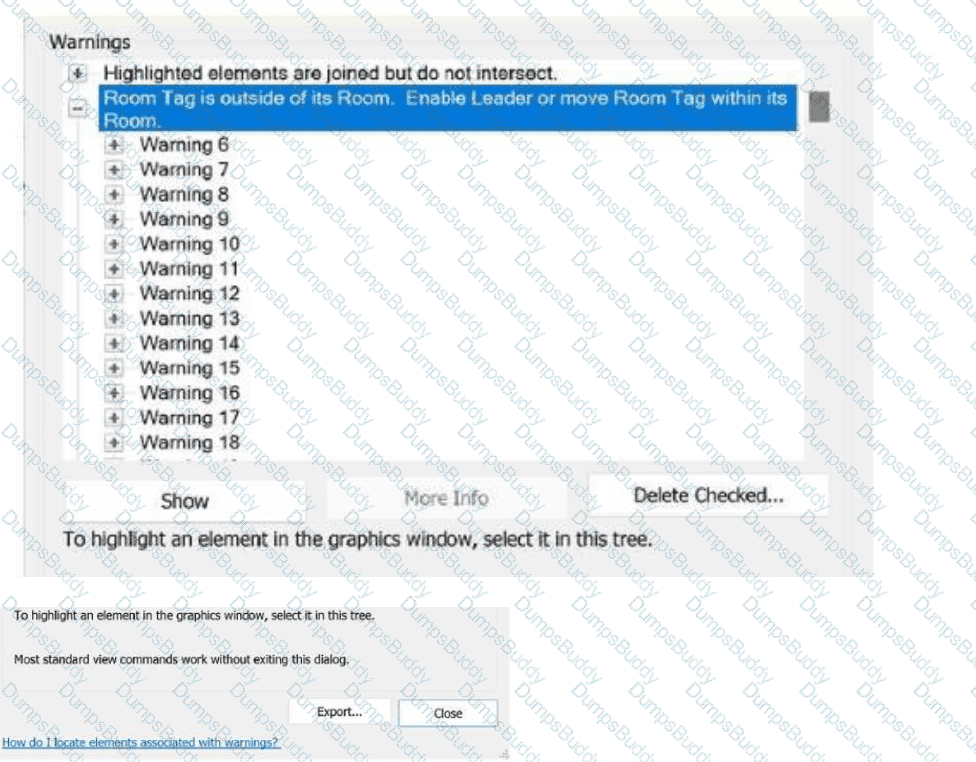

Warnings should be managed through structured triage rather than treated as one undifferentiated backlog. The BIM manager should demonstrate how the Revit Warnings dialog groups recurring conditions by warning type, allowing the team to identify high-volume patterns and understand their underlying causes. Examples include duplicate instances, overlapping elements, disconnected systems, room-separation conflicts, and constraints that are no longer satisfied.

The team should then classify warnings according to severity, coordination impact, data integrity, and performance risk. Critical warnings should be corrected first, while lower-risk conditions should be documented and reviewed against the project’s agreed warning-management standard. Teaching users how to select affected elements, use Show , review contextual information, and research the relevant Revit behaviour creates sustainable capability rather than dependency on the BIM manager.

Bulk deletion is unsafe because the affected elements may be valid design content. Ignoring every warning through an add-in conceals model-health problems without resolving them. Creating a cloud issue for each individual warning would generate excessive administrative noise and is not an appropriate substitute for native model-quality management.

Reference topics: Revit warning management; model-health training; warning categorization; quality-control procedures; team capability development.

===============

The existing project levels should be retained because the preset floor plans, reflected ceiling plans, and other level-associated views already placed on sheets depend on them. The BIM manager should align those levels with the authoritative as-built levels and then establish monitoring where appropriate. The linked grids can be created in the host through Copy/Monitor , providing native project grids that correspond to the resource model.

Deleting the template levels would also delete or disrupt dependent views, resulting in precisely the extensive sheet and view reconstruction the question requires the BIM manager to avoid. A Scope Box controls datum extents and view cropping; it does not reconcile level elevations or create coordinated grid elements. Hiding the host levels and displaying only linked datums would leave the host project without properly coordinated native reference elements and would not support reliable modelling or documentation.

After alignment and copying, the team should review Copy/Monitor warnings whenever the linked as-built model changes. This preserves the firm’s established documentation infrastructure while integrating authoritative project-specific datum information.

Reference topics: Copy/Monitor; level-associated views; linked as-built models; grid coordination; Revit template reuse; datum management.

===============

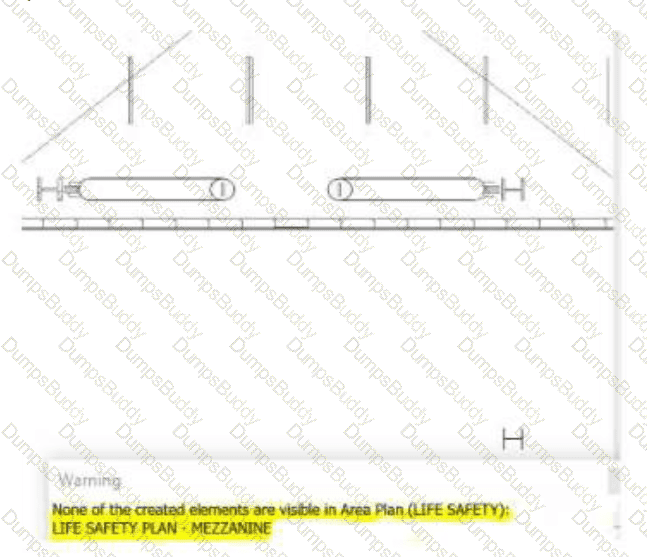

The designer should inspect the view’s Visibility/Graphics settings. Area Lines, also referred to as Area Boundary Lines, are view-specific elements whose visibility can be controlled by the active view, an applied view template, or category-level visibility settings. If the applicable line category is disabled, Revit can create the boundaries successfully while warning that the newly created elements are not visible in the current Area Plan.

The review should include the Model Categories and Annotation Categories tabs, any active view filters, temporary hide/isolate status, and the view template controlling the Area Plan. Where a template governs visibility, the correction should normally be made in the template rather than as an isolated view override, particularly when the same standard must apply to multiple Area Plans.

A Plan Region changes the local view range and does not govern Area Boundary Line visibility. Detail Level affects how certain model geometry is represented but does not normally suppress Area Lines. The Area Scheme determines the type and organizational purpose of an Area Plan, such as Gross Building or Rentable Area, but it is not the direct location for correcting hidden linework.

Reference topics: Area Plans; Area Boundary Lines; Visibility/Graphics; view templates; view-specific elements; graphical troubleshooting.

===============
