HPE7-A01 Aruba Certified Campus Access Professional Exam Questions and Answers

The show aaa authentication port-access interface all client-status command displays the status of all clients authenticated by port-based access control on all interfaces. The output includes the MAC address, user role, VLAN ID, and session timeout for each client. This command can be used to examine information on which role the guest user has been assigned by the AOS-CX switch. References: https://techhub.hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-9B8F6E8F-9C7A-4F0D-AE7B-9D8E6C5B6A7F.html

The persona role option that should be selected to deploy a Gateway and take advantage of all the SD-WAN features is A. ArubaOS 10 Branch.

ArubaOS 10 Branch is a persona that enables the Gateway to provide both LAN and WAN functionality for branch networks. The Gateway can act as a wireless controller, a router, a firewall, and an SD-WAN device. The SD-WAN features include route and tunnel orchestration, dynamic path steering, forward error correction, SaaS traffic optimization, SASE orchestration, and more 1 .

The other options are incorrect because:

B. ArubaOS 10 VPN Concentrator: This is a persona that enables the Gateway to act as a VPN concentrator for remote access or site-to-site VPN connections. It does not provide SD-WAN features 2 .

C. ArubaOS 10 Wireless: This is a persona that enables the Gateway to act as a wireless controller for campus networks. It does not provide SD-WAN features 3 .

D. ArubaOS 10 Mobility: This is a persona that enables the Gateway to act as a mobility controller for campus networks. It does not provide SD-WAN features.

The other options either use more commands or do not create the VRF or the VLAN.

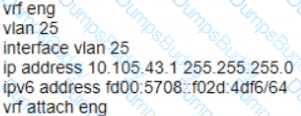

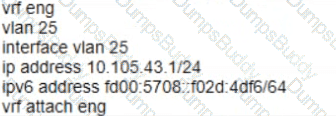

Option C uses the following commands:

vrf eng: This command creates a VRF named eng and enters the VRF configuration mode 1 .

vlan 25: This command creates a VLAN with ID 25 and enters the VLAN configuration mode 2 .

interface vlan 25: This command creates an SVI on VLAN 25 and enters the interface configuration mode 3 .

ip address 10.105.43.1/24 ipv6 address fd00:5780::102d:4df6/64 vrf attach eng: This command assigns an IPv4 address of 10.105.43.1 with a subnet mask of 255.255.255.0 and an IPv6 address of fd00:5780::102d:4df6 with a prefix length of 64 to the SVI, and attaches it to the VRF eng.

The correct mechanism is RADIUS Change of Authorization (CoA) . ClearPass Policy Manager can dynamically alter or terminate an already authenticated network session by sending a RADIUS dynamic-authorization message to the network access device. Aruba defines dynamic authorization as the capability to modify a user ' s authorization while the session is active, including disconnecting the session . Aruba Networking

For guest accounts, ClearPass can associate an expiration time or permitted access duration with the account. When the configured expiration condition requires the guest to be logged out, ClearPass can issue a RADIUS Disconnect-Request to the NAS, such as an Aruba wireless controller or access infrastructure. Aruba ' s ClearPass Guest documentation specifically describes the Disable and logout behavior as disabling further authorization and using a RADIUS Disconnect-Request for matching active sessions. Aruba Networking Once disconnected, the client must go through the applicable authentication and authorization process again before network access can resume.

An Authorization Profile defines what access should be granted but does not itself provide the dynamic session-disconnect mechanism. Active Directory session timeout and Wi-Fi Sense do not fulfill this ClearPass enforcement function.

Study Guide Topics: ClearPass Policy Manager, AAA, Guest Access, RADIUS Dynamic Authorization, Change of Authorization (CoA), Disconnect-Request, Session Enforcement.

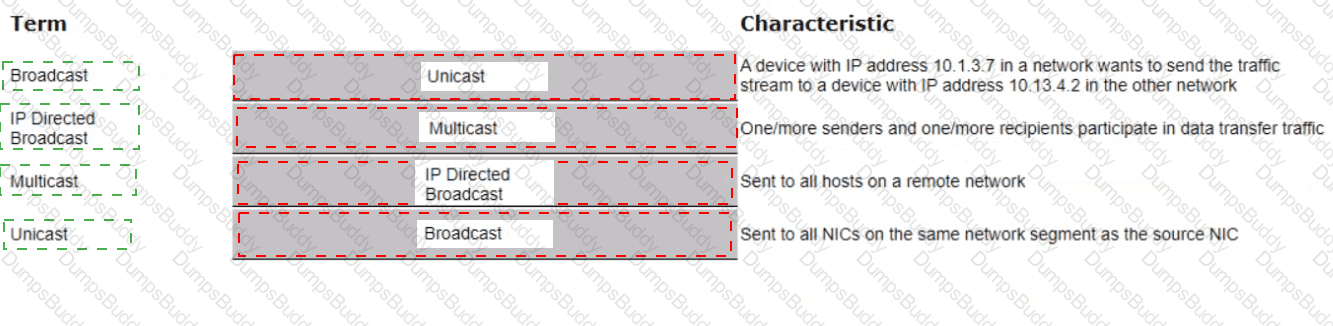

a) A device with IP address 10.1.3.7 in a network wants to send the traffic stream to a device with IP address 10.13.4.2 in the other network - >   Unicast

b) One/more senders and one/more recipients participate in data transfer traffic - >   Multicast

c) Sent to all hosts on a remote network - >   IP Directed Broadcast

d) Sent to all NICs on the same network segment as the source NIC - >   Broadcast

According to the Aruba Documentation Portal 1 , PAPI (Port Aggregation Protocol) is a protocol that allows multiple physical ports to be aggregated into a single logical port for increased bandwidth and performance. PAPI can be used between AOS-CX switches and gateways, or between AOS-CX switches and other devices.

Option A: Implement an IPSec tunnel to protect PAPI between the AOS-CX switches and the gateway

This is because option A shows how to implement an IPSec tunnel between two devices using the interface command and the ipsec command.  An IPSec tunnel can provide encryption and authentication for PAPI traffic between two devices, such as an AOS-CX switch and a gateway 2 .

Therefore, option A is a feasible option to protect this traffic.

I hope this helps you. If you need more information, please let me know. ????

1 : https://www.arubanetworks.com/techdocs/AOS-CX/10.06/HTML/5200-7727/Content/Chp_prev_traf_loss/Act_gtw_act_fwd/act-gat-ove-vsx-10.htm  2 : https://community.arubanetworks.com/blogviewer?blogkey=989fc43a-e0df-42db-9c0b-f96d6565a1fa

OSPF (Open Shortest Path First) is a routing protocol that uses link-state information to calculate the best path to each destination in the network.  OSPF establishes adjacencies with neighboring routers to exchange routing information and maintain a consistent view of the network topology 1 .

To establish an OSPF adjacency, the routers need to have some common parameters, such as the area ID, the network type, the hello interval, the dead interval, and the authentication method 2 .  The routers also need to have a matching subnet mask on the interface that connects them 3 .

In this case, the Aruba CX 6300 VSF stack has an SVI (Switched Virtual Interface) on VLAN 10 with an IP address of 10.1.1.1/24 and a LAG (Link Aggregation Group) on port 1/1/1 and port 2/1/1 that connects to a neighboring device. The SVI is configured with OSPF area 0 and network type broadcast. The LAG is configured with OSPF passive mode, which means that it will not send or receive OSPF hello packets.

The neighboring device has an interface with an IP address of 10.1.1.2/24 and a LAG on port 1/0/1 and port 2/0/1 that connects to the Aruba CX 6300 VSF stack. The interface is configured with OSPF area 0 and network type broadcast.

Since the Aruba CX 6300 VSF stack and the neighboring device have the same area ID, network type, subnet mask, and default hello and dead intervals on their interfaces, they will be able to establish an OSPF adjacency over SVI 10 with LAG 1. The OSPF passive mode on the LAG will not affect the adjacency, because it only applies to the LAG interface, not the SVI interface.

QoS stands for Quality of Service and is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc 3 .  QoS involves identifying specific traffic for special treatment and applying policies and actions to improve its performance or meet certain service level agreements (SLAs) 3 .  QoS can help network devices to manage congestion, delay, jitter, packet loss, bandwidth allocation, etc., for different types of traffic 3 .  QoS can be implemented at various layers of the network stack and across different network domains. References:  3   https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html

The important advantage supplied by SNMPv3 is enhanced security, including authentication and message integrity . SNMPv3 employs a User-based Security Model in which authentication protocols such as MD5 or the SHA family can validate the sender and verify that the SNMP message has not been altered during transmission. HPE Aruba specifically documents SNMPv3 authentication protocols and recommends SNMPv3 because it provides authentication and strong privacy mechanisms that are absent from SNMPv2c. Aruba Networking

SNMPv2c relies on community strings , which are transmitted without the stronger user-based authentication and privacy protections available in SNMPv3. Aruba notes that SNMPv1 and SNMPv2c community names can be transmitted in clear text, whereas SNMPv3 supports authenticated users and encrypted management traffic. Aruba Networking

Options A and B are not unique SNMPv3 advantages. 64-bit counters were introduced with SNMPv2, particularly through Counter64 objects, and GetBulk was also introduced with SNMPv2 to improve retrieval efficiency. Option C is actually characteristic of SNMPv1/v2c rather than an SNMPv3 improvement.

Consequently, the distinguishing SNMPv3 feature among the available answers is message integrity .

Study Guide Topics: SNMPv3, SNMPv2c, User-Based Security Model, Authentication, Message Integrity, Privacy/Encryption, AOS-CX Network Management.

According to the Aruba Documentation Portal 1 , 802.1X is a standard for port-based network access control that uses a RADIUS server to authenticate and authorize wireless clients. 802.1X can be configured in different modes, such as bridge mode, tunnel mode, or split tunnel mode.

Option C: GRE tunnel

This is because option C shows how to configure an SSID in tunnel mode with the default AP-group settings on an Aruba switch.  In tunnel mode, all client traffic from the access points is tunneled back to the controller and the controller would in turn put the client traffic onto the network 2 .  The GRE protocol is used to encapsulate and decapsulate the traffic between the access points and the controller 3 .

Therefore, option C is correct.

1 : https://www.arubanetworks.com/techdocs/AOS-CX/10.06/HTML/5200-7696/GUID-581D2976-694B-46C7-8497-F6B788AA05B2.html  2 : https://community.arubanetworks.com/discussion/bridge-and-tunnel-mode  3 : https://www.twingate.com/blog/ipsec-tunnel-mode

Strict queuing is the best scheduling technology to use for voice traffic on an AOS-CX switch. Scheduling is a mechanism that determines how packets are transmitted from different queues on an egress port. Strict queuing is a scheduling method that gives the highest priority queue absolute preference over all other queues, regardless of their size or utilization. Voice traffic should be assigned to the highest priority queue and scheduled with strict queuing to ensure minimal latency and jitter. The other options are incorrect because they are either not scheduling methods or not optimal for voice traffic. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html

The correct answers are C and D.

MPSK (Multi Pre-Shared Key) is a feature that allows multiple PSKs to be used on a single SSID, providing device-specific or group-specific passphrases for enhanced security and deployment flexibility for headless IoT devices 1 . MPSK requires MAC authentication against a ClearPass Policy Manager server, which returns the encrypted passphrase for the device in a RADIUS VSA 2 . ClearPass Policy Manager is a platform that provides role- and device-based network access control for any user across any wired, wireless and VPN infrastructure 3 . ClearPass Policy Manager can also use device profiling and posture assessment to assign roles based on device fingerprint information 4 .

MPSK Local is a variant of MPSK that allows the user to configure up to 24 PSKs per SSID locally on the device, without requiring ClearPass Policy Manager 5 . MPSK Local can be combined with EAP-TLS (Extensible Authentication Protocol-Transport Layer Security), which is a secure authentication method that uses certificates to encrypt the wireless traffic between the IoT devices and the access points 6 . EAP-TLS can also use device certificates to perform role-based access control 6 .

Therefore, both ClearPass Policy Manager and MPSK Local with EAP-TLS can meet the customer’s requirements for wireless authentication, encryption, unique passphrase, and role-based access for their IoT devices.

MPSK and an internal RADIUS server is not a valid solution, because MPSK does not support internal RADIUS servers and requires ClearPass Policy Manager 7 8 9 . MPSK Local with MAC Authentication is not a valid solution, because MAC Authentication does not encrypt the wireless traffic or use fingerprint information for role-based access 2 . Local User Derivation Rules are not a valid solution, because they do not provide unique passphrase per device or use fingerprint information for role-based access 10 11 12 .

These are two benefits enabled by LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery). LLDP-MED is an extension of LLDP that provides additional capabilities for network devices such as VoIP phones and APs. One of the capabilities is to automatically configure voice VLANs for VoIP phones, which allows them to be placed in a separate VLAN from data devices and receive QoS and security policies. Another capability is to request power as needed from PoE-enabled switch ports, which allows APs to adjust their power consumption and performance based on the available power budget. The other options are incorrect because they are either not enabled by LLDP-MED or not related to LLDP-MED. References: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/wlan-qos/lldp-med.htm https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/wlan-rf/poe.htm

These are the correct statements regarding the ERSPAN session that needs to be established on an AOS-CX switch for a network administrator to examine the packets over a period of time from their desktop. ERSPAN (Encapsulated Remote Switched Port Analyzer) is a feature that allows an AOS-CX switch to mirror traffic from one or more source ports or VLANs to a remote destination IP address over a GRE (Generic Routing Encapsulation) tunnel. The destination IP address must be the IP address of the administrator’s desktop, which must have a packet capture tool installed to receive and analyze the mirrored traffic. The encapsulation protocol used for ERSPAN is GRE, which adds a header to the mirrored packets with information such as source and destination IP addresses, session ID, etc. The other statements are incorrect because they either do not specify the correct destination IP address or do not use ERSPAN or GRE. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html

MPSK Local is a feature that can reduce the IT administration overhead associated with deploying devices that do not support 802.1X authentication while maintaining a secure environment. MPSK Local allows the switch to automatically generate and assign unique pre-shared keys for devices based on their MAC addresses, without requiring any configuration on the devices or an external authentication server. The other options are incorrect because they either require manual intervention by the installers or the MPSK gateway, or they do not provide unique pre-shared keys for devices. References: https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch05.html https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch06.html

The best option to enhance security for the new IP cameras and scanners in this environment is C. MPSK provides for each device in the WLAN to have its own unique pre-shared key.

MPSK stands for Multi Pre-Shared Key, and it is a feature that allows different devices to connect to the same SSID with different pre-shared keys. This improves the security and scalability of the network, as each device can have its own key and role without requiring 802.1X authentication or an external policy engine. MPSK can be configured either locally on the AP or centrally on Aruba Central 1 2 .

The other options are incorrect because:

A. MPSK Local is a feature that allows the user to configure 24 PSKs per SSID locally on the device. These local PSKs would serve as an extension of the base MPSK functionality. However, MPSK Local is not suitable for this scenario, as it can only support up to 24 devices per SSID, while the client has 250 devices 1 .

B. Aruba ClearPass is a network access control solution that can perform 802.1X authentication and install certificates for devices. However, this option is not feasible for this scenario, as the new IP cameras and scanners do not support 802.1X authentication 3 .

D. MPSK Local will not allow the cameras to share a key and the scanners to share a different key. MPSK Local will assign a different key to each device, regardless of their type. Moreover, MPSK Local can only support up to 24 devices per SSID, while the client has 250 devices 1 .

EVPN-VXLAN is a technology that allows layer-2 communication across layer-3 networks by using Ethernet VPN (EVPN) as a control plane and Virtual Extensible LAN (VXLAN) as a data plane 3 . EVPN-VXLAN can be used to support legacy applications that communicate at layer-2 across different campuses or data centers that are connected via layer-3.  EVPN-VXLAN minimizes flooding by using BGP to distribute MAC addresses and IP addresses of hosts across different VXLAN segments 3 .  EVPN-VXLAN also provides benefits such as loop prevention, load balancing, mobility, and scalability 3 . References:  3   https://www.arubanetworks.com/assets/tg/TG_EVPN_VXLAN.pdf

Aruba CX 6300 switches support various features to control the port access for different types of devices, such as client mode, device mode, and multidomain mode. These features can help limit the number of clients that can connect to a port and prevent unauthorized devices from accessing the network.

This is because option C shows how to configure the client limit and the auth-mode for a specific port using the interface command and the aaa authentication port-access command. The client limit specifies the maximum number of clients that can connect to a port. The auth-mode specifies the authentication mode for the port.  In this case, option C sets both parameters to multi-domain mode, which allows only one voice device and one data device to be authenticated on a port

https://www.arubanetworks.com/techdocs/AOS-CX/10.10/HTML/monitoring_6300-6400/Content/Chp_LEDs/fro-pan-led-630.htm  2 : https://www.arubanetworks.com/products/switches/6300-series/  3 : https://www.arubanetworks.com/techdocs/AOS-CX/10.11/HTML/security_6200-6300-6400/Content/Chp_Port_acc/Port_acc_gen_cmds/aaa-aut-por-acc-aut-mod-fl-109.htm

multicast transmission optimization is a feature that allows the IAP to select the optimal rate for sending broadcast and multicast frames based on the lowest of unicast rates across all associated clients 1 . When this option is enabled, multicast traffic can be sent at up to 24 Mbps. The default rate for sending frames for 2.4 GHz is 1 Mbps and 5.0 GHz is 6 Mbps.  This option is disabled by default 1 .

The information that the Inter-Switch Link Protocol configuration uses in the configuration created is B. MAC tables.

The Inter-Switch Link Protocol (ISL) is a protocol that enables the synchronization of data and state information between two VSX peer switches. The ISL uses a version control mechanism and provides backward compatibility regarding VSX synchronization capabilities. The ISL can span long distances (transceiver dependent) and supports different speeds, such as 10G, 25G, 40G, or 100G 1 .

One of the data components that the ISL synchronizes is the MAC table, which is a database that stores the MAC addresses of the devices connected to the switch and the corresponding ports or VLANs. The ISL ensures that both VSX peers have the same MAC table entries and can forward traffic to the correct destination 2 . The ISL also synchronizes other data components, such as ARP table, LACP states for VSX LAGs, and MSTP states 2 .

This is an Aruba-recommended best practice for hardening that only applies to Aruba CX 6300 series switches with dedicated management ports. A dedicated management port is a physical port that is used exclusively for out-of-band management access to the switch. A dedicated management VRF is a virtual routing and forwarding instance that isolates the management traffic from other traffic on the switch. By creating a dedicated management VRF and assigning the management port to it, the administrator can enhance the security and performance of the management access to the switch. The other options are incorrect because they either do not apply to switches with dedicated management ports or do not follow Aruba-recommended best practices. References: https://www.arubanetworks.com/assets/ds/DS_AOS-CX.pdf https://www.arubanetworks.com/assets/tg/TB_ArubaCX_Switching.pdf

QoS concept:  Class of Service  Definition: 3) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standards

QoS concept:  Differentiated services  Definition: 2) A method for classifying network traffic at layer-3 or marking packets with one of 64 different service classes

QoS concept:  WMM  Definition: 4) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standards

On an AOS-CX switch , REST API authentication uses the HTTP POST method against the login resource. Aruba specifies that a REST API session is initiated by sending the username and password through a POST request. After successful authentication, the switch returns session information that is used for subsequent API requests. Aruba Networking

For changing the administrator password, Aruba documents the use of PUT against the user resource, for example PUT /rest/v10.xx/system/users/admin, with the new password included in the request data. Therefore, D correctly associates POST with login and PUT with changing the management password . Aruba Networking

Option A is incorrect because AOS-CX does not provide comprehensive semantic validation for REST writes. Aruba explicitly warns that configuration errors written directly to the database can destabilize the switch. Aruba Networking

Option B is also incorrect. Read-only mode blocks writes to most resources, but exceptions exist. POST is still permitted for functions such as login , and certain PUT/POST operations remain available. Aruba Networking Option C simply reverses the correct HTTP methods.

Study Guide Topics: AOS-CX REST API, REST Authentication, HTTP POST/PUT Methods, API Access Modes, Read-Write versus Read-Only Access.

Active gateway is a first hop redundancy protocol that eliminates a single point of failure. The active gateway feature is used to increase the availability of the default gateway servicing hosts on the same subnet. An active gateway improves the reliability and performance of the host network by enabling a virtual router to act as the default gateway for that network.  If you have enabled active gateway, VRRP is not required 3 . Active gateway is similar to VRRP in that routed traffic from the VSX node is sourced from the switch interface MAC and not the virtual MAC address (VMAC). Each active gateway sends a periodic broadcast hello packet to avoid VMAC aging on the access switches.  The switch views the active gateway IP as a self IP address 3 .  Active gateway is preferable over VRRP because with VRRP traffic is still pushed over the ISL link, resulting in latency in the network 3 . Therefore, VRRP and active gateway are mutually exclusive on a VLAN, and answer A is correct.

 The system-mac command is used to configure a fixed MAC address for the VSX system. This MAC address is used as the source MAC address for all routed traffic from the VSX node.  The system-mac command is highly recommended for preventing traffic disruptions when the primary VSX switch restores after the secondary VSX switch, such as during a primary switch hardware replacement or a power outage 2 . During the initial VSX configuration, the system-mac is assigned with a fixed MAC based on VSX ID.  The system-mac command can be used to change this default MAC address if needed 2 . Therefore, answer D is correct.

The Inter-Switch Link (ISL) is a fundamental component of an AOS-CX Virtual Switching Extension (VSX) pair. It serves both as a Layer 2 forwarding path between the VSX peers and as the principal control-path channel used to synchronize operational state between the two switches.

HPE Aruba Networking explicitly identifies the MAC table as one of the data structures synchronized across the VSX ISL. Other synchronized information includes the ARP table, LACP state for VSX LAGs, and MSTP state . This synchronization enables both independent VSX switches to maintain consistent forwarding information and support resilient multi-chassis LAG operation. Aruba Networking

The architecture is important because VSX does not merge both switches into a single control plane. Each peer retains its own control plane, while selected operational databases and protocol states are synchronized through the ISL. HPE ' s Campus Design guidance similarly states that VSX peers synchronize MAC, ARP, STP, and other state tables across the ISL. Aruba Networking

An SVI is configuration rather than the requested synchronized forwarding-table information. UDLD is a link-detection protocol, and RPVST+ is not the answer identified in Aruba ' s ISL synchronization list.

Study Guide Topics: AOS-CX VSX, Inter-Switch Link, VSX Synchronization, MAC Address Tables, ARP Synchronization, LACP State, MSTP State.

Spectrum Monitor is an Aruba AP mode that is sending captured RF data to Aruba Central for waterfall plot. Spectrum Monitor is a mode that allows an AP to scan all channels in both 2.4 GHz and 5 GHz bands and collect information about the RF environment, such as interference sources, noise floor, channel utilization, etc. The AP then sends this data to Aruba Central, which is a cloud-based network management platform that can display the data in various formats, including waterfall plot. Waterfall plot is a graphical representation of the RF spectrum over time, showing the frequency, amplitude, and duration of RF signals. The other options are incorrect because they are either not AP modes or not sending RF data to Aruba Central. References: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/spectrum_monitor.htm https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/waterfall_plot.htm https://www.arubanetworks.com/products/network-management-operations/aruba-central/

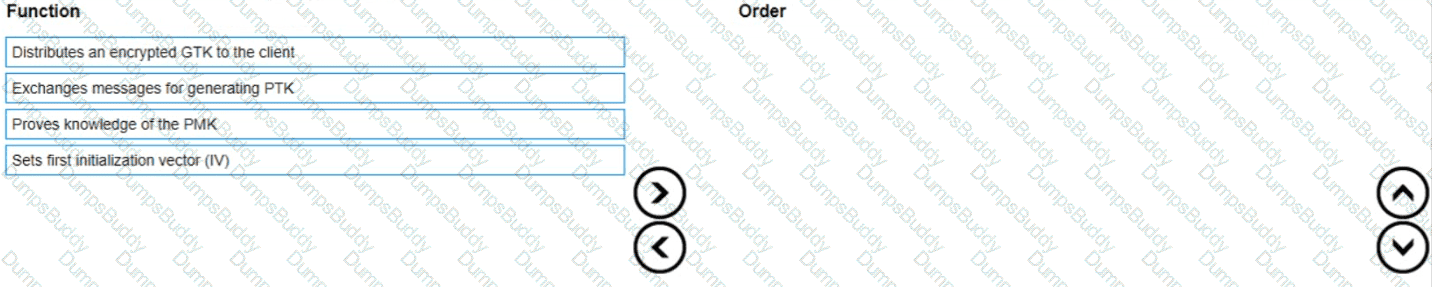

Proves knowledge of the PMK

Exchanges messages for generating PTK

Distributes an encrypted GTK to the client

Sets first initialization vector (IV)

CoS and DSCP are both methods of marking packets for quality of service (QoS) purposes. QoS is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc. CoS stands for Class of Service and is a 3-bit field in the 802.1Q VLAN tag header. CoS can only be used on Ethernet frames that have a VLAN tag, and it can only be preserved within a single VLAN domain. DSCP stands for Differentiated Services Code Point and is a 6-bit field in the IP header. DSCP can be used on any IP packet, regardless of the underlying layer 2 technology, and it can be preserved throughout the IP packet flow, unless it is modified by intermediate devices. References: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html https://www.cisco.com/c/en/us/support/docs/lan-switching/8021q/17056-741-4.html https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-packet-marking/10103-dscpvalues.html

The reason is that AOS 10.x does not support clustering gateways with different versions in the same cluster profile. A cluster profile defines the configuration settings for a group of gateways that are managed by Aruba Central.

According to the Aruba documentation 2 , “You can combine 7200 Series and 7000 Series gateways in the same cluster with a maximum size of four devices with reduced AP client capacity on 7000 Series gateways.”

AOS 10 Gateways can have the following personas: Mobility, Branch, and VPN Concentrator 1  However, the Mobility persona is only available when configuring a Gateway-only group, which is a group that contains only one gateway device 2  The Mobility persona provides Overlay WLAN and (or) wired LAN functionalities for campus networks 1  The Branch persona provides the Aruba Instant OS and SD-Branch (LAN + WAN) functionality for branch and microbranch networks 1  The VPN Concentrator persona provides VPN termination and routing functionality for remote access networks 3  The Edge persona is not a valid option, as it is not a supported device persona for AOS 10 Gateways.

Aruba 9004 gateway supports ZTP on port G0/0/0 by default 1 .  If the gateway is connected to a different port, such as G0/0/V1, it will not be able to communicate with Aruba Activate and Aruba Central, which are required for ZTP 2 .  Moreover, port G0/0/V1 is configured as a DHCP server by default, which can cause IP address conflicts with the existing network 3 . Therefore, the technician should move the cable on the gateway to port G0/0/0, which will allow the gateway to obtain an IP address from the network DHCP server and start the ZTP process. The other options are not correct because they will not solve the issue or enable ZTP.  For example, option D will not work because factory defaulting and rebooting the gateway will not change the port configuration or behavior 3 .

This is the appropriate solution for this scenario where wireless 802.1X authentication will be against a RADIUS server in the cloud and the security team is concerned that the traffic between the AP and the RADIUS server will be exposed. RadSec, also known as RADIUS over TLS, is a protocol that provides encryption and authentication for RADIUS traffic over TCP and TLS. RadSec can be configured on both the AP and the RADIUS server to establish a secure tunnel for exchanging RADIUS packets. The other options are incorrect because they either do not provide encryption or authentication for RADIUS traffic or do not involve RadSec. References: https://www.securew2.com/blog/what-is-radsec/ https://www.cloudradius.com/radsec-vs-radius/

The difference in the noise floor perceived by a client using a bonded 40 MHz wide channel as compared to an unbonded 20 MHz wide channel is 3 dB. The noise floor is the level of background noise in a given frequency band. When two adjacent channels are bonded, the noise floor increases by 3 dB because the bandwidth is doubled and more noise is captured. The other options are incorrect because they do not reflect the correct relationship between bandwidth and noise floor. References: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/wlan-rf/rf-fundamentals.htm https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/wlan-rf/channel-bonding.htm

The component that is used by the Aruba Network Analytics Engine (NAE) is D. Current State Database.

The Current State Database is a database that stores the configuration and state information of the switch, such as interfaces, VLANs, routing protocols, statistics, and more. The NAE can access this database through the AOS-CX REST API and monitor the values of any data point using monitors. The NAE can also track the history of the values in a time-series database and correlate them with network events or configuration changes 1 . The Current State Database provides NAE with direct visibility into the entire current state of the device, which enables intelligent troubleshooting and automation of network tasks 1 .

The other options are incorrect because:

A. JSON-based scripts: JSON is a data format that is used to exchange information between applications. It is not a scripting language that can be used by NAE. NAE scripts are written in Python, which is a popular and powerful programming language 1 .

B. Lisp-based agents: Lisp is a family of programming languages that are mainly used for artificial intelligence and functional programming. It is not a language that can be used by NAE. NAE agents are instances of scripts that run on the switch and collect relevant network information and trigger alerts or actions 1 .

C. Ruby-based scripts: Ruby is a general-purpose programming language that is known for its expressiveness and elegance. It is not a language that can be used by NAE. NAE scripts are written in Python, which is a popular and powerful programming language 1 .

802.3bz is a standard for Ethernet over twisted pair at speeds of 2.5 and 5 Gbit/s. These use the same cabling as the ubiquitous Gigabit Ethernet, yet offer higher speeds. The resulting standards are named 2.5GBASE-T and 5GBASE-T.

Option A: 2.5Gb and 5Gb Ethernet ports

This is because option A shows how to identify the speed of an Ethernet port based on its name and the standard it supports.  A port that supports 2.5GBASE-T or 5GBASE-T is a multi-gigabit port that can operate at speeds of up to 2.5 Gbit/s or 5 Gbit/s over twisted pair cables 2 3 .

Therefore, option A is correct.

1 : https://en.wikipedia.org/wiki/2.5GBASE-T_and_5GBASE-T  2 : https://kb.netgear.com/000049004/What-is-Multi-Gigabit-Ethernet-and-how-can-I-benefit-from-using-NETGEAR-Multi-Gigabit-Ethernet-Switches-in-my-network  3 : https://arstechnica.com/gadgets/2016/09/5gbps-ethernet-standard-details-8023bz/
