In large logistic facilities, to ensure comprehensive monitoring and performance analysis, it's recommended to place a User Experience Insight (UXI) sensor in every aisle. This allows for detailed and specific monitoring of network performance across the extensive coverage area of such facilities.

To provide an LACP connection with the maximum available bandwidth, one should configure a link aggregation group (LAG) using all available ports that can be used for data transfer. Since the SFP56 portsare used for stacking, the next best option is to use the 2 SFP28 ports and as many SmartRate 5G (SR5) ports as possible on each switch, which would allow for a 16-member LAG, with 2 SFP28 and 6 SR5 ports on each switch contributing to the LAG.

The command that is used to set a default route to 10.4.5.1 on an Aruba CX switch when in-band management using an SVI is being used is ip route 0.0 0 0/0 10.4.5.1 . This command specifies the destination network address (0.0 0 0) and prefix length (/0) and the next-hopaddress (10.4.5.1) for reaching any network that is not directly connected to the switch. The default route applies to the default VRF Virtual Routing and Forwarding. VRF is a technology that allows multiple instances of a routing table to co-exist within the same router at the same time. VRFs are typically used to segment network traffic for security, privacy, or administrative purposes. , which is used for in-band management traffic that goes through an SVI Switch Virtual Interface. SVI is a virtual interface on a switch that allows the switch to route packets between different VLANs on the same switch or different switches that are connected by a trunk link. An SVI is associated with a VLAN and has an IP address and subnet mask assigned to it12. References: 1 https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Chp_StatRoute/def-rou.htm  2 https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Chp_VRF/vrf-overview.htm

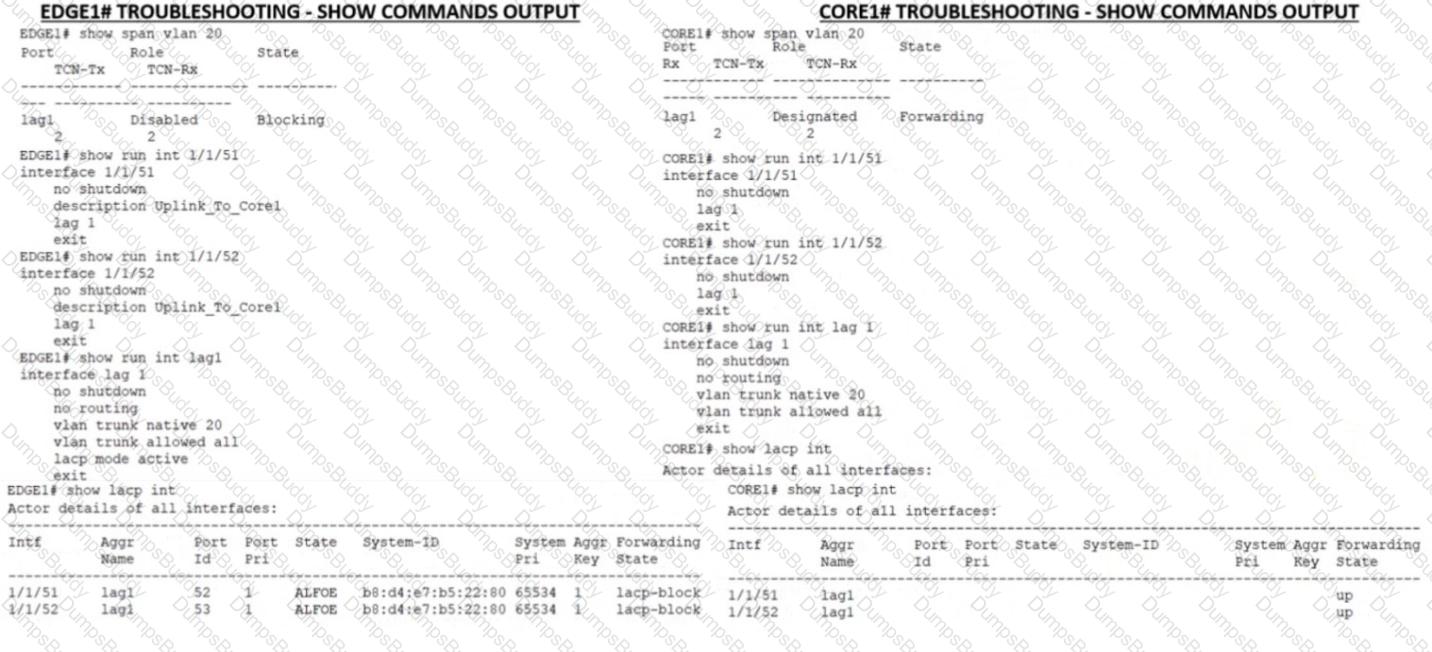

LACP is a protocol that allows multiple physical links to be aggregated into a single logical link for increased bandwidth and redundancy. LACP must be configured on both ends of the link for it to work properly. In this case, EDGE1 has LACP configured on its uplink port-channel 1, but CORE1 does not have LACP configured on its corresponding port-channel 1. This causes a mismatch and prevents the link from coming up.References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/lacp.htm

The client's broadcast domain in ArubaOS can be set with role-based VLAN overrides within the firewall role settings. This allows for dynamic assignment of VLANs to users based on their role, which determines their level of network access, including their broadcast domain.

A frame is the data link layer PDU that encapsulates the network layer PDU (packet) with a header and a trailer that contain information such as source and destination MAC addresses, frame type, error detection, etc. A frame is transmitted over a physical medium such as Ethernet, Wi-Fi, etc.References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/networking-basics.htm

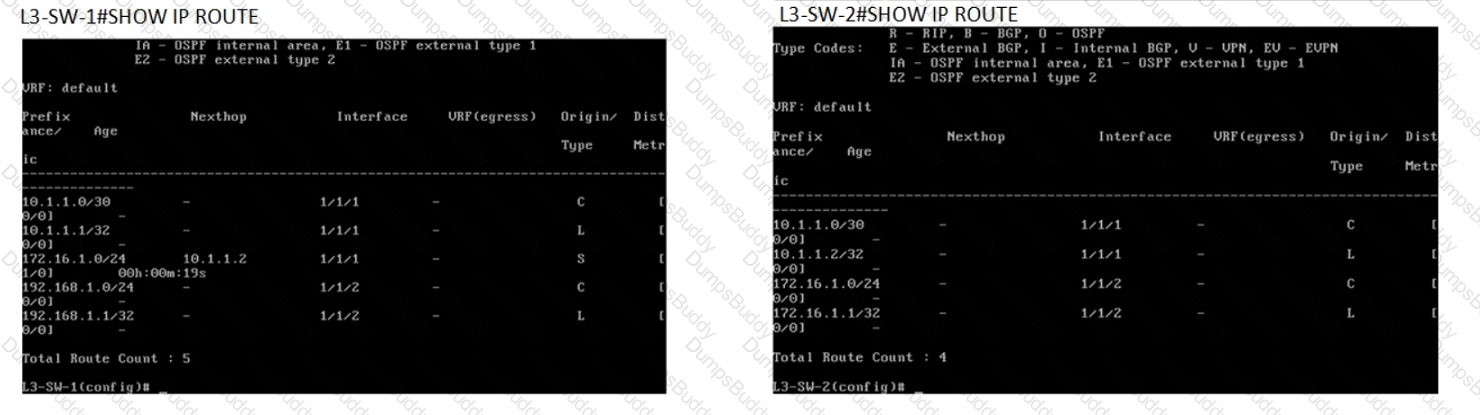

Using the provided topology and show command output, it can be determined that L3-SW-2 in the Branch Office does not have a route to reach the subnet where PC1 resides (192.168.1.0/24 in the HQ Office). L3-SW-1 in the HQ Office has a route to the Branch Office subnet (172.16.1.0/24), but without the reciprocal route on L3-SW-2, traffic from the Branch Office will not be able to reach the HQ Office subnet, hence PC1 cannot ping PC2.

LLDP (Link Layer Discovery Protocol) is commonly used by network devices, including wireless access points, to negotiate PoE (Power over Ethernet) power levels with the switch they are connected to. This allows the access point to communicate its power requirements to ensure it receives the necessary power for optimal operation.

Proves knowledge of the PMK

Exchanges messages for generating PTK

Distributes an encrypted GTK to the client

Sets first initialization vector (IV)

The main characteristic of the 6 GHz band that is true among the given options is that in North America, the 6 GHz band offers more 80 MHz channels than there are 40 MHz channels in the 5 GHz band. This characteristic provides more spectrum availability, less interference, and higher throughput for wireless devices that support Wi-Fi 6E Wi-Fi Enhanced (Wi-Fi 6E) is an extension of Wi-Fi 6 (802.11ax) standard that operates in the newly available unlicensed frequency spectrum around 6 GHz in addition to existing bands below it. Some facts about this characteristic are:

In North America, there are up to seven non-overlapping channels available in each of three channel widths (20 MHz, 40 MHz, and 80 MHz) in the entireunlicensed portion of the new spectrum (5925–7125 MHz). This means there are up to 21 non-overlapping channels available for Wi-Fi devices in total.

In comparison, in North America, there are only nine non-overlapping channels available in each of two channel widths (20 MHz and 40 MHz) in the entire unlicensed portion of the existing spectrum below it (2400–2483 MHz and 5150–5825 MHz). This means there are only up to nine non-overlapping channels available for Wi-Fi devices in total.

Therefore, in North America, there are more than twice as many non-overlapping channels available in each channel width in the new spectrum than in the existing spectrum below it.

Specifically, there are more than twice as many non-overlapping channels available at 80 MHz width (seven) than at 40 MHz width (three) in the existing spectrum below it.

The other options are not true because:

Less RF signal is absorbed by objects in a 6 GHz WLAN: This option is false because higher frequency signals tend to be more absorbed by objects than lower frequency signals due to higher attenuation Attenuation is a general term that refers to any reduction in signal strength during transmission over distance or through an object or medium . Therefore, RF signals in a 6 GHz WLAN would be more absorbed by objects than RF signals in a lower frequency WLAN.

The 6 GHz band is fully backward compatible with existing bands: This option is false because Wi-Fi devices need to support Wi-Fi 6E standard to operate in the new spectrum around 6 GHz . Existing Wi-Fi devices that do not support Wi-Fi 6E standard cannot use this spectrum and can only operate in existing bands below it.

Low Power Devices are allowed for indoor and outdoor usage: This option is false because Low Power Indoor Devices (LPI) are only allowed for indoor usage under certain power limits and registration requirements . Outdoor usage of LPI devices is prohibited by regulatory authorities such as FCC Federal Communications Commission (FCC) is an independent agency of United States government that regulates communications by radio, television, wire, satellite, and cable across United States . However, outdoor usage of Very Low Power Devices (VLP) may be allowed under certain power limits and without registration requirements.

References: https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-6e https://www.wi-fi.org/file/wi-fi-alliance-spectrum-needs-study https://www.cisco.com/c/en/us/products/collateral/wireless/spectrum-expert-wi-fi/prod_white_paper0900aecd807395a9.html https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/82068-power-levels.html https://www.wi-fi.org/file/wi-fi-alliance-unlicensed-spectrum-in-the-us

When generating a Multiple Pre-Shared Key (MPSK) for headless devices using the ClearPass self-service registration page, the MAC address of the device is required. MPSK associates a unique PSK with the MAC address of a device, providing a way to authenticate devices that may not have a user interface.

The RADIUS message that you should look for to ensure a successful connection via 802.1X is Access-Accept. This message indicates that the RADIUS server has authenticated and authorized the supplicant (the device that wants to access the network) and has granted it access to the network resources. The Access-Accept message may also contain additional attributes such as VLAN ID, session timeout, or filter ID that specify how the authenticator (the device that controls access to the network, such as a switch) should treat the supplicant’s traffic.

The other options are not RADIUS messages because:

Authorized: This is not a RADIUS message, but a state that indicates that a port on an authenticator is allowed to pass traffic from a supplicant after successful authentication and authorization.

Success: This is not a RADIUS message, but a status that indicates that an EAP Extensible Authentication Protocol (EAP) is an authentication framework that provides support for multiple authentication methods, such as passwords, certificates, tokens, or biometrics. EAP is used in wireless networks and point-to-point connections to provide secure authentication between a supplicant (a device that wants to access the network) and an authentication server (a device that verifies the credentials of the supplicant). exchange has completed successfully between a supplicant and an authentication server.

Authenticated: This is not a RADIUS message, but a state that indicates that a port on an authenticator has received an EAP-Success message from an authentication server after successful authentication of a supplicant.

References: https://en.wikipedia.org/wiki/RADIUS#Access-Accept https://www.cisco.com/c/en/us/support/docs/security-vpn/remote-authentication-dial-user-service-radius/13838-10.html https://en.wikipedia.org/wiki/IEEE_802.1X#Port-based_network_access_control https://en.wikipedia.org/wiki/Extensible_Authentication_Protocol#EAP_exchange

Bonding multiple 20MHz wide 802.11 channels is a technique to create a wider bandwidth channel that supports higher data rate transmissions. It can increase the throughput between the client and AP by using more spectrum resources and reducing interference. References:https://ieeexplore.ieee.org/document/9288995

Bonding multiple 20MHz wide 802.11 channels is a technique used to increase the throughput between the client device and the Access Point (AP). By combining two or more 20MHz channels into a wider channel (e.g., 40MHz, 80MHz, or even 160MHz), the data carrying capacity and, consequently, the overall throughput of the wireless connection are increased. This method is particularly useful in high-bandwidth applications or environments where higher data rates are required.

A solid amber radio status LED on an Aruba Access Point (AP) typically indicates a power issue, specifically that not enough Power over Ethernet (PoE) is being provided from the switch to fully power all functionalities of the AP, including both of its radios. In environments where APs are powered via PoE, it is crucial to ensure that the switch supplying the power is capable of delivering sufficient power for the AP's requirements. If the AP does not receive enough power, it may disable certain features or radios to conserve energy, which is indicated by the solid amber LED. This situation is common in scenarios where the switch provides only 802.3af PoE rather than the more powerful 802.3at PoE+ needed by some high-performance APs to operate all features, including dual radios, at full capacity.

For "headless" devices that lack 802.1X support, Multi-Preshared Keys (mPSK) provide a more secure alternative to WPA2-Personal, which uses a single preshared key. mPSK allows for the assignment of unique PSKs to devices or groups of devices, which enhances security by not sharing a single PSK across multiple devices.

Signal to noise ratio (SNR) is a measure that compares the level of a desired signal to the level of background noise. SNR is defined as the ratio of signal power to the noise power, often expressed in decibels (dB). A high SNR means that the signal is clear and easy to detect or interpret, while a low SNR means that the signal is corrupted or obscured by noise and may be difficult to distinguish or recover1. When the signal from an AP Access Point. AP is a device that allows wireless devices to connect to a wired network using Wi-Fi, or related standards. weakens by being absorbed as it moves through an object, such as a wall or a furniture, the signal power decreases. This reduces the SNR and affects the quality of the wireless connection. The noise power may also increase due to interference from other sources, such as other APs or devices operating in the same frequency band2. Therefore, the correct answer is that SNR decreases when the signal from an AP weakens by being absorbed as it moves through an object. References: 1 https://en.wikipedia.org/wiki/Signal-to-noise_ratio  2 https://documentation.meraki.com/MR/Wi-Fi_Basics_and_Best_Practices/Signal-to-Noise_Ratio_%28SNR%29_and_Wireless_Signal_Strength

In the access tracker of ClearPass, after a customer successfully connects to a guest network through a captive portal, the OUTPUT tab should show a role indicating that the user is authenticated, such as "Guest authenticated." This role confirms that the user has passed the authentication process and has been granted access.

When a wireless client’s countdown timer (also known as a backoff timer) reaches zero during contention-based access periods, and it receives a Transmit Opportunity (TXOP), it has the right to transmit its data frames on the medium. After sending the data frames, it expects an acknowledgment (ACK) from the Access Point (AP) to ensure the frames were received successfully.

AirMatch is a feature that provides centralized RF planning and optimization service for Aruba wireless networks. It uses cloud-based algorithms and machine learning to optimize the RF performance and user experience.References:https://www.arubanetworks.com/assets/ds/DS_AirMatch.pdf

In Aruba networks, the recommended Virtual Switching Framework (VSF) topologies include the daisy chain plus Multi-Active Detection (MAD) and the ring topology. The daisy chain topology with MAD provides a straightforward and effective way to connect multiple switches in a series while ensuring there is a mechanism in place (MAD) to detect and handle situations where more than one switch in the VSF might become active simultaneously. The ring topology offers redundancy by creating a looped connection pattern among the VSF members, enhancing network resilience and reliability.

dBm is a unit of power that measures the ratio of a given power level to 1 mW. The formula to convert dBm to mW is: P(mW) = 1mW * 10^(P(dBm)/10). Therefore, -20 dBm corresponds to 0.01 mW, as follows: P(mW) = 1mW * 10^(-20/10) = 0.01 mW References:https://www.rapidtables.com/convert/power/dBm_to_mW.html

The dBm is a logarithmic unit of power relative to 1 milliwatt (mW). -20 dBm means that the signal strength is 20 decibels lower than 1 mW. In terms of mW, this is 0.01 mW. Each 10 dB decrease represents a tenfold decrease in power. Therefore, -20 dBm is10−210−2or 0.01 mW.

MSTP Multiple Spanning Tree Protocol. MSTP is an IEEE standard protocol for preventing loops in a network with multiple VLANs. MSTP allows multiple VLANs to be mapped to a reduced number of spanning-tree instances. configuration ID consists of two parameters: name and revision. The name is a 32-byte ASCII string that identifies the MSTP region, which is a group of switches that share the same configuration ID and VLAN-to-instance mapping. The revision is a 16-bit number that indicates the version of the configuration ID. By default, the MSTP configuration ID name is set to the switch IMC address, which is a unique identifier derived from the MAC address Media Access Control address. MAC address is a unique identifier assigned to a network interface controller (NIC) for use as a network address in communications within a network segment. of the switch.References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/mstp/mstp.htm

Aruba ClientMatch is a technology that continuously monitors client behavior and automatically adjusts client connections to optimize Wi-Fi performance. This includes steering clients to the least congested access point and the best radio on the WLAN, which effectively provides load balancing across different radio bands and AP radios.

Wireless client roaming decisions are made by the client device based on its own criteria, such as signal strength, noise level, data rate, etc. The network can influence the client’s roaming decision by providing information such as neighbor reports, load balancing, band steering, etc., but the final decision is up to the client.References:https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instant-ug/wlan-roaming/client-roaming.htm

Wireless client roaming decisions are primarily made by the client device itself. The client device monitors the signal strength and quality of the current connection and decides to roam to a different Access Point (AP) when the current signal deteriorates below a certain threshold or a better option is available. While APs and controllers can provide information and support for roaming decisions through protocols like 802.11k and 802.11v, the ultimate decision to roam is made by the client device based on its algorithms and thresholds.

ICMP (Internet Control Message Protocol) is used by network devices to send error and operational information related to IP communications. It is used to send messages like "destination unreachable" or "time exceeded" when there are issues in IP communication

The advantage of Layer 2 MAC authentication is that it does not require any setup or configuration on the client device. The network devices (like switches or access points) perform the authentication automatically based on the MAC address of the device when it tries to connect to the network.

This configuration script will achieve the task as it follows the guidelines given by the Senior Engineer. It creates VLAN 20 with name Mgmt, adds L3 SVI on VLAN 20 with IP address 10.1.1.10/24, creates LAG 1 with LACP mode active for the uplink, uses VLAN 20 as the native VLAN on the LAG, and ensures that the interfaces are all ON.References:https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6790/GUID-8F0E7E8B-0F4B-4A3C-AE7F-0F1B5A7F9C5D.html

Edge1# conf t

vlan 20

name Mgmt

interface vlan 20

ip address 10.1.1.10/24

no shut

interface lag 1

no shut

vlan trunk native 20

vlan trunk allowed all

lacp mode active

interface 1/1/51

no shut

lag 1

interface 1/1/52

no shut

lag 1

exit

This script correctly creates VLAN 20 with the name 'Mgmt', adds an L3 SVI for management using the specified IP address, and configures LACP for link aggregation (LAG 1) using the active mode. It also sets VLAN 20 as the native VLAN on the LAG and ensures all interfaces are enabled ('no shut' is the command to bring up the interface if it has been administratively shut down).
