3V0-22.25 Advanced VMware Cloud Foundation 9.0 Operations Questions and Answers

The correct mapping is based on the monitoring method and discovery scope. Service Discovery identifies services running in each VM and builds relationships or dependencies between services running on different VMs, allowing administrators to understand service impact, outage dependency, and escalation paths . Application Discovery builds on service relationships by identifying predefined and custom applications when services are connected to and communicating with one another; VCF Operations can show the VMs connected to those services and how those services interact . Product-Managed Telegraf is managed directly by VCF Operations and is used to monitor supported operating systems and application services on vCenter-managed VMs, unmanaged VMs, and physical servers categorized as endpoints . Open Source Telegraf is user-managed and can monitor operating systems plus both supported and unsupported application services, although lifecycle actions such as start, stop, upgrade, and plugin activation are not managed by VCF Operations . Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Service Discovery, Application Discovery, Product-Managed Telegraf, and Open Source Telegraf .

The correct selections are A, C, and E . For VCF Operations for Logs content-pack query design, Broadcom’s documented leading practice is to build portable and efficient message queries. Queries should not be tied to environment-specific attributes such as a particular hostname, source, or facility, because content-pack queries must work consistently across customer environments and not depend on local naming conventions ( TechDocs ). For performance, the query should use the least expensive matching method first: keywords , then globs , and only then regular expressions when the simpler forms cannot meet the requirement. Broadcom explicitly documents that query construction should follow this keyword-to-glob-to-regex progression ( TechDocs ). Regular expressions are the most expensive search type, so when regex or field operations are required, the query should include as many selective keywords as possible to reduce the event set before regex processing occurs ( TechDocs ). Splitting text filters into multiple lines or multiple regex expressions increases complexity and cost. Boolean restructuring alone does not replace proper keyword-first design. Reference topic: Objective 4.12 – VCF Operations for Logs / Content Packs / Message Query Best Practices .

The correct answer is SDDC Manager . In VCF 9.0 password management, VCF Operations can manage many component credentials from Fleet Management > Passwords , including update and remediate operations for supported accounts. However, SDDC Manager is a special case. The documentation lists the VCF Instance/domain components managed from the VCF Operations console as ESX , NSX Manager , vCenter , and SDDC Manager backup password only . The SDDC Manager root and vcf accounts are not updated through the VCF Operations UI password workflow. Instead, the documented SDDC Manager account table shows that the vcf and root accounts are manually managed by using the operating system, while only the backup account is updated or remediated by using the VCF Operations UI or API . By contrast, the vCenter root account, NSX Local Manager root account, and ESX root account are listed as accounts that can be updated or remediated using the VCF Operations UI or API . Reference topic: Objective 4.14 – Complete Fleet Management activities in VCF Operations / Password Management / component account lifecycle management .

VCF Operations log analysis uses the search bar under Infrastructure Operations > Analyze > Logs to refine log-event results by keyword, phrase, glob, regular expression, or field operation. In the main search text box, multiple keywords entered together are treated as a logical AND , not an OR. The official guidance states that to find events containing specified keywords, the administrator enters complete keywords, globs, or phrases in the search text box, and that entering a space in the main search field is a logical AND operator . Therefore, entering esx.audit and firewall returns only log events that contain both terms: events matching esx.audit and also matching firewall. This is the correct behavior when the administrator is searching for ESX audit events specifically related to firewall changes. Option C would apply to OR-style behavior, but that applies to multiple values inside a single filter row when entered as separate filter values, not to the main search bar keyword syntax . Options A and B introduce unrelated terms and do not match the provided search criteria. Reference topic: Objective 4.12 – Log Event Monitoring and Analysis in VCF Operations / Searching and Filtering Log Events / Search bar keyword logic .

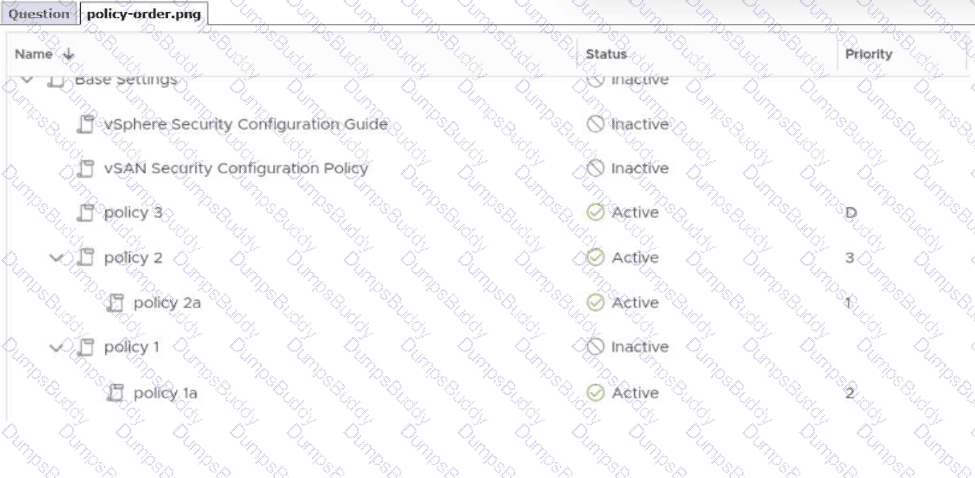

The applied policy is policy 2a because VCF Operations resolves multiple policy assignments by using active policy priority , not by custom group name, policy inheritance tree location, or alphabetical order. The exhibit shows policy 2a as active with priority 1 , policy 1a as active with priority 2 , and policy 2 as active with priority 3 . policy 1 is inactive, so it is not eligible to become the effective policy for the workload. VCF Operations documentation states that policies are applied in priority order as shown on the Active Policies tab, and that priority 1 is the highest priority. It further states that when an object is a member of multiple object groups and each group has a different policy assigned, VCF Operations associates the highest ranking policy with that object . Therefore, even though Workload-01 belongs to all four custom groups, the effective policy is the active policy with the highest rank: policy 2a . Reference topic: Objective 4.5 – Managing VCF Operations with VCF Policy / Policy Hierarchy / Policy Assignment / Active Policy Priority .

The correct entry point is Infrastructure Operations > Configurations > Service Discovery > Configure Service Discovery . VCF Operations Service Discovery is not automatically enabled merely because VMware Tools is installed. VMware Tools is a dependency for discovery methods, but the vCenter adapter instance and Service Discovery configuration still must be enabled and associated with the relevant vCenter. The official workflow states that the administrator opens Infrastructure Operations > Configurations , selects the Service Discovery tile, and clicks Configure Service Discovery . From there, the administrator selects the vCenter instance, opens the Service Discovery tab, and activates the Service Discovery option. Application Discovery and credential or credential-less discovery settings can also be enabled from the same workflow . Option B is incorrect because the documented navigation is not through an Administration menu, and the configuration is performed from the Service Discovery tile into the vCenter integration. Option D is used later to manage discovered services and monitoring state, not to initially configure the service discovery adapter. Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Service Discovery / Configure Service and Application Discovery .

The administrator should use a List View. In VCF Operations, views present collected information for objects depending on the selected view type, and the View widget can be added to custom dashboards to display operational data that is relevant to dashboard users . A List View is specifically designed to provide tabular data about selected objects in the monitored environment, where each object appears as a row and the selected metrics or properties appear as columns . This directly satisfies the requirement to monitor CPU, memory, and disk usage across all VMs in a workload domain because the administrator can select Virtual Machine as the subject and add the required usage metrics as columns. The documentation also states that the View widget supports Export as CSV, and that views can be exported in CSV format . Scoreboard is best for current metric tiles, Object Relationship is for topology, and Trend View is for historical trends and forecasts, not detailed tabular extraction. Reference topic: Objective 4.10 – Creating Custom Dashboards, Views and Reports / Create a View / List View / View Widget Export as CSV.

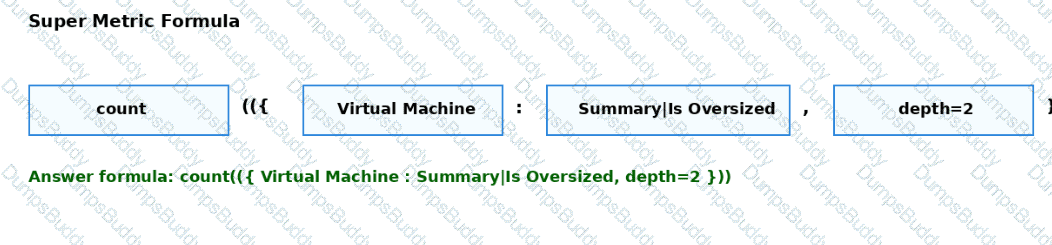

The report must count oversized Virtual Machine objects beneath the workload domain cluster. The correct aggregate function is count , because the requirement is a total number, not an average. The correct object type is Virtual Machine , because the oversized state is a VM-level metric. The correct metric is Summary|Is Oversized , which maps to the VM metric key summary|oversized and returns whether the VM is oversized . The correct relationship depth is depth=2 , because the VCF Operations super metric guidance states that when a super metric is assigned to a cluster and calculates across virtual machines, the cluster is two levels above the VM in the relationship chain, so depth must be changed to 2

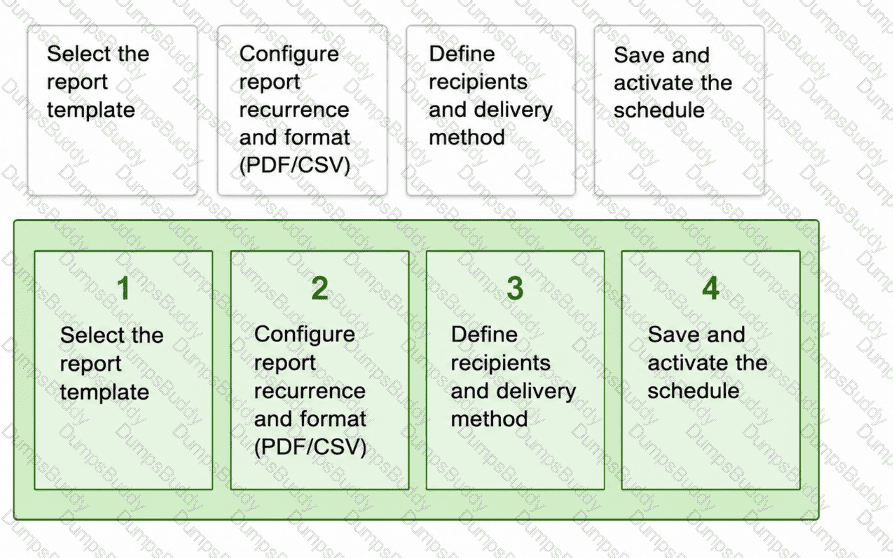

The correct sequence starts by selecting the relevant report template , because VCF Operations schedules are created against an existing predefined or custom report template. The documented workflow is accessed from Infrastructure Operations > Dashboards & Reports > Reports , where the administrator selects the required template from the Report Templates tab and chooses Schedule from the template actions . After the template and target object are selected, the administrator configures the schedule parameters, including time zone, start date, start time, and Recurrence . For a weekly report, the recurrence is set to Weekly . Report output is based on the template format, and VCF Operations supports both PDF and CSV report formats . The next step is to define delivery, such as enabling Email report , entering recipients, and selecting the outbound rule, or saving the report to an external location such as a network share . Finally, the administrator saves the configuration to activate the schedule. Reference topic: Objective 4.10 – Creating Custom Dashboards, Views and Reports / Schedule a Report / Report Templates / Recurrence and Delivery Options .

The administrator should assign the developer an appropriate VCF Operations content-management role, represented here by ContentAdmin . In VCF Operations 9.0, Management Pack Builder is already integrated into the product; it is not deployed as a separate appliance and does not require installation from Marketplace. The official documentation states that Management Pack Builder enables creation of custom management packs for VCF Operations and that there is no separate installation required , replacing the older standalone OVA-based model . It is accessed directly in the VCF Operations console under Developer Center > Management Pack Builder , where users can create, import, export, edit, and delete custom designs . Therefore, the environment preparation step is access enablement, not software deployment. The ContentAdmin role is the best listed fit because Broadcom documents it as a role for users who manage content such as views, reports, dashboards, and custom groups in VCF Operations . Feature flags, OVA deployment, and Marketplace installation are not required. Reference topic: Objective 4.8 – Management Pack Builder / custom management packs / access and content administration .

The administrator must change the custom group object type to Edge Transport Node . The tag criteria are already expressed correctly: nsx is the tag category and edge is the tag value. In VCF Operations custom groups, dynamic membership is calculated by matching the selected Object Type and the defined membership criteria. The documentation states that custom group membership criteria require selecting the object type first, then applying criteria such as metrics, relationships, properties, object name, or tag; VCF Operations then keeps dynamic group membership current based on those rules . The failure occurs because the objects that were tagged are NSX Edge nodes, while the group is filtering for Edge Cluster objects. NSX documentation identifies NSX Edge nodes as Edge Transport Nodes , and Edge nodes are configured and managed under System > Fabric > Nodes > Edge Transport Nodes . An Edge Cluster is a grouping construct and does not match the tagged edge-node objects. Changing the tag value to nsx:edge would incorrectly collapse category and value into one field. Reference topic: Objective 4.5 – VCF Policy / Custom Groups / Dynamic Tag-Based Membership .

The correct action is to adjust the Troubleshooting Workbench time range to cover the incident window, then inspect the Property Changes evidence. VCF Operations states that the workbench investigates potential evidence within a selected scope and time range, and that the time range can be changed up to seven days using the date and time controls . Property changes are one of the key evidence types displayed in the Potential Evidence tab, alongside Events and Anomalous Metrics. The documentation specifically describes Property Changes as important configuration changes that occurred within the selected scope and selected time, including both single and multiple property changes . Therefore, the administrator must set the Time Range to Last 7 days and review the listed Property Changes for the affected VM. Option B is incorrect because the maximum is not 24 hours. Option C is incorrect because evidence is tied to the selected time range. Option D is less precise because “Last week” may represent a calendar week rather than the last seven days. Reference topic: Objective 4.9 – VCF Operations Troubleshooting Tools and Methodologies / Troubleshooting Workbench / Potential Evidence / Property Changes .

The required plug-in type is Webhook Notification Plugin . Workload Placement Action-based notifications are a specific notification type used for WLP virtual machine movement tasks , not standard alert notifications. The VCF Operations documentation states that administrators can create and manage Workload Placement action-based notifications and configure actions for which notifications are sent when a WLP action succeeds, fails, or times out. It further specifies that notifications are sent after the WLP VM movement task completes, regardless of final status . Before such notification rules can be created, the administrator must configure the Webhook Notification Plugin . In the WLP Action notification workflow, the outbound method supported by default is the Webhook Notification Plugin, and the administrator selects or creates a Webhook plug-in instance before selecting the payload template . This is reinforced in the payload-template workflow, where Action appears only when Webhook Notification Plugin is selected as the outbound method; WLP Action notification payloads are configurable only for Webhook . Network Share does not support notification rules, and SNMP or Standard Email are used for alert-style notifications, not WLP Action notifications. Reference topic: Objective 4.9 – Notifications / Outbound Plugins / WLP Action-Based Notifications .

CL-01 is using both Demand and Allocation capacity models. The Demand model is shown by GHz and physical memory capacity remaining, while the Allocation model is shown by allocated capacity values such as vCPUs and expanded memory capacity. VCF Operations states that the Allocation model is enabled in policy by setting overcommit ratios for Cluster Compute Resource CPU, memory, and disk space, and that the Capacity tab displays Demand by default and Allocation values when configured . CL-01 has 60 physical cores. It reports 300 vCPUs as the allocation basis, so the CPU allocation ratio is 300 ÷ 60 = 5:1 , not 4:1. This aligns with the documented allocation calculation where the vCPU count is derived from physical cores multiplied by the overcommit ratio . CL-01’s most constrained resource is CPU Allocation because only 30% of vCPU capacity remains, compared with 80% GHz remaining and 80% memory remaining. CL-02 shows only GHz and physical memory values, with no vCPU or allocation-expanded memory values, so the Allocation model is not enabled for CL-02. Reference topic: Objective 4.2 – Capacity Models / Allocation vs Demand / Overcommit Ratios / Capacity Remaining .

The correct base object type is NSX: Transport Node . In VCF Operations, an NSX Edge Node is modeled operationally as an NSX Edge Transport Node , not simply as a vCenter virtual machine. The alert definition must therefore be built against the NSX object type that owns the relevant NSX system-resource metrics. The VCF Operations documentation identifies Edge Node health monitoring as including Edge Resource Utilization , which summarizes CPU, memory, and disk storage utilization for the node . The metrics reference also states that VCF Operations for Networks collects metrics for NSX-T Transport Node , and under Node Metrics includes CPU Usage (%) , described as the percentage of CPU used out of total capacity during the interval . This aligns directly with an alert condition such as CPU Utilization > 95%. NSX: Edge Cluster is a higher-level grouping object and would not be the correct base for per-node CPU utilization. vCenter: Virtual Machine would monitor the appliance as a VM, but not the NSX transport-node metric model. vCenter: Entity Status is not appropriate for CPU thresholding. Reference topic: Objective 4.9 – Configure a Custom Alert / NSX Transport Node Metrics / Edge Node Resource Utilization .
