300-720 Securing Email with Cisco Email Security Appliance (300-720 SESA) Questions and Answers

With DomainKeys or DKIM email authentication, the sender signs the email using public key cryptography. Configuring DomainKeys and DKIM Signing A signing key i s the private key stored on the appliance. https://www.cisco.com/c/en/us/td/docs/security/esa/esa11-1/user_guide/b_ESA_Admin_Guide_11_1/b_ESA_Admin_Guide_chapter_010101.html?bookSearch=true

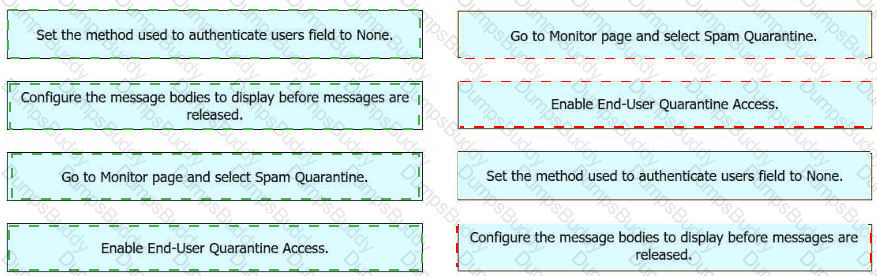

 in the spam quarantine section, you can configure settings for access to the spam quarantine, and by default, HTTP uses port 82 and HTTPS uses port 83.

A filter is a method that enables an engineer to deliver a flagged message to a specific virtual gateway address in the most flexible way. A filter is a rule that allows Cisco ESA to perform actions on messages based on predefined or custom conditions, such as headers, envelope, body, attachments, etc.

To deliver a flagged message to a specific virtual gateway address using a filter, the engineer can create a content filter or message filter that matches the flag condition and applies an action of “deliver via alternate host” with the virtual gateway address as the parameter.

The other options are not methods that enable an engineer to deliver a flagged message to a specific virtual gateway address in the most flexible way, because they have more limitations or requirements than using a filter.

To use DKIM for outbound email, the administrator must export the DNS TXT record from the Cisco Secure Email Gateway and provide it to the DNS registrar of the domain. This will allow the recipient servers to verify the DKIM signature of the email by querying the DNS rec ord of the sender domain.  References : [Cisco Secure Email Gateway Administrator Guide - Configuring DKIM Signing]

Web reputation score is a feature that allows Cisco ESA to evaluate the reputation of URLs in messages based on real-time data from Talos intelligence and apply appropriate actions, such as block, quarantine, or deliver.

To ensure that Cisco ESA evaluates the web reputation score before permitting this email, the administrator should use two criteria to create a content filter or message filter that matches this email and applies an action of “check web reputation”:

Sender matches test1.com, which means that the sender’s domain name is test1.com.

Email body contains a URL, which means that the message body has one or more URLs in it.

The other options are not valid criteria to ensure that Cisco ESA evaluates the web reputation score before permitting this email, because they do not match this email or they are not relevant to web reputation score.

By modifying the mail policies, specifically the recipient matching criteria, you can ensure that email recipients do not match multiple policies simultaneously. When recipients in the email message belong to different domains (e.g., cisco.com and test.com), it can result in multiple policies being triggered simultaneously, leading to inconsistent delivery of emails with attachments.

DLP is for outgoing mail only and not relevant to incoming mail.

According to the User Guide 1 , the steps to configure End-User Access to the Spam Quarantine via LDAP are as follows:

On the ESA, choose System Administration > LDAP > LDAP Server Profile page.

Click Add LDAP Server Profile.

Enter a name for the profile and click Submit.

Click Add Query.

Enter a name for the query and click Submit.

Configure the query settings, such as server address, port number, base DN, scope, filter, and attributes.

Check the Spam Quarantine End-User Authentication Query check box. This is the suboption that enables LDAP authentication for end users who access the spam quarantine.

Check the Designate as the active query check box. This is the suboption that specifies which query to use for end-user authentication. Only one query can be active at a time.

Click Submit and commit changes.

On the ESA, choose Monitor > Spam Quarantine > End-User Quarantine Access.

Check the Enable End-User Quarantine Access check box.

Choose LDAP from the End-User Authentication drop-down list.

Select the LDAP profile and query that you created earlier from the drop-down lists.

Click Submit and commit changes.

Non-final actions are actions that do not terminate the message filter evaluation, such as adding headers, setting variables, logging, etc. Final actions are actions that end the message filter evaluation and determine the fate of the message, such as accept, drop, bounce, quarantine, etc.

Spam Quarantine Alias Consolidation Query is a type of query that must be configured when setting up the Spam Quarantine while merging notifications on Cisco ESA. This query allows Cisco ESA to consolidate multiple email addresses that belong to the same end user into one entry in the Spam Quarantine, and send only one notification email to that end user with all the quarantined messages for all their email addresses.

A policy quarantine is a type of quarantine that allows Cisco ESA to store messages that match certain criteria, such as virus, spam, or DLP verdicts, for further review or release by an administrator or an end user.

A scenario that prevents a message from being sent to the quarantine as an action in the scan behavior on Cisco ESA is when a policy quarantine is missing, which means that no policy quarantine has been created or enabled on Cisco ESA.

The other options do not prevent a message from being sent to the quarantine as an action in the scan behavior on Cisco ESA.

A TXT record is a type of DNS record that contains arbitrary text data that can be used for various purposes such as verification, configuration, or authentication. A TXT record can contain the DKIM public key per RFC 6376, which is used to verify the digital signature of an email message generated by the DKIM private key of the sender domain.

The other options are not valid because:

A. A CNAME record is a type of DNS record that maps an alias name to a canonical name or another alias name. It does not contain any DKIM public key information.

B. An AAAA record is a type of DNS record that maps a hostname to an IPv6 address. It does not contain any DKIM public key information.

D. A PTR record is a type of DNS record that maps an IP address to a hostname, which is the reverse of an A or AAAA record. It does not contain any DKIM public key information.

The default method of remotely accessing a newly deployed Cisco Secure Email Virtual Gateway when a DHC P server is not available is to use the IP address of 192.168.42.42 via the Management port. This IP address is assigned by default to the Management port of the virtual gateway and can be used to access the web user interface or the command-line interface of the appliance.  References : [Cisco Secure Email Gateway Installation and Upgrade Guide - Configuring Network Settings]

Message splintering is a process that occurs when configuring separate incoming mail policies on Cisco ESA. Message splintering means that Cisco ESA will split a single incoming message into multiple copies, each with a different recipient and policy, and apply different security services and actions to each copy.

A content dictionary is a list of words or phrases that can be used to match against message content in Cisco ESA. For Forged Email Detection, a content dictionary can be used to specify the display names of internal senders that should not appear in the From header of external messages. The display name is usually the name of the sender as it appears in the email client, such as Alpha Beta. Therefore, the entry that will be added into the dictionary for this purpose is Alpha Beta.

To enable domain protection for the organization, the administrator must configure an outgoing mail policy that matches the sender and the from headers of the email. The sender header is the envelope sender address that is used by SMTP to route the email. The from header is the address that is displayed to the recipient as the source of the email. These headers are used to generate and verify a DomainKeys Identified Mail (DKIM) signature, which is a cryptographic method of validating the authenticity and integrity of an email message.

The other headers are not relevant for domain protection. The message-ID header is a unique identifier for each email message. The URL reputation header is a score that indicates the likelihood of a URL being malicious. The mail-from header is an alias for the sender header.

When DKIM (DomainKeys Identified Mail) signing is configured on Cisco ESA, the DNS record that must be updated to load the DKIM public signing key is the TXT record. The TXT record is used to store arbitrary text information in the DNS, such as the DKIM public key, which can be retrieved by the recipients to verify the DKIM signature in the message header.

 spam quarantine end-user authentication query is used to validate non administrative user access to the end-user quarantine via LDAP 1 .  This query is configured in the System Admini stration > LDAP > LDAP Server Profile page and can be tested using the smtproutes command in the CLI 1 . The other queries are not related to this task.  The spam quarantine alias consolidation query is used to consolidate multiple email addresses for a user into one login 2 .  The spam quarantin e external authorization query is used to authorize users to access an external spam quarantine on a separate Cisco Secure Email and Web Manager 3 .  The local mailbox (IMAP/POP) authentication is an alternative method to authenticate users without using LDAP 2 .

ceo@example.com is the data that must be added to the dictionary to accomplish this goal. A content dictionary is a list of values that can be used as a condition in a content filter or a message filter. Forged Email Detection is a feature that allows Cisco ESA to detect and prevent email spoofing attacks, where the sender’s address or domain is forged to appear as someone else, such as the CEO of the organization.

To create a content dictionary for use with Forged Email Detection on Cisco ESA, the administrator can follow these steps:

Select Mail Policies > Content Dictionaries and click Add Dictionary.

Enter a name and description for the content dictionary, such as CEO Email.

Under Dictionary Values, click Add Value.

Enter the email address of the CEO, such as ceo@example.com.

Click Submit.

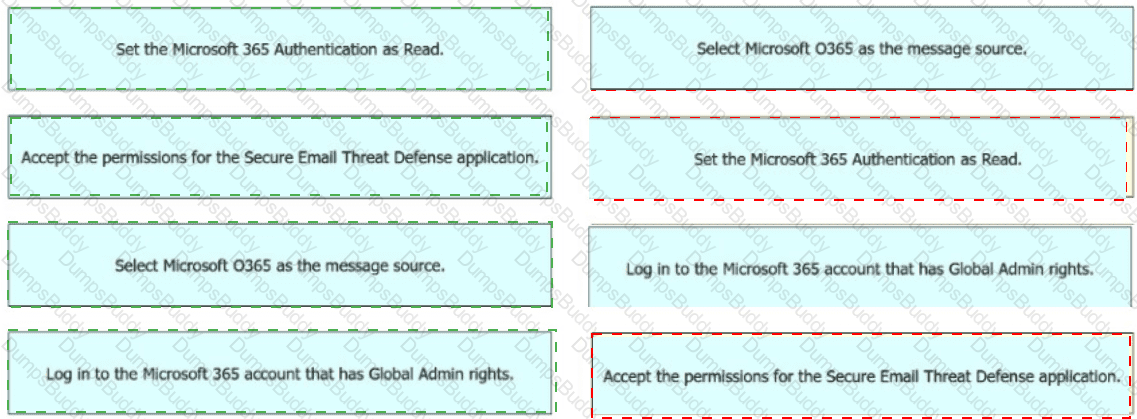

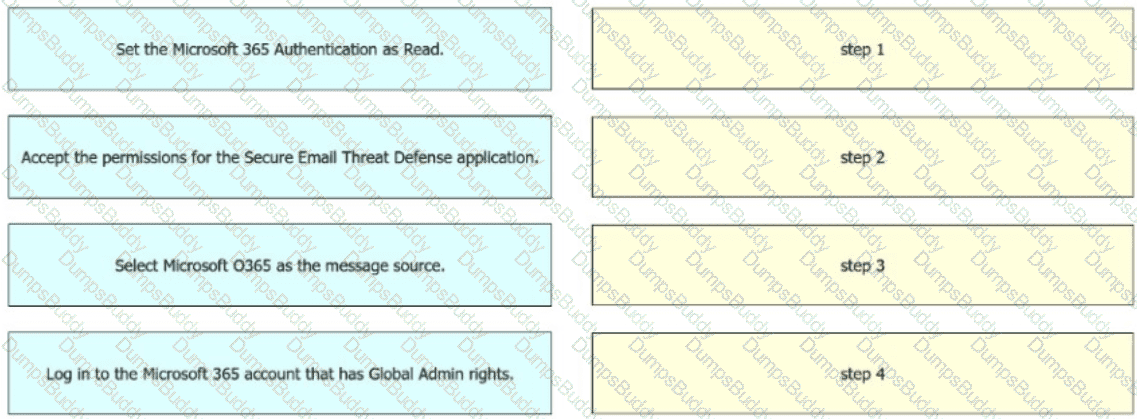

Step 1: Select Microsoft O365 as the message source.

Step 2: Set the Microsoft 365 Authentication to Read (visibility only, no remediation).

Step 3: Log in with a Microsoft 365 Global Admin account.

Step 4: Accept the permissions requested for the Secure Email Threat Defense app.

SPF verification is a feature that allows Cisco ESA to verify the authenticity of the sender’s domain by checking the sender’s IP address against a DNS record published by the domain owner. An SPF record is a TXT record that specifies the authorized IP addresses or hosts for sending emails from a domain, using a syntax of qualifiers, mechanisms, and modifiers.

The reason why the verification is not working properly is that SPF verification is disabled on the mail flow policy that applies to the messages sent from domain abc.com. A mail flow policy is a set of rules that determine how incoming or outgoing messages are processed by Cisco ESA, including whether to enable SPF verification or not.

To enable SPF verification on the mail flow policy, the administrator can follow these steps:

Select Mail Policies > Mail Flow Policies and click Edit Settings for the mail flow policy that applies to the messages sent from domain abc.com.

Under Sender Authentication, select Enable SPF Verification and choose an SPF conformance level from the drop-down menu.

Click Submit.

The other options are not valid reasons why the verification is not working properly, because they do not affect SPF verification on the mail flow policy.

Secure unsubscribe option for end users. Mimicking an unsubscribe option is a popular phishing technique. For this reason, the end users are generally wary of cl icking unknown unsubscribe links. For such scenarios, the cloud-based Unsubscribe Service extracts the original unsubscribe URI, checks the reputation of the URI, and then performs the unsubscribe process on behalf of the end user. This protects end users from malicious threats masquerading as unsubscribe links. https://www.cisco.com/c/en/us/td /docs/security/esa/esa14-2-1/User_Guide/b_ESA_Admin_Guide_14-2-1/b_ESA_Admin_Guide_12_1_chapter_01110.html#id_101033

The global setting that is configured under Cisco ESA Scan Behavior is the actions for unscannable messages due to attachment type. This setting allows the administrator to specify what action to take when a message contains an attachment that cannot be scanned by the appliance, such as encrypted or password-protected files. The possible actions are:

Deliver - Deliver the message normally.

Drop - Drop the message silently without notifying the sender or recipient.

Quarantine - Quarantine the message in a specified policy quarantine.

Bounce - Bounce the message back to the sender with a specified reason.

The envelope sender and the envelope recipeint have a higher priority over the sender header when you match a message to a mail policy. If you configure a mail policy to match a specific user, the messages are automatically classified into the mail policy based on the envelo pe sender and the envelope recipient. https://www.cisco.com/c/en/us/td/docs/security/esa/esa11- 1/user_guide/b_ESA_Admin_Guide_11_1/b_ESA_Admin_Guide_chapter_01001.html

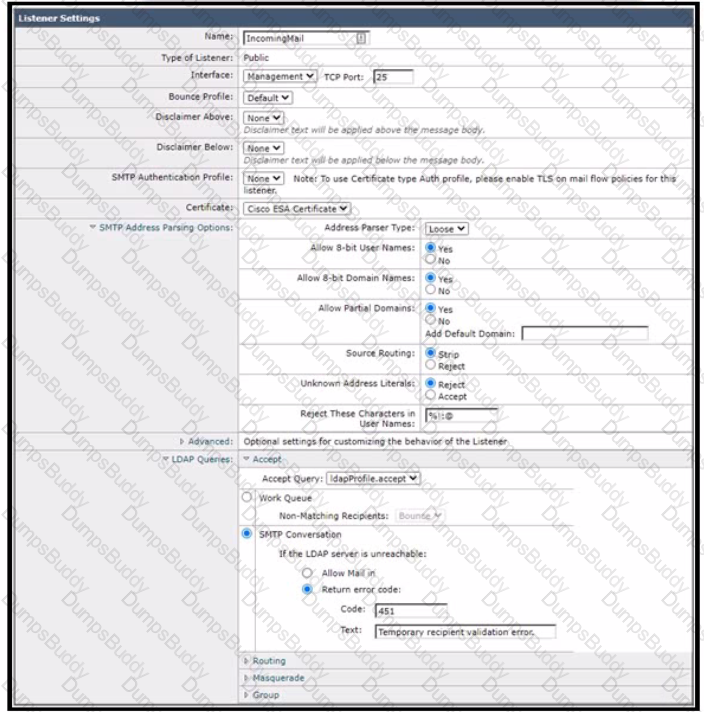

LDAP acceptance validation is a feature that allows the Cisco Secure Email Gateway to check if the recipient address of an incoming message exists in an LDAP directory before accepti ng it.  This feature can help prevent spammers from sending emails with invalid recipient addresses and reduce the load on the applia nce 2 . References =  User Guide for AsyncOS 12.0 for Cisco Email Security A ppliances - GD (General Deployment) - Configuring LDAP Queries [Cisco Secure Email Gateway] - Cisco

The allow list is a feature that allows Cisco ESA to accept messages from specific email addresses or domains, regardless of their sender-based reputation score or other reputation filters.

To allow inbound email from that specific domain, the administrator should add the domain into the allow list on Cisco ESA, which can be done from the web user interface by selecting Security Services > Safelist/Blocklist and clicking Add Entry.

The other options are not valid solutions to allow inbound email from that specific domain, because they do not affect the sender-based reputation score or the reputation filters on Cisco ESA.

If the assigned certificate under one of the IP interfaces is modified, then the HTTPS traffic when connecting to the web user interface of the Cisco Secure Email Gateway will be impacted. The administrator must ensure that the certificate is valid and trusted by the browser or client that is used to access the web user interface. Otherwise , the connection may fail or generate a warning message.  References : [Cisco Secure Email Gateway Administrator Guide - Configuring Certificates]

To meet the security policy of allowing visibility into what the URL is but not allowing the user to click it, the administrator must defang the URL. This means that the URL will be modified in a way that it is still readable by humans but not clickable by browsers. For example, http://example.com could be defanged as hxxp://example[.]com.  References : [Cisco Secure Email Gateway Administrator Guide - Defanging URL s in Messages]

Message filters can only be applied to the ESA via command line. So, you will need command line access to the ESA.

Log into the ESA via command line.

Run the following highlighted commands to apply the message filter to the ESA:

ironport.example.com > filters

Choose the operation you want to perform:

- NEW - Create a new filter.

- IMPORT - Import a filter script from a file.

[] > NEW

Enter filter script. Enter ' . ' on its own line to end.

large_spam_no_attachment:

if ((body-size > 2097152) AND NOT (attachment-size > 0)) {

quarantine( " large_spam " );

log-entry( " *****This is a large message with no attachments***** " );

}

1 filters added.

Modify Subject is an additional option that should be used to help the end users be aware of the elevated risk of interacting with these messages. Modify Subject allows the administrator to add a prefix or suffix to the message subject, such as “[SPF Fail]”, to indicate that the message has failed the SPF verification and may be fraudulent or spoofed.

The other options are not valid additional options to help the end users be aware of the elevated risk of interacting with these messages, because they do not affect the message subject or provide any warning to the end users.

The safelist/blocklist (SLBL) is a feature that allows Cisco ESA to accept or reject messages from specific email addresses or domains, based on the configuration of mail flow policies or end user preferences.

The action that provides direct access to view the SLBL on Cisco ESA is to export the SLBL to a .csv file, which can be done from the web user interface by selecting Security Services > Safelist/Blocklist and clicking Export.

The other options do not provide direct access to view the SLBL on Cisco ESA.

Data Loss Prevention (DLP) is an outgoing mail policy feature that should be configured to catch this content before it leaves the network. DLP allows Cisco ESA to scan outgoing messages for sensitive or confidential data, such as credit card numbers, social security numbers, health records, etc., and apply appropriate actions, such as encrypt, quarantine, notify, etc., to prevent data leakage or loss.

The other options are not valid outgoing mail policy features to catch this content before it leaves the network, because they do not scan for sensitive or confidential data in messages.

The content filter condition that checks to see if the “From: header” in the message is similar to any of the users in the content dictionary is Forged Email Detection. This condition compares the sender’s name or email address with a list of names or email addresses in a content dictionary and triggers an action if they match or are similar.  References : [Cisco Secure Email Gateway Administrator Guide - Forged Email Detection]

To encrypt SMTP with TLS on a Cisco Secure Email Gateway appliance when the sender requires TLS verification, the components that are required are an X.509 certificate and matching private key from a CA. The certificate must be signed by a trusted CA and contain the domain name or IP address of the listener in the Subject or Subject Alternative Name fields. The private key must be unencrypted and match the certificate.  References : [Cisco Secure Email Gatew ay Administrator Guide - Configuring TLS]

Configuring DomainKeys and DKIM Signing:

-Signing Keys

-Public Keys

-Domain Profiles

Creating Domain Profiles:

Step 1

-Choose Mail Policies > Signing Profiles.

Step 2

-In the Domain Signing Profiles section, click Add Profile.

https://www.cisco.com/c/en/us/td/docs/security/esa/esa14-0/user_guide/b_ESA_Admin_Guide_1 4-0/b_ESA_Admin_Guide_12_1_chapter_010110.html?bookSearch=true

To ensure that executive messages are originating from legitimate sending addresses, the administrator must take two steps:

Create an incoming content filter with the Forged Email Detection condition. This will allow the administrator to detect and block messages that have a forged “From: header” that matches or is similar to any of the names in a content dictionary.

Create a content dictionary including a list of the names that are being spoofed. This will allow t he administrator to specify the names of the executives that are being targeted by spoofing attacks and use them in the Forged Email Detection condition. The other options are not relevant or sufficient for this task.  References : [Cisco Secure Email Gatewa y Administrator Guide - Forged Email Detection] and [Cisco Secure Email Gateway Administrator Guide - Creating Content Dictionaries]

Overview of Encrypting Communication with Other MTAs:

AsyncOS supports the STARTTLS extension to SMTP (Secure SMTP over TLS).

The TLS implementation in AsyncOS provides privacy through encryption.

https://www.cisco.com/ c/en/us/td/docs/security/esa/esa14-0/user_guide/b_ESA_Admin_Guide_14-0/b_ESA_Admin_Guide_12_1_chapter_011001.html?bookSearch=true

Message-filter order and MIME structure of the message are two factors that must be considered when message filter processing is configured on Cisco ESA. Message-filter order determines the sequence in which message filters are evaluated and applied to incoming messages, which can affect the final outcome of the filtering process. MIME structure of the message determines how message filters match against different parts of the message, such as headers, body, attachments, etc., which can affect the accuracy and performance of the filtering process.

Accept is the action that must be set for messages that result in temporary failure to prevent these emails from being rejected. Accept allows Cisco ESA to deliver the messages without applying any DMARC actions or modifications.

To configure the accept action for messages that result in temporary failure on Cisco ESA, the administrator can follow these steps:

Select Mail Policies > DMARC Verification Profile and click Edit Settings for the DMARC verification profile that applies to the messages.

Under DMARC Actions, select Accept from the drop-down menu for Messages That Result in Temporary Failure.

Click Submit.

The other options are not valid actions for messages that result in temporary failure to prevent these emails from being rejected, because they either apply DMARC actions or modifications or do nothing.

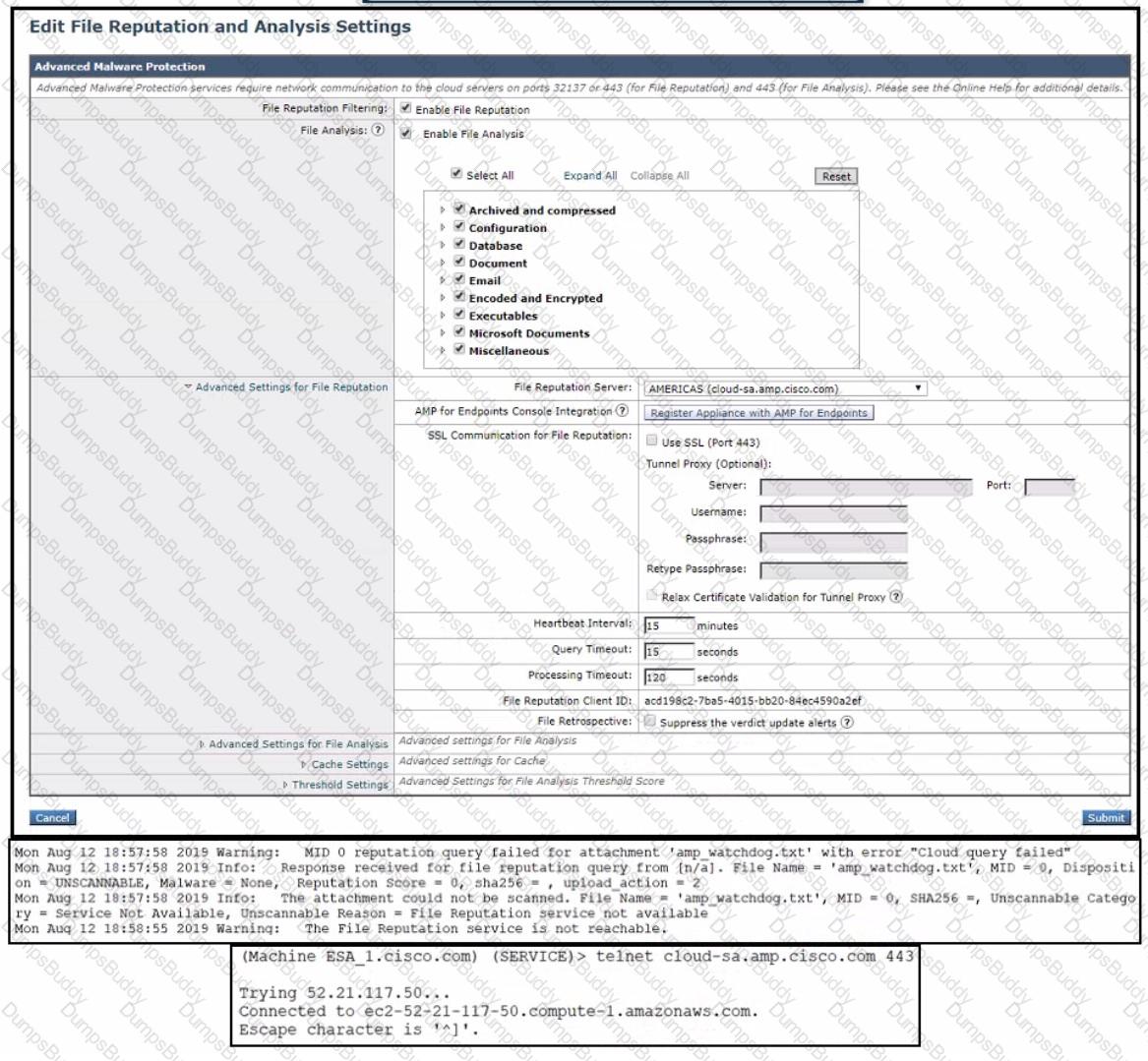

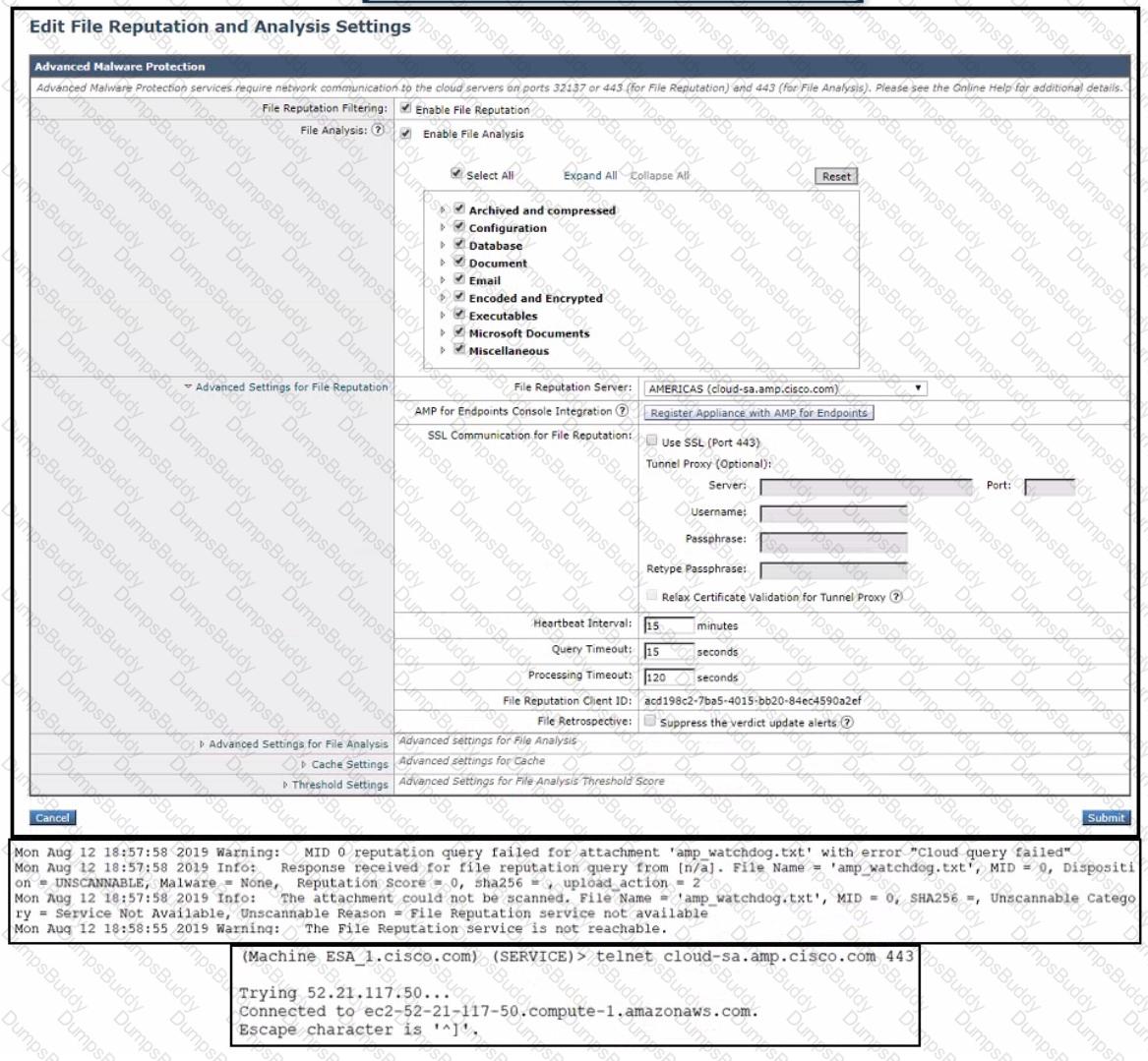

To enable File Reputation and File Analysis on the Cisco Secure Email Gateway appliance, the administrator must configure the appliance to use SSL for the connection to the File Reputation server. This wi ll ensure that the communication between the appliance and the cloud service is secure and encrypted. The administrator must also upload a valid certificate from a trusted CA on the appliance for this purpose. The other options are not required or effectiv e for this task.  References : [Cisco Secure Email Gateway Administrator Guide - Configuring File Reputation and File Analysis]
