300-420 Designing Cisco Enterprise Networks (ENSLD) v1.1 Questions and Answers

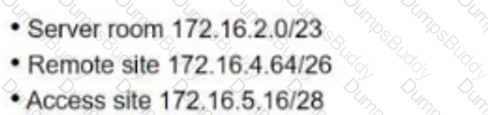

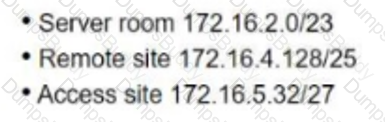

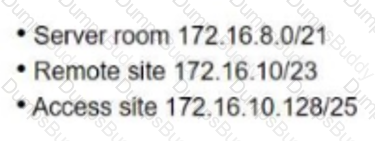

Option A is the best addressing design because it gives each site enough capacity while avoiding excessive address waste and supporting summarization. A campus requiring 12,000 devices needs at least 14 host bits because 2^13 minus two is only 8190 usable addresses, while a /18 provides 16,382 usable addresses. That leaves room for growth without assigning an unnecessarily huge block. Each branch requiring 1,000 devices needs at least 10 host bits; a /22 provides 1,022 usable addresses, but /21 provides 2,046 usable addresses and additional growth capacity. The selected branch blocks, 10.0.192.0/21 and 10.0.200.0/21, are contiguous on valid /21 boundaries and can be summarized cleanly where appropriate. Option D fails because a /20 supports only 4094 usable addresses and cannot accommodate the 12,000-device campus. Option B overallocates a /16 to the campus and /20s to branches, wasting resources. Option C is grossly oversized and operationally poor. Reference topics: hierarchical IPv4 addressing, route summarization, VLSM, host-capacity planning, convergence containment.

When congestion is sustained and QoS has already been optimized, the correct design response is to add capacity rather than continue tuning packet treatment. QoS manages contention by prioritizing, queuing, shaping, or dropping traffic, but it does not create additional bandwidth. If access-to-distribution uplinks are persistently oversubscribed, business applications will still suffer because the offered load exceeds the available link capacity. Implementing higher-speed uplink interfaces increases the physical bandwidth available for aggregate traffic. Bundling additional uplinks into EtherChannels also increases usable capacity and improves resiliency while presenting a single logical link to the switching and routing design. Random early detection and selective packet discard can improve queue behavior under congestion, but the question states that QoS is already optimized and no longer effective. Reconfiguring QoS to IntServ would add complexity and is not a realistic campus fix. Therefore, the architect should increase uplink capacity through faster links and EtherChannel where the hardware and cabling support it. Reference topics: campus oversubscription, EtherChannel, uplink capacity planning, QoS limitations, congestion remediation.

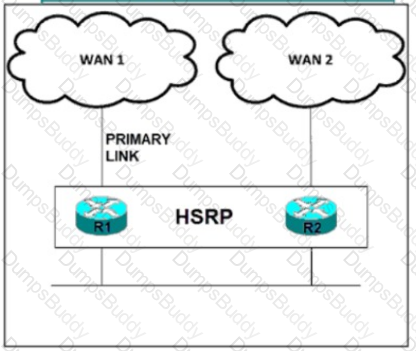

When dual WAN Edge routers are deployed at a branch, first-hop redundancy and SD-WAN overlay path preference must be aligned. The correct design consideration is that HSRP priorities on the service side should match the OMP routing policy that determines which WAN Edge is preferred. If the LAN gateway points hosts to one WAN Edge while OMP policy prefers the other edge for return or remote-site traffic, traffic can become asymmetric or hairpinned through the wrong device. Proper alignment gives predictable active/standby or active/active behavior and avoids blackholing during failover. Option A describes traditional BGP path manipulation with AS-path prepending and MED; those are not the primary SD-WAN branch dual-edge design controls. Option C overstates symmetry as a universal requirement for DPI; Cisco SD-WAN can handle many traffic patterns, but gateway and OMP alignment remain the core branch design issue. Option D is wrong because SD-WAN already uses BFD across data-plane tunnels, not as a special direct adjacency between the two local WAN Edges for this purpose. Reference topics: Cisco SD-WAN branch redundancy, HSRP, OMP policy, WAN Edge preference, service-side high availability.

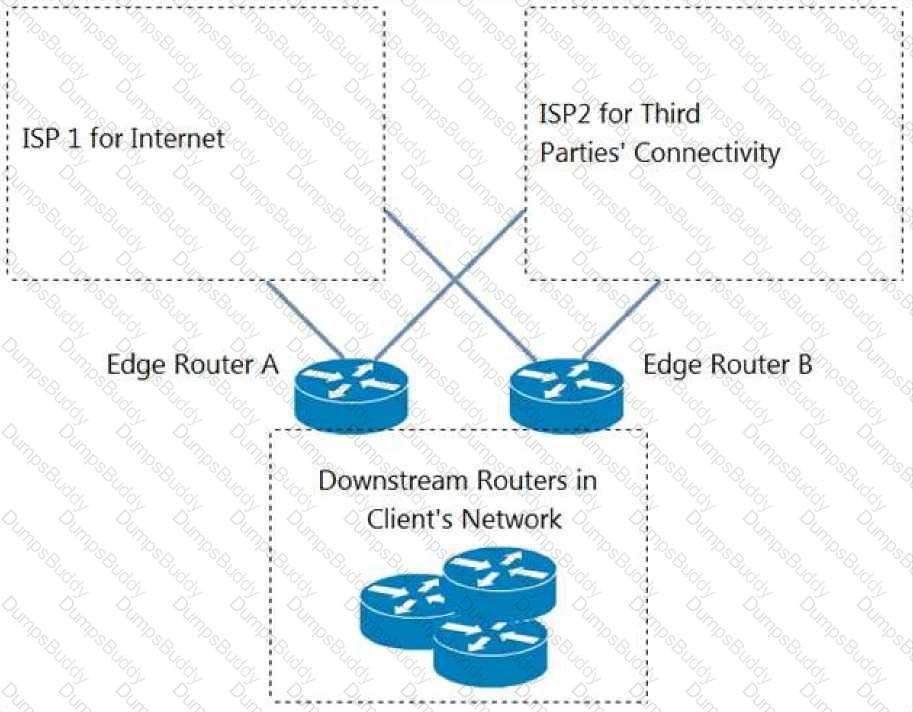

The client edge can reach the Internet through ISP1 only if downstream routers inside the client network have a usable route toward the Internet. Since ISP1 provides full Internet connectivity and ISP2 is used for direct exchange with selected third parties, the edge design should advertise a default route into the client network. This gives internal routers a simple, scalable route for all Internet destinations while preserving specific routing where necessary. Running separate VRFs for each ISP may be a valid segmentation technique, but it does not by itself tell downstream routers how to reach the Internet. AS-path prepending toward ISP2 influences inbound path preference from external networks; it does not solve internal default routing. Filtering outbound advertisements so the client advertises only its own originated routes is important to avoid becoming a transit AS, but it is not the mechanism that enables internal users to reach the Internet through ISP1. The clean design is to receive or originate a default route at the edge and advertise that default to the client routing domain. Reference topics: BGP Internet edge design, default route advertisement, transit prevention, ISP peering policy.

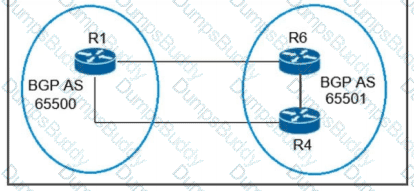

The BGP maximum-paths feature should be included when the design goal is to install multiple eligible BGP paths in the routing table and use them for load sharing. By default, BGP selects a single best path after comparing attributes such as weight, local preference, AS path, origin, MED, eBGP over iBGP, IGP metric to next hop, and other tie breakers. If two links between autonomous systems should both carry traffic, the router must be allowed to retain more than one equal or eligible path for forwarding. The maximum-paths command enables BGP multipath installation so the data plane can load share across the available links. Update-source is used to source a BGP session from a loopback or specific interface, not to perform load sharing. Next-hop-self influences recursive reachability and next-hop handling but does not install multiple paths by itself. eBGP multihop changes TTL behavior for non-directly connected eBGP neighbors and is unrelated to load sharing over the two links. Reference topics: BGP multipath, maximum-paths, eBGP load sharing, BGP path selection, route installation.

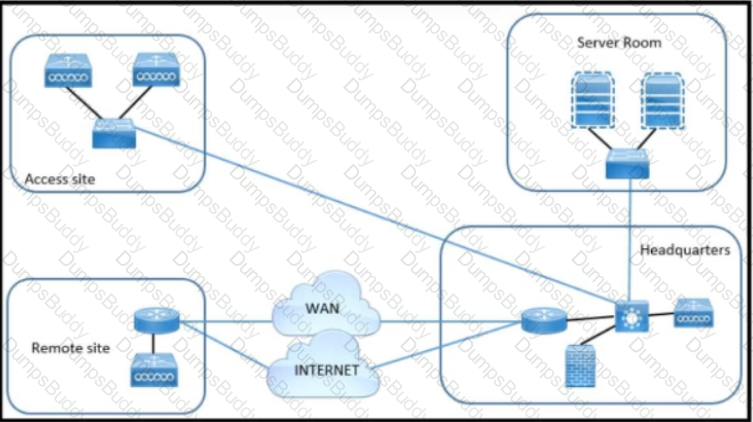

In-band management is the correct design because the management plan must reach all IP-enabled interfaces, and not every device has a dedicated management port. In-band management uses the production IP network for administrative access, allowing management stations to reach loopbacks, SVIs, routed interfaces, or front-panel interfaces through normal routing. Cisco management guidance distinguishes in-band management from out-of-band designs that depend on a separate physical management network or console path. Because the question requires reachability to all IP-enabled interfaces, in-band is the only listed model that naturally supports that scope. Security must still be enforced with encrypted protocols where supported, such as SSH and HTTPS, plus ACLs, AAA, and management-plane protection where appropriate. A terminal server provides console access, not routed IP management to every interface. A KVM server is a server-management tool, not a network-device management architecture. Out-of-band management is preferred for isolation, but it does not fit devices without dedicated management access. Reference topics: in-band management, secure management protocols, SSH, HTTPS, network management design.

EIGRP with branch routers configured as stubs and equal-cost multipath is the best fit for this hub-and-spoke DMVPN design. The branch routers have limited memory and CPU resources, so they should not be forced to maintain unnecessary topology information or answer broad queries from the rest of the network. EIGRP stub routing limits the routes a branch advertises and prevents it from being used as a transit path, which reduces query scope and improves stability. Because the two internet links are both 100 Mbps, equal-cost multipath can use both links for active forwarding during traffic spikes. OSPF can operate over DMVPN, but a single area or hub-and-spoke design may create more overhead and less efficient query containment for small branch routers. IS-IS is less common for this WAN overlay use case, and iBGP with route reflectors can scale but does not natively consider link utilization or provide the same simple branch stub behavior. Reference topics: EIGRP stub, DMVPN, ECMP, branch routing, query containment, WAN convergence.

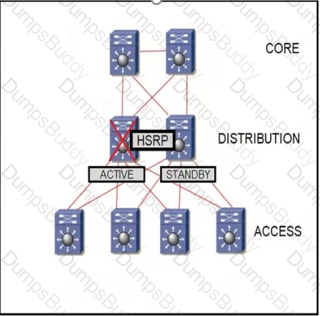

UplinkFast is the correct spanning-tree feature for faster convergence after an uplink failure in a classic STP access-layer design. UplinkFast is designed for access switches that have redundant uplinks toward the distribution layer. When the primary root port fails, UplinkFast allows an alternate blocked uplink to transition rapidly to forwarding, reducing the outage compared with standard 802.1D timer-based convergence. PortFast is used on edge ports connected to end hosts, not on switch-to-switch uplinks. Loop Guard protects against unidirectional failures or missing BPDUs on non-designated ports, but it does not accelerate recovery from an access uplink failure. BackboneFast helps when an indirect link failure is detected elsewhere in the topology, but the described failure is directly between SW1 and SW2. The design objective is the fastest possible convergence during that direct uplink loss, which matches UplinkFast in a traditional STP environment. Reference topics: Spanning Tree Protocol, UplinkFast, access-layer redundancy, root port failover, Layer 2 convergence.

The control-plane node in Cisco SD-Access acts as the map system that manages endpoint-to-device relationships. Cisco SD-Access documentation describes control-plane nodes as maintaining the host database that maps endpoint identifiers to the fabric edge devices where those endpoints are attached. This mapping function is based on LISP control-plane behavior. When an endpoint appears on an edge node, the edge registers the endpoint information with the control plane. When another fabric device needs to send traffic to that endpoint, it queries the control-plane node to resolve the endpoint location. A fabric edge node is the device that connects wired endpoints to the fabric, so option A describes an edge role. Wireless endpoints may attach through fabric AP and fabric WLC integration, but that is not the control-plane node’s role. External Layer 3 networks are connected through border nodes, not through the control-plane node. Therefore, the correct role is endpoint-to-device mapping. Accurate control-plane design is essential for fabric scale, endpoint mobility, and fast location resolution.

VRRPv3 improves protocol applicability by supporting both IPv4 and IPv6 address families. VRRPv2 is associated with IPv4 virtual router redundancy, while VRRPv3 extends the protocol so the same first-hop redundancy concept can be used for IPv6 default gateways as well. In campus and branch designs, this matters because IPv6 deployments should not require a separate redundancy design from IPv4 when a standards-based FHRP is preferred. Preemption is not a unique VRRPv3 advantage because VRRP has long supported priority-based master election and preemption behavior. Authentication is also not the correct differentiator in this comparison; VRRPv3 removed the simple protocol authentication field from the base protocol and expects security to be provided by the underlying network or IPsec where required. Stateful switchover is a platform high-availability capability, not a VRRPv3 protocol feature. Therefore, the key benefit of VRRPv3 over VRRPv2 for enterprise design is IPv4 and IPv6 support under the same redundancy protocol model.

An out-of-band management network best satisfies the requirement to grant and revoke administrative access, restrict management protocols, and limit exposure of management interfaces. Out-of-band management separates administrative traffic from the production data plane by using dedicated management interfaces, management switches, terminal infrastructure, or separate routing. This isolation improves security because a compromise or congestion event in the production network does not automatically provide access to device management planes. It also allows stronger access controls, protocol restrictions, logging, and administrative segmentation for SSH, NTP, FTP, and SNMP. In-band management uses the production network and is more exposed to outages or data-plane attacks. An enterprise internal private network is too vague and does not guarantee management-plane isolation. mGRE is a tunneling technique, not a complete management access architecture. A professional design should also include AAA, role-based authorization, ACLs, management VRFs where appropriate, logging, and monitoring. Reference topics: out-of-band management, management-plane security, AAA, access control, protocol restriction, network operations design.

Static routes tied to IP SLA with a floating static backup route provide the cleanest active/standby design for this requirement. The MPLS L3VPN path is the primary connection and should carry traffic while it is available. IP SLA can actively test reachability across the primary path, and object tracking can remove the primary static route if the test fails. The backup IPsec VPN route is configured with a higher administrative distance, so it remains inactive until the primary route is withdrawn. This design is deterministic and prevents traffic from using the backup tunnel during normal operation. Running EIGRP across both paths could allow dynamic path selection, but it would require careful metric manipulation and could still introduce unintended failover behavior. BGP multipath is the opposite of the requirement because it is designed to install multiple paths simultaneously for load sharing. OSPF passive-interface on the backup connection would prevent neighbor formation rather than provide reliable backup routing. For a branch with one primary MPLS path and one backup IPsec path, tracked static routing with IP SLA is the appropriate design.

VRRP advertisements are sent by the current master router and include priority information used by the backup routers to evaluate mastership. In VRRP, the master is the router actively forwarding for the virtual IP address. Backups listen for advertisements; if advertisements stop, the backup with the highest effective priority can become master. This is why the statement that advertisements are sent only from the master router is correct. The advertisement also carries priority information, which is used in election behavior and failover decisions. Standby or backup routers do not normally send VRRP advertisements while a master is active, so option A is incorrect. The default advertisement interval is not three seconds in standard VRRP behavior; three seconds is commonly associated with other first-hop redundancy defaults such as HSRP hellos. Although timer fields exist in protocol operation, the exam focus here is the master-only advertisement behavior and the priority carried in those advertisements. In campus gateway redundancy design, VRRP advertisements must be protected from loss or filtering because missed advertisements can cause unnecessary master transitions.

BGP outbound route filtering is the correct solution because the enterprise wants control over which routes it receives without waiting for a provider change cycle each time the prefix set changes. Cisco BGP prefix-based ORF allows a receiving BGP speaker to send an inbound prefix-list filter to the remote peer, which then applies that list as an outbound filter. This reduces unwanted routing updates before they cross the session and lets the enterprise update the desired prefixes locally when business requirements change. Requesting only fixed prefixes from the ISP would work initially but fails the flexibility requirement because the provider has a two-week change process. Requesting a full table and filtering inbound would provide flexibility but wastes memory and CPU on the customer router because all routes are still received before filtering. A maximum-prefix limit does not select the correct routes. ORF is therefore the scalable operational design for receiving a default route and selected prefixes with minimal provider involvement. Reference topics: BGP ORF, prefix-based filtering, inbound route control, ISP peering design, routing table scale.

Gateway Load Balancing Protocol is the first-hop redundancy protocol that provides load balancing while presenting a single default gateway IP address to hosts. Cisco’s GLBP documentation states that GLBP “provides load balancing over multiple routers using a single virtual IP address and multiple virtual MAC addresses.” That wording directly matches the requirement in the question. In a GLBP group, the active virtual gateway answers ARP requests for the virtual IP address and can return different virtual MAC addresses associated with active virtual forwarders. As a result, multiple routers forward traffic for the same subnet rather than leaving one router idle during normal operation. HSRP and VRRP provide first-hop redundancy, but their basic operation uses one active or master forwarding device for a virtual IP at a time unless multiple groups are manually engineered per VLAN. IRDP is not the Cisco campus FHRP used for this design. Therefore, when the requirement is automatic load balancing across multiple routers using one virtual IP and multiple virtual MAC addresses, GLBP is the correct protocol.

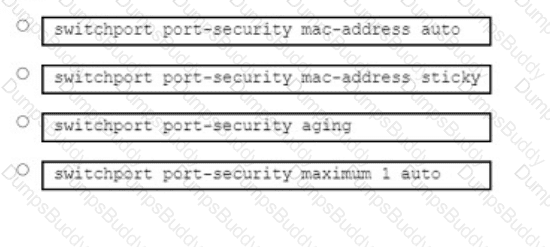

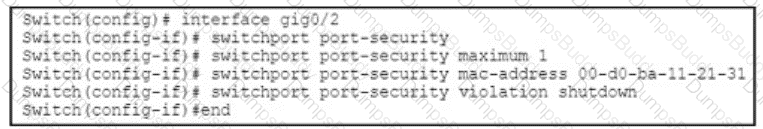

The selected command is correct because the port is already restricted to one manually learned MAC address, and the requirement is to let the switch dynamically learn the connected endpoint while retaining port-security control. In Cisco Catalyst port security, a static secure MAC address is manually configured, while a sticky secure MAC address is dynamically learned and then added to the running configuration. This design is useful on access ports where the administrator wants the operational convenience of dynamic learning but still wants the switch to enforce the maximum secure-address limit. Once the endpoint MAC is learned, subsequent frames from different source MAC addresses can trigger the configured violation action, such as protect, restrict, or shutdown. The command must therefore enable sticky learning on the secured interface rather than simply changing the maximum, disabling port security, or configuring a normal switching feature. This is an access-layer security function, not a routing or QoS function. Reference topics: Catalyst port security, secure MAC addresses, sticky learning, access port hardening, Layer 2 campus design.

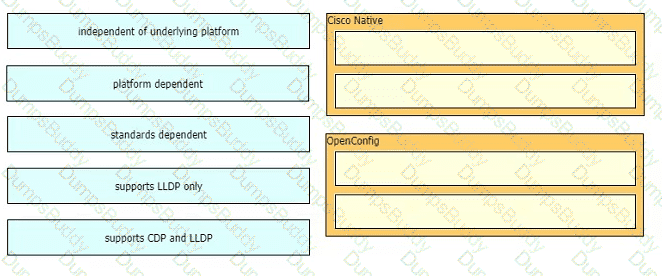

The YANG module mapping follows the distinction between standards-based, vendor-neutral, and vendor-native data models. IETF YANG models are standards-driven and are appropriate when the design goal is protocol-level interoperability across vendors for common network functions. OpenConfig models are also vendor-neutral, but they are developed by the OpenConfig community and commonly use a structured separation between intended configuration and operational state. Cisco native models expose platform-specific Cisco IOS XE, IOS XR, or NX-OS capabilities and are often the most complete option when a feature is unique to a Cisco operating system. The selected drag-and-drop answer aligns each characteristic with the model family that owns that behavior. In a professional automation design, the engineer should not choose a model only because it is familiar. The correct choice depends on feature coverage, device support, platform release, schema stability, and whether the workflow must operate consistently across vendors. For multivendor intent, choose IETF or OpenConfig first; for Cisco-specific feature depth, use Cisco native models. Reference topics: YANG, IETF models, OpenConfig, Cisco native models, NETCONF and RESTCONF automation.

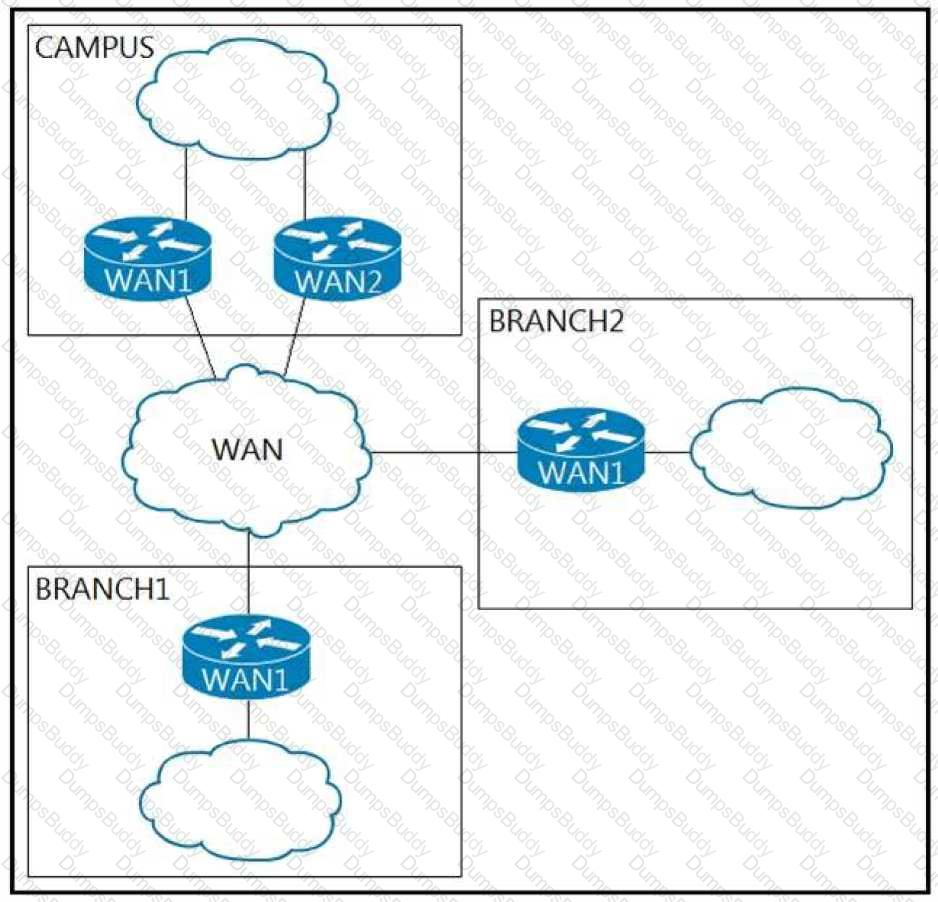

Both WAN routers should run OSPFv2. The requirement explicitly says that the routing protocol must be open standard, provide high availability, and offer fast convergence. OSPF is an open-standard link-state routing protocol and is broadly supported across vendors. It builds a link-state database, calculates best paths with SPF, supports equal-cost multipath, and can be tuned with BFD, SPF throttling, LSA throttling, and hierarchical areas for resilient enterprise WAN designs. EIGRP is fast and operationally efficient in Cisco-only environments, but it is not the best answer when the requirement emphasizes an open-standard routing protocol. Running OSPFv2 on one router and OSPFv3 on another is invalid for a single IPv4 routing design because they would not form the intended common routing domain. Mixing IS-IS and OSPFv3 also fails the requirement for a unified design between the redundant routers. Therefore, both routers should run OSPFv2. Reference topics: OSPFv2, open-standard routing, WAN routing high availability, link-state convergence, ECMP and BFD integration.

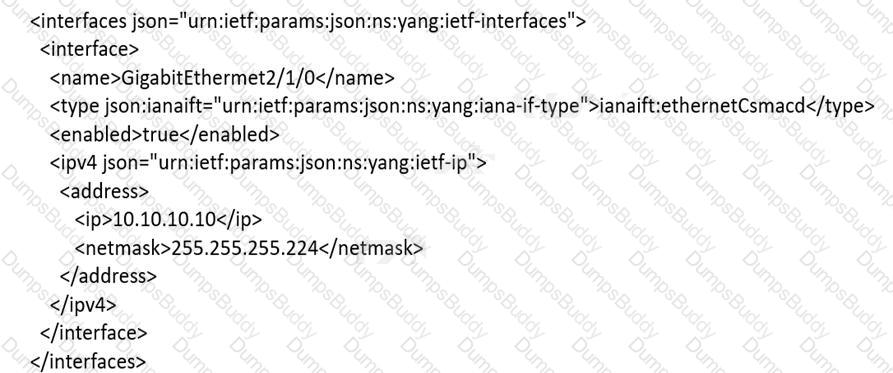

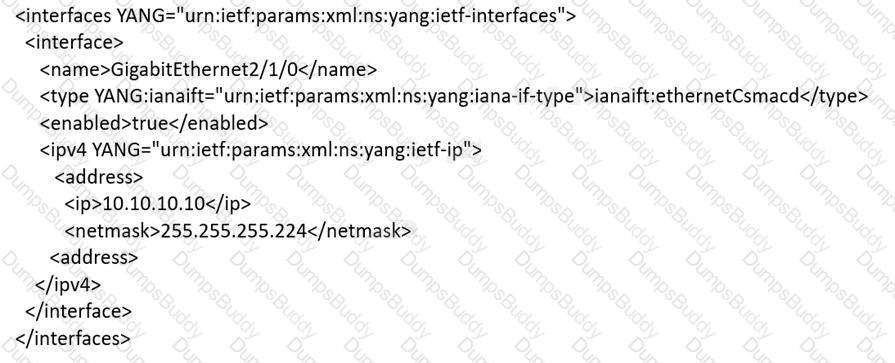

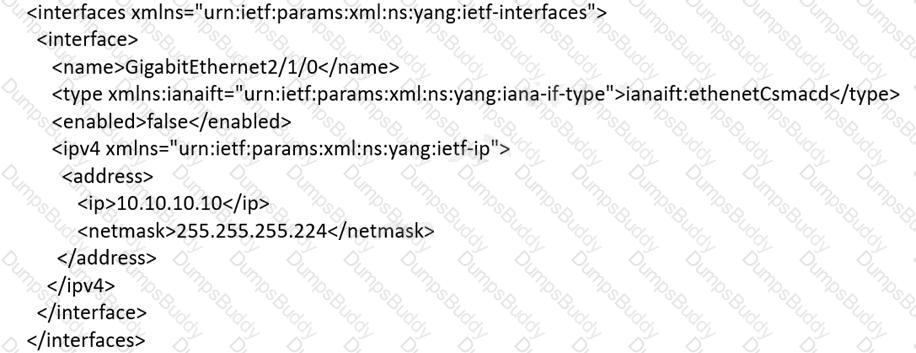

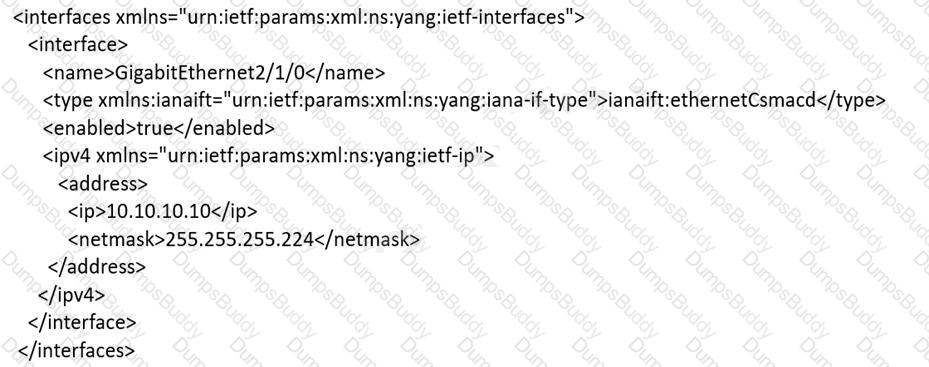

The validated answer is Option D because this item depends on the exhibit containing configuration or model fragments. In Cisco programmability questions, the correct option is determined by whether the selected YANG or API payload accurately represents the intended configuration hierarchy, data types, and device-specific path. The answer must match the complete model structure, not merely contain the right-looking address, interface name, or protocol value. Option D should therefore be retained as the verified selection because it is the only option that aligns with the expected data model structure shown in the exhibit. For these items, the professional review must avoid inventing a replacement payload when the answer choices are embedded as images. The proper explanation is that YANG-based configuration validation requires the namespace, container path, list keys, and leaf values to match the model used by the target platform. Reference topics: YANG configuration validation, RESTCONF or NETCONF payload structure, model hierarchy, Cisco IOS XE programmability, exhibit-based option verification.

The correct QoS design is to shape outbound traffic and police inbound traffic. Traffic shaping buffers and schedules outbound packets so the customer does not send bursts beyond the 10 Mbps Internet connection rate. This is useful on egress because the local router controls the transmit queue and can smooth bursts before they reach the provider. Cisco QoS design distinguishes shaping from policing: shaping delays excess traffic, while policing drops or remarks excess traffic immediately. Inbound shaping is generally not effective because the traffic has already arrived on the interface; the device cannot delay packets before they consume the inbound circuit. Inbound policing can protect business-critical traffic by limiting or dropping lower-priority excess traffic as it enters the network. Policing outbound would enforce the rate but would cause avoidable drops during bursts, which is less desirable when the router can shape before transmission. Therefore, outbound shaping and inbound policing satisfy both rate-control and protection requirements. Reference topics: traffic shaping, traffic policing, QoS queuing, Internet edge QoS, congestion management.

Dual multihomed is the only listed WAN design that satisfies all failure conditions: CE, PE, ISP, and link failure. A single-homed design has one provider attachment and cannot survive most of those events. A single multihomed design uses more than one provider or provider connection, but if it still has only one customer edge device, a CE failure remains a single point of failure. A dual-homed design can provide multiple links to one provider, but it may not protect against a complete ISP failure. Dual multihoming combines redundant customer edge devices with connections to multiple provider edge devices and, typically, multiple providers. Cisco WAN and BGP design guidance uses multihoming to increase availability, control inbound and outbound path selection, and avoid dependence on a single provider path. This design gives the architect the necessary device, link, and provider diversity. Reference topics: WAN edge redundancy, BGP multihoming, dual-provider design, CE and PE resiliency, internet edge high availability.

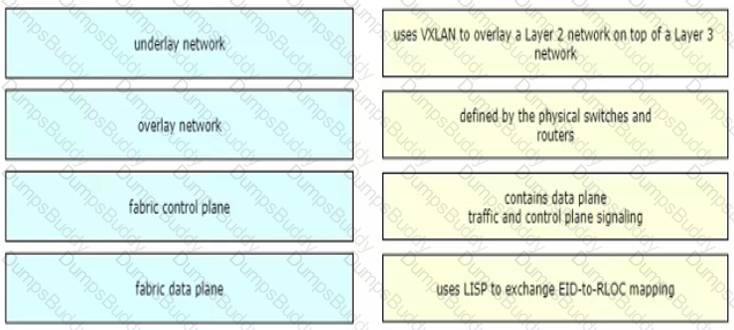

The Cisco SD-Access data plane is based on VXLAN. This duplicate item tests the same fabric-plane distinction: LISP handles endpoint-to-location mapping in the control plane, while VXLAN transports encapsulated user traffic in the data plane. Cisco describes SD-Access as using a routed underlay with an overlay in which VXLAN encapsulation carries endpoint traffic between fabric nodes. VXLAN supports the fabric’s virtual network separation and policy transport, allowing the enterprise to move beyond VLAN-only segmentation while keeping the underlay simple and routed. OMP is not part of SD-Access data-plane forwarding; it belongs to Cisco SD-WAN. NHRP is used in DMVPN to resolve next-hop tunnel addresses. LISP is not the answer here because it tells a fabric node where an endpoint is located, while VXLAN is the encapsulation method used to forward the traffic there. Reference topics: Cisco SD-Access architecture, VXLAN, LISP, data plane, control plane, endpoint mobility.

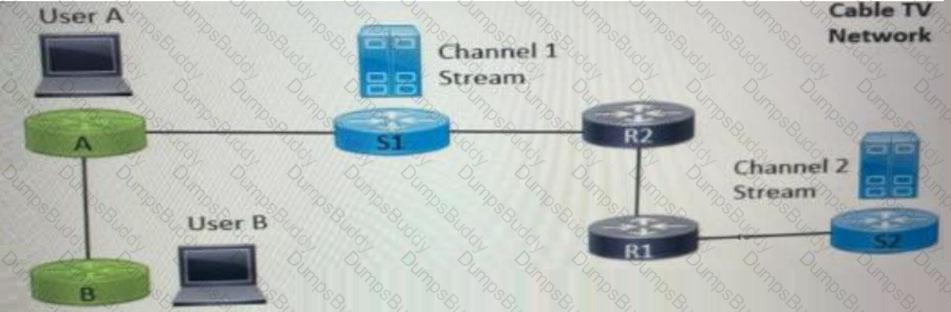

MSDP is the correct solution because the question explicitly references RFC 3618, which defines the Multicast Source Discovery Protocol. The design has separate PIM Sparse Mode multicast domains, with RP functions already configured on edge routers in each autonomous system. Cisco explains that MSDP allows rendezvous points in different PIM-SM domains to discover active multicast sources outside their local domain. When a source becomes active, the local RP can advertise source-active information to MSDP peers, allowing receivers in another domain to learn and join the stream. PIM-SSM is not correct because SSM removes the RP dependency and requires receivers to know the source directly. MP-BGP can carry multicast routing information, but it does not perform RP-to-RP source discovery. BIDIR-PIM is a multicast mode for many-to-many shared-tree forwarding, not an interdomain RP discovery mechanism under RFC 3618. Reference topics: MSDP, RFC 3618, PIM Sparse Mode, interdomain multicast, Source-Active messages, rendezvous points.

For in-band management over the production WAN, the proper marking is DSCP CS2 mapped into the management or operations class with a minimum bandwidth guarantee. Cisco enterprise QoS guidance separates network control traffic from network management traffic. Routing protocol and control-plane traffic should not be diluted by ordinary management flows. CS6 is typically reserved for routing and network-control traffic; EF is reserved for low-latency voice bearer traffic; CS1 is commonly used for scavenger or low-priority traffic. Network management flows such as SSH, SNMP, NTP, FTP-based maintenance, and syslog require reliable delivery, but they should not starve business traffic or real-time services. Therefore, marking with CS2 and mapping the traffic into Class2 is the correct design choice. The bandwidth adjustment should come from a lower-priority class, not from the routing/control or real-time class. Because this is in-band management, the architect must also ensure access control, source restrictions, AAA, logging, and management-plane protection. QoS classification alone does not secure management access; it only gives the traffic an appropriate forwarding treatment over the MPLS WAN. Reference topics: in-band management, DSCP CS2, enterprise QoS classes, management-plane traffic.

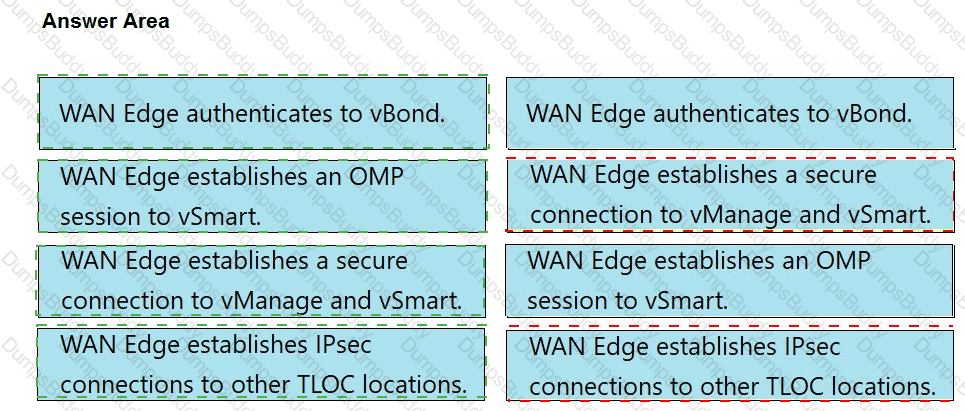

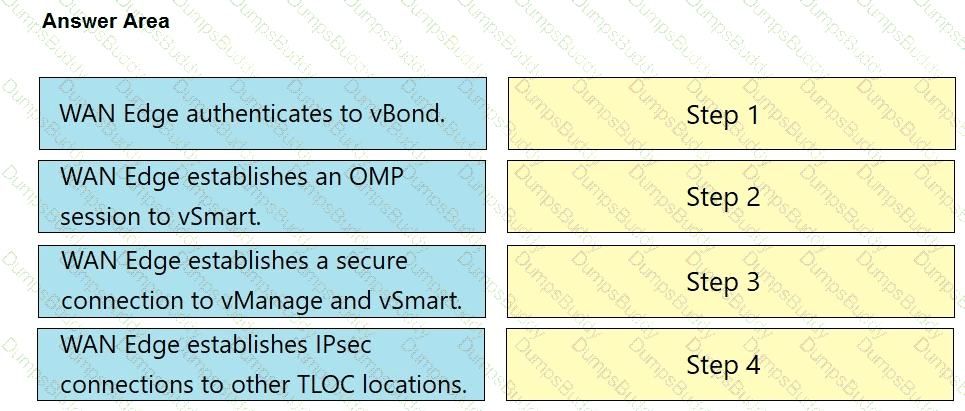

The SD-WAN onboarding sequence follows the controller trust and overlay-establishment workflow. A WAN Edge device first obtains basic reachability information through manual bootstrap, ZTP, or PnP-style provisioning so it can reach the orchestration components. It then establishes secure control connectivity to the orchestrator and validates identity through the certificate and authorized serial number information. After orchestration, the device forms the required secure control connections to the management and control-plane components, receives its configuration, and participates in OMP route exchange. Finally, the WAN Edge builds encrypted data-plane tunnels to other WAN Edge devices based on the TLOC and policy information learned through the control plane. This order matters because the device cannot exchange overlay routes or build data-plane IPsec tunnels until it is authenticated and authorized in the SD-WAN fabric. Cisco SD-WAN designs rely on this sequence to support zero-touch deployment, centralized policy, and secure fabric admission. Reference topics: Cisco SD-WAN onboarding, vBond orchestration, certificate validation, OMP, TLOC exchange, data-plane tunnel establishment.

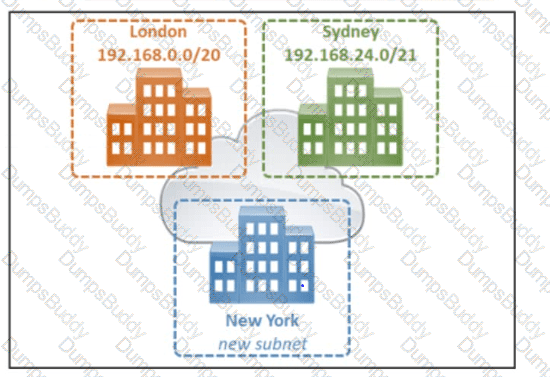

A /22 subnet is the smallest IPv4 block in the answer set that closely fits a branch expected not to exceed roughly one thousand users while avoiding unnecessary address waste. A /22 contains 1024 total addresses and 1022 usable host addresses after the network and broadcast addresses are reserved. That aligns with the requirement to provide the maximum number of host addresses without selecting a larger block than necessary. A /21 provides 2048 total addresses and 2046 usable hosts, which is materially larger than the stated requirement and wastes address space. The specific 192.168.8.0/22 block also aligns on a valid /22 boundary because /22 networks increment by four in the third octet. A 192.168.16.0/22 is also mathematically valid, but the exhibit determines the available address range; the selected option uses the appropriate block from the displayed plan. Reference topics: IPv4 subnet sizing, CIDR, usable host calculation, branch address planning, VLSM.

The Cisco SD-Access edge node acts as the access-layer fabric device that connects endpoints to the fabric, provides the anycast Layer 3 gateway, and maps users or endpoints into the correct virtual network. Cisco SD-Access fabric edges register endpoint information with the control-plane node and encapsulate user traffic into VXLAN for transport across the fabric. The anycast gateway function allows a consistent default gateway to exist on multiple edge nodes, supporting mobility without forcing traffic through a central gateway. The edge node also applies policy context by associating users, endpoints, or ports with a virtual network and scalable group information. Advertising EID subnets is primarily associated with border connectivity and external route advertisement. LISP proxy tunnel router functionality belongs to border node behavior for external connectivity. Routing and transporting IP packets between fabric nodes is the intermediate-node underlay role. Therefore, the two edge-node functions in the options are acting as the anycast Layer 3 gateway and mapping users to virtual networks. Reference topics: SD-Access edge node, anycast gateway, endpoint registration, virtual networks, fabric policy.

Easy Virtual Network is the best fit when a campus needs many Layer 3 virtual networks with separate addressing and routing tables but wants lower operational overhead than manually configuring VRF-Lite everywhere. EVN builds on VRF concepts and simplifies virtualization across a hop-by-hop campus design by reducing repetitive configuration and enabling consistent virtual network transport across participating devices. Each virtual network maintains its own routing context, which supports overlapping addressing and segmentation. Hop-by-hop VRF-Lite can provide similar forwarding separation, but it becomes operationally heavy as the number of VRFs grows because each trunk, routing process, and interface association must be configured and maintained manually. Multihop MPLS can scale, but it introduces provider-style complexity and may require features or skills beyond a typical campus requirement. Multihop IPsec tunneling is not an efficient campus segmentation solution for hundreds of virtual networks. Therefore, EVN is the recommended design for scalable Layer 3 virtualization with simpler configuration and management. Reference topics: campus virtualization, Easy Virtual Network, VRF separation, scalable virtual networks, route isolation.

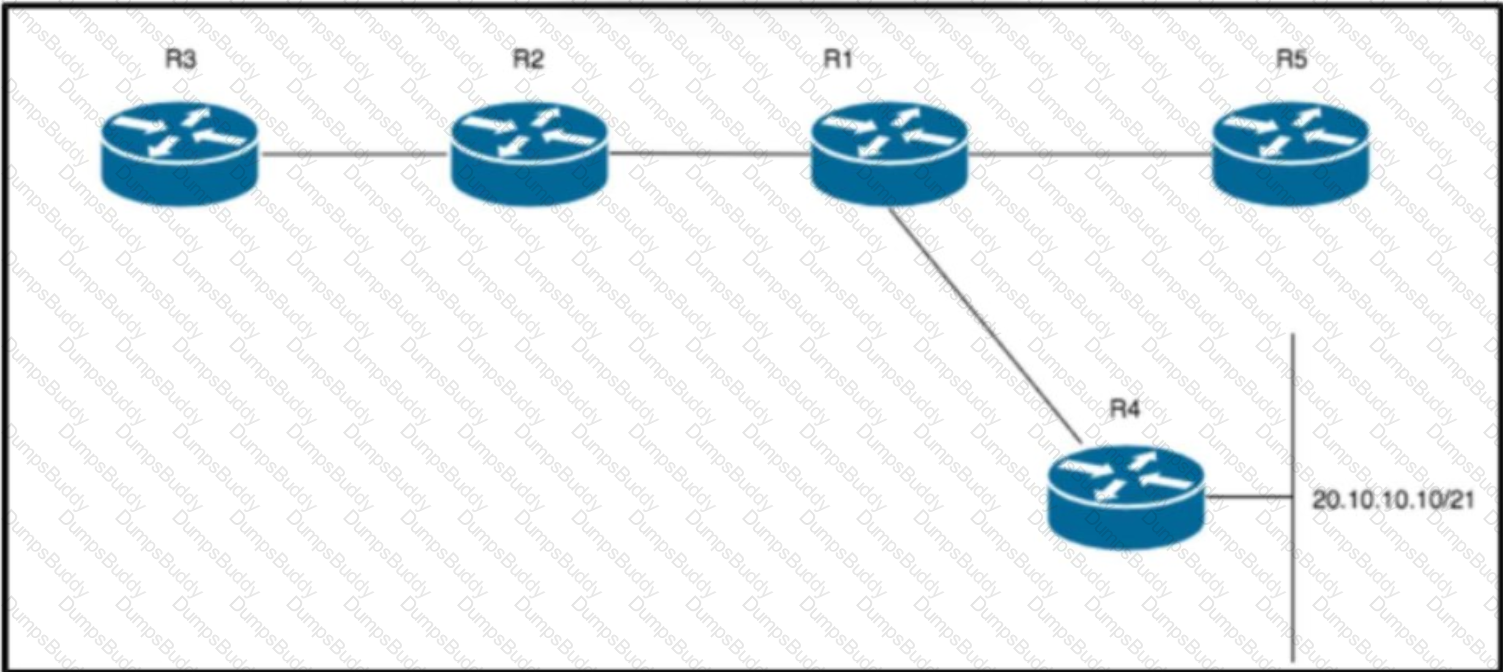

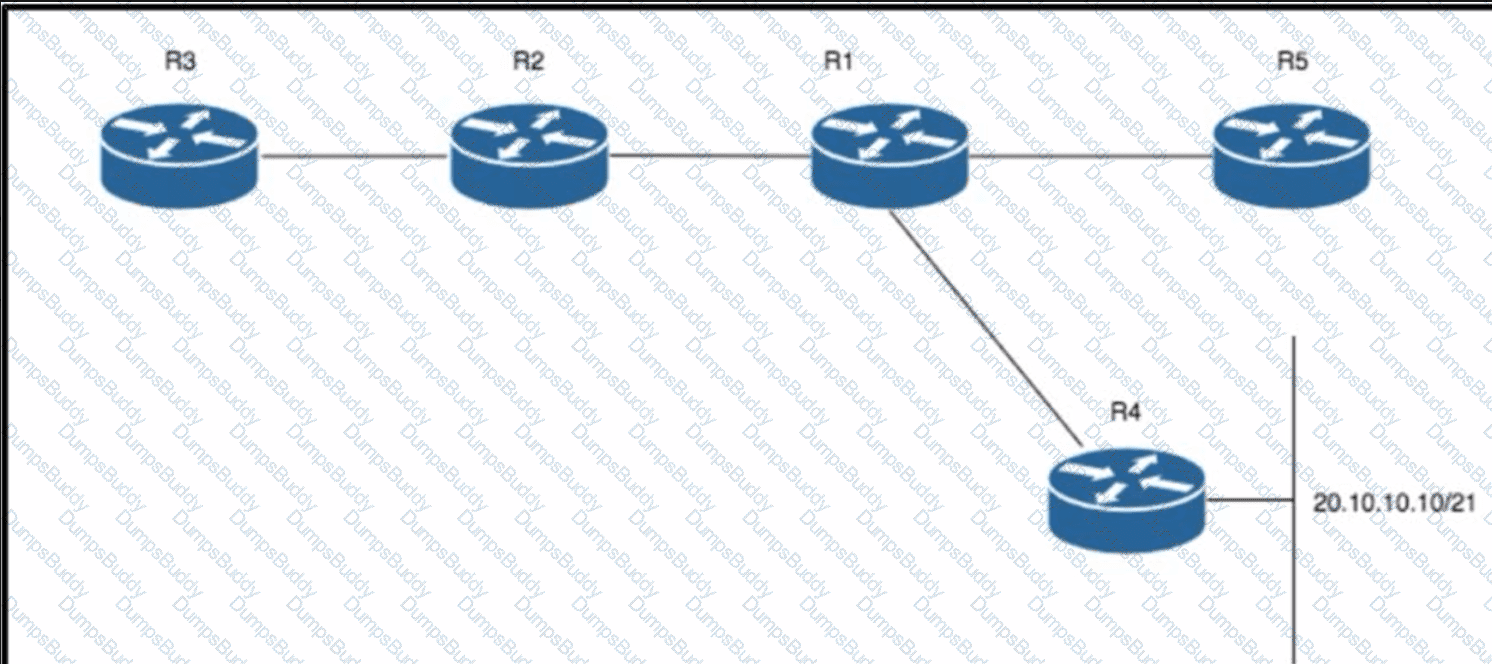

The correct action is to configure EIGRP stub behavior on R4. The DUAL-3-SIA message indicates a Stuck-in-Active condition, which occurs when EIGRP sends a query and does not receive a reply within the expected time. Cisco explains that EIGRP stub routing is used to improve stability and reduce resource usage by preventing unnecessary queries from being sent to remote or edge routers. In the described topology, R4 is connected over a limited 10 Mbps inter-router link and should not be treated as a transit router for the rest of the routing domain. Making R4 an EIGRP stub limits the query scope and reduces the chance of active routes waiting on a slow or constrained neighbor. Poison reverse and split-horizon changes address loop prevention and hub-and-spoke update behavior, but they do not directly solve the SIA instability. A summary on R2 may help scaling but does not identify the edge-router query boundary as precisely as EIGRP stub. Reference topics: EIGRP DUAL, Stuck-in-Active, EIGRP stub routing, query scoping, WAN edge stability.

A major SaaS challenge is the lack of direct application and infrastructure control. With Software as a Service, the provider operates the application stack, platform, upgrades, and supporting infrastructure. The customer benefits from reduced maintenance burden and lower initial deployment cost, but gives up much of the direct control normally available with on-premises applications. This affects troubleshooting, change windows, performance visibility, customization, data residency controls, and integration with existing enterprise systems. Higher initial costs are usually not a SaaS characteristic; SaaS commonly shifts spending toward subscription operating expense. Client computer upgrades are not normally required in the same way as thick-client enterprise software. Data and application integration can be complex, but the option that best captures the core architectural challenge is reduced control over the application and infrastructure. Network architects must account for this by designing secure direct internet access, cloud monitoring, identity integration, and reliable paths to SaaS providers. Reference topics: SaaS architecture, cloud application control, enterprise cloud access, operational visibility, SD-WAN SaaS design.

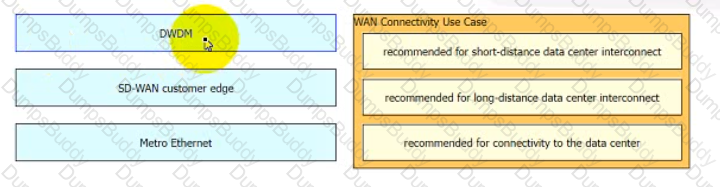

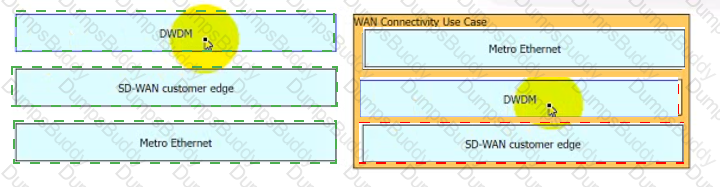

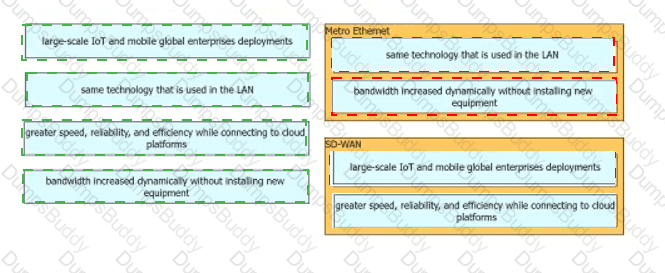

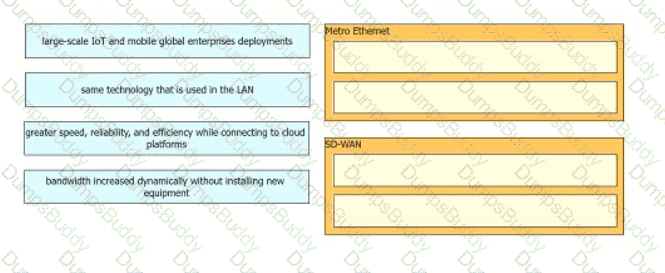

The drag-and-drop mapping should be preserved as the validated answer because the item depends on the exhibit categories and the original coordinate map identifies which descriptions belong to each category. In Cisco design questions of this form, the important skill is distinguishing the functional category from the implementation detail. A professional design answer must map each description to the correct operational class instead of treating all items as interchangeable features. This is common in ENSLD topics such as WAN connectivity, SD-Access roles, telemetry modes, and QoS service models, where a description may sound similar but belongs to a different architectural layer. The coordinate answer keeps the specific pairings intact while the explanation documents the design logic: categorize by function, control-plane responsibility, data-plane behavior, and operational use case. If the exhibit contains technology categories, the selected mapping should be read as the official answer for those categories rather than converted into free text. Reference topics: Cisco design categorization, architectural roles, technology-to-function mapping, ENSLD drag-and-drop interpretation.

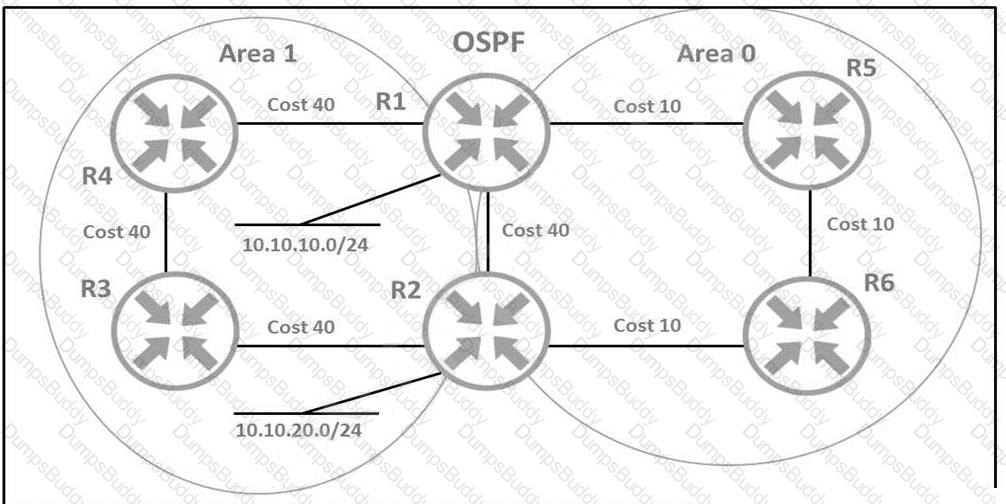

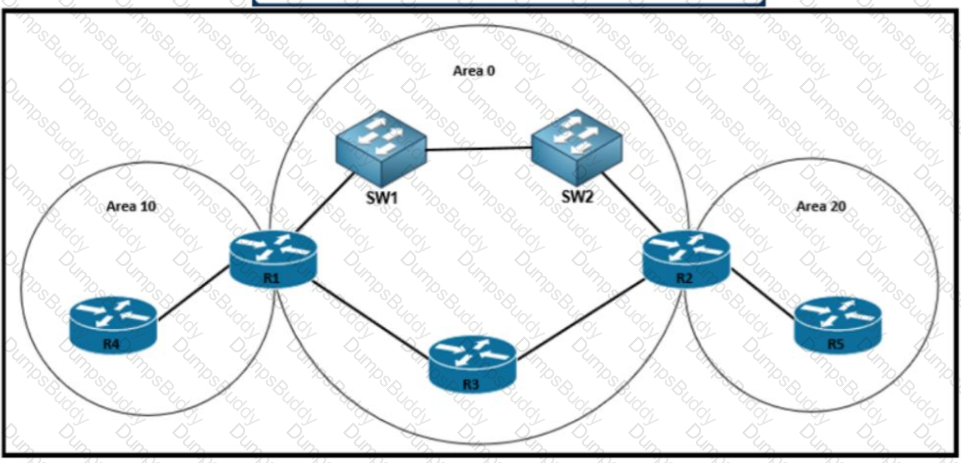

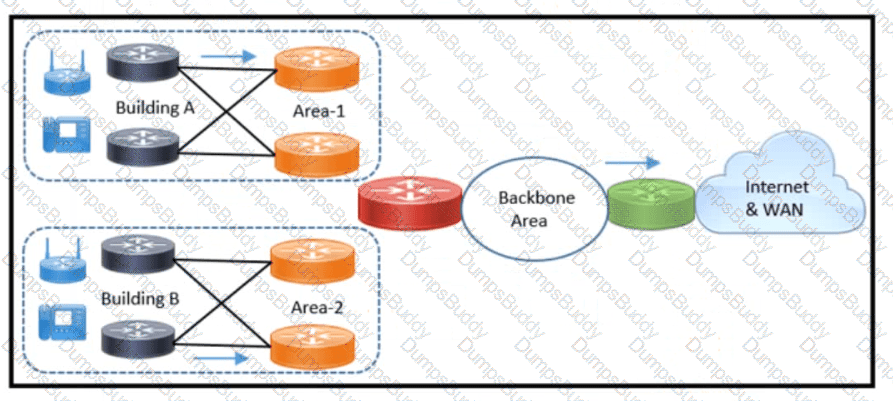

The OSPF design should include LSA/SPF timer tuning and summarization with appropriate stub-area design. Cisco OSPF convergence is affected by failure detection, LSA generation, flooding, SPF scheduling, and routing-table installation. Tuning LSA and SPF throttling timers helps the network react quickly to genuine failures while avoiding excessive CPU churn during repeated flaps. This is especially important when voice and video traffic are sensitive to convergence delay. Manual route summarization at area boundaries reduces the number of detailed routes advertised between areas and limits the blast radius of link failures. Configuring nonbackbone areas as stub networks where appropriate also reduces external LSA propagation and lowers router resource use. Reducing DR and BDR election frequency is not a primary design tool for convergence, and increasing hello and hold timers would slow failure detection rather than improve it. Advertising default routes can be useful, but it does not by itself contain link flap impact. Reference topics: OSPF area design, LSA throttling, SPF throttling, route summarization, stub areas, convergence optimization.

The vSmart controller is the Cisco SD-WAN control-plane element that maintains centralized routing and policy information. WAN Edge routers form secure control connections to vSmart, and vSmart distributes OMP routes, TLOC information, service routes, and policy information across the overlay. It does not forward user traffic in the data plane; forwarding is performed by the WAN Edge routers. It also does not provide the primary management GUI, because that role belongs to vManage. vBond handles orchestration, authentication facilitation, and NAT traversal during control-plane bring-up, not the centralized routing table. The importance of vSmart in the design is that it removes the need for every WAN Edge router to maintain complex direct control-plane relationships with every other edge. It also enforces centralized control policy, which determines which routes and paths are available to which sites. Reference topics: Cisco SD-WAN architecture, vSmart controller, OMP, centralized route table, control policy, WAN Edge. This preserves scalable WAN control-plane behavior.

The correct solution is again a management VRF with SSH keys for device access. This duplicate item tests the same design principle: management traffic should be logically isolated from the overlay and production forwarding paths. A VRF gives the management plane its own routing table, so changes or failures in the overlay do not normally alter management reachability. That makes the network easier to operate because engineers can troubleshoot device access, routing, and overlay behavior as separate concerns. SSH keys satisfy the secure-access requirement by providing encrypted management sessions with public-key authentication. Private VLANs and standard VLANs can segment Layer 2 traffic, but they do not solve routing separation by themselves. TACACS+ and RADIUS provide authentication, authorization, and accounting, but they do not prevent overlay routing from interacting with management reachability. A separate physical interface can help in some designs, but option A is the cleanest answer because it combines routing isolation with secure access. Reference topics: management VRF, SSH, secure management plane, route isolation, overlay troubleshooting.

The selected configuration sets are correct because the addressing plan must use VLSM to maximize subnets and minimize wasted addresses. Customer A requires 125 hosts, so it needs a /25 subnet, which provides 126 usable host addresses. Customer D requires 62 hosts, so it needs a /26 subnet, which provides 62 usable addresses exactly. Point-to-point or small WAN links B, C, and E should use the smallest appropriate link subnets shown in the exhibit, typically /30 for IPv4 point-to-point links when two usable addresses are required. A correct plan must allocate the largest blocks first, align every subnet on the proper boundary, avoid overlap, and avoid assigning a larger-than-needed subnet to any customer or link. Options A and C are the two valid combinations that satisfy those rules in the exhibit. Any option that places a /25 or /26 on the wrong boundary, overlaps with another block, or wastes larger subnets on links would fail the design objective. Reference topics: IPv4 VLSM, subnet boundary alignment, host capacity planning, point-to-point addressing, route summarization readiness.

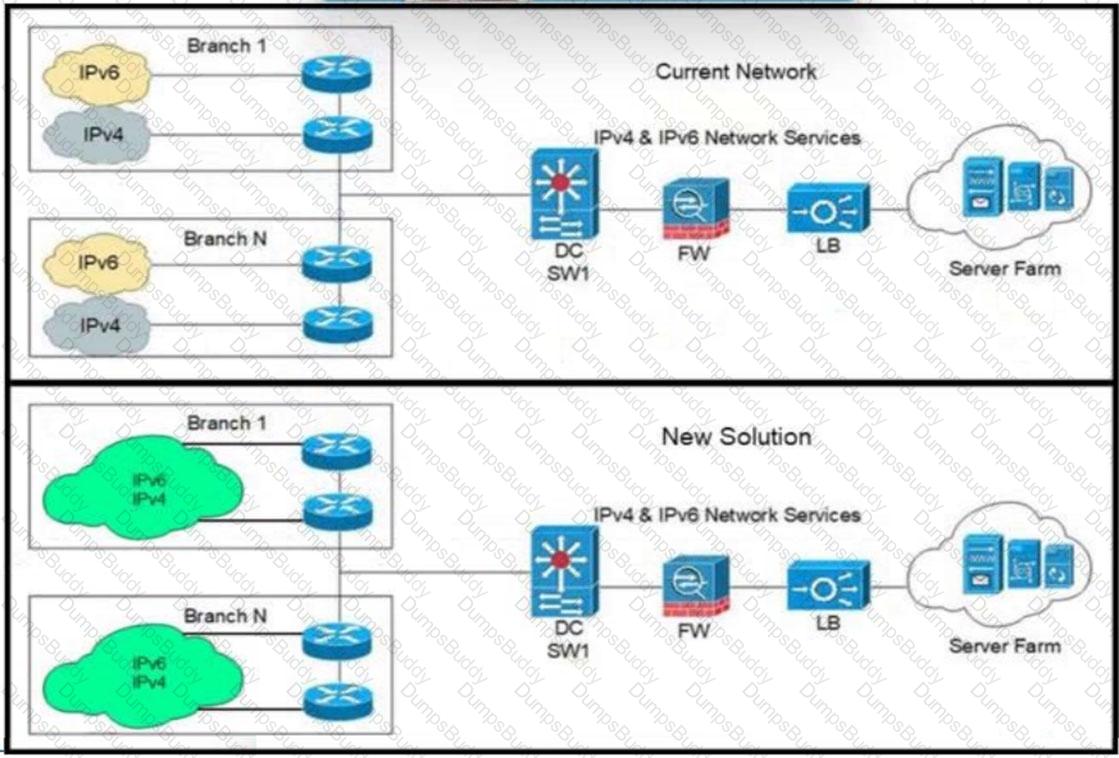

Dual stack is the migration topology that supports IPv6 while preserving existing IPv4 services during the transition. In a dual-stack design, hosts and network devices run IPv4 and IPv6 in parallel, allowing applications and services to move gradually from IPv4 to IPv6 without forcing an immediate cutover. That matches the customer’s plan: keep the current IPv4 topology and services, introduce IPv6 connectivity, migrate services, and eventually decommission the IPv4 topology. 6VPE is used to carry IPv6 VPN routes across an MPLS IPv4 provider core, which is a service-provider VPN use case rather than a general enterprise migration topology. 6to4 is an automatic tunneling mechanism and is not appropriate as a stable enterprise migration plan. NAT64 enables IPv6-only clients to reach IPv4 resources through translation, but it does not preserve the complete IPv4 topology while services migrate. Cisco migration guidance treats dual stack as the cleanest operational model when infrastructure supports both protocols, because it avoids translation side effects and allows DNS and application behavior to determine which protocol is used.

A dual-homed Internet design with a single edge router and site-to-site VPN topology best matches the stated cost and flexibility requirements. The customer needs redundant WAN links, has a limited budget, wants easy future bandwidth increases, and does not require consistent end-to-end QoS on the branch routers. Internet circuits are typically less expensive and easier to upgrade than MPLS access circuits, making them appropriate for small to medium-sized remote branches when strong QoS guarantees are not required. A single edge router also reduces hardware cost and operational complexity compared with dual edge routers. WAN MPLS designs can provide stronger service-level guarantees and QoS treatment, but they are more expensive and less flexible for rapid bandwidth upgrades. A design with dual edge routers improves device redundancy but conflicts with the limited-budget condition. Therefore, a dual-homed Internet solution using a site-to-site VPN overlay is the most appropriate option. The architect should still validate encryption requirements, failover behavior, routing preference, and whether the Internet underlay can meet application performance expectations. Reference topics: branch WAN design, dual Internet connectivity, site-to-site VPN, cost-driven WAN selection.

Dedicated control-plane nodes are advisable when frequent endpoint roaming across fabric edge nodes is expected. In Cisco SD-Access, the control-plane node maintains the host tracking database and resolves endpoint identifiers to routing locators. When endpoints move between fabric edge nodes, the fabric must update endpoint-to-location mappings quickly and consistently. In smaller deployments, the control-plane function can sometimes be colocated with border nodes, but larger or more mobile environments benefit from dedicated control-plane nodes to improve scale, resilience, and operational separation. The decision is not because Cisco DNA Center is absent; DNA Center is the management and automation platform for SD-Access. It is also not because edge nodes are unable to provide control-plane functionality, since that is not their fabric role. Frequent roaming creates more mapping updates and lookup activity, so dedicated control-plane resources help maintain stable endpoint registration and resolution performance. Reference topics: Cisco SD-Access control-plane node, host tracking database, endpoint mobility, LISP map server, fabric scale.

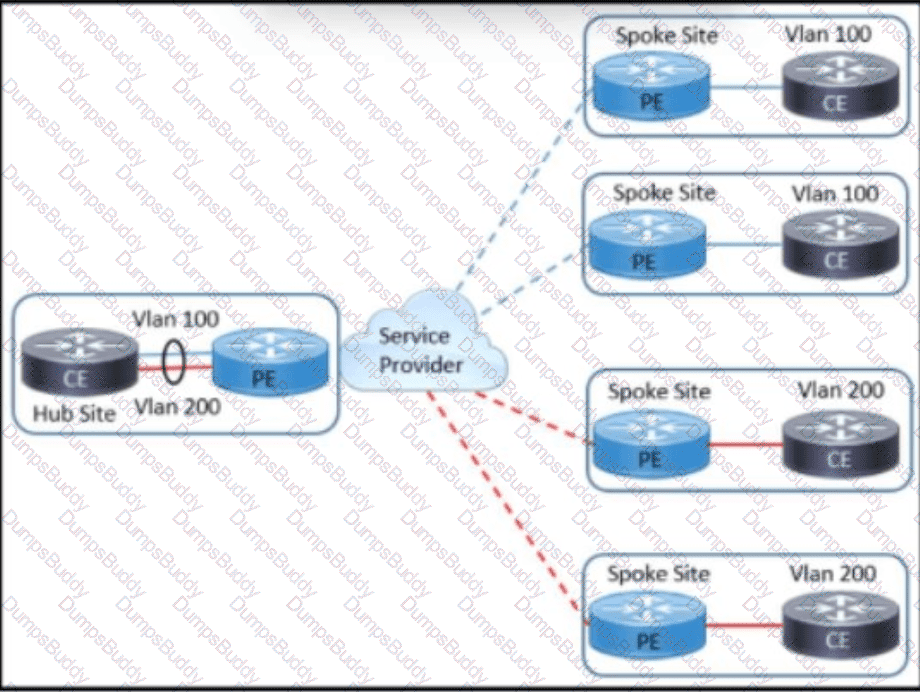

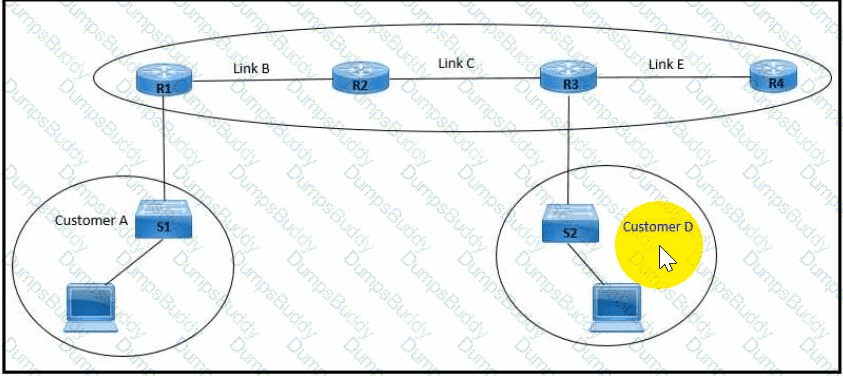

A single VPLS instance is the correct Layer 2 VPN design because the customer requires service-provider transparency and direct communication between CE routers attached to the same VLAN. Virtual Private LAN Service provides a multipoint Ethernet LAN service across a provider MPLS or IP backbone. To the customer, the provider network behaves like a transparent Layer 2 switching domain, allowing CE devices in the same VLAN to communicate directly at Layer 2. VPWS is point-to-point, so multiple VPWS circuits would be required to approximate multipoint connectivity, and the design would not provide the same transparent shared LAN behavior. Multiple VPLS instances are unnecessary when the requirement is a single VLAN or single broadcast domain. VPLS also hides provider devices from the customer Layer 2 service view while allowing MAC learning and forwarding across the provider edge. Reference topics: VPLS, Layer 2 VPN, multipoint Ethernet service, CE transparency, VLAN extension, service provider WAN design.

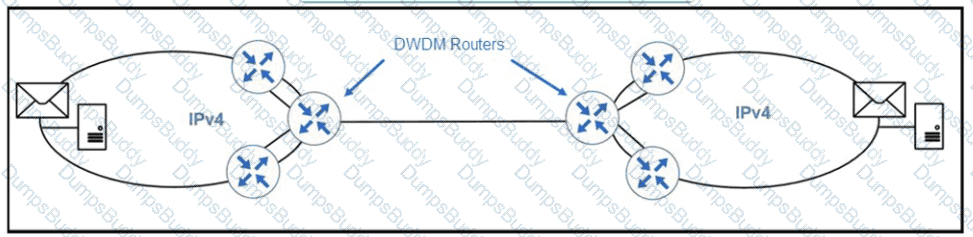

Dual-stack is the correct IPv6 migration technique because the DWDM devices provide Layer 2 transport between routers that already support both IPv4 and IPv6. Layer 2 transport is generally transparent to IPv6 because it forwards Ethernet frames rather than participating in Layer 3 routing. The routers at the ends of the DWDM circuit can peer directly over the Layer 2 service and run IPv6 in parallel with IPv4, while mail servers can also retain IPv4 reachability during the migration. Cisco dual-stack migration guidance uses simultaneous IPv4 and IPv6 operation to support phased application and host transition with minimal tunneling overhead. 6to4, ISATAP, and 6rd are tunneling or transition mechanisms used when IPv6 islands must cross IPv4-only routed infrastructure. In this case, the limiting devices are in the transport layer and do not need to route IPv6. Deploying dual-stack on the capable routers and servers is simpler, more transparent, and avoids unnecessary encapsulation. Reference topics: IPv6 dual-stack migration, Layer 2 transparency, IPv6 over Ethernet, tunneling avoidance, phased migration.

Cisco SD-WAN uses the vSmart controller as the control-plane component that distributes the information needed for secure data-plane tunnel establishment. Before WAN Edge devices build full-mesh IPsec tunnels, they must learn reachability and security information through the SD-WAN control plane. Cisco documentation describes the vSmart controller as the centralized control-plane element that exchanges OMP routes, policy, TLOC information, and security parameters with WAN Edge routers. In the traditional SD-WAN key-exchange model, vSmart sends IPsec encryption keys to edge devices so the data plane can be secured without each edge independently negotiating IKEv2 with every other edge. vManage is the management platform and is not the key exchange point. vBond performs orchestration, authentication assistance, and NAT traversal during onboarding, but it is not the data-plane key server. IKEv2 may be used in specific newer or configured security models, but the typical Cisco SD-WAN overlay relies on vSmart for scalable key distribution. Reference topics: Cisco SD-WAN control plane, vSmart, OMP, IPsec key distribution, WAN Edge security.

DMVPN is the correct design because it satisfies all of the stated branch requirements without requiring manually built static tunnels for every store. Cisco DMVPN uses multipoint GRE with NHRP and IPsec to create a scalable hub-and-spoke overlay, and later phases allow dynamic spoke-to-spoke tunnels when branch-to-branch traffic is required. GRE supports multicast and dynamic routing protocols, while IPsec supplies encryption across the lower-cost WAN transport. This fits the requirement to deliver multicast training, use dynamic routing, preserve QoS markings and policy behavior, and simplify future branch additions because new spokes can register dynamically with the hub. VPLS would provide Layer 2 multipoint service, but it is typically a provider-delivered service and does not meet the secure dynamic VPN requirement as directly. GET VPN is efficient for private MPLS environments, but it does not create dynamic GRE tunnels from the hub for new stores. Static IPsec is secure but operationally poor at scale and does not natively carry multicast without an overlay. Therefore, the design should include DMVPN. Reference topics: DMVPN, mGRE, NHRP, IPsec protection, multicast over VPN.

BFD for EIGRP is the strongest design option for improving convergence after access-layer switch or uplink failure on Layer 3 links. EIGRP hello and hold timers can detect failures, but aggressive timer reduction increases control-plane chatter and still may not provide consistent subsecond detection across platforms. Cisco BFD is specifically designed to provide rapid forwarding-path failure detection for routing protocols, including EIGRP, independent of the routing protocol hello mechanism. On point-to-point Layer 3 uplinks, BFD can notify EIGRP quickly when a neighbor path fails, allowing DUAL to react without waiting for the EIGRP hold timer. Summarization from access to aggregation is useful for query scoping and stability, but it does not directly detect an access switch failure faster. Summarization from core to aggregation has even less relevance to access uplink failure detection. Therefore, the design should enable BFD for EIGRP on the access-layer uplinks, with timer values chosen carefully according to platform capability and operational stability. Reference topics: EIGRP convergence, BFD, routed access, failure detection, DUAL.

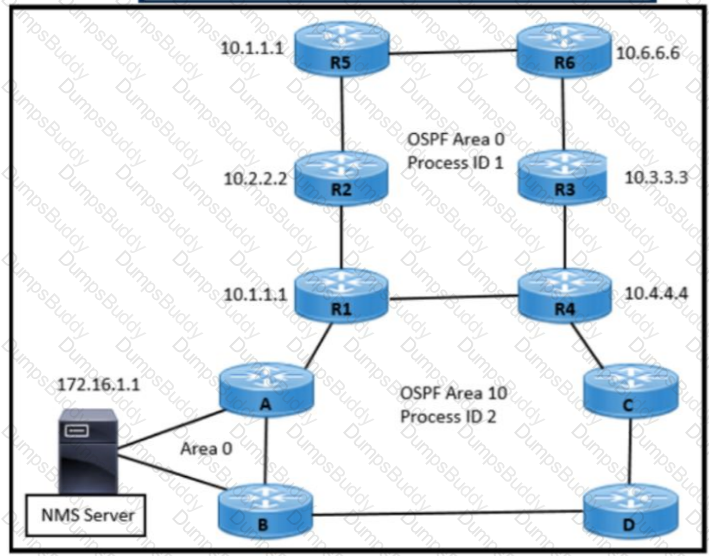

The correct get-config reply is the one that shows OSPF process ID 200 and the network 172.16.10.128/26 assigned to Area 0 in the same YANG model hierarchy that was used for configuration. In model-driven configuration, verification is not based on visual similarity to CLI output; it is based on whether the operational or running datastore contains the intended structured objects at the correct schema paths. For IOS XE native OSPF configuration, the process identifier, network statement, wildcard or prefix representation, and area association must be represented exactly as the model requires. A /26 network beginning at 172.16.10.128 covers addresses 172.16.10.128 through 172.16.10.191, so replies showing a different base network, wrong process ID, wrong area, or invalid mask cannot verify the design. Option A is the matching reply. The professional validation workflow is to send the configuration, read back the intended datastore using get-config, and confirm the model fields rather than relying only on CLI screen output. Reference topics: NETCONF get-config, IOS XE native OSPF YANG, datastore verification, OSPF area configuration.

Native policy-based IPsec protects unicast IP traffic between defined proxy identities, but it does not inherently provide a multiprotocol tunnel interface that supports multicast routing protocol packets. Many enterprise VPN designs require multicast for applications, routing protocols, or service discovery. To support multicast across an encrypted VPN, the design commonly uses GRE over IPsec or a tunnel interface such as VTI where the tunnel provides a logical point-to-point or multipoint interface and IPsec secures the encapsulated traffic. GRE can encapsulate multicast and broadcast traffic, allowing dynamic routing protocols and multicast packets to traverse the VPN. IPsec then encrypts the GRE or tunnel traffic for confidentiality and integrity. Transport mode by itself does not solve multicast forwarding, and tunnel mode still requires suitable encapsulation or tunnel-interface behavior for multicast support. Additional headend bandwidth may be required in large VPN designs, but it is not the unique technical requirement for multicast. Therefore, when IPsec VPNs must support IP multicast, the design must include GRE or VTI-style encapsulation.

Incremental SPF is the correct solution because the problem specifically states that Type 1 or Type 2 LSAs force the OSPF process to recompute the entire shortest path tree. Cisco OSPF documentation states that when changes to a Type 1 or Type 2 LSA occur, the entire SPT is normally recomputed, and that incremental SPF allows the system to recompute only the affected part of the tree. This improves convergence and reduces CPU use because the router does not have to run a full Dijkstra calculation for every topology change. BFD detects failures quickly, but it does not change how OSPF recalculates the SPT after the LSA arrives. Standard SPF is the default full calculation behavior and therefore does not solve the optimization requirement. PRC is associated with partial route calculation behavior in some link-state contexts, but for this OSPF question the Cisco feature name is iSPF. Reference topics: OSPF incremental SPF, Type 1 LSA, Type 2 LSA, SPF optimization, campus OSPF scaling.

A single-homed full-mesh design is the best match when each WAN router has only one WAN interface, no additional WAN links can be purchased, and the customer still wants resilient site-to-site reachability. Single-homed means each site has one physical WAN attachment. Full mesh describes the logical connectivity model between sites, where each site can communicate directly with the others across the WAN service or overlay rather than relying completely on a central hub for intersite traffic. A hub-and-spoke design is simpler, but it creates dependency on the hub for spoke-to-spoke communication and provides poorer resiliency for a three-site design. Dual-homed hub-and-spoke and dual-homed full mesh both require additional WAN connectivity or interfaces, which violates the stated budget and hardware constraints. The best available design is therefore to use the single WAN attachment at each site while building a full-mesh logical topology over the provider or overlay service. Reference topics: WAN topology design, single-homed connectivity, full mesh, hub-and-spoke limitations, high availability under interface constraints.

The dial-out model-driven telemetry approach is initiated by the network device, not by the collector. Cisco IOS XE telemetry documentation describes configured subscriptions as dial-out because the publisher, meaning the router or switch, initiates the connection to the configured receiver. After the session is established, the device streams the subscribed YANG-modeled data at the configured cadence or when the configured on-change condition occurs. This model is useful when the telemetry collector is a fixed destination and the network operator wants the device to maintain the outbound session automatically. Option B describes dial-in telemetry, where the collector or subscriber connects to the device and requests the subscription. Option C is also dial-in oriented because the collector initiates the session. Option D is close in wording, but the key design point is that the session is based on an already configured subscription rather than a negotiation process. Reference topics: model-driven telemetry, configured subscriptions, dial-out telemetry, YANG-push, telemetry collectors.

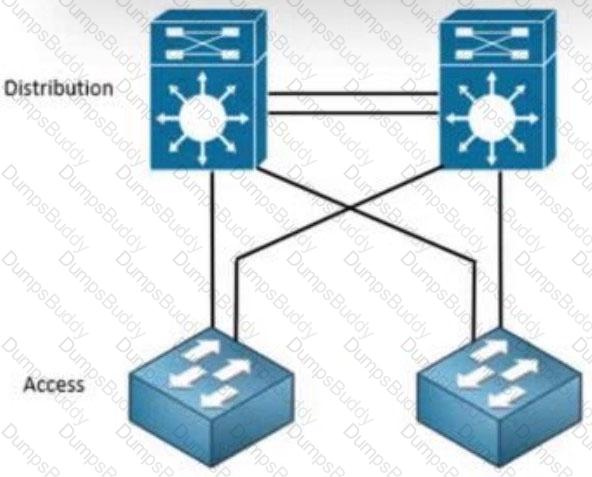

Rapid PVST+ and VTP address the stated redesign goals. Moving from IEEE 802.1D STP to Rapid PVST+ reduces the impact of topology changes because rapid spanning tree provides faster convergence through proposal/agreement behavior and faster port-role transitions. That improves availability compared with classic STP timers. VTP reduces administrative effort and manual configuration errors by centrally propagating VLAN information across switches in the same VTP domain. It can also support pruning so unused VLAN traffic is not unnecessarily carried across trunks. MST could reduce spanning-tree instance count, but the question emphasizes reducing topology-change impact and reducing manual VLAN configuration work; Rapid PVST+ plus VTP addresses both directly. Storm control helps limit broadcast and multicast traffic but does not solve STP convergence or VLAN administration. Dynamic Trunking Protocol negotiates trunk state; it does not propagate VLAN information and is often avoided in deterministic campus designs. In production, VTP should be used carefully with version control, domain/password discipline, and change governance because incorrect VTP configuration can have broad impact. Reference topics: Rapid PVST+, STP convergence, VTP, VLAN pruning, campus Layer 2 operations.

Affinity is the Cisco SD-WAN feature used to minimize TLOC and control connections and reduce strain on vSmart controllers. Cisco documentation explains that establishing affinity between controllers and edge devices allows the operator to control overlay scaling by limiting which controllers an edge device can establish control connections with. In large deployments, unrestricted connections between every WAN Edge and every controller can create unnecessary state and operational load. Affinity lets the design distribute edge connections across controllers and data centers while still preserving redundancy through primary and backup controller relationships. Color identifies the transport type or behavior associated with a TLOC, but it does not reduce controller connection scale by itself. Control-direction and control-connections are not the feature names that provide the scaling function described in the question. A well-designed SD-WAN control plane uses affinity, controller groups, and redundancy planning to keep the overlay scalable and predictable. Reference topics: Cisco SD-WAN affinity, vSmart controller scale, TLOC connections, control-plane redundancy, overlay scaling.

L2VPN is the correct technology because the requirement is for two remote offices to share a common broadcast domain across a private WAN with minimal overhead. A Layer 2 VPN service extends Ethernet or VLAN connectivity between customer sites while keeping the customer routing design independent of the provider core. From the customer perspective, the two sites can appear to be on the same Layer 2 segment, which satisfies the shared broadcast-domain requirement. GET VPN, IPsec, and GRE are Layer 3-oriented technologies. They can connect sites securely or provide tunneling, but they do not natively create a common Layer 2 broadcast domain between the offices. GRE also adds additional encapsulation overhead, and IPsec alone generally provides encrypted routed connectivity rather than an Ethernet service. For a simple direct logical path over a private WAN, an L2VPN service such as VPWS or VPLS is the appropriate design family. Reference topics: L2VPN, VPWS, VPLS, Ethernet WAN services, broadcast-domain extension, private WAN connectivity.

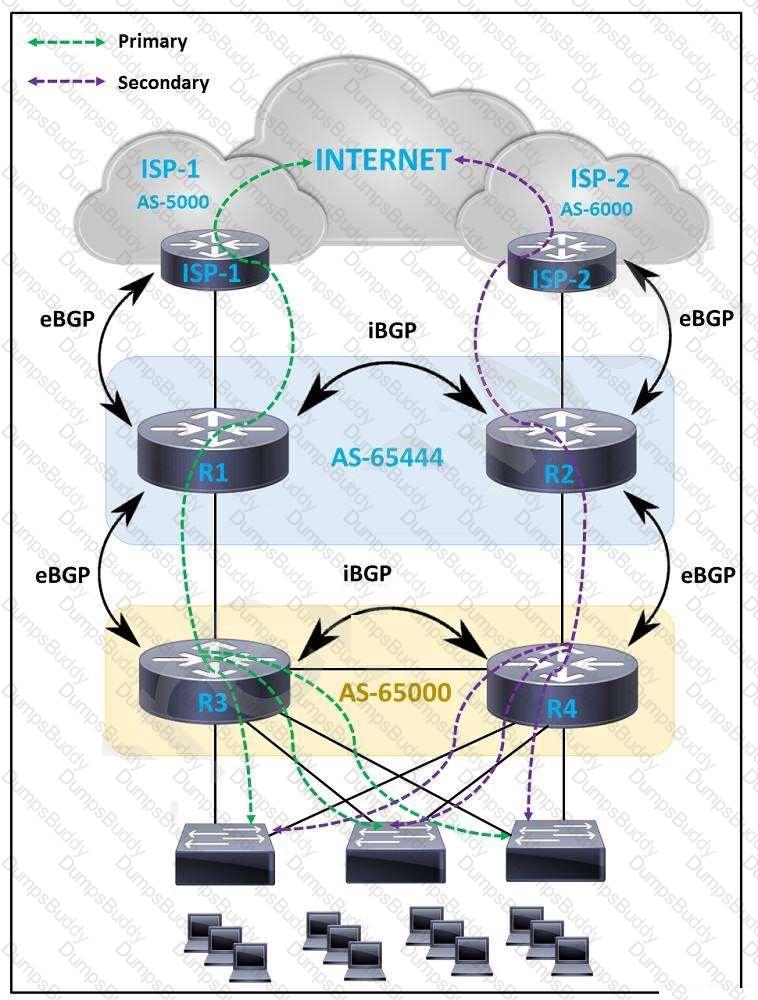

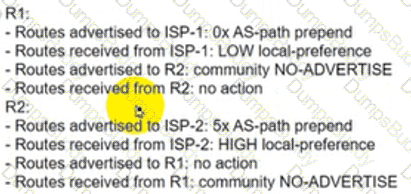

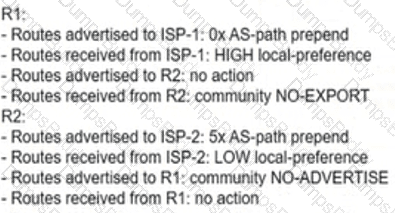

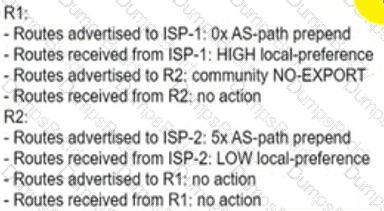

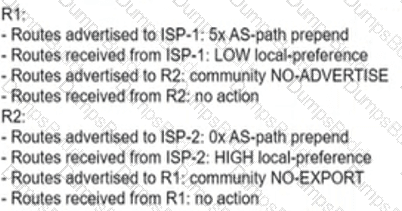

The best design is the option that prefers ISP-1 for both outbound and inbound traffic while keeping ISP-2 available as a backup. For outbound traffic from the enterprise, local preference is the correct BGP attribute because it is evaluated inside the local AS and higher local preference wins. R1 should assign a high local preference to routes learned from ISP-1, while R2 should assign a low local preference to routes learned from ISP-2. For inbound traffic from the Internet toward the enterprise, AS-path prepending is the practical signal sent to external networks. Advertising routes to ISP-1 with no prepending and routes to ISP-2 with five prepends makes the ISP-1 path look shorter and therefore more attractive. The R1-to-R2 internal advertisements should not be blocked by NO-ADVERTISE because each edge router must still share reachability internally for failover. Option B matches these controls without unnecessarily suppressing routes between the edge routers. Reference topics: BGP local preference, AS-path prepending, active/backup Internet design, inbound and outbound path control.

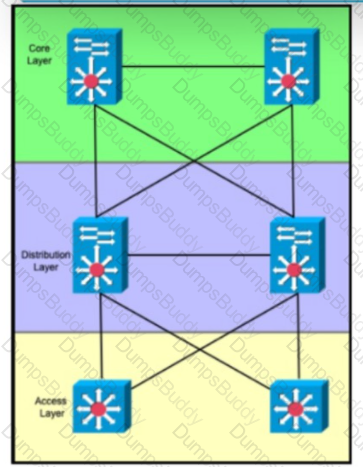

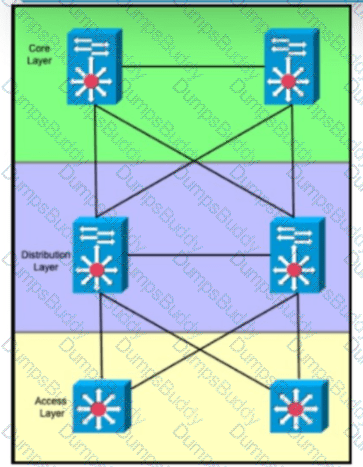

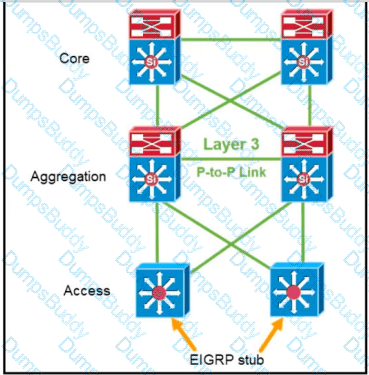

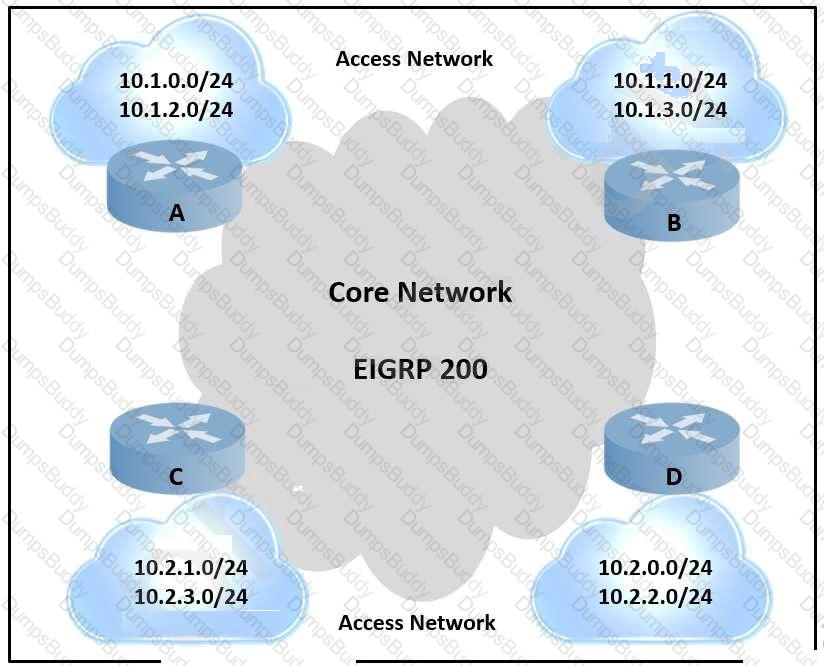

The design should summarize routes from the distribution layer toward the core and configure access-layer switches as EIGRP stubs. EIGRP query scope is a major design consideration in large routed campus networks. When a route is lost, EIGRP may send queries to neighbors to find an alternate path. If the network is not bounded properly, these queries can spread widely, slow convergence, and create stuck-in-active risk. Configuring the access layer as EIGRP stub tells upstream routers that the access device is not a transit path to other networks, so unnecessary queries are not sent into the access layer. Summarizing at the distribution layer toward the core hides access-link instability and provides a smaller, more stable routing table to the rest of the network. Summarizing at the access layer is usually less useful when many VLANs are aggregated at distribution. Configuring the core as stub is inappropriate because the core should provide transit. Reference topics: EIGRP stub, route summarization, query boundary, campus hierarchy, DUAL convergence.

Wake-on-LAN across routed boundaries requires directed broadcast handling toward the client subnet and helper behavior to forward the magic packet correctly. A sleeping host normally does not maintain a normal IP session, so the WoL magic packet is commonly sent as a directed broadcast to the destination subnet. Cisco designs therefore enable IP directed broadcast on the routed interface or SVI for the client subnet where the sleeping endpoints reside, while controlling the feature carefully to avoid abuse. The ip forward-protocol behavior is also relevant because routers must forward the required UDP broadcast traffic rather than dropping it at the Layer 3 boundary. In addition, an IP helper address toward the WoL server or relay path may be needed on client-facing interfaces so the magic packet can be delivered from the management or server subnet to the client subnet. PortFast helps endpoints become reachable quickly at Layer 2, but it does not replace routed broadcast forwarding. Reference topics: Wake-on-LAN, directed broadcast, ip helper-address, UDP forwarding, PortFast, campus services.

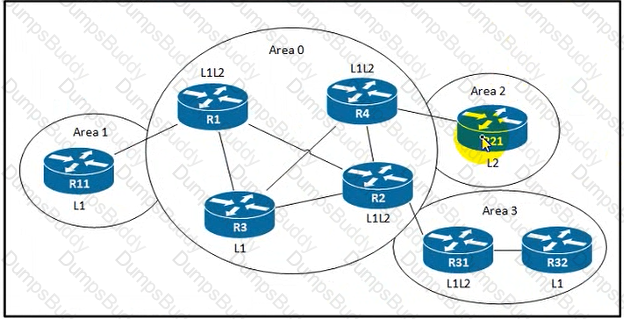

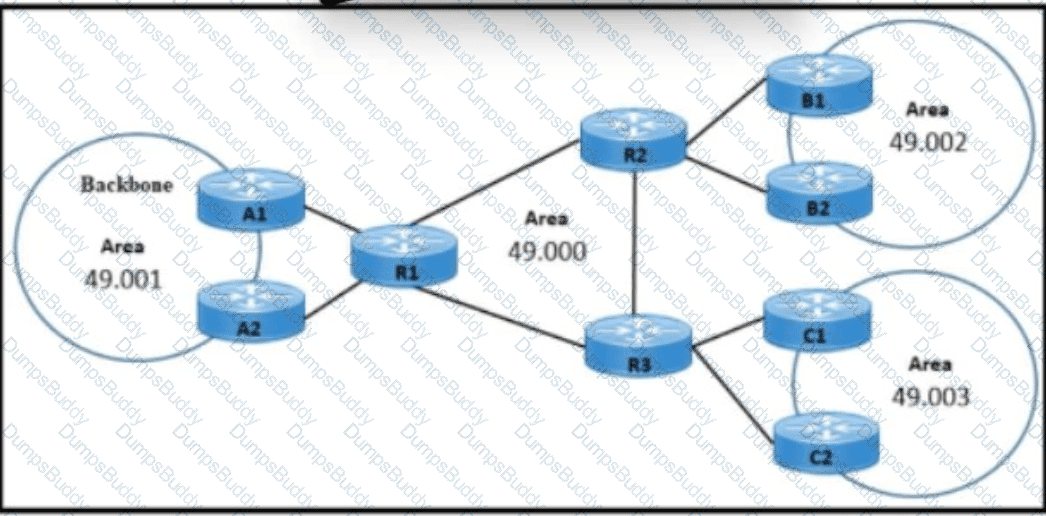

The correct IS-IS hierarchy places area 49.000 as Level 2 and areas 49.001, 49.002, and 49.003 as Level 1. In IS-IS, Level 2 forms the interarea backbone, while Level 1 areas contain local topology details. This design supports growth in the backbone because Level 2 routers exchange interarea reachability without carrying every local topology change from every access area. Areas 49.002 and 49.003 can perform summarization and route leaking at their Level 1/Level 2 boundaries, allowing routers such as A1 and A2 to avoid suboptimal routing by learning selected more-specific routes from the backbone when necessary. If the nonbackbone areas were made Level 2, the design would flatten the hierarchy and expose more of the network to topology changes. If the backbone were Level 1, interarea routing would be broken or badly constrained. The selected hierarchy preserves scaling, allows route control, and avoids unnecessary propagation of local link flaps. Reference topics: IS-IS hierarchy, Level 1 areas, Level 2 backbone, route leaking, summarization, scaling.

Cisco SD-WAN WAN Edge devices can be brought into the overlay through automated zero-touch provisioning or through manual bootstrap configuration. Zero-touch provisioning allows a device to discover the SD-WAN controllers and receive the information needed to authenticate and join the overlay with minimal on-site work. This is a core operational benefit of Cisco SD-WAN because branch routers can be shipped to sites and onboarded without a specialist manually building the entire control-plane configuration locally. Manual configuration remains available when ZTP is not used, when the site has special connectivity constraints, or when the administrator needs to stage the router directly. DHCP options and DNS records can help devices learn controller information in some deployment models, but they are not the complete pair of bootstrap methods named for vEdge onboarding. vManage is the management system, not a bootstrap method by itself. Therefore, the correct methods are ZTP and manual configuration. The design should also validate certificates, organization name, system IP, site ID, and transport interface reachability during onboarding.

A dedicated management VRF is the correct feature when management protocols must traverse the production network but remain logically separated. The question describes in-band management because SSH, NTP, FTP, and SNMP are carried over the production network rather than over a separate physical console or out-of-band network. The design still requires routers and switches across different networks to be managed securely. A management VRF gives the management plane its own routing table, allowing the engineer to restrict management reachability, apply separate routing, and keep management traffic from leaking into user or service forwarding paths. Management Plane Protection can restrict which interfaces accept management-plane traffic, but it does not by itself provide separate routing across different networks. A terminal server or dedicated console connection is an out-of-band operational tool, not the production-network management design requested here. A dedicated management VRF per device is therefore the correct feature. Reference topics: in-band management, management VRF, SNMP and SSH reachability, management-plane segmentation, enterprise operations design.

As a STUN server, Cisco vBond allows Cisco Catalyst SD-WAN routers to discover their public mapped IP addresses and ports when they sit behind NAT. This function is essential during overlay bring-up because many WAN Edge devices are deployed behind internet circuits, firewalls, or provider NAT devices. vBond helps devices understand how they are seen from the public transport side and facilitates the formation of secure control connections to the SD-WAN controllers. vBond also participates in orchestration and Zero-Touch Provisioning workflows, but the question specifically asks about its purpose as a Session Traversal Utilities for NAT server. That wording points directly to NAT discovery, not general ZTP. vBond does not secure user data traffic between edge routers; data-plane encryption is established between WAN Edge devices. It also has no role in integrating SD-Access wireless into a fabric. Reference topics: Cisco SD-WAN vBond, STUN, NAT traversal, orchestration, WAN Edge onboarding. This is fundamental for internet transports.

Multiple Spanning Tree Protocol is the standards-based solution that allows many VLANs to be mapped into a smaller number of spanning-tree instances. MSTP is defined by IEEE 802.1s and incorporated into IEEE 802.1Q, making it suitable for a multivendor campus where proprietary per-VLAN behavior is not acceptable. The question states that all configured VLANs must be grouped into two STP instances. That is exactly the design purpose of MST: VLAN-to-instance mapping lets the architect reduce the number of active spanning-tree calculations while still supporting different forwarding topologies for selected VLAN groups. Traditional STP runs a single common spanning tree and cannot provide two separate VLAN instance groups. RSTP improves convergence but does not by itself group VLANs into multiple instances. Rapid PVST+ provides one rapid spanning-tree instance per VLAN, but it is Cisco-oriented and creates far more instances than required. For a vendor-neutral design with two spanning-tree instances, MSTP is the correct choice and also reduces CPU and memory pressure compared with running a separate instance per VLAN.

Traffic shaping is the correct QoS design for a 1-Gbps handoff with a 100-Mbps committed information rate when the provider aggressively drops traffic above the CIR. Cisco distinguishes shaping from policing: shaping buffers and delays excess packets so the sender transmits at a configured rate, while policing drops or remarks traffic that exceeds the configured rate. Because the customer wants to maximize bandwidth usage up to the 100-Mbps CIR and avoid excessive TCP retransmissions, shaping is the better fit. Policing at the customer edge would simply drop excess traffic locally, creating the same kind of loss problem. A markdown policer is useful when lower-priority traffic should be reclassified, but it does not smooth bursts into the provider’s CIR. Queuing helps during congestion, but without shaping the router can still send bursts at the 1-Gbps physical rate into a provider policer. The correct design is to shape outbound traffic to the CIR, then use child-policy queuing if class-based service guarantees are required. Reference topics: traffic shaping, policing, CIR, hierarchical QoS, TCP retransmission avoidance.

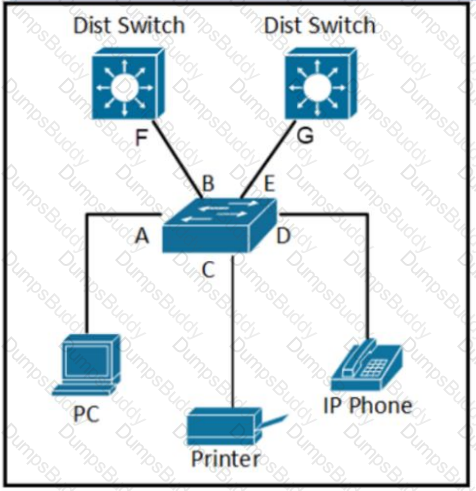

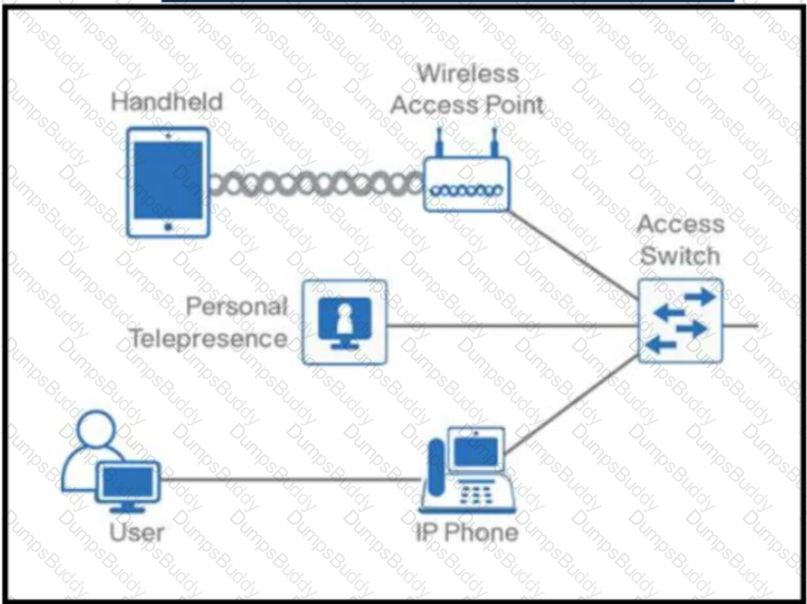

Explicit QoS trust should be configured at the network boundary points where markings first enter the managed DiffServ domain and are known to be reliable. In a DiffServ design, traffic classification and marking are typically performed at the access edge or at a controlled ingress boundary, and downstream devices then honor DSCP or CoS markings based on the trust boundary. Cisco QoS design stresses that the trust boundary must be intentionally placed; endpoints or unmanaged devices should not be trusted by default because they can mark traffic incorrectly and steal priority treatment. The exhibit answer identifies B and E as the correct trust points, meaning those are the controlled ingress locations where markings should be accepted. Options that trust uncontrolled endpoint-facing points or internal transit locations would either create a security problem or add no practical value. Once traffic is trusted and marked at the correct boundary, queuing, policing, and shaping policies can use the DSCP values consistently across the campus or WAN. Reference topics: DiffServ, QoS trust boundary, DSCP marking, classification, enterprise QoS design.

For streaming multimedia over a WAN using DiffServ per-hop behavior, the best answer is CBWFQ with DSCP AF3. Cisco QoS design separates real-time interactive voice from streaming multimedia. Voice bearer traffic commonly uses EF and a strict priority queue because it is extremely sensitive to delay and jitter. Streaming multimedia, however, is usually buffered and bandwidth-intensive; it should receive assured bandwidth and controlled drop behavior rather than strict priority treatment. The Assured Forwarding classes are designed for this kind of preferential forwarding within DiffServ. AF3 is commonly associated with multimedia streaming in Cisco QoS baseline models, while CBWFQ provides bandwidth guarantees without allowing the class to starve other traffic. LLQ with EF is too aggressive for streaming multimedia and should be reserved for voice bearer traffic or similarly strict real-time flows. AF2 is more commonly used for transactional data or lower-priority assured service, depending on the model. The correct marking and queuing design is therefore CBWFQ with DSCP AF3. Reference topics: DiffServ, per-hop behavior, CBWFQ, DSCP AF classes, multimedia streaming QoS.

NAT64 is the correct solution when IPv6-only hosts must communicate with an IPv4-only public web server. NAT64 translates IPv6 packets from the client side into IPv4 packets toward the server and translates the return traffic back into IPv6. In most practical designs, NAT64 is paired with DNS64 so IPv6-only clients can receive synthesized AAAA records for IPv4-only destinations. NAT44 is only IPv4-to-IPv4 translation and cannot support IPv6-only hosts. 6to4 is an IPv6-over-IPv4 tunneling mechanism, not an IPv6-to-IPv4 translation service for reaching an IPv4-only server. 6PE carries IPv6 reachability across an MPLS IPv4 core and does not solve IPv6-only client access to an IPv4-only domain. The question specifically states that the hosts support IPv6-only and the public web server has only IPv4 domain name resolution. That is the classic NAT64/DNS64 use case. The architect must also plan stateful translation capacity, logging requirements, IPv4 address pool sizing, and DNS behavior. Reference topics: NAT64, DNS64, IPv6 transition, IPv6-only hosts, IPv4-only server access.

Cisco SD-Access uses virtual networks as macro-segmentation boundaries, and those VNs are represented as VRF instances in the fabric. By design, separate VNs do not communicate directly inside the overlay unless the design introduces controlled inter-VN routing. Cisco SD-Access designs commonly use an external fusion router, firewall, or shared-services device to map fabric VNs to external VRFs and selectively exchange routes between them. That is the correct design because it preserves segmentation while allowing policy-controlled access to shared resources or selected networks. GRE tunnels between fabric edges are not the normal SD-Access inter-VN communication method and would bypass the intended fabric policy model. Security Group Tags provide microsegmentation within or across policy domains, but SGTs do not by themselves leak routes between separate virtual networks. Route leaking on fabric border nodes is not the recommended standalone answer here because inter-VN communication is normally provided through a fusion device or firewall outside the fabric. Therefore, the correct solution is external fusion routing with controlled VRF route exchange.

An additional Cisco SD-Access fabric site requires edge and border roles in addition to the control-plane function. Edge nodes connect wired endpoints, access-layer devices, and sometimes access points into the fabric. They perform endpoint detection, anycast gateway functions, and fabric encapsulation for user traffic. Border nodes provide connectivity between the fabric site and external networks such as the WAN, data center, internet edge, or shared services. Without edge nodes, the site has no practical access-layer fabric attachment for endpoints. Without border nodes, the site cannot properly exchange traffic with resources outside the local fabric. A wireless LAN controller may be needed when fabric wireless is part of the design, but it is not one of the mandatory fabric roles for every additional site. Leaf and cEdge are not Cisco SD-Access fabric roles in this context. Reference topics: Cisco SD-Access fabric roles, edge node, border node, control-plane node, fabric site expansion.

LISP is the control-plane protocol responsible for Endpoint Identifier to Routing Locator mapping in Cisco SD-Access. In the SD-Access architecture, an endpoint address is treated as an EID, and the fabric node location is represented by an RLOC. The fabric control-plane node performs LISP map-server and map-resolver functions so edge nodes can register local endpoints and resolve the current location of remote endpoints. This separation allows the overlay to support host mobility, anycast gateway behavior, and segmentation without depending only on traditional subnet-bound forwarding. VXLAN is the fabric data-plane encapsulation used to carry traffic across the fabric and preserve policy information, but it does not provide the EID-to-RLOC mapping function. CEF is the local forwarding mechanism inside Cisco devices, and GBAC is not the SD-Access mapping protocol. Therefore, LISP is the correct answer because it provides the SD-Access fabric control plane. Reference topics: Cisco SD-Access control plane, LISP, EID, RLOC, map-server, map-resolver.

Graceful restart is the correct high-availability design when the routing process on an intermediate OSPF router must undergo maintenance while the data plane remains available. Cisco describes graceful restart as a mechanism that allows a restarting router to continue forwarding traffic while neighbors temporarily preserve adjacency and route information. In OSPF, helper-capable neighbors assist the restarting router by maintaining forwarding state during the restart interval, preventing unnecessary route withdrawal and reconvergence. BFD is a failure-detection mechanism, so it would actually accelerate detection of a failure rather than preserve the forwarding path during planned process maintenance. Nonstop forwarding must be enabled on the device performing the control-plane restart and supported by neighbors, but the broad answer choice that captures the required routing-protocol behavior across the design is graceful restart on the participating routers. Configuring it only on R1 and R3 or only on R3 would not support the R2 process maintenance scenario. Reference topics: OSPF graceful restart, NSF, helper mode, control-plane maintenance, data-plane availability.

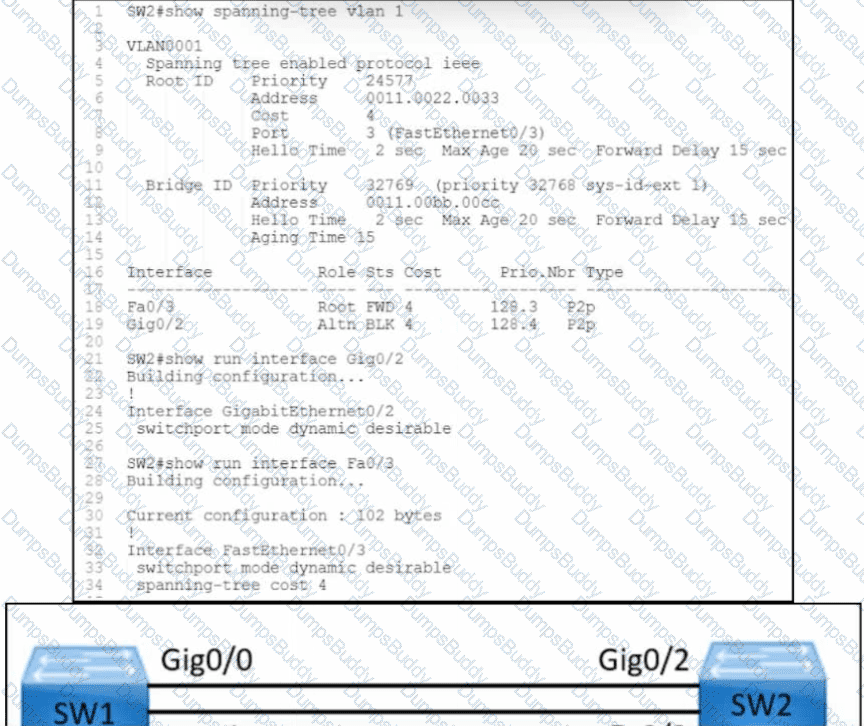

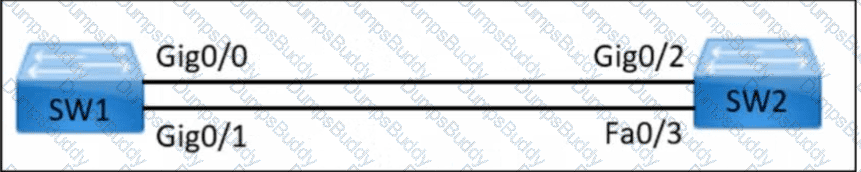

The selected command pair is appropriate because the issue is that GigabitEthernet0/2 on SW2 is not becoming the root port as expected. In spanning-tree design, the root port is selected based on the lowest root path cost, then upstream bridge ID, then port ID when necessary. If the wrong port is selected, the engineer must adjust the local spanning-tree parameters on SW2 so that the intended interface has the best path toward the root bridge. Typical corrective commands lower the spanning-tree cost or set the port priority on the desired interface or VLAN instance. The correct answer pair is therefore the combination that changes the STP decision variables for Gig0/2 rather than changing unrelated features such as PortFast, BPDU Guard, or VLAN trunking. PortFast is unsafe on switch-to-switch links, and protection features do not make an interface more attractive as a root port. The fix must influence STP path selection while keeping the topology loop-free. Reference topics: STP root port election, path cost, port priority, root bridge path selection, Catalyst Layer 2 troubleshooting.

Implementing direct Internet access at every Cisco SD-WAN site improves application experience and reduces unnecessary backhaul. Many modern business applications are hosted in SaaS or public cloud environments. If branch Internet traffic must hairpin through a central data center before reaching those applications, latency increases and central WAN or security stacks can become bottlenecks. SD-WAN DIA allows selected cloud and Internet-bound traffic to exit locally while still applying policy, segmentation, and security controls. This decreases latency to applications hosted by public cloud providers and improves user experience. It also alleviates traffic on MPLS circuits because Internet and cloud traffic no longer needs to consume private WAN bandwidth back to a centralized egress point. DIA does not inherently reduce the physical latency of an Internet circuit, and it does not increase the provisioned circuit bandwidth. Zero-touch provisioning may accelerate site deployment, but that is a separate SD-WAN onboarding benefit rather than a specific benefit of deploying DIA at every site. Therefore, the two correct benefits are reduced latency to public cloud applications and reduced load on MPLS circuits.

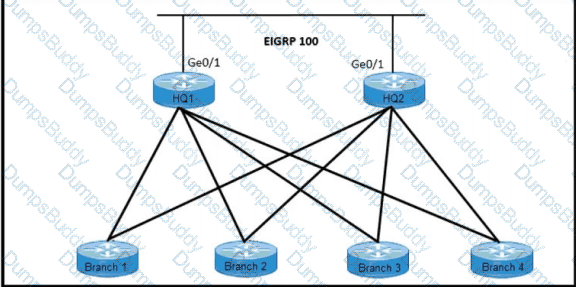

The action is to configure the EIGRP stub router in receive-only mode. Cisco EIGRP stub routing limits which routes a router advertises to neighbors, reducing query scope and improving stability in hub-and-spoke or WAN designs. The receive-only keyword is the most restrictive stub option: the router receives routes from neighbors but does not advertise any routes to them. That directly satisfies the requirement that WAN routes must not be advertised to the routers in the data center. Advertising only a default route still advertises routing information, so it does not meet the wording. Summarizing local subnets reduces the number of routes, but it still advertises reachability. The “distributed mode” option is not the correct EIGRP stub behavior for this requirement; redistributed stub mode would allow redistributed routes to be advertised. Receive-only is therefore the precise design control for stopping route advertisement from the stub router. Reference topics: EIGRP stub routing, receive-only mode, query scoping, route advertisement control, WAN-to-data-center design.

VPLS is the appropriate design model when multiple remote sites must appear to share the same Layer 2 segment. Because all sites use the same IP subnet, the solution must preserve a common broadcast domain rather than require Layer 3 route exchange between unique subnets. Cisco VPLS provides multipoint Layer 2 VPN service across a provider network, allowing customer edge devices at different sites to communicate as though they were attached to the same Ethernet LAN. Including 802.1Q connectivity on the LAN-facing side of the CE is the practical requirement because the CE must carry the relevant VLAN toward the provider-delivered VPLS service. Route exchange with the provider is not the main mechanism because VPLS is a Layer 2 service. NAT would hide overlapping addressing, but it would defeat the requirement to keep the same subnet operational across the sites. Placing each site in a different VLAN would also break the shared-subnet design. The correct design is therefore VPLS with VLAN tagging on the CE LAN side. Reference topics: VPLS, Layer 2 VPN, 802.1Q trunking, shared subnet extension, Ethernet WAN design.

Affinity is the SD-WAN feature used to control and reduce control connections between WAN Edge devices and vSmart controllers. Cisco SD-WAN high-availability documentation describes controller affinity as a way to limit the number of controllers that an edge device establishes control connections with, while still preserving controller and data center redundancy. This reduces unnecessary control-plane load and limits the strain placed on vSmart controllers in large overlays. The feature is particularly useful when multiple vSmart controllers exist across multiple data centers and the designer wants predictable primary and backup controller relationships. The color attribute identifies transport characteristics, such as public Internet, MPLS, or other transport types. Control-connections is a general concept, not the feature that minimizes them. Control-direction is not the correct design construct for this purpose. A scalable SD-WAN design should use affinity where controller scale, regionalization, and control-plane efficiency must be explicitly managed. Reference topics: Cisco SD-WAN controller affinity, vSmart scale, control connections, TLOC control-plane optimization.

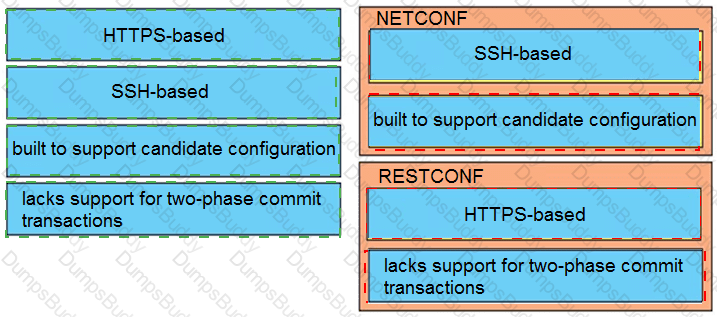

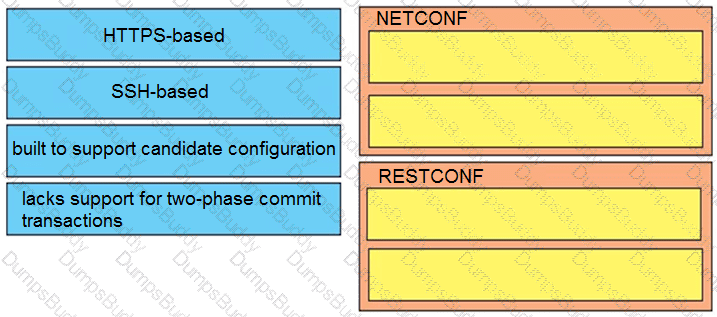

NETCONF: SSH-based; built to support candidate configuration. RESTCONF: HTTPS-based; lacks support for two-phase commit transactions.

NETCONF and RESTCONF both use YANG data models, but they use different transport and transaction behaviors. NETCONF is traditionally SSH-based and was designed as a network configuration protocol with datastore concepts such as running, startup, and candidate configuration where supported. The candidate datastore enables staged configuration changes and a commit workflow, which is useful for transactional network changes. RESTCONF exposes YANG-modeled resources through an HTTP-based REST interface, typically protected with HTTPS. It is simpler for web-style application integration because it uses familiar HTTP methods, URIs, and payload encodings such as XML or JSON. However, RESTCONF does not provide the same full two-phase commit transaction model associated with NETCONF candidate configuration workflows. Therefore, the correct mapping is that NETCONF is SSH-based and built to support candidate configuration, while RESTCONF is HTTPS-based and lacks support for two-phase commit transactions. In Cisco programmability design, NETCONF is often selected for robust configuration transactions, whereas RESTCONF is often selected for simpler API-driven integration.

BIDIR-PIM is the correct multicast mode for a video conferencing environment with numerous dispersed senders and receivers. Bidirectional PIM is designed for many-to-many multicast applications where receivers may also transmit and where maintaining per-source trees would create unnecessary state and control-plane overhead. Instead of building a shortest-path tree for every source, BIDIR-PIM uses a shared tree rooted at the rendezvous point and forwards traffic bidirectionally. This makes it attractive for collaborative applications and conferencing scenarios with many active participants. MP-BGP can carry multicast VPN or multicast routing information in service-provider designs, but it is not itself the multicast forwarding mode for this requirement. MSDP is used to exchange source information between PIM-SM domains, not to optimize many-to-many forwarding within the multicast design. IGMPv2 handles host membership signaling on local segments and does not provide the routed multicast mode. Reference topics: BIDIR-PIM, many-to-many multicast, shared tree, video conferencing multicast, PIM design.

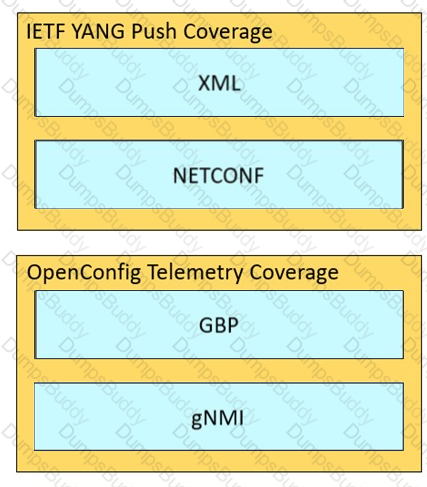

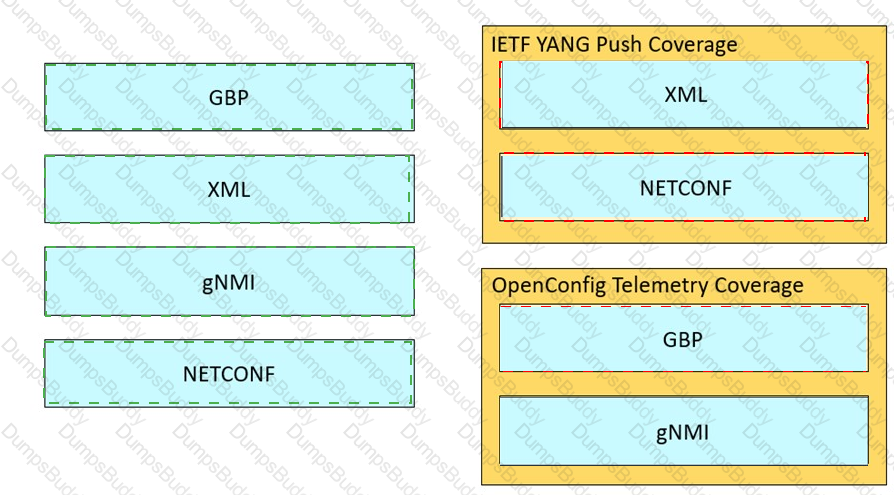

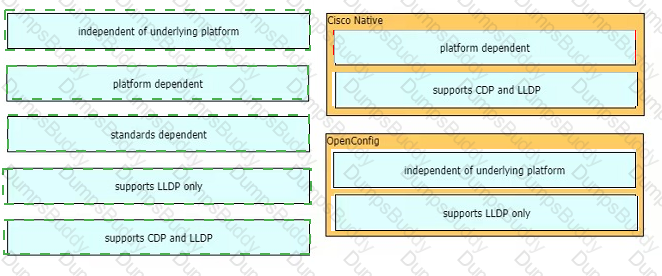

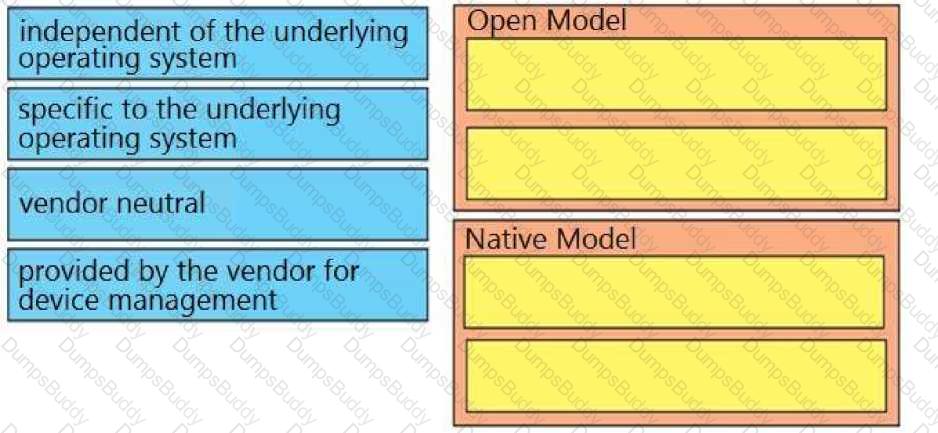

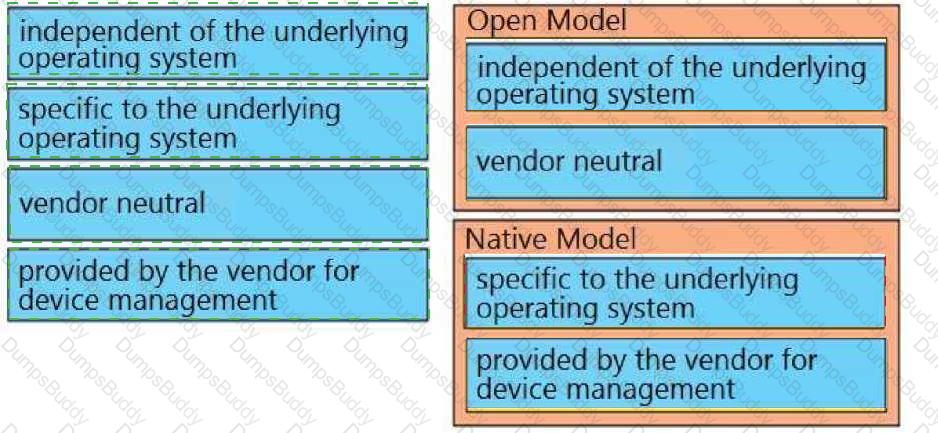

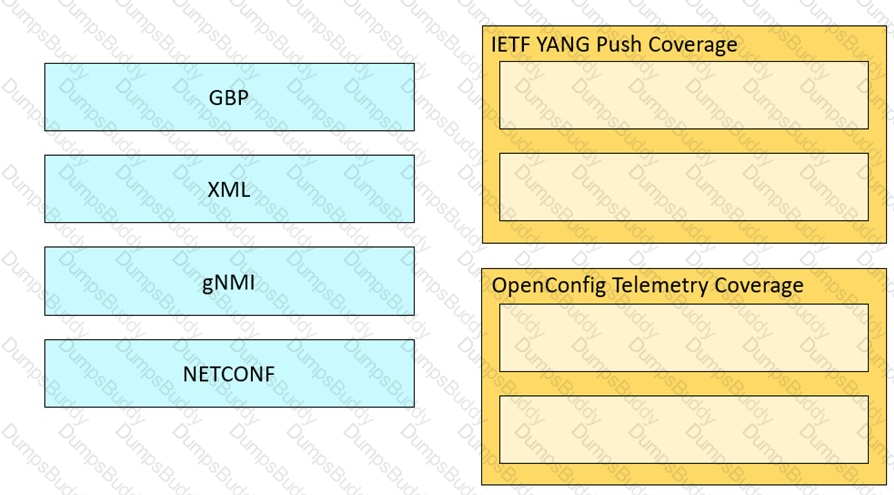

The drag-and-drop mapping is based on how Cisco differentiates YANG model families used for model-driven programmability. IETF models are standards-based and are intended for broad interoperability across vendors. They are the usual choice when the design priority is a consistent baseline for multivendor configuration or operational state. OpenConfig models are also vendor-neutral, but they are developed by the OpenConfig community and often provide an operationally consistent structure for telemetry and configuration across platforms. Cisco native models are vendor-specific models that expose detailed Cisco IOS XE, IOS XR, or NX-OS features, including capabilities that may not be represented in IETF or OpenConfig models. The design choice is therefore not simply “one model is always best.” It depends on whether the requirement prioritizes portability, abstraction, or complete Cisco feature coverage. For a standards-driven multivendor design, use IETF or OpenConfig where sufficient. For Cisco-specific device features, use Cisco native models. Reference topics: YANG models, IETF models, OpenConfig, Cisco native models, NETCONF/RESTCONF programmability.

The standards-based mechanism for dynamic rendezvous point distribution in a large PIM domain is Bootstrap Router. BSR allows candidate RPs and candidate BSRs to participate in a standards-based election and advertisement process so PIM routers can learn the RP set dynamically. This avoids configuring every router manually with static RP information and avoids depending on a Cisco-proprietary mechanism. Auto-RP can also distribute RP information dynamically, but Auto-RP is Cisco proprietary and therefore does not meet the nonproprietary requirement. Embedded RP is associated with IPv6 multicast group addressing and is not the general-purpose answer for automating RP discovery in a large IPv4 PIM domain. Static RP configuration is simple and deterministic, but it does not automate RP distribution and becomes operationally fragile as the multicast domain grows. In Cisco multicast design, BSR is the correct choice when the network requires dynamic RP discovery, vendor-neutral behavior, and scalable PIM-SM operation across a large domain.

Cisco Express Forwarding uses the adjacency table to store the Layer 2 rewrite information needed to forward packets efficiently. CEF separates forwarding decisions into the Forwarding Information Base and the adjacency table. The FIB identifies the best next hop based on routing information, while the adjacency table contains the directly connected next-hop details, including the MAC address and encapsulation rewrite string used on the outgoing interface. That is why the correct layer is Layer 2. CEF is not using the adjacency table to populate Layer 3 routes; the routing table and FIB handle Layer 3 reachability. It is also not a Layer 1 function because physical signaling does not determine the next-hop rewrite. Layer 4 is unrelated to CEF adjacency resolution. In a campus or WAN design, CEF matters because it allows hardware or optimized software forwarding without process-switching every packet. Correct ARP, neighbor discovery, and adjacency formation are therefore essential to fast packet forwarding, especially when convergence or high-throughput forwarding is required.

Cisco IS-IS supports Level 1, Level 2, and Level 1/Level 2 operation, and the design should restrict each link to the level it actually needs. Cisco documentation for the isis circuit-type command states that it “configures the type of adjacency that is required for neighbors on the specified interface.” In this case, the router is configured as L1/L2 and has both L1 and L2 neighbors, which causes unnecessary LSP flooding, SPF processing, and database maintenance on links that may not need both levels. Making the entire router only L1 or only L2 would be too blunt, because the router may legitimately need to participate in both domains on different interfaces. Making the router a DIS also does not solve the underlying issue; it only controls designated intermediate system behavior on broadcast networks. The best optimization is to configure each interface with the correct circuit type, such as level-1 for intra-area links and level-2-only for backbone links. This reduces control-plane load while preserving the intended two-level hierarchy.

The Cisco SD-Access control-plane node provides the host tracking database and map-server function. SD-Access uses LISP-based control-plane behavior to separate endpoint identity from endpoint location. Fabric edge nodes register endpoints with the control-plane node, and the control-plane node maintains the endpoint-to-location database. When a fabric node needs to forward traffic to an endpoint, it queries the control-plane node so the destination endpoint can be resolved to the correct fabric location. In LISP terminology, this maps to the map-server and map-resolver role, while the SD-Access design discussion often refers to the endpoint database or host tracking database. The control-plane node does not enforce policy mapping by itself; policy is integrated with Cisco ISE and applied through scalable group policy in the fabric. It also does not function as a proxy ETR in this option set. Endpoint registration is initiated by the edge nodes, which detect local endpoints and inform the control plane. Therefore, host tracking database and map server are the correct functions. Reference topics: SD-Access control plane, LISP map server, host tracking database, EID-to-RLOC mapping.

The correct solution is IntServ with RSVP. The requirement says the application must be able to request a specific service level and receive guaranteed bandwidth with support for delay requirements. Cisco describes Integrated Services as a QoS model that uses Resource Reservation Protocol to signal per-flow resource requirements across the network. RSVP allows applications or endpoints to request bandwidth and delay treatment; each participating network device can admit or reject the reservation based on available resources. This is exactly the behavior needed when an application must explicitly request a service profile rather than simply inherit a class marking. DiffServ with DSCP is more scalable, but it only marks traffic and applies class-based per-hop behavior. It does not provide per-flow reservation or allow the application to explicitly reserve resources. DSCP by itself is a marking mechanism, not a reservation protocol. RSVP belongs with IntServ in the classic QoS model. Reference topics: Integrated Services, RSVP, resource reservation, QoS guarantees, delay-sensitive applications.

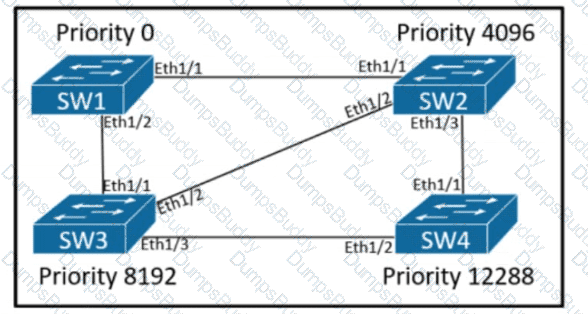

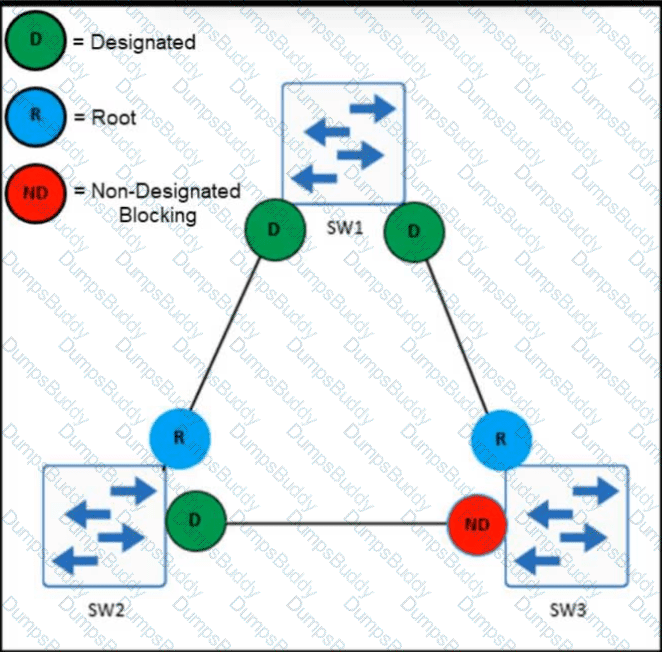

The expected port state follows Rapid Spanning Tree Protocol role selection on equal-speed point-to-point links. With 802.1w, each non-root switch selects one root port based on the lowest path cost to the root bridge. Where there are redundant Layer 2 paths of equal speed, one side of a redundant segment must remain blocked as an alternate port to maintain a loop-free topology. Because all links are 1 Gbps, path cost is equal unless bridge priority, bridge ID, or port ID breaks the tie. The selected option identifies the port pair that becomes alternate blocking based on the root placement and tie-breakers shown in the exhibit. RSTP improves convergence compared with classic 802.1D by using proposal and agreement handshakes on point-to-point links, but it still blocks redundant paths when a pure Layer 2 loop exists. A design requiring all links to forward would need a routed access design, MEC, StackWise Virtual, VSS, or another loop-free multipath technology. Reference topics: RSTP, root port, designated port, alternate port, point-to-point links, Layer 2 loop prevention.

GRE over IPsec is required when the backup connection is an Internet circuit, encryption is mandatory, and multicast applications must cross the tunnel. GRE provides the logical tunnel interface and can encapsulate multicast traffic and routing protocol packets. IPsec then encrypts the GRE packets across the public Internet, satisfying the security requirement. This combination is widely used in enterprise WAN designs where dynamic routing, multicast video, or other non-unicast traffic must be transported securely between sites. Direct IPsec encapsulation protects unicast IP traffic, but it does not natively provide a multicast-capable tunnel interface for routing and multicast services. GETVPN is designed for private WAN environments where the provider network can carry the routed addresses and where tunnel-less group encryption is desired; it is not the usual choice for Internet backup. DMVPN could also use GRE and IPsec, but for a simple backup connection between two sites, GRE over IPsec is the direct answer. Reference topics: GRE tunneling, IPsec encryption, multicast over VPN, Internet backup WAN design.

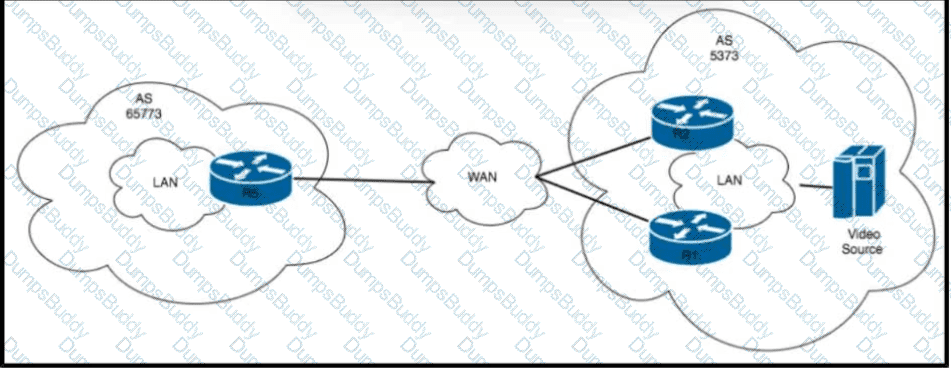

MSDP is required because the design connects separate PIM-SM multicast domains and needs multicast source discovery across domain boundaries. In each autonomous system, receivers join a multicast group through the local rendezvous point. Without MSDP, an RP in one domain does not automatically learn about active sources registered to an RP in another domain. MSDP allows RPs to exchange Source-Active information so that receivers in AS65773 can learn about VoD sources in AS5373 and build the required multicast forwarding state. Auto-RP and BSR are mechanisms for discovering or advertising rendezvous point information inside a PIM domain; they do not solve interdomain source discovery between separate multicast domains. PIM SSM can work for source-specific applications, but the question states that R2 has been selected as RP, which indicates an ASM/PIM-SM design. With BGP already established between offices, MSDP complements the interdomain routing design by exchanging multicast source reachability information. Reference topics: MSDP, PIM-SM, interdomain multicast, Source-Active messages, rendezvous point resilience.

The Cisco SD-Access fabric data plane leverages VXLAN-style MAC-in-IP encapsulation to transport endpoint traffic across the Layer 3 fabric. In SD-Access, the underlay provides IP reachability between fabric nodes, while the overlay uses encapsulation to carry user traffic and policy context across that underlay. Cisco fabric edge nodes encapsulate traffic before forwarding it through intermediate nodes and decapsulate it when it reaches the destination edge or border. LISP is used by the control plane to resolve endpoint-to-location mappings, so option A describes the mapping function rather than the data plane. IS-IS provides underlay routing reachability and is not the overlay data-plane mechanism. BGP can be used outside the fabric or in other overlay designs, but it is not the SD-Access fabric data plane. The exam option describes the essential encapsulation function, even though VXLAN is technically MAC-in-UDP over IP. Reference topics: SD-Access data plane, VXLAN encapsulation, fabric edge forwarding, underlay and overlay separation, policy transport.

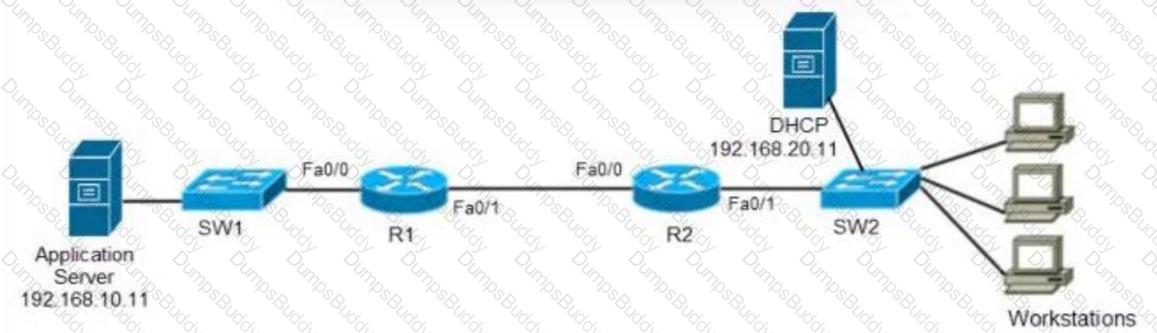

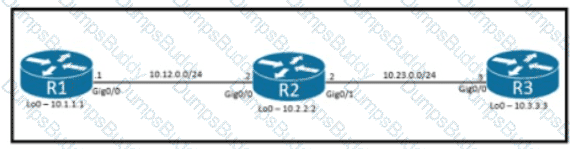

IP directed broadcast must be enabled on the last Layer 3 device connected to the destination client subnet, which is R2 in the exhibit. Wake-on-LAN uses a magic packet that must reach sleeping hosts on the target LAN. Because sleeping clients often do not have an active IP stack or ARP entry, the WoL packet is commonly sent as a directed broadcast toward the target subnet. Routers forward the packet as a unicast until it reaches the destination subnet, where the last-hop router converts it into a Layer 2 broadcast if directed broadcasts are permitted. Cisco disables directed broadcasts by default on many platforms because of historical amplification-attack risks, so the design should enable it only where needed and protect it with ACLs. Spanning-tree UplinkFast is unrelated to delivering WoL packets; it improves STP convergence on access switches. Enabling directed broadcasts on the wrong router would not place the magic packet onto the client VLAN. Therefore, R2, the last-hop router toward the target WoL clients, is the correct location. Reference topics: Wake-on-LAN, IP directed broadcast, last-hop router behavior, subnet broadcast forwarding, ACL protection.

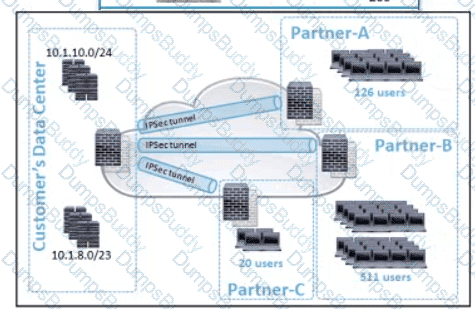

Option B is retained because the subnetting task depends on the exhibit options and the chosen plan must divide 10.1.8.0/21 into nonoverlapping partner VPN subnets without allocating more address space than required. The design principle is variable-length subnet masking: allocate the smallest subnet that satisfies each partner requirement, then place the subnets on valid prefix boundaries inside the reserved aggregate. Cisco addressing design emphasizes conserving address space, avoiding overlap, and preserving summarization where possible. A /21 provides 2048 total addresses, so the designer can carve several smaller partner ranges while keeping the entire allocation summarizable as 10.1.8.0/21 toward the data-center core. Incorrect options would either waste addresses, overlap existing ranges, place subnets on invalid boundaries, or allocate blocks larger than necessary. Option B is the mapping that satisfies the exhibit constraints while keeping the design clean for routing, firewall policy, and VPN onboarding. Reference topics: IPv4 VLSM, subnet boundary alignment, partner VPN addressing, summarization, nonoverlapping address design.

A Cisco native YANG model is the right choice when the engineer needs to configure a capability that is specific to Cisco NX-OS. YANG models fall broadly into open standards-based models and vendor-native models. IETF and OpenConfig models are useful for multivendor consistency, but they intentionally model common behavior and may not cover every platform-specific feature. Cisco native models are generated to represent Cisco operating system configuration and operational data more closely, including features that are unique to IOS XE, IOS XR, or NX-OS. Cisco developer guidance commonly positions native models as the model family to use when full platform feature coverage is required. IEEE is not the relevant model family for Cisco NX-OS feature-specific configuration in NETCONF. OpenConfig is useful when the design objective is common cross-vendor abstraction, but that is not the question’s requirement. Therefore, for an NX-OS-only feature that must be configured through NETCONF/YANG, the engineer should choose the Cisco native model for NX-OS.

Hierarchical QoS with a parent shaping policy is the correct solution for a 1 Gbps physical handoff where the contracted provider rate is only 50 Mbps. The customer router can transmit at the physical interface speed, but the provider policer or service edge expects traffic to remain within the committed information rate. Without shaping, bursts leave the customer router at 1 Gbps and can be dropped by the provider, which is especially damaging to voice traffic because drops and jitter create choppy audio. Cisco QoS design commonly uses a parent shaper set to the provider CIR and then applies child queuing policies under that shaped rate. This allows voice and other critical classes to be prioritized before packets are transmitted into the constrained service. A parent policing policy would drop or mark excess traffic locally rather than smoothing bursts. Reducing physical bandwidth is not normally possible on a provider Ethernet handoff, and the interface bandwidth statement changes routing/QoS reference values but does not enforce the CIR. Therefore, parent shaping is required. Reference topics: hierarchical QoS, traffic shaping, CIR, LLQ, WAN edge QoS.

An MPLS Layer 3 VPN with separate VRFs for corporate and guest traffic is the correct WAN design. The customer has branch teams that must communicate with each other and access enterprise applications in the data center and cloud, while guest traffic must be isolated and allowed only to reach the Internet gateway in the data center. Cisco MPLS L3VPN designs use VRFs to create separate routing tables and isolate traffic over the shared provider backbone. A corporate VRF can carry interbranch and application traffic, while a guest VRF can be routed only toward the data-center Internet security stack. A separate service provider for guest users would increase cost and operational complexity without solving segmentation as cleanly. A firewall in the data center can enforce security, but it does not by itself provide routing separation across the WAN. A separate VRF for every branch would isolate branches from each other and would be unnecessary unless each branch required complete tenant separation. Reference topics: MPLS L3VPN, VRF segmentation, guest Internet access, enterprise WAN design, centralized Internet gateway.

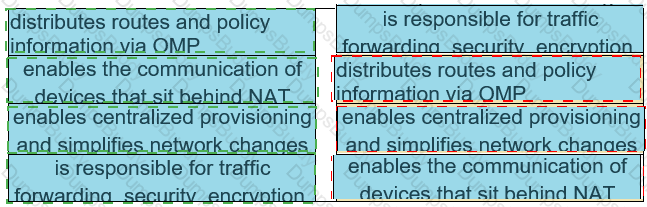

WAN Edge: traffic forwarding, security, encryption, QoS, and routing protocols; vSmart: distributes routes and policy information via OMP; vManage: centralized provisioning and simplified network changes; vBond: communication for devices behind NAT.

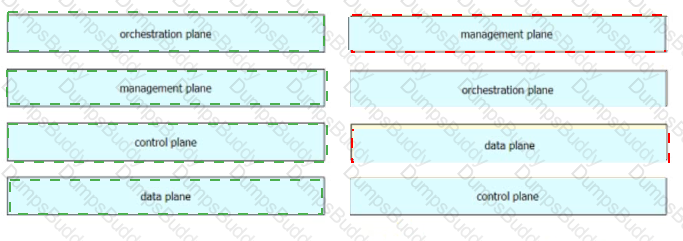

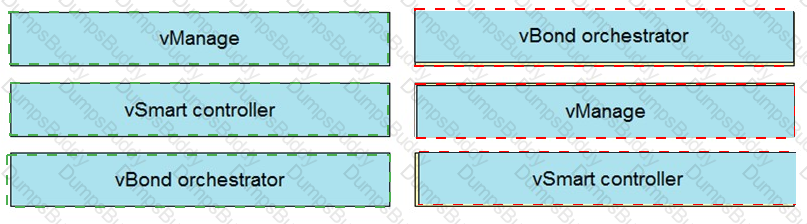

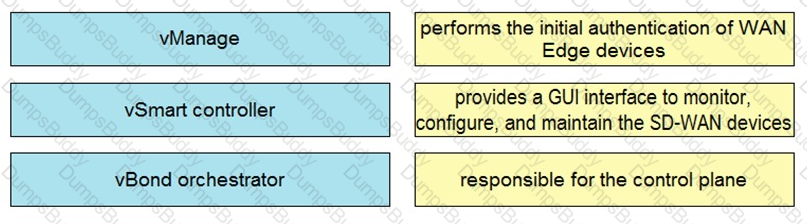

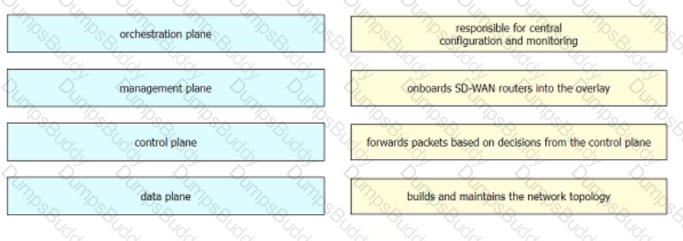

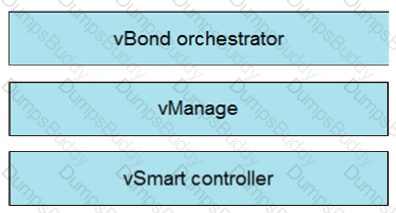

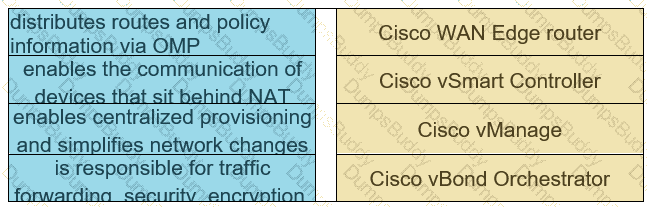

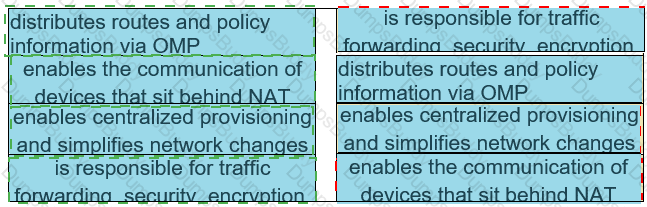

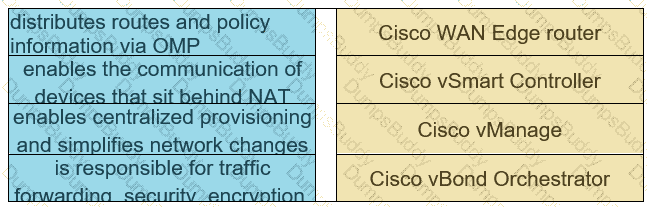

The Cisco SD-WAN component mapping follows the normal separation of management, control, orchestration, and data-plane roles. WAN Edge routers are the data-plane devices at branches, data centers, campuses, or cloud edges. They forward user traffic and apply routing, QoS, encryption, segmentation, and security services. vSmart controllers provide the centralized control plane and distribute reachability and policy information with OMP, including prefixes, TLOCs, and service routes. vManage is the management-plane system; it supplies centralized provisioning, device templates, policy configuration, software lifecycle functions, monitoring, and operational visibility. vBond operates as the orchestration-plane component, authenticating devices during onboarding and helping devices behind NAT discover and establish the correct secure control connections. This separation is critical in enterprise design because each component has different redundancy, reachability, and scale requirements. The architect should not blur vManage and vSmart roles: vManage configures and monitors, while vSmart computes and distributes control policy. Reference topics: Cisco Catalyst SD-WAN architecture, WAN Edge data plane, vSmart OMP, vManage management plane, vBond orchestration.

is responsible for traffic forwarding, security, encryption, QoS,and routing protocols

distributes routes and policy information via OMP

enables centralized provisioning and simplifies network changes

enables the communication of devices that sit behind NAT

In multicast routing, a source tree is also called a shortest-path tree because it is rooted at the multicast source and follows the best unicast path from receivers back toward that source. Cisco PIM documentation describes source trees as shortest-path trees and contrasts them with shared trees, which are rooted at a rendezvous point. Because the tree is built directly toward the source, it provides an optimal forwarding path between source and receivers and generally gives the lowest latency path for multicast delivery. This is why statements A and B are correct. A shared tree, not a source tree, uses a single common root at a selected point in the network, normally the RP in PIM sparse mode. Shared trees can create suboptimal forwarding because traffic may travel through the RP before switching to the shortest-path tree. Source trees require per-source multicast state, so they may consume more control-plane resources, but they are the correct choice when optimal forwarding and minimum latency are the design priorities.

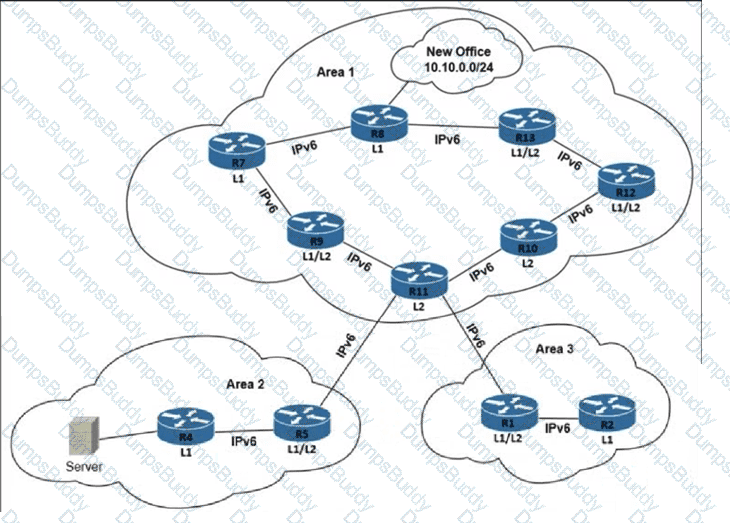

Route leaking on R13 and R9 is required so the Level 1 area can make a better exit decision toward the server. In an IS-IS hierarchy, Level 1 routers know detailed topology only inside their own area. For destinations outside the area, they normally follow the closest attached Level 1/Level 2 router, which can produce suboptimal latency when another exit has a better end-to-end path. Route leaking selectively injects more specific Level 2 reachability information into Level 1, allowing routers in the New Office area to evaluate a better path instead of blindly following the nearest attached-bit exit. Changing metric style on R8 alone does not import the external-area route information needed for better path selection. A static route could force a path but would not be a scalable dynamic IS-IS design. Making R8 Level 1/Level 2 does not solve the need to expose the relevant route through the correct area boundary. Reference topics: IS-IS Level 1 and Level 2, attached bit, route leaking, interarea optimization, latency-aware routing.

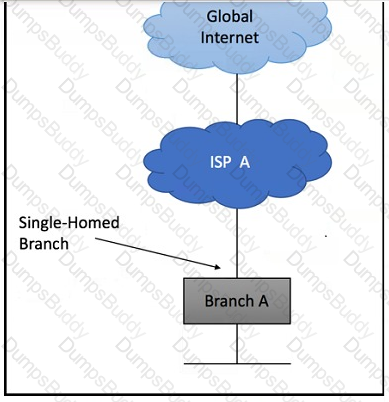

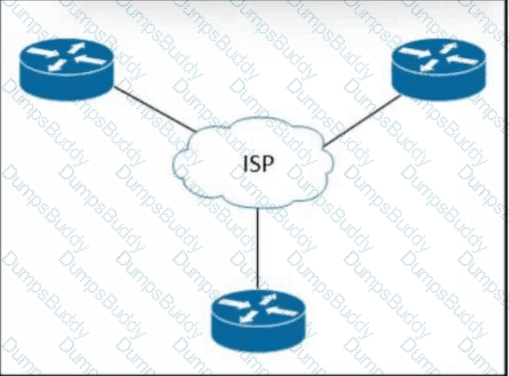

A single-homed WAN design is appropriate for two small branch offices when cost is the main concern, routing overload must be avoided, and occasional downtime is acceptable. Single-homed connectivity uses one WAN connection from the branch to the provider or headquarters. It is the simplest and least expensive model because it minimizes circuits, routers, routing adjacencies, and failover complexity. Dual-homed or multihomed designs improve availability, but they add cost and operational overhead through additional links, devices, routing policy, and monitoring. Dual multihomed designs are the most resilient but clearly exceed the requirement for a small cost-sensitive branch. A single multihomed design provides some provider or link diversity, but it is still more complex than necessary if the customer accepts some downtime. In Cisco WAN design, the correct topology must match the business availability requirement; not every site justifies redundant circuits. Reference topics: WAN topology selection, single-homed branch design, cost versus availability, routing simplicity, branch connectivity.

Redundancy for Cisco vBond Orchestrators is normally achieved by mapping the IP addresses of multiple vBond instances to a single DNS name. WAN Edge devices use the configured organization name and vBond DNS name during onboarding to resolve and contact an available orchestrator. This design allows several vBond nodes to be deployed across different locations or availability zones while giving the edge device a consistent bootstrap target. If one vBond is unavailable, DNS resolution can return another reachable vBond address, allowing control-connection orchestration to continue. Selecting only the closest vBond is not the redundancy mechanism described here, and deploying a single vBond creates an avoidable single point of failure. The answer that says WAN Edge routers are configured with all orchestrators by IP address and priority does not represent the common DNS-based design model. In production, the DNS record, certificates, firewall policy, NAT behavior, and controller reachability should all be validated so that WAN Edge devices can reach multiple vBond instances during onboarding and after failures. Reference topics: Cisco SD-WAN controller redundancy, vBond DNS, device onboarding, orchestration availability.

IntServ with RSVP is the correct model when an application must request a specific service level and receive guaranteed bandwidth or delay treatment. Cisco describes the Integrated Services model as a flow-based QoS architecture in which applications signal their resource requirements to the network. RSVP is the signaling protocol used to reserve resources along the path. This differs from DiffServ, which marks packets and applies per-hop behavior without creating per-flow reservations. The question states that the application can request a particular type of service to support its delay requirements and that bandwidth must be guaranteed. Those are classic IntServ and RSVP characteristics. DiffServ with DSCP is scalable and widely used in enterprise networks, but it cannot guarantee resources end to end unless every hop is engineered and provisioned accordingly. IntServ with DSCP is not the standard model because RSVP is the reservation mechanism. Reference topics: Integrated Services, RSVP, resource reservation, guaranteed service, QoS architecture, delay-sensitive applications.

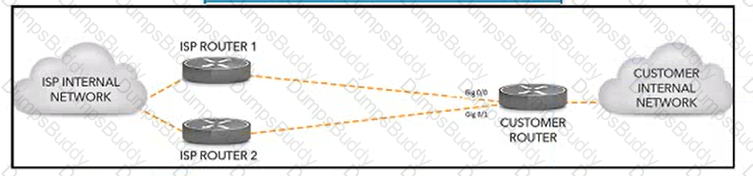

BGP Multipath Load Sharing is the feature used when a single router has two parallel BGP paths to the same ISP and the design goal is to install more than one eligible BGP path in the routing table. By default, BGP selects a single best path after evaluating path attributes such as weight, local preference, AS path, origin, MED, eBGP over iBGP, IGP metric to next hop, and tie breakers. When the competing paths are sufficiently equivalent and BGP multipath is enabled, Cisco IOS can install multiple BGP next hops for the same prefix and allow the forwarding plane to load share across both links. Multihop is used to establish BGP sessions to non-directly connected neighbors, not to load balance. Next-Hop Address Tracking improves convergence by tracking next-hop reachability, but it does not itself create load sharing. AS-path prepending intentionally makes a path less preferred for inbound traffic engineering. Therefore, the correct BGP feature for balancing outbound traffic across two links to the same ISP is Multipath Load Sharing.

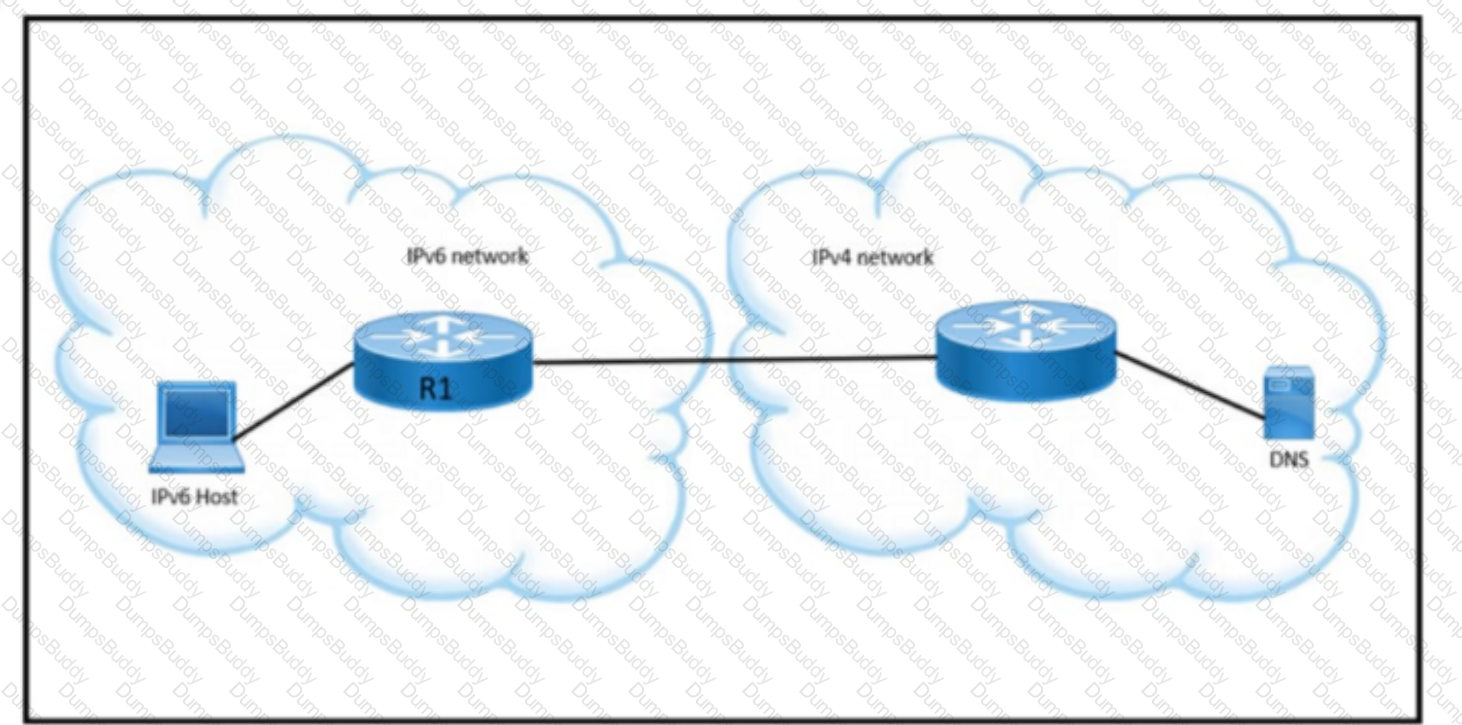

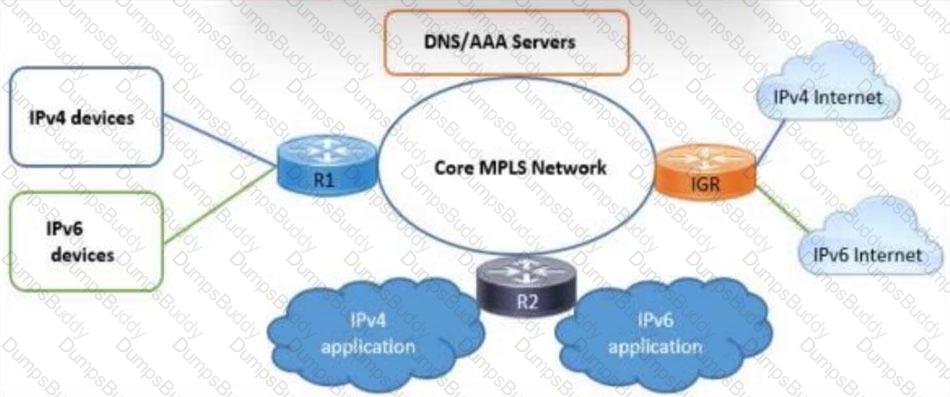

Stateful NAT64 is the correct design because IPv6-only hosts must communicate with legacy IPv4 devices and only a small pool of IPv4 addresses is available for concurrent sessions. NAT64 translates IPv6 client traffic into IPv4 traffic, allowing IPv6-only endpoints to reach IPv4-only resources. A stateful implementation maintains translation state and can use a pool of IPv4 addresses for multiple IPv6 clients, which fits the requirement for up to 10 concurrent IPv6 hosts using 10 reserved IPv4 addresses. Static NAT- PT would require fixed one-to-one mappings and is less suitable for a pool-based concurrent access model. NAT66 translates between IPv6 prefixes and does not solve access to IPv4-only devices. Dynamic NAT-PT is an older transition mechanism and is not the preferred modern answer when NAT64 is available. The design should also include DNS64 when clients access IPv4-only services by name. Reference topics: IPv6 transition, stateful NAT64, DNS64, IPv6-only hosts, IPv4 legacy reachability.

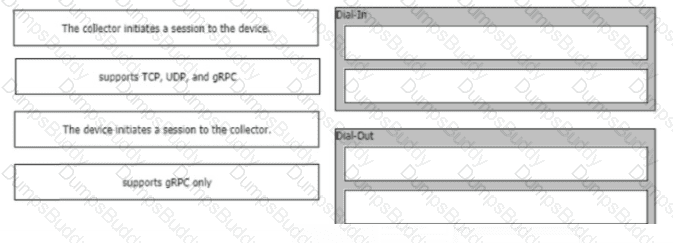

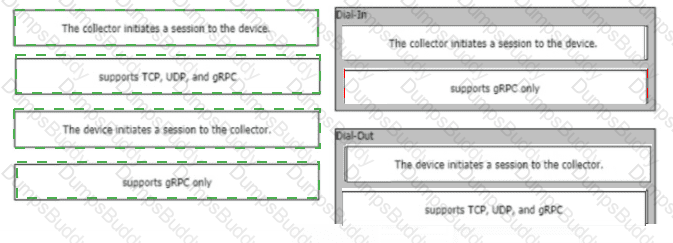

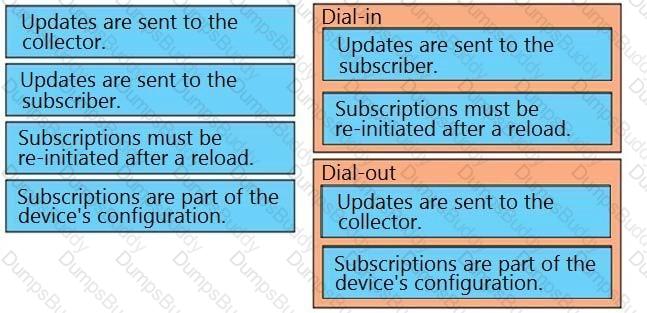

Dial-In: collector initiates a session to the device; supports gRPC only. Dial-Out: device initiates a session to the collector; supports TCP, UDP, and gRPC.

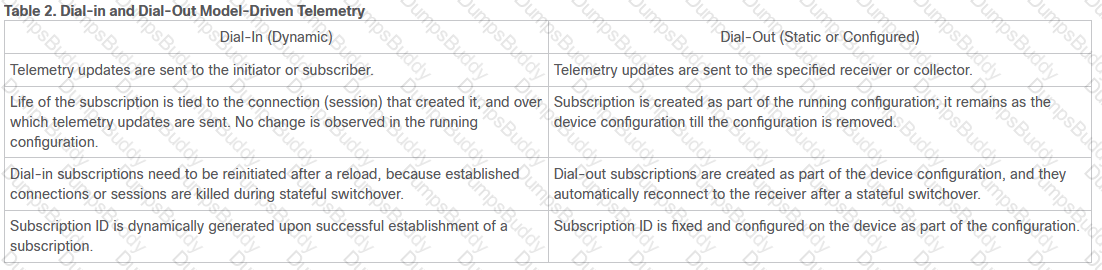

Model-driven telemetry can be deployed in dial-in or dial-out mode, and the difference is which side initiates the session and where the subscription is controlled. In dial-in mode, the collector initiates the session to the network device and requests the telemetry subscription. This makes the collector responsible for establishing the session and asking for the data stream. In the context of the provided options, dial-in is paired with support for gRPC only. In dial-out mode, the network device initiates the session toward the collector according to a configured subscription. This is useful when devices sit behind NAT or when the operational model requires devices to push telemetry to a known collector. In the provided choices, dial-out is paired with support for TCP, UDP, and gRPC. The mapping is not arbitrary; it follows Cisco telemetry terminology, where dial-in is collector-initiated and dial-out is device-initiated. This distinction is important in network automation designs because firewall policy, collector scaling, and subscription lifecycle management differ between the two modes.

IPv6 overlay tunnels should be treated as a transition mechanism, not as the final desired enterprise architecture. Cisco IPv6 migration guidance describes tunneling as a way to connect IPv6 islands across an IPv4 infrastructure or to carry one protocol over another while the network is being migrated. This is useful when parts of the infrastructure cannot yet run IPv6 natively, but it also adds encapsulation overhead, additional MTU considerations, troubleshooting complexity, and operational dependency on the underlay transport. A permanent IPv6 architecture should eventually support IPv6 natively, or support both IPv4 and IPv6 through dual stack where required. The statement that overlay tunnels are a final IPv6 architecture is therefore incorrect. Overlay tunnels are not limited only to border devices in every design, and they do not require only the IPv6 stack; they commonly encapsulate IPv6 traffic over IPv4 infrastructure. The option stating that IPv4 packets are encapsulated in IPv6 packets also reverses the common IPv6-over-IPv4 migration use case. Therefore, overlay tunneling should be designed as a temporary transition technique.

VPN 0 is the transport VPN in Cisco SD-WAN. It carries control traffic and provides connectivity from WAN Edge routers toward the transport networks, such as MPLS, Internet, LTE, or other WAN services. Control connections to Cisco SD-WAN controllers are established through transport interfaces that belong to VPN 0. Data VPNs carry service-side user traffic and are separate from the transport VPN. VPN 512 is commonly used for out-of-band management, not for carrying overlay control connections. VPN 128 and VPN 256 are not the reserved transport VPN identifiers. The design importance is that VPN 0 must have correct addressing, color assignment, routing reachability, NAT traversal considerations, and certificate-based controller connectivity. If VPN 0 is misdesigned, the WAN Edge cannot establish stable control connections, cannot receive OMP routes and policies, and cannot build the secure overlay properly. Therefore, VPN 0 is the correct transport VPN for underlay control traffic. Reference topics: Cisco SD-WAN VPN 0, transport VPN, control connections, WAN Edge onboarding, overlay formation.

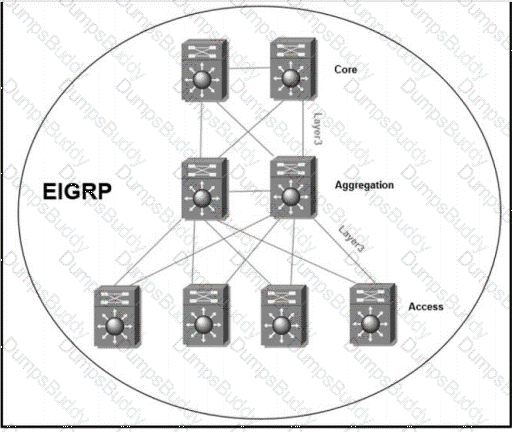

Route summarization should be planned from the aggregation layer toward both the core and the access layer. In hierarchical campus routing, aggregation or distribution devices are natural summarization boundaries because they sit between more specific access-layer networks and the core. Summarizing from aggregation toward the core prevents access-layer subnet churn from forcing unnecessary recomputation and route table growth in the core. Summarizing from aggregation toward access can also provide a concise upstream route, often a default or summary route, so access devices do not need the entire network routing table. The goal is to contain failures, reduce routing state, and preserve fast convergence at hierarchy boundaries. Summarizing from the core toward aggregation may hide useful topology details in the wrong direction, while summarizing directly from access toward aggregation is not always possible or efficient when access devices are numerous and have limited resources. The answer that places summarization at aggregation in both directions best matches Cisco hierarchical design principles. Reference topics: hierarchical campus design, route summarization, aggregation layer, core route scale, convergence containment.

Bidirectional PIM is the best fit for this multicast design because the application is many-to-many and has a manageable but meaningful number of multicast sources. Cisco describes BIDIR-PIM as a multicast mode designed for many-to-many applications where sources and receivers can be widely distributed. Unlike classic PIM sparse mode, BIDIR-PIM does not build source-specific shortest-path trees for each active source. Instead, traffic uses a shared bidirectional tree rooted at the rendezvous point, which reduces multicast state in the network and improves scale when many sources may send to the same group. Source-Specific Multicast is optimized for one-to-many distribution where receivers know the source and join an (S,G) channel; it is not the natural many-to-many choice. Any Source Multicast can support many-to-many traffic but usually creates more state because source trees may be built. Multicast VPN is a transport/service architecture, not the specific multicast mode requested. Reference topics: BIDIR-PIM, many-to-many multicast, shared trees, RP-based forwarding, multicast state scaling.

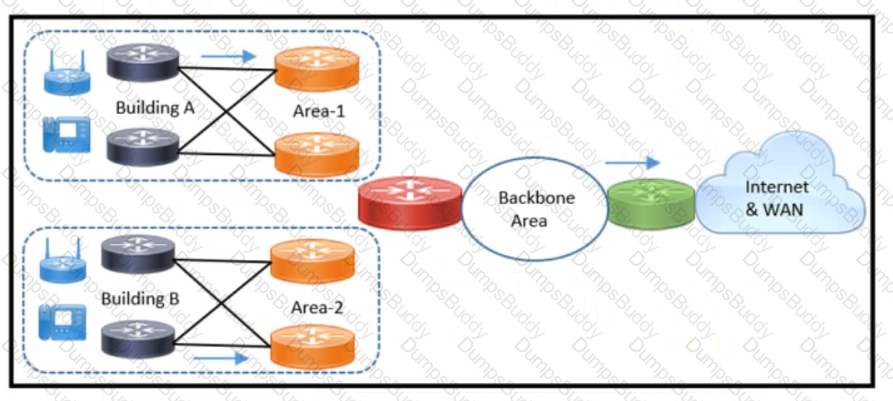

The correct routing design is OSPF with multiple areas. The company is moving away from RIP because the network has grown and now requires segmentation, summarization, fast convergence, and scalability. Cisco positions OSPF as a link-state IGP suitable for larger enterprise networks, and OSPF areas are the standard mechanism for containing topology information and scaling the link-state database. Area Border Routers can summarize routes between areas, reducing routing table size and limiting the scope of link-state flooding and SPF recalculation. This directly satisfies the requirement to segregate departments while summarizing between segments. EIGRP can converge quickly and summarize, but “stub areas” are not an EIGRP construct; EIGRP uses stub routers. OSPF virtual links are not a primary segmentation design tool; they are used to repair backbone connectivity issues. Modifying EIGRP K values changes metric calculation but does not solve segmentation or summarization. Reference topics: OSPF multi-area design, ABR summarization, SPF scope control, enterprise IGP scalability.

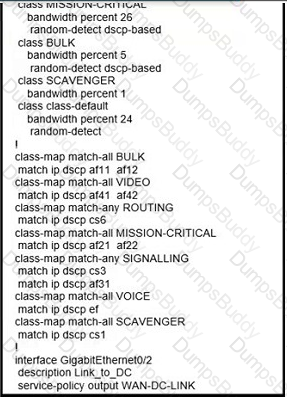

Weighted Random Early Detection is the QoS congestion-avoidance feature that responds to early congestion by selectively dropping packets before a queue becomes completely full. WRED can use packet markings, such as IP precedence or DSCP, to determine drop probability, so lower-priority traffic can be dropped earlier than higher-priority traffic. This helps TCP-based applications slow down before tail drop causes large synchronized retransmissions. CBWFQ is a queuing and bandwidth-allocation mechanism; it classifies traffic into queues and assigns bandwidth, but it is not specifically the feature that randomly drops lower-priority packets during congestion. Tail drop drops packets only when the queue is full and does not intelligently prefer lower-priority traffic. Strict priority queuing protects delay-sensitive traffic by servicing a priority queue first, but it does not provide weighted random early discard behavior. In Cisco QoS design, WRED is used as a congestion-avoidance mechanism, especially for TCP traffic classes where early packet drops can reduce global synchronization and protect higher-priority classes.

The multicast-replicator function is used to optimize multicast traffic distribution across Cisco SD-WAN. Cisco Catalyst SD-WAN multicast overlay design avoids forcing the ingress WAN Edge router to replicate every multicast packet to every remote receiver. Instead, multicast routes and receiver information are exchanged through OMP, and a WAN Edge can be designated as a multicast or OMP replicator. The replicator then distributes streams to interested receivers across the overlay, reducing bandwidth and processing pressure on the source-side edge. That is why multicast-replicator is the feature that optimizes WAN bandwidth for IGMP-driven multicast receiver traffic among WAN Edge routers in the same VPN. IGMPv2 is only the host-to-router group membership protocol and does not optimize overlay distribution by itself. A multicast RP is used in PIM sparse mode, but it is not the SD-WAN overlay replication feature. Multicast service routes advertise multicast service information, but the bandwidth-saving forwarding role is the replicator. Reference topics: Cisco SD-WAN multicast overlay, OMP multicast routes, multicast replicator, IGMP receiver joins.

LTE is the most appropriate backup WAN option for remote sites that already rely on microwave links. A backup transport should use a different failure domain from the primary service; LTE provides carrier wireless connectivity that is operationally separate from the customer’s microwave infrastructure. It is widely available, fast to deploy, and suitable as an out-of-band or secondary WAN path for branch continuity. WiMAX is an older metropolitan wireless technology and is not the preferred current enterprise backup choice. A laser link is another line-of-sight technology and can suffer from similar environmental and alignment constraints as microwave, so it is a weaker diversity option. Bluetooth is a short-range personal-area technology and is not a viable WAN backup for enterprise branches. LTE also integrates well with SD-WAN, IPsec VPN, and routing-based failover designs. In a resilient WAN architecture, the architect should validate signal quality, carrier coverage, data plan, antenna placement, NAT behavior, and whether the backup link must support dynamic routing, VPN encryption, and QoS for critical traffic during failover.

The branch router should advertise the local LAN with the EIGRP network command and make the LAN-facing interface passive. A passive interface allows the connected network to be included in EIGRP advertisements while suppressing EIGRP hello packets and neighbor formation on that interface. This is exactly what the engineer needs: remote EIGRP neighbors learn the LAN subnet, but unnecessary multicast EIGRP messages are not sent onto the user LAN where no EIGRP neighbors should exist. Replacing EIGRP with a static default route would not meet the requirement to advertise the local LAN through EIGRP. Redistributing connected routes can work, but it is less clean for a simple LAN interface and can introduce external-route behavior or policy complexity. Advertising the subnet as a stub network does not suppress multicast hellos on the LAN interface by itself. Cisco design best practice is to use passive interfaces on LAN-facing interfaces that should be advertised but should not form routing adjacencies. Reference topics: EIGRP passive interface, network statements, branch routing, unnecessary neighbor prevention, multicast control traffic.

A single-homed enterprise that runs BGP with one ISP should advertise its assigned public prefix to the ISP and receive a default route from the ISP. Because there is only one upstream provider, the customer does not need the full Internet table to make path-selection decisions; all Internet destinations exit the same provider path. Receiving only a default route conserves memory and CPU on the CE router and simplifies operations. The customer must still originate its public prefix toward the ISP so the provider can advertise reachability to the Internet. The ISP should not be the originator of the customer-owned ARIN prefix toward the customer; it may advertise that prefix to the Internet after receiving it from the customer. Requesting the full BGP table or even a partial table adds unnecessary scale for a single-homed site. Advertising a default route to the ISP is also wrong because the ISP already owns upstream Internet reachability. Reference topics: single-homed BGP, CE-PE peering, default route, public prefix advertisement, Internet edge design.

Route summarization and EIGRP stub routing are the two correct design techniques for a stable and scalable EIGRP deployment. Summarization reduces the number of prefixes advertised upstream, conserves bandwidth and memory, hides route flaps behind the summary boundary, and reduces the size of the EIGRP topology table. Stub routing prevents branch or access devices from being used as transit routers and limits the scope of EIGRP queries. This is critical because uncontrolled EIGRP query propagation can increase convergence time and processing load, especially in larger hierarchical networks. Prefix lists and distribute lists can filter routes, but filtering alone does not provide the same query-boundary and topology-hiding benefits as summarization and stubs. Static redistribution increases complexity and can create loop or policy risks if not controlled with tags and metrics. The question specifically asks to conserve bandwidth, memory, and CPU, prevent suboptimal routing, and avoid unnecessary queries; summarization and stub routing are the direct Cisco design answers. The architect should summarize at hierarchy boundaries and configure access or branch routers as EIGRP stubs where they should not provide transit. Reference topics: EIGRP summarization, EIGRP stub routing, query scope, hierarchical routing.

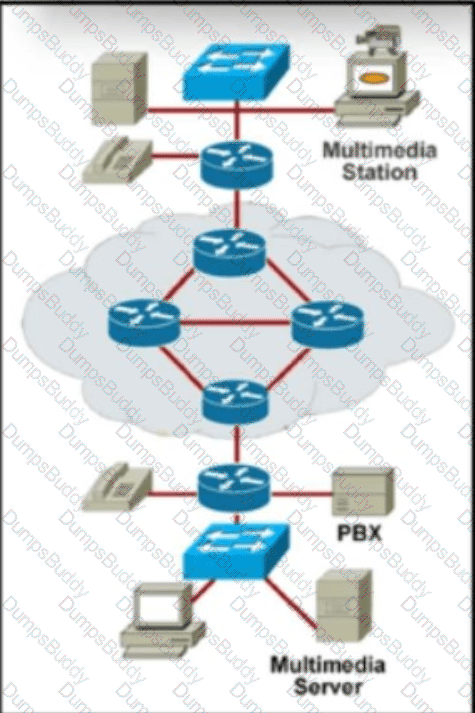

For multimedia conferencing over MPLS, Cisco QoS design normally classifies the traffic into the multimedia conferencing class and marks it with AF4, commonly AF41. This class is intended for interactive video conferencing and similar applications that need assured bandwidth and controlled loss, but that are not usually placed in the same strict-priority class as voice bearer traffic. A bandwidth queue provides a minimum bandwidth guarantee during congestion, while DSCP-based WRED can selectively manage congestion within the class by using the drop precedence encoded in the AF marking. AF3 is generally associated with multimedia streaming, not interactive conferencing. A simple bandwidth queue without WRED does not fully use per-hop behavior characteristics for congestion handling. LLQ is typically reserved for voice and sometimes very tightly controlled real-time classes, because overusing strict priority can starve other traffic. Therefore, bandwidth queuing with DSCP WRED using AF4 is the appropriate per-hop behavior design. Reference topics: Cisco QoS baseline, DiffServ, AF41, multimedia conferencing, MPLS QoS, WRED.
