220-1101 CompTIA A+ Certification Exam: Core 1 Questions and Answers

When a device is experiencing slow file transfers to an external USB drive and the physical connections are confirmed to be correct, the next step is to update the device drivers. Outdated or corrupt drivers can cause suboptimal performance and slow transfer speeds. Updating the drivers can resolve these issues and improve the device's communication with the USB drive, leading to faster file transfers.

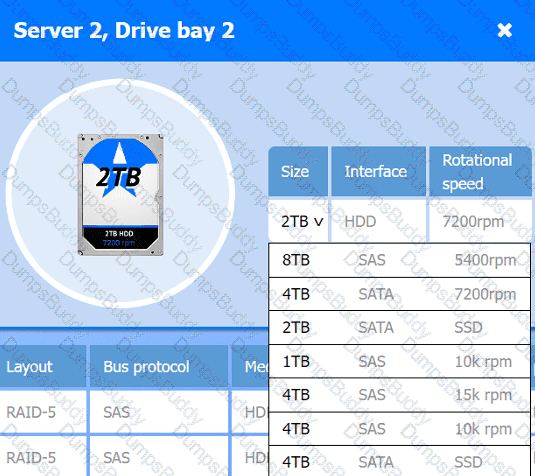

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

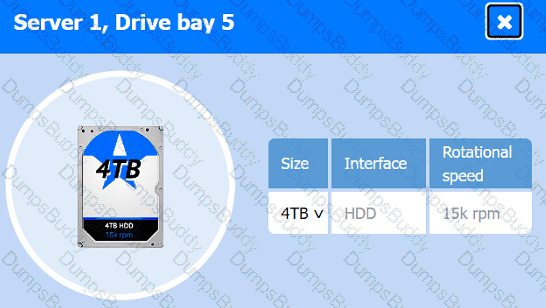

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

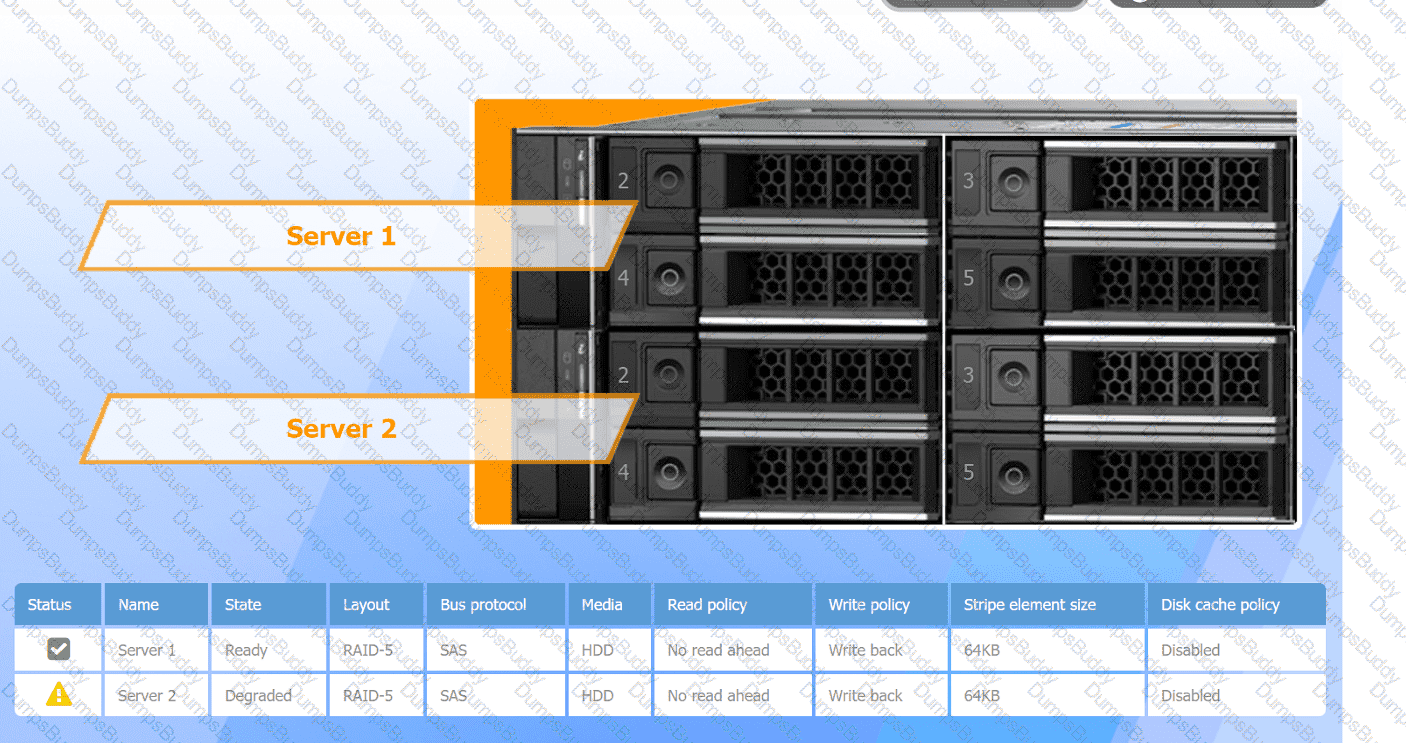

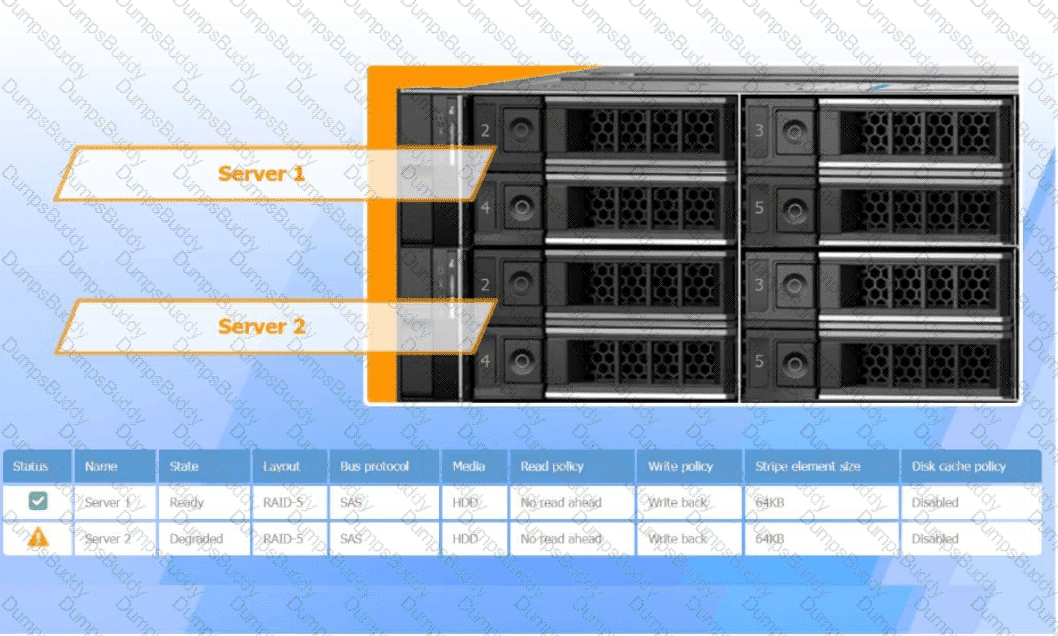

A user reports poor performance on the

application server.

INSTRUCTIONS

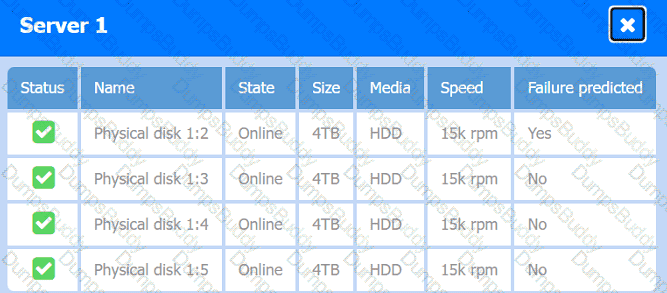

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

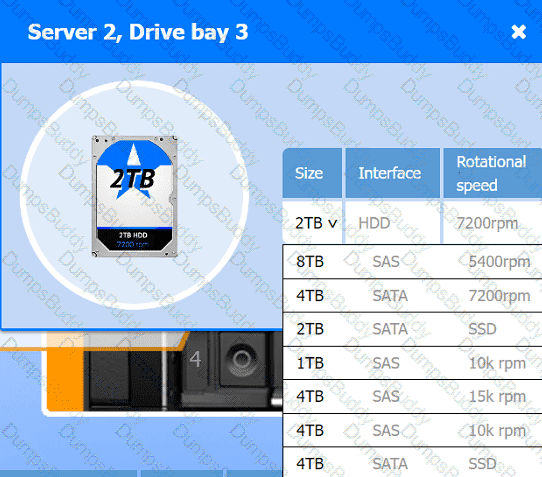

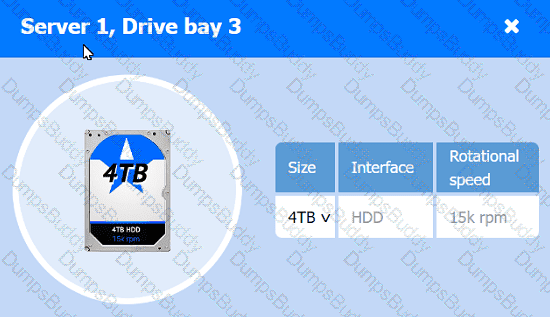

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

Client-side virtualization is used to run an application or process on a separate virtual machine, isolated from the main operating system. To allow other users on the LAN to access the application, the software developer should configure a bridge networking connection between the virtual machine and the LAN. This will allow the virtual machine to communicate with other computers on the network. Application virtualization, virtual desktop, and site-to-site VPN are not necessary steps for allowing other users to access the application.

When multiple RAM modules with different speeds are installed in a system, the system will default to the speed of the slowest module to maintain reliability and stability. In this case:

The system contains two DDR3-1066 (PC3-8500) modules and one DDR3-1333 (PC3-10600) module.

The slowest RAM speed is DDR3-1066 (PC3-8500), and the system will run all memory modules at this speed to prevent timing mismatches and data corruption.

Key Concepts:

Backward Compatibility: RAM modules with higher speeds can operate at lower speeds when mixed with slower modules.

Reliability vs. Performance: Operating all modules at the slowest speed ensures stability, especially when modules have different specifications.

CompTIA A+ Exam Objectives References:

220-1101, Section 3.2: Covers selecting and installing appropriate RAM, understanding different speeds (DDR3-1066, DDR3-1333), and how system compatibility is ensured​.

To connect printers without an RJ45 port to the network, the technician needs to enable wireless connectivity. By configuring the printers to connect to the network wirelessly, the company can achieve the desired consistency in printer configuration across the office. This approach allows printers without built-in wired network capabilities to be part of the network, facilitating shared access and remote printing functionalities.

When upgrading a laptop's storage from an HDD to an SSD, especially in laptops with only a single bay for a hard drive, the most critical characteristic to consider is the form factor. The form factor must match the physical dimensions and interface of the original HDD to ensure that the SSD can fit into the bay and connect properly. Storage size (B) is important for capacity reasons, transfer speed (D) affects performance, and partition type (A) is a software configuration aspect, but the form factor (C) is crucial for the physical compatibility of the SSD with the laptop.

Calibrating the touch screen is the best action to resolve the issue of inaccurate touch input. Calibration adjusts the touch screen’s sensitivity and alignment to match the user’s touch. Resetting the mobile device could erase user data and settings and may not fix the touch screen issue. Replacing the LED screen or updating the mobile device are unnecessary and costly actions that may not solve the problem.

Data throttling, often implemented by network providers to manage bandwidth usage, can slow data speeds after a certain usage limit is reached. Turning off wireless would prevent uploads, while roaming and 5G status primarily affect connectivity rather than speed throttling. CompTIA A+ Core 1 objectives cover connectivity troubleshooting for mobile devices, including factors impacting network speed and performance.

Reasoning: A cable tester capable of testing Power over Ethernet (PoE) functionality can verify whether the switchport is providing the required power to the phone. This tool measures both the presence of data and the voltage or wattage being provided through the Ethernet cable.

This is the most effective way to confirm that PoE is available on the port.

Why the Other Options Are Incorrect:

A. Network tap:

A network tap is primarily used to monitor network traffic, not to test for PoE availability. It cannot verify if power is being supplied through the Ethernet cable.

C. Loopback plug:

A loopback plug is used to test the functionality of a network port by creating a loop for transmitted and received signals. It does not measure or verify PoE availability.

D. Toner probe:

A toner probe is used for tracing and identifying network cables. It cannot test for PoE functionality.

Practical Example:

A PoE phone might not turn on due to a misconfigured or faulty switchport. Using a cable tester capable of measuring PoE would help the technician determine if the switchport is supplying sufficient power to the phone.

CompTIA A+ Exam Objective Alignment:

Objective 2.1: Identify common networking hardware and tools, including PoE-enabled devices and cable testers.

Two-factor authentication (2FA) significantly enhances security by requiring two forms of verification before granting access to company resources, making it harder for unauthorized users to gain access even if they have one of the credentials. PIN code enforcement adds an additional layer of security by ensuring that devices are protected by a PIN, making physical access to the device more challenging for unauthorized users. While the other options provide various benefits, 2FA and PIN code enforcement directly enhance the security of remote users accessing company resources.

Improper seating is the most common reason an SSD isn’t recognized. Ensuring it is correctly connected resolves the issue.

Why Not A (Faulty SSD): A faulty SSD is possible but less likely than an installation issue.

Why Not B (Not formatted): Formatting affects data usability, not drive detection.

Why Not C (Incompatibility): SSD compatibility issues are rare with modern hardware.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.3, storage troubleshooting​.

Reasoning: Many docking stations provide power and functionality only when the laptop is properly powered on. If the laptop was powered off (e.g., during the vacation), docking it will not automatically turn it on. The technician should first ensure the laptop is powered on by pressing the power button.

This is a common troubleshooting step when laptops in docking stations appear non-functional.

Relevance to CompTIA A+ Core 1: This falls under Objective 5.2, which covers diagnosing and resolving common laptop and mobile device issues.

Why the Other Options Are Incorrect:

A. Ensure the docking station is plugged in:

While ensuring power to the docking station is important, the scenario specifies that the issue occurred after a vacation. The likelihood of the docking station losing power coincidentally during the vacation is low. Verifying the laptop's power state should be the first step.

C. Plug the laptop in and let it charge overnight:

There is no indication the laptop’s battery is drained. While charging could resolve a dead battery, the user is more likely experiencing an issue where the laptop is powered off but docked, so charging overnight is not the best first step.

D. Connect the laptop directly to the network:

A network connection will not resolve the primary issue of the keyboard and display not working. Addressing the laptop’s power state is a higher priority.

Practical Example:

If a user returns from a vacation and places a powered-off laptop into a docking station, it may not automatically power on. Pressing the power button ensures the laptop is operational and communicating with the docking station.

CompTIA A+ Exam Objective Alignment:

Objective 5.2: Troubleshooting common laptop issues, including power, display, and peripheral connectivity.

Enabling the audio device is the correct action to correct an audio issue where a laptop does not have any audio output from the built-in speakers and Windows Device Manager shows a down arrow for the audio device. A down arrow indicates that the audio device is disabled and needs to be enabled by right-clicking on it and selecting Enable device. Replacing the speakers, increasing the volume, or updating the driver are unlikely to solve the issue if the audio device is disabled.

The correct answer is B. Use the Function key.

The explanation is that some laptops have a Function key (Fn) that can be used to toggle the track pad on or off. This can be useful if the user wants to use an external mouse instead of the track pad, or if the track pad is accidentally activated by palm movements. The user should look for a Fn key on their keyboard and a track pad icon on one of the other keys, such as F5 or F9, and press them together to enable or disable the track pad.

Mobile Device Management (MDM) software often controls access to corporate resources based on location, network, or VPN status. If the MDM is not configured to allow access from outside the office or via home networks, the apps may be blocked. This is the most probable cause if apps work only on-premises.

Option A: GPS is used for location services, not access control.

Option C: WPA is a Wi-Fi security protocol, not related to access restrictions.

Option D: NFC enables close-range communication — irrelevant to app access.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.6: Given a scenario, configure basic mobile device network connectivity and application support.

A sandbox in virtualization allows testing an application in an isolated environment to observe its behavior without affecting the host system.

Why Not A (Run an application on multiple workstations): This describes application virtualization, not sandboxing.

Why Not C (Migrate a legacy application): This is about virtualization for legacy support, not testing.

Why Not D (Create a firewall): A firewall does not act as a sandbox for application testing.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 4.2, virtualization and sandboxing​.

NVMe (Non-Volatile Memory Express) is an interface protocol built especially for Solid State Drives (SSDs) to utilize the high-speed PCIe bus in computers. M.2 is a form factor that is commonly used for NVMe SSDs due to its compact size and direct connection to the PCIe interface, which is ideal for laptops. The 2.5" and 3.5" form factors are more commonly associated with SATA drives, and SD is a form factor used for removable flash memory cards, not for internal storage solutions like NVMe SSDs.

A loopback plug is used to test the functionality of network interface card (NIC) ports to ensure they can send and receive data. It is a diagnostic tool that loops back the signal to the device, allowing verification of the network port's operation. This aligns with CompTIA Core 1 objectives related to troubleshooting wired and wireless networks and verifying network connectivity​.

The Trusted Platform Module (TPM) is a hardware-based security feature used to store cryptographic keys, such as those used for encryption, authentication, or device identification. It plays a critical role in ensuring secure operations for encrypted drives, BitLocker, and secure boot processes. Clearing TPM keys involves wiping all stored cryptographic data, which can lead to several consequences depending on what the TPM was being used for. Let’s break it down:

Correct Answer: A. Encrypted hard drives would probably not be accessible.

Encrypted hard drives, such as those secured with BitLocker encryption, rely on the cryptographic keys stored in the TPM to unlock data.

Clearing the TPM will erase these keys, making it impossible for the encrypted drive to decrypt its contents unless a recovery key (separate from the TPM) is available. Without this recovery key, the data will likely become inaccessible.

CompTIA A+ Core 1 Exam Objective Reference: This falls under Objective 3.5, which covers understanding BIOS/UEFI configurations, TPM functions, and securing devices.

Why the Other Options Are Incorrect:

B. All security certificates would need to be reinstalled from trusted roots.

Clearing the TPM does not erase security certificates stored in the operating system or other areas. Certificates are generally managed by the OS or specific applications, not the TPM. Clearing the TPM only affects cryptographic keys and data stored in the TPM chip, so this is incorrect.

C. The device would need to be reenrolled in the MDM platform.

Mobile Device Management (MDM) enrollment typically does not rely on the TPM. While certain enterprise security configurations may involve the TPM, clearing it does not inherently trigger MDM reenrollment unless specifically tied to the MDM configuration.

D. The laptop would need to be registered to the domain as a new client.

While domain registrations may sometimes use TPM for authentication or secure operations, clearing the TPM alone does not require re-registering the device to the domain. The domain registration and authentication process rely more on system-level credentials than the TPM itself.

Practical Example:

A user enables BitLocker on their laptop, which relies on the TPM to store the encryption key. Later, if they clear the TPM via BIOS/UEFI without saving the BitLocker recovery key separately, they will not be able to unlock the hard drive, leading to data loss unless the recovery key is available. This is a common issue when technicians or users inadvertently clear the TPM without understanding its role in encryption.

CompTIA A+ Exam Objective Alignment:

Objective 3.5: Given a scenario, install and configure laptop hardware and components, including UEFI/BIOS security settings (TPM, secure boot, etc.).

This question tests understanding of TPM functionality, encryption technologies, and secure device configurations.

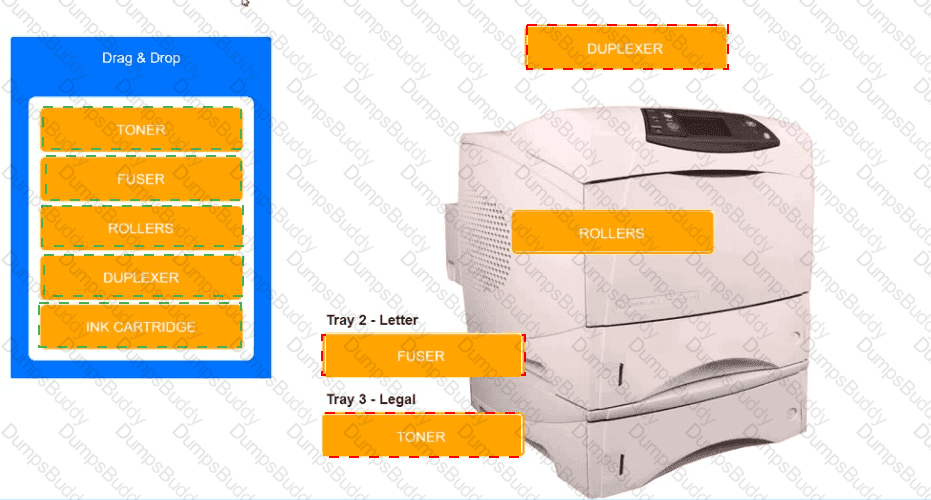

Duplex printing allows printing on both sides of a paper, which can significantly reduce paper consumption and costs associated with buying paper. This makes duplex printing the best feature for cutting costs on consumables.

SSH (Secure Shell) encrypts data communications for secure remote login and management of network devices, ensuring all console connections are encrypted.

Why Not B (LDAP): LDAP is used for directory services and does not encrypt by default.

Why Not C (FTPS): FTPS encrypts file transfers, not console communications.

Why Not D (SMTP): SMTP is used for email transmission, not for securing login sessions.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.7, network security protocols​.

An inverter failure commonly causes dim screens as it fails to power the backlight, which is crucial for visibility. The LCD glass, IPS panel, and digitizer relate to touch and image display, not brightness. According to CompTIA A+ Core 1 objectives, understanding mobile device display issues, including inverter-related problems, is essential for effective troubleshooting.

When print jobs remain stuck in the printer queue despite successful network communication (indicated by successful ping replies) and no issues with paper supply or toner levels, a common reason can be that the first job in the queue requires manual intervention, such as paper to be fed into a manual feed tray. Printers often pause the entire print queue if the first job requires a specific type of paper or manual insertion that hasn't been addressed, preventing subsequent jobs from processing.

Comprehensive and Detailed Step-by-Step Explanation:

To answer this question, we need to identify the port numbers associated with email protocols used in client-server communication.

Port 25 (SMTP - Simple Mail Transfer Protocol):

This port is primarily used for sending emails between mail servers and from mail clients to mail servers (sending outbound mail).

SMTP is an essential protocol for email traffic.

A VLAN (Virtual LAN) is used to logically segment a network without requiring physical separation. It enables grouping devices based on function or department regardless of their physical location.

Option A (DHCP): Assigns IP addresses dynamically but doesn’t create network segments.

Option C (DNS): Resolves domain names to IP addresses, not used for network segmentation.

Option D (VPN): Provides secure remote access but does not relate to logical segmentation within a local network.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.3: Explain common logical networking concepts.

C. Initiate the system restore:

If the technician is confident that rolling back the system to a previous restore point will resolve the issue, the next logical step is to initiate the System Restore process.

System Restore allows the system to revert to a state before the OS update, which can eliminate the performance issues caused by the update.

Incorrect Options:

A. Document the findings: Documentation is important but should occur after resolving the issue.

B. Investigate any recent infrastructure changes: This is unnecessary if the issue is already attributed to the OS update.

D. Verify full system functionality: This step should be performed after the System Restore is completed.

Key Takeaway: When confident that rolling back will resolve the issue, the technician should proceed with initiating a System Restore to revert the OS.

Color gamut refers to the range of colors a display can accurately reproduce. For tasks like graphic design or photo editing, ensuring the screen's colors match the printed output is critical. Monitors with wide and accurate color gamuts (e.g., Adobe RGB) are preferred for these applications.

Option B (Pixel density): Incorrect. Pixel density affects image sharpness, not color accuracy.

Option C (Refresh rate): Incorrect. Refresh rate impacts motion smoothness but is unrelated to color matching.

Option D (Resolution): Incorrect. Resolution determines clarity and detail but does not influence color accuracy.

When a user is unable to save pictures to a new SD card after replacing a damaged one, the first thing to check is whether the card is locked. Many SD cards have a physical switch on the side that can be toggled to a "locked" position, which prevents data from being written to the card. Ensuring the switch is in the "unlocked" position allows the device to save data to the SD card.

If users are only able to save a small number of pictures on the microSD cards before running out of space, it suggests a formatting issue. Improper or incomplete formatting can lead to the card not utilizing its full storage capacity, resulting in significantly less available space for storing pictures. Formatting the microSD cards correctly would ensure the file system on the cards is set up properly, allowing the devices to use the full capacity of the cards for storage. Compatibility, UHD storage capability, and camera storage settings are less likely to be the issue in this scenario.

Assigning a static IP address to a network printer ensures it always retains the same address, allowing users and print servers to consistently reach it even after a reboot or network refresh.

Option B (Private address): Refers to address ranges (e.g., 192.168.x.x) — doesn't guarantee address persistence.

Option C (Wi-Fi): Is a connection method, not a method of IP assignment.

Option D (Dynamic addressing): Via DHCP, which can change over time unless reservations are made (less reliable).

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.

The first step a technician should take before upgrading the Wi-Fi card on a laptop, or performing any internal hardware modifications, is to remove the power cable to ensure the device is not powered on. This is a crucial safety measure to prevent any electrical damage to the laptop or the technician. It also helps in avoiding any unintended changes or data loss that might occur if the device is powered on during the upgrade process.

A community cloud is designed for multiple organizations with shared goals or projects, allowing collaboration while maintaining a level of privacy. This cloud model is ideal for the scenario where organizations are working together and need to migrate project-related data to the cloud.

Why Not A (Public): Public cloud is shared among all users and lacks the collaboration-specific features of a community cloud.

Why Not B (Hybrid): Hybrid cloud combines public and private resources but is not tailored to multiple organizations working on a joint project.

Why Not C (Private): Private cloud is exclusive to a single organization and unsuitable for collaboration among multiple entities.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 4.1, cloud computing models​.

An IDE hard drive uses a Molex connector for power. This 4-pin connector is a standard for older drives.

Why Not A (F type): F type connectors are used for coaxial cables in video and internet applications.

Why Not B (SC): SC connectors are for fiber optic cables.

Why Not D (Lightning): Lightning connectors are for Apple devices.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.1, cable types and connectors​.

The ATX 3.0 16-pin connector provides power to high-end graphics cards, and a poor connection could lead to power issues and burning smells.

A sandbox environment is designed to isolate and contain software or programs, preventing them from interacting with other parts of the system or network. This isolation can be used to safely run untested or untrusted programs or code without risking the integrity of the host system or network. Setting up a virtual machine within a sandbox environment ensures that the VM has no communication with other devices over the network, providing a controlled and secure environment for testing or development purposes.

In this scenario, running a network cable over a long distance (279ft or 85m) and sharing conduit with a large power cable requires careful consideration of electromagnetic interference (EMI) and the physical distance limitations of the cable type. Fiber optic cables are immune to electromagnetic interference and can support much longer distances than copper-based cables like Cat 5e or Cat 6 without signal degradation. This makes fiber optic the most appropriate choice for this project.

In DNS (Domain Name System), the AAAA record is used to map a domain or device to an IPv6 address. IPv6 addresses are 128-bit addresses, and the AAAA record is specifically designed for handling these larger addresses.

C. AAAA: This record is used to associate a hostname with an IPv6 address in DNS.

Why the other options are incorrect:

A. A: An A record maps a domain to an IPv4 address, not an IPv6 address.

B. CNAME: A CNAME (Canonical Name) record is used to alias one domain name to another but does not map to an IP address directly.

D. MX: An MX (Mail Exchange) record is used to direct email traffic to the correct email servers, not to map devices to IP addresses.

This falls under the Networking domain of the CompTIA A+ Core 1 exam​.

B. PAN (Personal Area Network):

A PAN is a network established between devices in close proximity, such as between a smartphone and a Bluetooth headset.

Bluetooth technology is specifically designed for short-range communication, making it a type of PAN.

Incorrect Options:

A. MAN (Metropolitan Area Network): A MAN covers a city or metropolitan area and is not relevant to Bluetooth connections.

C. SAN (Storage Area Network): A SAN is used for large-scale data storage, unrelated to Bluetooth connections.

D. WAN (Wide Area Network): A WAN spans large geographical areas (e.g., the internet) and is not relevant to this scenario.

Key Takeaway: Bluetooth connections, such as those between a headset and a device, create a Personal Area Network (PAN).

If a color laser printer's image quality decreases after being serviced for dust removal, it's likely that the servicing process affected the printer's calibration. Calibration ensures that color reproduction is accurate, and if disturbed, can lead to a decrease in image quality. It's important to check and recalibrate the printer to restore its ability to accurately reproduce colors and maintain high image quality.

A DHCP lease is a temporary assignment of an IP address and other network configuration parameters (such as DNS and gateway) to a device. The lease is renewed periodically to maintain the assignment.

Why Not A (A definition of the scope of addresses): The DHCP scope defines the range of IP addresses but is not the lease itself.

Why Not B (A reservation of an IP configuration): DHCP reservations ensure a specific device always receives the same IP address, but this is not the lease.

Why Not D (A translation of network names to IP addresses): This describes DNS, not DHCP.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, DHCP concepts​.

The IP address 192.168.1.56 is within the private IP address range (192.168.0.0 to 192.168.255.255) and is appropriate for use in an internal network utilizing NAT (Network Address Translation). The other IP addresses provided (172.15.65.10, 175.16.20.3, and 193.167.35.4) are either public IP addresses or not in the private IP range suitable for an internal network using NAT.

A bulging tablet casing is a classic sign of a swollen lithium-ion battery, often caused by age, overheating, or overcharging. This is a dangerous condition, as swollen batteries can rupture or catch fire. It also explains why the tablet only works when plugged in — the battery is no longer holding a charge.

Option A: Power supply issues wouldn’t cause physical bulging.

Option B: A bad charge port wouldn’t cause screen damage or physical distortion.

Option D: A broken screen could cause display issues, but not the bulging chassis.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.4: Given a scenario, configure settings and use cases for laptops and mobile devices.

===========

Tethering refers to sharing a mobile phone’s internet connection with another device, such as a laptop, either through USB, Bluetooth, or Wi-Fi. Tethering effectively turns the mobile phone into a personal hotspot for internet access.

Option A (IR): Incorrect. Infrared (IR) is used for short-range communication, such as remote controls, but it does not support internet sharing.

Option B (NFC): Incorrect. Near-field communication (NFC) is used for close-proximity data transfer, not for internet sharing.

Option C (Wi-Fi Direct): Incorrect. Wi-Fi Direct enables device-to-device communication but does not inherently provide internet sharing.

A valid public IP address must fall outside the private IP address ranges:

10.0.0.0 to 10.255.255.255

172.16.0.0 to 172.31.255.255

192.168.0.0 to 192.168.255.255

66.157.195.20 is outside these ranges, making it a public IP address.

Why Not A, C, D: These IPs fall within private IP address ranges.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, IP addressing​.

Older motherboards use 20-pin connectors, while newer power supplies use 24-pin connectors. An adapter resolves the compatibility issue cost-effectively.

Why Not A (Adjust the input voltage): Input voltage adjustment is unrelated to connector compatibility.

Why Not B (Install a modular power supply): While modular supplies are versatile, this doesn’t address the connector issue directly.

Why Not C (Rebuild the failed power supply): Rebuilding is costly and complex compared to using an adapter.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.4, power supply compatibility​.

The issue described suggests the 12V CPU power connector was likely forgotten during installation. The 12V power rail is essential for the operation of high-end workstation components, including the CPU. Without the 12V connection, the system will fail to POST and may power off shortly after being turned on.

Why 12V?

The 12V connector is critical for providing power to the CPU via the motherboard. Modern CPUs require a dedicated power source from the PSU, usually supplied through the 4-pin or 8-pin EPS12V connector.

If this connection is omitted, the motherboard will not receive adequate power for the CPU to function, resulting in the system failing to POST or shutting down after a brief period.

Incorrect Options:

A. 5V: The 5V rail powers USB devices, some motherboard components, and certain peripherals, but not the CPU directly.

C. 120V and D. 220V: These voltages refer to the power supply’s input from the wall outlet, not the internal connections to components.

CompTIA A+ Exam Objectives References:

220-1101 (Core 1), Section 3.5: Explains power supply requirements and troubleshooting scenarios related to component connections​.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

IPv4 records are associated with "A" records in DNS servers.

Option Evaluation:

A. AAAA: Used for IPv6. Incorrect.

B. MX: Relates to email servers. Incorrect.

C. CNAME: Provides aliases, not IP mappings. Incorrect.

D. A: Maps hostnames to IPv4 addresses. Correct.

Comprehensive and Detailed Step-by-Step Explanation:

To determine the correct device, we need to understand how a DOCSIS (Data Over Cable Service Interface Specification) network functions in a Small Office/Home Office (SOHO) environment:

C. Cable Modem:

A cable modem is required to convert the signal provided by the ISP (Internet Service Provider) over a DOCSIS network into a format that is usable by the local area network (LAN).

DOCSIS is a standard for high-speed internet over cable television infrastructure, and the cable modem acts as the gateway between the ISP's coaxial network and the LAN.

Without the cable modem, devices in the LAN would not be able to access the internet.

Upgrading a power supply to add a GPU typically requires more wattage to accommodate the additional power demands. Although the current power supply is 380W, adding a GPU with a six-pin power connector suggests a mid-range graphics card, which would likely need a total system power supply in the range of 450W to ensure adequate power for all components, providing a good balance between capacity and safety margins.

When a laptop sometimes fails to charge despite a good power adapter connection, the most likely issue is a defective DC jack. The DC jack, where the power adapter plugs into the laptop, can become loose or damaged over time, leading to intermittent or failed charging. Cooling fan issues, bad memory, or an overheating CPU would typically lead to different symptoms such as overheating, system crashes, or performance issues, not charging problems.

A Wi-Fi analyzer is a tool that can be used to scan the local area for available wireless networks and can provide information such as signal strength, interference, and available channels. It can also be used to locate the best channel to use for a given access point, which can help to reduce latency and improve performance.

Vertical or horizontal lines—Marks that appear in the same place (referred to as repetitive defects) are often due to dirty feed rollers (note that there are rollers in the toner cartridge and fuser unit too) or a damaged or dirty photosensitive drum.

Vertical streaks on a laser printer output are usually caused by a damaged or worn-out drum, which is responsible for transferring toner to the paper. If the drum is damaged, toner may accumulate on certain parts of the drum, leading to streaks on the printed output. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 15

A 1000W 24-pin modular power supply provides enough power to support a dual graphics card configuration, which requires a significant amount of power. A modular power supply allows the technician to connect only the cables that are necessary for the current configuration, reducing cable clutter and improving airflow inside the case. This makes it easier to install and maintain the power supply.

It is designed to protect an organization's network infrastructure and data from unauthorized access, while allowing legitimate traffic to pass through. Firewalls can be configured to enforce security policies that block certain types of traffic, limit access to specific network resources, and prevent attacks such as malware and phishing.

A firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It establishes a barrier between a trusted internal network and an untrusted external network, such as the Internet. Firewalls are used to implement network security policies for an environment by controlling access to the network and protecting it from unauthorized access.

A firewall is used to implement network security policies. It monitors incoming and outgoing traffic based on predetermined security rules and can block traffic that does not meet the defined criteria. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Chapter 6, page 243)

The most likely action that would resolve the issue is to clean the keyboard. Sometimes dust, hair, and other debris can affect keyboard functionality. The technician can try to clean the keyboard as much as possible, which may be enough to get the keyboard back in working order

IaaS is a cloud computing model where a third-party provider hosts infrastructure components such as servers, storage, and networking on behalf of customers. This allows the startup to immediately expand its data center without the need for additional personnel or space to manage everything internally. Additionally, IaaS allows remote users to easily access the required computational and storage resources from multiple small offices.

Infrastructure as a Service (laaS) can provide the startup with the necessary computational and storage solutions without the need for internal management. laaS allows organizations to rent computing resources from a third-party provider instead of owning and maintaining them in-house.

The correct answers are A. Identify the location of devices that utilize 2.4GHz and D. Map all of the wireless signals in the restaurant. In order to troubleshoot the issue, the technician should first identify the location of devices that utilize the 2.4GHz frequency, as this can cause interference with the wireless signal. Additionally, the technician should map all of the wireless signals in the restaurant in order to identify any potential sources of interference. Checking to see if the phones are IJTP or STP lines, testing to see if the copper electrical wires are causing interference, verifying T568B is being used in the wiring closet patch panel, and scheduling timed router reboots throughout the day are not necessary steps for troubleshooting this issue.

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

The first step in troubleshooting a printer issue is to disconnect the printer power to avoid electric shock or further damage to the printer. The technician can then inspect the fuser and determine if it needs to be replaced or repaired. Installing a printer roller kit or replacing the paper with thicker paper stock will not solve the problem of the overheating fuser. Replacing the fuser without disconnecting the power is dangerous and not recommended. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-a-fuser

The most secure way to implement fingerprint readers would be to restrict device access to only the user to whom the laptop is assigned. This ensures that only authorized personnel have access to the device, reducing the risk of unauthorized access and data breaches.

it appears that option A, restoring function to the air conditioner, would most likely solve the thermal printer issue in the described scenario. The failure of the air conditioner during the summer could likely have caused high humidity or heat in the factory, which can affect the printing quality of thermal printers by causing blank spots or missing text. By restoring function to the air conditioner, the temperature and humidity in the factory can be controlled, which can help eliminate these printing issues. However, it is still possible that any of the other options listed could also potentially solve the issue, so it is best to assess the situation further and try different solutions if necessary.

Punchdown tools are used to make connections between wires in a 66/110 block at the demarcation point. The tool is used to insert the wire into the appropriate holes in the block, and it can be used to add additional lines to the demarcation point. The other options are not the correct tools for adding lines to the demarcation point. A toner is used to identify cable pairs, a network tap is used to monitor network traffic, and a crimper is used to terminate cables.

The cloud concept that should be used for migrating all common business applications, including email and fileshares, to the cloud is Software as a Service (SaaS).

Enabling secure boot will verify the digital signature of the bootloader and operating system, ensuring that the system only boots from trusted and authorised sources. This can prevent booting from an unauthorised live CD or other external media.

The best way to prevent booting from a live Linux CD on a computer in a shared space on campus is to enable secure boot. Secure boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs.

Secure Boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs. Secure Boot is an important security feature designed to prevent malicious software from loading when your PC starts up (boots)1.

Booting from a live Linux CD is a process that allows you to run a Linux operating system from a CD or DVD without installing it on your hard drive. This can be useful for testing or troubleshooting purposes. To boot from a live Linux CD, you need to insert the CD or DVD into your computer’s CD/DVD drive and restart your computer. Most systems are set up to automatically boot from the CD/DVD drive, but if your system is not set up this way, you may need to change a system setting to boot from a Linux CD/DVD23.

If a user’s PC is very sluggish, the HDD light on the PC is constantly on without blinking, the PC itself is slow receiving input, and it takes a very long time to load the OS, the HDD has no free space is most likely the cause of these issues. When the hard disk drive (HDD) has no free space, the computer may become slow and unresponsive. The technician should check the amount of free space on the HDD and delete any unnecessary files to free up space.

A load balancer is a network device that distributes network or application traffic across multiple servers to ensure that no single server bears too much of the load. Load balancing helps to improve application availability, increase scalability, and optimize resource utilization.

A bridge is used to connect two different networks, often to divide a larger network into smaller segments. A proxy server is used to forward client requests to other servers, and can also be used to cache frequently requested data. A switch is used to connect multiple devices within a network and to control the flow of network traffic. A firewall is used to secure a network by controlling incoming and outgoing traffic based on defined security rules.

A router is a device that connects one or more networks, such as a home or small office network, to the internet. It allows multiple devices to share a single internet connection and provides network address translation (NAT) to enable communication between the devices on the local network and the internet. A hub, Ethernet gateway, or wireless access point does not provide this functionality.

A router is the most likely device to be used to connect one or more devices to the internet in a SOHO. A router can provide network address translation (NAT), firewall protection, and other features that are important for securing and managing a network. References: CompTIA A+ Certification Exam Guide, pg. 355

TPM stands for Trusted Platform Module, and it is a special chip installed on a computer’s motherboard that stores encryption keys, passwords, and digital certificates. It can also securely store a user’s PIN, allowing them to access the laptop without having to enter the PIN every time they log on. TPM is a secure way to store and protect sensitive data, making it ideal for use in laptops that need to securely store a PIN.

If a computer is not booting and the onboard speaker emits beeps, it can indicate a hardware issue. One of the most common causes of beep codes is overheating, which can occur if the processor's fan is not properly installed and running. The processor's fan is responsible for cooling the processor and preventing damage to the internal components.

To enable devices to connect to the internet after installing a new router at a small office, the technician should configure DHCP (Dynamic Host Configuration Protocol) on the router. DHCP is a network protocol that automatically assigns IP addresses and other network configuration parameters to devices on a network. By configuring DHCP on the router, the technician can ensure that all devices on the network are assigned a valid IP address that allows them to connect to the internet.

If all devices have a 169.254.x.x IP address, this suggests that the router is not assigning IP addresses to the devices using DHCP (Dynamic Host Configuration Protocol). Configuring the DHCP settings on the router can enable the devices to receive IP addresses automatically and access the internet. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 14

The user should configure the print job to use the Duplex option, which will print on both sides of the paper and reduce the amount of paper used.

https://intellinetnetwork.eu/pages/what-is-a-poe-injector

The quickest way to resolve the issue is to install a Power over Ethernet (PoE) injector to provide power to the IP phone. An unmanaged switch does not provide PoE, so an injector is needed to power the phone.

If a technician made several upgrades to a computer and then determined the power supplied by the PSU is insufficient, the upgraded graphics card and adding more RAM would most likely cause the insufficiency. Upgrading the graphics card and adding more RAM can increase the power consumption of a computer, which can cause the power supplied by the PSU to be insufficient.

Adding more RAM and upgrading the graphics card are the most likely causes of the insufficiency of power supplied by the PSU. These upgrades require more power to operate efficiently and can cause the PSU to become insufficient.

The Domain Name System (DNS) is responsible for translating domain names into IP addresses. By blocking malicious sites from resolving correctly, the DNS server is able to prevent the user from accessing those sites. Therefore, the DNS server setting on the user’s router needs to be changed to enable this functionality123.

Since the hard drive appears to be functioning normally, the technician should investigate other potential causes of the issue. This could include checking the BIOS settings, verifying the connections to the hard drive, and testing the RAM. Once these steps have been completed, the technician can then take the necessary steps to resolve the issue.

The pink hue is most likely caused by physical cabling issues

the output on a monitor is clear but has a pink hue, it could be due to an issue with the physical cabling connecting the monitor to the computer. The video signal may be degraded or distorted due to a damaged or loose cable. The technician should check and replace the cable if necessary to resolve the issue.

The IT department should implement VDI. Virtual Desktop Infrastructure (VDI) is a technology that allows users to access a desktop operating system from a remote location. VDI provides complete control over users’ operating systems, which is important for safeguarding data. VDI also provides a secure way to access data from remote locations, which is important for compliance with government-enforced requirements1.

Using the device as a Wi-Fi hotspot, a failing battery, and too many open applications are the most likely causes of the cell phone getting hot. These actions require the phone to use more power and processing, causing it to heat up.

Thunderbolt cables are commonly used to connect Apple laptops to external displays or other devices. While Thunderbolt is available on some Windows and Chromebook devices, it is most commonly associated with Apple products. References: https://www.intel.com/content/www/us/en/products/docs/io/thunderbolt/thunderbolt-technology-general.html

The MOST efficient next step the technician should do is to test the output resolution1. The issue of a projector that will not display any images could be related to the output resolution1. If the output resolution is not compatible with the projector, the projector will not display any images1. Calibrating the image, replacing the bulb, or cleaning the fans may not be effective1.

If a projector is not displaying any images despite verifying that the computer output and cable are providing a good video signal, the technician should test the output resolution. The output resolution of the computer may not be compatible with the projector, which can cause the projector to not display any images.

HDMI-ARC (Audio Return Channel) is an HDMI connection that allows audio to be sent from the TV to an external sound system, such as a soundbar. If the TV's HDMI-ARC port is not being used, then the soundbar will not receive any audio from the TV and thus will not produce any sound. To resolve the issue, the technician should ensure that the TV's HDMI-ARC port is being used to connect the TV to the soundbar.

The earliest PoE switches from a few years ago generated 15 Watts per port (IEEE 802.3af). Today, most use the PoE+ standard (IEEE 802.3at), which generates up to 30 Watts per port. That's plenty for most devices that people want to connect

A Virtual Private Network (VPN) is a secure method for connecting a remote user's laptop to a corporate server. VPNs use encryption to protect data transmitted over the internet.

The two sets of colors on the motherboard indicate that it supports dual-channel memory, which doubles the bandwidth available to the memory controller. Dual-channel memory requires two identical memory modules to be installed in pairs in the correct slots to work effectively. In this case, the user can install two identical RAM modules to enable dual-channel memory, which will provide better performance when using multimedia applications that consume a lot of memory.

Verifying the correct type of paper is loaded is the best solution for resolving the issue of blank receipts being printed by a point-of-sale printer. Some receipt printers require a specific type of paper, and using the wrong type can result in blank receipts. References: https://www.techwalla.com/articles/what-are-the-causes-of-blank-receipts-from-a-printer

Top of Form

Verify the correct type of paper is loaded. If a point-of-sale printer is printing blank receipts, one possible cause could be that the wrong type of paper is loaded in the printer. Thermal printers require thermal paper to print properly. If regular paper is loaded instead of thermal paper, the printer will not be able to produce an image on the paper and will print blank receipts.

RAID 10 combines the benefits of RAID 0 and RAID 1. It uses a striped configuration across multiple disks (similar to RAID 0) to provide high-speed read and write access. Additionally, it also mirrors the striped array onto a second set of drives (similar to RAID 1), providing redundancy in case of a drive failure.

Every computer has a CMOS battery and when you remove that battery, your computer will work almost the same as before. The only difference is you won’t be able to save any settings in the BIOS, which includes the date and time. If your PC is not booting after removing CMOS, you need to make sure that you have your CPU and RAM connected because it’s not possible for your system to boot without those.. Your motherboard and computer will be able to boot just fine even without a CMOS battery present. The only issue is all your BIOS settings will be reset and the time and date will be inaccurate. You will also be unable to save BIOS settings.

802.11ax, also known as Wi-Fi 6, has the longest range and the highest wireless throughput of all the wireless technologies listed. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 3

A redundant power supply is a device that provides two or more power supplies connected in parallel so that when one fails, the other one will take over to ensure continuous power. This is ideal for critical warehouse machines that require a reliable power source and are at risk of downtime in the event of a power failure. Installing a redundant power supply will help to reduce the chances of an unexpected power outage and keep the machine running.

CompTIA 6-Step Troubleshooting Process:

1. Identify the problem.

2. Establish a theory of probably cause. (Question the obvious)

3. Test the theory to determine cause.

4. Establish a plan of action to resolve the problem and implement the solution.

5. Verify full system functionality and if applicable implement preventative measures.

6. Document findings, actions, and outcomes.

Writing a knowledge base article in the ticketing software would help document the root cause of the application error and the steps taken to resolve it, which can help other technicians resolve similar issues in the future. This is an example of knowledge management best practices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 6

A Virtual LAN (VLAN) is a network topology that allows a switch to be divided into separate logical networks. This allows for the creation of multiple broadcast domains within a single physical network, improving network segmentation and security. With VLANs, you can segment your network so that different departments, applications, or users are isolated from each other, improving network security and performance.

If a user is unable to connect a laptop to a projector or videoconferencing system and sees the error message "No source found," the next step should be to check the display settings on the computer and set them to extend/duplicate. This will ensure that the laptop's display is being output to the external device. References: CompTIA A+ Certification Exam Guide, pg. 514

A technician is working on a help desk ticket for a user who wants the filament replaced in a 3-D printer. To remove the old filament and load the new one, the technician should preheat the nozzle to melting temperature. After the nozzle is heated, the technician should withdraw the filament and remove the spool. Then, cut a sharp angle on the end of the new strand, and push it along until resistance is felt.

USB 3.0 ports are slightly smaller than other USB connections, so if the port appears to be the wrong size, it is likely that the port belongs to a different form factor. This can be caused by a number of factors, such as the device being too old to support USB 3.0, or the device not having a USB 3.0 port in the first place.

The correct answers are B. 2.4GHz penetrates solid objects more effectively. 5GHz provides faster data connections and E. 2.4GHz has a higher coverage area. 5GHz has higher bandwidth. The 2.4GHz frequency has a lower data rate compared to 5GHz, but it can penetrate solid objects more effectively and has a higher coverage area. The 5GHz frequency, on the other hand, provides faster data connections and has higher bandwidth, but it has fewer channels and lower transmit power.

An impact printer is a type of printer that uses a ribbon to produce text and images on paper. If an impact printer is producing faded text and images when printing, it could be due to a worn-out ribbon that needs to be replaced. The technician would need to replace the ribbon on the impact printer to resolve the issue.

A ribbon is a consumable component used in impact printers that uses a cloth or plastic strip coated with ink to produce text and images on paper. Examples of impact printers include dot matrix printers and line printers. References: Study Guide Section 4.6 - Printer technologies

The most common reasons you may be seeing the "No Signal" message: The projector and the source device are not connected correctly.

The first action should be to check the video cable and replace it if necessary, as the error message suggests that the projector is not receiving a signal from the laptop. Verifying that the projector is turned on and checking the bulb would come after verifying the video cable.

One possible solution to address the issue of a webcam not working with a videoconferencing program is to close other video software and retry (option A). It’s possible that another video software program is currently using the webcam and preventing the videoconferencing program from accessing it. By closing any other video software that may be running on the computer, the user can ensure that the webcam is available for use by the videoconferencing program.

The technician should install the appropriate printer drivers for the OS to enable the computer to communicate with the printer. The generic printer name suggests that the drivers are missing or not installed correctly.

Before attempting to resolve the issue, it is important to first determine the cause or probable cause of the issue, so that a plan of action can be developed. In this case, the fact that the retention policy was updated shortly before users first noticed the issue suggests that this could be the cause of the issue. The systems administrator should investigate this further to determine if this is indeed the cause of the email server issue.

ADF/flatbed scanner would most likely be used to obtain electronic images of a large number of printed documents. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 351

The technician should run diagnostics on the faulty hard drive using a boot disk first when a computer that contains critical data has not been backed up and will not boot past a S.M.A.R.T. error that indicates imminent hard disk failure. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 376

DMARC (Domain-based Message Authentication, Reporting and Conformance) is an email authentication protocol. It is designed to give email domain owners the ability to protect their domain from unauthorized use, commonly known as email spoofing.

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

Based on the information provided in the scenario, the most likely cause of the issue is that the user’s internet connection is down (option A). This would explain why the user is unable to access any of the organization’s servers or network items and why web pages are not functioning. However, since the user can still access local file folders and other local machines, it suggests that their local network is still functioning.

The user can access local file folders and other local machines but none of the organization's servers or network items, indicating that the issue is with the user's internet connection, not with the user's domain account, switch, or IP address.

When a user receives a notification indicating that there is limited or no connectivity, it means that their device is unable to establish a connection to the network. In this scenario, the user can access local file folders and other local machines but is unable to access any of the organization’s servers or network items and web pages are not functioning. This suggests that the issue is with the user’s internet connection.

An internet connection allows a device to communicate with other devices and servers outside of its local network. If the internet connection is down or not functioning properly, the device will be unable to access any resources outside of its local network. This would explain why the user in this scenario can still access local resources but is unable to access any of the organization’s servers or network items.

The most likely reason that the technician is unable to select the channel with almost no RF pollution is that it is reserved for licensed band use. Some channels are reserved for specific purposes and require a license to use. These licensed bands are typically used for critical infrastructure, public safety, or military operations, and unlicensed devices are not allowed to use them. References: CompTIA A+ Certification Exam Objectives - 220-1001: 3.3 Compare and contrast common networking hardware devices.

A network tap is a physical device that allows promiscuous monitoring of network traffic by creating a copy of the data packets for analysis. A toner probe is used to trace and identify cables. A Wi-Fi analyzer is used to measure wireless signal strength and interference. A loopback plug is used to test network ports or cables by sending and receiving signals from the same device.

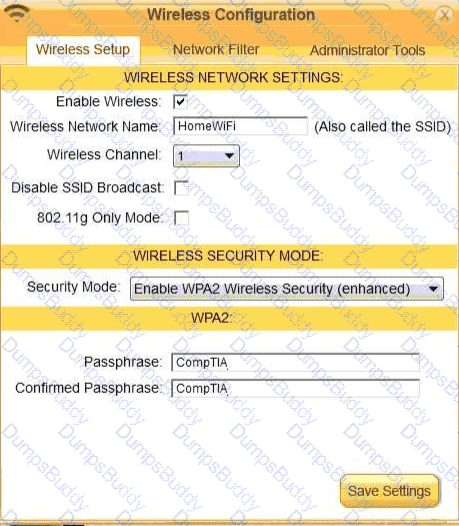

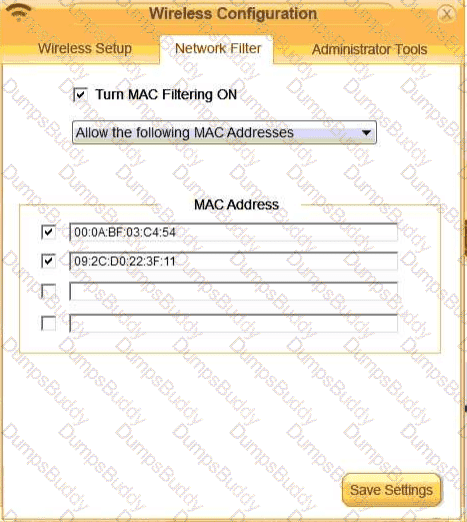

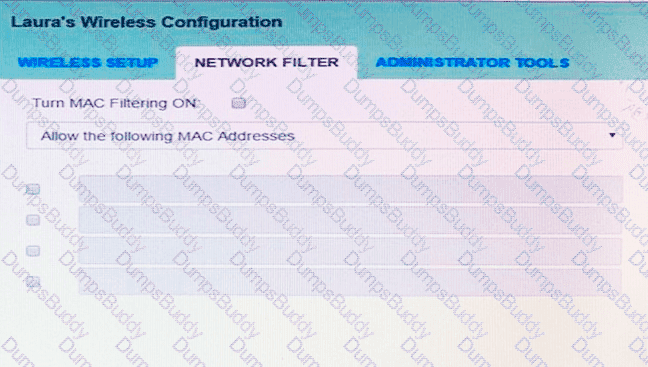

The technician should check the MAC filtering list next as the new router may have a different MAC address than the old router. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 332

https://www.resonatenetworks.com/2020/04/29/clustering-vs-load-balancing-whats-the-difference/

A load balancer distributes network traffic evenly across multiple servers, ensuring each server is being properly utilized. This helps to prevent overloading of any individual server, which can cause downtime or slow response times for users. In this scenario, adding a load balancer would be the best way to ensure the new servers are being properly utilized. References: CompTIA A+ Certification Exam: Core 1 - Page 181

The correct answer is B. Use the Function key.

The explanation is that some laptops have a Function key (Fn) that can be used to toggle the track pad on or off. This can be useful if the user wants to use an external mouse instead of the track pad, or if the track pad is accidentally activated by palm movements. The user should look for a Fn key on their keyboard and a track pad icon on one of the other keys, such as F5 or F9, and press them together to enable or disable the track pad.

PaaS (Platform as a Service) is a cloud computing model in which a provider offers a platform that allows developers to create, run, and manage applications without the complexity of building and maintaining the infrastructure. An application development environment is a valid use for PaaS. References: CompTIA A+ Certification Exam Objectives 1001, 1.7

A sandbox environment is an isolated testing environment where code can be written and tested without impacting other infrastructure. This provides a safe and controlled environment for experimentation and development. References: CompTIA A+ Certification Exam Core 2 Exam Objectives - 5.5 Compare and contrast common workstation security best practices

RAID 1 is a mirrored configuration that utilizes two drives and provides redundancy by allowing one drive to fail without data loss. This configuration meets the requirement of mirrored storage with two 4TB drives that support one failure. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 8

Dropping a smartphone can damage the digitizer, which is the component responsible for sensing touch input. This can cause issues with tapping and swiping on the screen, as well as other touchscreen-related issues. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

Toner Probe Many cable testers also incorporate the function of a toner probe, which is used to identify a cable from within a bundle. This may be necessary when the cables have not been labeled properly. The tone generator is connected to the cable using an RJ45 jack and applies a continuous audio signal on the cable. The probe is used to detect the signal and follow the cable over ceilings and through ducts or identify it from within the rest of the bundle.

The 2. band is subdivided into up to 14 channels, spaced at 5 MHz intervals from 2412 MHz up to 2484 MHz. Wi-Fi requires bandwidth of approximately 20 MHz, not 5 MHz. Consequently, a site designer needs to choose the channels that do not overlap. On a WLAN where only the first 11 channels are available, channels 1, 6, and 11 can be selected as non-overlapping. Note: In the Americas, regulations permit the use of channels 1-11 only, while in Europe, channels 1-13 are permitted. In Japan, all 14 channels are permitted.

Rapid elasticity is only suitable for a domain whose resource requirements suddenly up and down for a specific time interval. Referring to the question the online retailer wants to migrate to public cloud services during peak season, then wants it to be removed "automatically" when the peak is over.

http://www.221021.com/Hardware/input-output-devices/32310.html

1. Identify the problem.

Gather information from the user, identify user changes, and, if applicable, perform backups before making changes.

Inquire regarding environmental or infrastructure changes.

2. Establish a theory of probable cause (question the obvious).

If necessary, conduct external or internal research based on symptoms.

3. Test the theory to determine the cause.

Once the theory is confirmed, determine the next steps to resolve the problem.

If the theory is not confirmed, re-establish a new theory or escalate.

4. Establish a plan of action to resolve the problem and implement the solution.

Refer to the vendor's instructions for guidance.

5. Verify full system functionality and, if applicable, implement preventive measures.

6. Document the findings, actions, and outcomes.

Private cloud environments are designed for use by a single organization and offer the greatest control over security and access to data. They are typically used for sensitive or confidential data, such as health and criminal justice records. Public cloud environments are shared by multiple organizations and offer less control over security and access to data. Hybrid cloud environments combine public and private clouds, while community clouds are shared by multiple organizations with similar needs. References: CompTIA A+ Certification Exam: Core 1 - Page 234

The technician should research the requirements of the CAD program to see if the computer meets them or needs any upgrades or updates to run it properly. The technician should also check the Event Viewer logs to see if there are any errors or warnings related to the application or system performance that could indicate the cause of the problem or suggest a solution. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (pages 43, 47)

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

The MOST efficient next step the technician should complete is to check the printer paper path to locate any obstructions1. The error message “Paper Jam, Jam in fuser” indicates that there is a paper jam in the fuser2. The fuser is one of the parts of a laser printer most likely to fail without giving any explicit message2.

The printer LCD screen indicates a paper jam in the fuser. The most efficient next step the technician should complete is to check the printer paper path to locate any obstructions. Applying a maintenance kit or replacing the fuser may not be necessary if the issue is caused by a paper jam.

The tool that the technician should use to see all drives is Diskmgmt. Diskmgmt is a Windows utility that allows you to manage disk drives and partitions on your computer. It can be used to view all drives, including USB drives, that are connected to the computer12.

A router (option C) is a network device that is used to separate broadcast domains. A broadcast domain is a logical division of a computer network in which all nodes can reach each other by broadcast at the data link layer. Routers operate at the network layer of the OSI model and use routing tables to determine the best path for forwarding packets between different networks.

By separating broadcast domains, routers can help to reduce network congestion and improve performance. When a router receives a broadcast packet on one of its interfaces, it does not forward the packet to any other interfaces. This means that only devices within the same broadcast domain as the sender will receive the broadcast packet.

Dot Matrix printers do not use heat, they use a pin striking an inked ribbon (for the first copy, the subsequent copies are handled by the carbon paper)

The ribbon is low on ink or missing and must be replaced to get proper output in a dot matrix printer that uses carbon paper. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 361

An administrator would use Infrastructure as a Service (IaaS) to migrate virtual machines from on-premises to the cloud. IaaS is a cloud computing service that provides virtualized computing resources, such as servers, storage, and networking, that can be used to deploy and run applications in the cloud. By using IaaS, an administrator can create a virtual machine in the cloud and migrate the existing virtual machine from on-premises to the cloud. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

When a user hears one beep on rebooting a machine, and then an error message is displayed, it could indicate that there is a problem with the RAM module or the boot order. The beep sound indicates that the POST process was successful, and the error message indicates that the boot process was unsuccessful. The boot order determines the sequence in which the computer looks for bootable devices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 693)

The digitizer is the component that enables input on a mobile device's touch screen. It is a transparent layer that sits over the screen and detects the location of touch inputs. OLED (Organic Light Emitting Diode) is a type of display technology. Inverter is a component used in older LCD displays to provide power to the backlight. CMOS (Complementary Metal-Oxide-Semiconductor) sensor is a type of image sensor used in digital cameras and smartphones to capture images. References: CompTIA A+ Certification Exam: Core 1 - Page 177

Three beeps indicate a "base memory read/write test error". Check out "beep codes" for more information.

https://en.wikipedia.org/wiki/Power-on_self-test#POST_beep_codes_on_CompTIA_A.2B_certification_exam

Reseating the RAM is the best course of action to remediate the issue of three consecutive beeps during boot, as it may indicate a RAM failure or loose connection. By reseating the RAM, the technician can ensure that the connection is secure and the computer should boot normally. References: CompTIA A+ Certification Exam Objectives 1001, 1.9

https://techlibrary.hpe.com/docs/iss/proliant-gen10-uefi/s_enabling_VT-d.html

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

Client-side virtualization guest machines require isolation from other guest machines to maintain their security. Isolation ensures that each virtual machine is separated from others and runs its own operating system and applications, making it less vulnerable to attacks from other guest machines. References: CompTIA A+ Certification Exam Objectives 220-1002 - Virtualization and cloud computing - 4.1

The main reason to use a virtual machine as a sandbox is to test new software in a safe environment without risking the integrity of the host operating system. Using a virtual machine enables the testing of software and allows for the isolation of the software from the host system. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 409

The technician should check the level of network utilization to determine if there is an excessive amount of traffic that may be causing the slow access to the network fileshare. This can be done using network monitoring tools to track the amount of data being transmitted on the network. References: CompTIA A+ Certification Exam Objectives 1001, 2.9

The MOST efficient next step the technician should complete is to install an updated printer driver on the print server12. The issue of information being garbled and looking like code could be related to a compatibility issue with the new firmware and the existing printer driver1. The printer driver is responsible for converting the print job data into a format that the printer can understand and print2.

If a laptop has been returned for a screen repair and the owner insists the screen is broken, but occasionally a faded image is able to be seen in very bright settings on the desktop, the first step the repair technician should take is to ensure the backlight is functioning as expected. If the backlight is faulty, the screen may appear to be broken, but it may only be dim or too dark to be visible

NFC (Near Field Communication) is a technology used for short-range wireless communication between devices, typically used for contactless payments and authentication. In this scenario, the 13.56MHz frequency short band was implemented, and users can authenticate using their mobile devices, which requires NFC to be enabled on the device. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device network and device synchronization - 4.4

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

solution as

Cross-platform virtualization would be the best solution for running Windows software on a computer running macOS. This involves running a virtual machine (VM) on the macOS computer, which emulates a Windows environment and allows the Windows software to be installed and run within the VM.

Cross-platform virtualization allows a computer running macOS to run Windows software. It involves creating a virtual machine on the macOS computer and installing a Windows operating system on it. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 1

The technology that allows multiple networks to traverse a switch is VLAN (Virtual Local Area Network) which is a logical grouping of devices on the same network regardless of their physical location12.

Virtual Local Area Network (VLAN) technology can allow multiple networks to traverse a switch. A VLAN is a logical network created within a physical network that can separate traffic and allow multiple networks to coexist on the same physical network infrastructure. VRRP (Virtual Router Redundancy Protocol), VPN (Virtual Private Network), and DHCP (Dynamic Host Configuration Protocol) do not allow multiple networks to traverse a switch. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.2

The connection type that the technician should recommend is Satellite. Satellite internet is a good option for people who travel around the world and want to have connectivity while visiting remote camping locations. It works by using terminals which can give you internet access in remote locations as long as they have a line of sight to the satellite in orbit above12.

Since the customer travels to remote camping locations with limited or unreliable cellular service, the best recommendation is satellite internet connection. Satellite internet uses a dish to connect to satellites orbiting the earth, which can provide coverage anywhere in the world as long as there is a clear line of sight to the satellite. This is especially useful in remote areas where traditional terrestrial connections are not available. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.6 Given a scenario, evaluate connection type and bandwidth.

An inverter is a component that converts DC power to AC power for the backlight of an LCD (liquid crystal display) screen. If the inverter is faulty, the screen may appear dim or dark, even if the brightness settings are adjusted. Replacing the inverter may fix the issue. The LCD itself, the video card, and the digitizer are not related to the screen brightness problem.

Electromagnetic interference (EMI) is unwanted noise or interference in an electrical path or circuit caused by an outside source. Hence shielded Cat 6 is better

If a technician determines that the root cause of sporadic network connectivity issues is EMI, the most cost-effective cable medium that can be used without sacrificing system performance is shielded Cat 6 cable. Shielded cables protect against electromagnetic interference (EMI) and radio frequency interference (RFI). References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 548)

SMTP (Simple Mail Transfer Protocol) uses port 25 to send email messages between servers12.

SMTP uses port 25 to send email messages between mail servers. Therefore, the system administrator should enable port 25 to allow SMTP traffic through the host-based firewall. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 282

The 802.11n wireless networking standard supports Multiple Input Multiple Output (MIMO) technology. MIMO technology uses multiple antennas on both the transmitting and receiving devices to improve wireless performance by increasing the amount of data that can be transmitted simultaneously. 802.11a, 802.11b, and 802.11g do not support MIMO technology. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

Changing the connector setting on the monitor is a possible solution for a PC and its monitor that display the error message "No input signal detected". This error can be caused by an incorrect input selected on the monitor, so changing the connector setting to the correct input should resolve the issue. References: CompTIA A+ Certification Exam Objectives 1001, 1.10

Top of Form

Regenerate response

Bottom of Form

According to Dell Community, the Wi-Fi antenna is located in the top of the LCD display housing. It consists of two elements, fed by two cables, a white main designated on the Wi-Fi card by a white triangle, and a black auxiliary designated on the Wi-Fi card by a black triangle1.

After the issue has been identified and the backup of the system has been made, the next step is to establish a theory of probable cause. This involves researching the issue to determine the root cause of the problem. This can involve researching internally (e.g. referring to the system logs) or externally (e.g. searching online). Once the probable cause has been identified, the technician can then move on to the next step of designing a plan of action to resolve the issue and implementing the solution.

Based on the given information, it seems that the projector is experiencing issues with overheating or a faulty power supply. The fact that it shuts off and cannot be turned back on until it has cooled down for 15 minutes suggests that the projector is overheating or there is a problem with the power supply. Therefore, the next logical step would be to clean the filter to ensure proper ventilation and airflow, as a dirty filter can cause overheating.

M.2 is a form factor for solid-state drives (SSDs) that enables direct attachment to the motherboard without the need for cables. Thunderbolt is a high-speed interface that supports data transfer, video output, and charging. eSATA is an external interface for connecting SATA devices. SCSI is an older interface standard for connecting hard drives, printers, and other peripherals.

Installing a hard drive directly on the motherboard without using cables is usually done with an M.2 slot. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

Installing an M.2 SSD will improve a workstation's overall response time for frequently used applications and data without removing the current hard drive. M.2 drives are faster and more efficient than traditional hard drives, making them a good option for increasing overall performance. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 1.5 Given a scenario, configure storage devices and use appropriate media

A toner probe is a tool that can be used to trace and identify cables in a wiring closet. The technician can use a toner probe to find the cable that connects the new computer to the internet. A cable tester is a tool that can be used to check the continuity and quality of a cable. A loopback plug is a tool that can be used to test network ports or cables by sending and receiving signals from the same device. A punchdown tool is a tool that can be used to terminate wires into a patch panel or jack.

RAID 10 array is often used for server virtualization as it provides both redundancy and performance benefits. It uses a combination of mirroring and striping to provide both fault tolerance and improved I/O performance. An optical disk drive or eMMC storage device would not provide enough storage or performance for a VM host server, while a 15,000rpm drive may provide good performance but would not provide redundancy for fault tolerance. Therefore, a RAID 10 array is the best option for cost-effective storage that will be used for all VMs that run from the server.

This is because the fuser is the part of the printer that heats and melts the toner onto the paper. If the fuser is defective or dirty, it can cause streaks or smudges on printed pages. The system board and the memory are not related to the quality of the print output. The paper tray may cause paper jams or misfeeds, but not streaks on the paper.

To connect a mobile phone to a car, you need to pair them using Bluetooth, which is a wireless technology that allows secure local networks between devices1. If one phone can connect to the car but another cannot, it means that the first phone has Bluetooth enabled and paired with the car, while the second phone does not. Therefore, the user should check the Bluetooth settings on the second phone and make sure it is turned on and discoverable21.

This is because the fuser is the part of the printer that heats and melts the toner onto the paper. If the fuser is defective or dirty, it can cause streaks or smudges on printed pages. The system board and the memory are not related to the quality of the print output. The paper tray may cause paper jams or misfeeds, but not streaks on the paper.

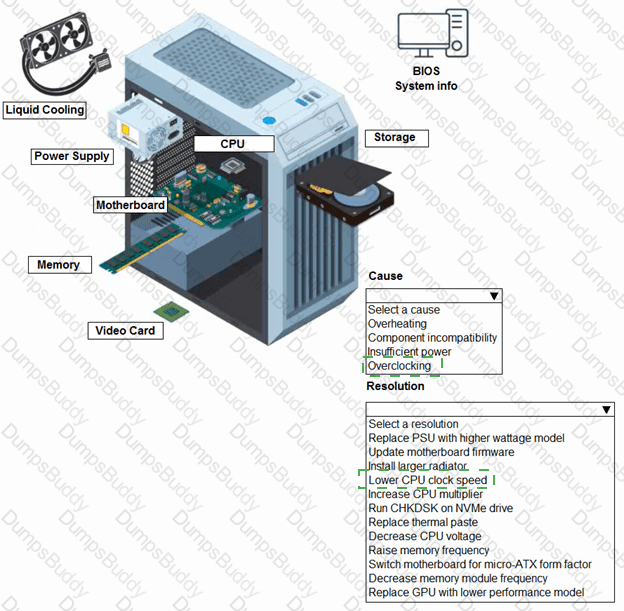

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer so the user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

This is because HDMI (High-Definition Multimedia Interface) is a digital video cable that can also carry audio signals1. HDMI cables are commonly used to connect devices like Blu-ray players, game consoles, and streaming boxes to HDTVs and monitors. The other options are not capable of carrying audio signals. VGA (Video Graphics Array) is an analog video cable that only carries RGBHV signals12. S-Video (Super Video) is another analog video cable that carries separate luminance and chrominance signals1. DVI (Digital Visual Interface) is a digital video cable that can carry either analog or digital signals, but not audio1.

The connector that the IT technician should inspect further is Molex. The Molex connector is used to provide power to the motherboard and other components in the computer. If there is a suspected power issue with the motherboard, the IT technician should inspect the Molex connector to ensure that it is properly connected and providing power to the motherboard1

Cross-platform virtualization allows different operating systems, such as Linux and Windows, to run on the same hardware or software platform. This enables users to access applications and data from different operating systems without switching devices or rebooting.

DNS stands for Domain Name System and is a service that translates domain names (such as www.example.com) into IP addresses (such as 192.168.1.100) that computers can use to communicate over a network. If the DNS server is offline, users may not be able to access websites or other network resources by using their domain names, even if they are online and reachable by their IP addresses. The technician should check if the DNS server is running and configured correctly, or use an alternative DNS server if possible. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 81)

Near field communication (NFC) is a function that enables contactless payments with a phone by allowing it to communicate with compatible devices within close proximity. If NFC is not working properly, the user will not be able to perform contactless payments with the phone. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Bluetooth is a wireless technology that allows devices to connect and exchange data over short distances. USB is a standard interface that connects devices such as keyboards, mice, flash drives, etc

A digitizer is a component that handles touch-screen operation on a mobile device. It is a layer of material that detects and converts the touch of a finger or a stylus into an electrical signal that can be processed by the device12. A digitizer works with a display screen to create a touch-screen interface that allows a user to interact with the device by touching pictures or words on the screen.

If lines appear down copied pages but printed pages sent directly to copier render as intended, it could be due to scratched scanner glass which can cause lines or streaks on copied pages.

If there are lines appearing on copied pages, but not on printed pages sent directly to the copier, the issue is most likely caused by a scratch on the scanner glass. References: https://www.pacificoffice.com/how-to-fix-lines-on-copier/

Virtual memory is a software-based memory management system that allows a computer to use hard disk storage space as RAM. This can be used to increase the total RAM in a system without upgrading the hardware. To set up virtual memory, the user should go to the System Properties window and select the Advanced tab. In the Performance section, click on the Settings button, which will open the Performance Options window. Then, click on the Advanced tab and click on the Change button in the Virtual memory section. Finally, select the option to Automatically manage paging file size for all drives, and then click OK to save the changes.

 M2PCIeNVMeSSD. M.2 PCIe NVMe SSDs are the fastest internal storage devices available for desktops. They are faster than SATA SSDs and PCIe SATA HDDs12.

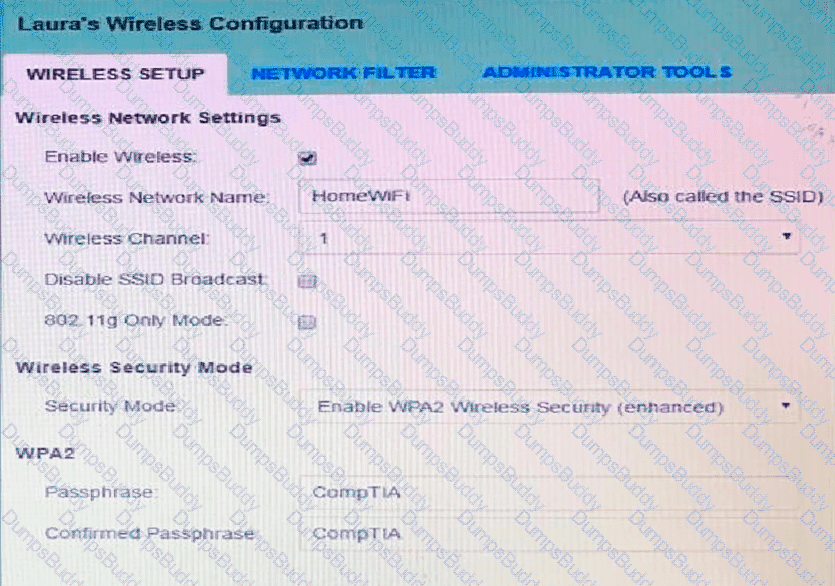

Checking if the password and SSID are correct is the best step that the technician should take to resolve the issue of a user being unable to access the SOHO wireless network after replacing the gateway. The new gateway may have a different password and SSID than the old one, which would prevent the user from connecting to the wireless network. The technician should verify that the user has entered the correct password and SSID for the new gateway. Assessing the network cables for damage, disabling Bluetooth connections, or updating the firmware are not likely to solve the issue, as they are not related to the wireless network authentication

A damaged battery can cause a laptop to overheat and swell, making it unable to sit level on the workspace. A swollen battery can also pose a fire hazard and damage other components of the laptop, such as the motherboard or keyboard. The technician should replace the battery as soon as possible and dispose of it properly according to local regulations. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 25)

When installing RAM into a server that will be used as a VM host, it is recommended to install ECC (Error-Correcting Code) RAM to help prevent errors that can cause virtual machines to crash. References: https://www.servermonkey.com/blog/ecc-vs-non-ecc-ram-what-are-the-differences.html

When installing RAM into a rackmount server that will be used as a VM host, it would be best to install ECC (Error Correcting Code) RAM which can detect and correct common types of data corruption.

Automatic document feeder (ADF) is a feature that allows a multifunction printer to photocopy documents with hundreds of pages automatically without requiring manual intervention. ADF scans multiple pages from a stack of documents and feeds them into the printer one by one. SMB is a network protocol that allows file sharing and printer access among different devices on a network. PCL is a printer language that controls how data is formatted for printing. SSH is a network protocol that allows secure remote access to another device over an encrypted connection.

This is because a docking station can connect multiple monitors to a laptop without using USB ports, which are disabled in this scenario. A splitter cable would only allow two monitors to be connected, not three. A discrete graphics card would require opening the laptop and installing hardware, which may not be feasible or allowed in a high-security environment. An HDMI switch would only allow one monitor to be active at a time, not all three simultaneously.

Asking the user about the symptoms the computer is experiencing is the first step the technician should take when a user reports that a computer has a virus on it. This step helps the technician to gather information and identify the problem before determining a plan of action to resolve it. Running antivirus software, making a backup of the user’s data, or determining a plan of action are not the first steps, but possible actions that can be taken after identifying the problem.

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

A scratch on the scanning bed of a copier can cause a solid black line to appear on all copies, as the scanner cannot read the original document properly through the scratch. The scratch can also reflect light and create noise in the scanned image. The printing function is unaffected by the scratch, as it does not use the scanning bed. The technician should inspect and clean the scanning bed, and replace it if necessary. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 16)

Cleaning the air filter is the best action to resolve the issue of a projector that shuts down after fifteen minutes of use. A dirty air filter can cause overheating and trigger the projector’s thermal protection mechanism. Replacing the video input cable, changing the bulb, or swapping the power cord are unlikely to solve the overheating issue

NFC stands for near-field communication, which is a wireless technology that allows two devices to exchange data when they are in close proximity (usually within a few centimeters). NFC is commonly used by mobile devices to process payments at kiosks, such as Apple Pay or Google Pay. Wi-Fi 6 is a wireless standard that provides faster speed and lower latency than previous versions of Wi-Fi. Bluetooth is a wireless technology that allows devices to communicate over short distances (usually within 10 meters). RFID stands for radio-frequency identification, which is a wireless technology that uses radio waves to identify and track objects that have RFID tags attached to them

To connect a mobile phone to a car, you need to pair them using Bluetooth, which is a wireless technology that allows secure local networks between devices1. If one phone can connect to the car but another cannot, it means that the first phone has Bluetooth enabled and paired with the car, while the second phone does not. Therefore, the user should check the Bluetooth settings on the second phone and make sure it is turned on and discoverable21.

When installing a wireless point-to-point connection between two buildings, the technician should consider the allowable limits for transmit power, which vary depending on the country or region. Exceeding these limits could interfere with other wireless devices or violate regulations. NFC protocol data rate, RFID frequency range, and Bluetooth version compatibility are not relevant for a wireless point-to-point connection.

 If a technician is on site troubleshooting a customer’s laptop and needs to download a software update but the company’s proxy is blocking updates, the most appropriate action for the technician to take would be to request a traffic exemption from the company’s IT department.

The technician should ensure the input connections to the screen are secure1. The screen may not be receiving the signal from the device outputting the data if the input connections are not secure1. Swapping cables with a screen that works is not likely to be the correct option1

A patch panel is a mounted hardware unit containing ports used to manage cable connections. The individual pairs of a Cat 6 cable are terminated on the patch panel, which then provides a central location for cable management and organization. The patch panel is then connected to the switch using a patch cable.

The message prompting to press "OK" indicates that the printer is waiting for a user input. This suggests that there is some issue with the printer settings, and the most probable cause is that the default paper type has been changed, and the printer needs the user to confirm the paper type before proceeding with the print job. This is a common issue that can occur when the default paper type is not set correctly or has been changed without the user's knowledge.

an inverter is a device that converts DC power from the laptop’s battery or AC adapter to AC power for the backlight of the LCD panel. If the inverter is defective, the backlight will not work and the LCD panel will appear blank or very dim. The user can still see a faint image if they shine a flashlight into the LCD because the LCD itself is still working.

A non-volatile memory express (NVMe) solid state drive (SSD) is the best option for an end user who wants to upgrade the hard drive on a laptop and wants one that is fast and shock resistant.NVMe SSDs use flash memory and PCIe interface to achieve high performance and low latency.SSDs are also more shock resistant than hard disk drives (HDDs) because they have no moving parts.Hybrid HDD/SSD combines both technologies but does not offer the same speed or capacity as pure SSDs.A 5,400rpm HDD or a 7,200rpm HDD are slower and less shock resistant than SSDs

Virtual memory is a software-based memory management system that allows a computer to use hard disk storage space as RAM. This can be used to increase the total RAM in a system without upgrading the hardware. To set up virtual memory, the user should go to the System Properties window and select the Advanced tab. In the Performance section, click on the Settings button, which will open the Performance Options window. Then, click on the Advanced tab and click on the Change button in the Virtual memory section. Finally, select the option to Automatically manage paging file size for all drives, and then click OK to save the changes.

The screen rotation is locked. If a user’s touch-screen tablet is having an issue with screen orientation, it could be due to screen rotation being locked in device settings.

If the screen rotation is locked, the touch-screen tablet will not rotate the screen when the device is turned. This can usually be unlocked in the settings or by pressing a specific key combination. References: https://www.howtogeek.com/254132/how-to-enable-screen-rotation-on-windows-10/

The connector that the IT technician should inspect further is Molex. The Molex connector is used to provide power to the motherboard and other components in the computer. If there is a suspected power issue with the motherboard, the IT technician should inspect the Molex connector to ensure that it is properly connected and providing power to the motherboard1

Following corporate procedures would have been the most likely factor that could have prevented the technician from receiving the written warning. Following established procedures, such as change management, helps ensure that changes made to the production environment are thoroughly tested, approved, and implemented in a controlled and safe manner, reducing the risk of system-wide outages and other unintended consequences.

Thunderbolt 3 is a USB-C port, so any device with a USB-C connector can be plugged into it. MiniUSB, microUSB and USB-A are not compatible with Thunderbolt 3.

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

The domain name system (DNS) is the component that houses the MX record. The MX record is a type of DNS record that specifies which mail server is responsible for receiving email messages for a domain name. VLAN is an acronym for virtual local area network, which is a logical subdivision of a network that allows devices to communicate as if they were on the same physical segment. DHCP is an acronym for dynamic host configuration protocol, which is a network protocol that assigns IP addresses and other configuration parameters to devices on a network automatically. SMTP is an acronym for simple mail transfer protocol, which is a network protocol that allows sending and receiving email messages over TCP/IP networks

Updating the preferred roaming list (PRL) is what a user should do to resolve the issue of being unable to get personal cell phone service after traveling to another country. The PRL is a database that contains information about cell towers and frequencies that a phone can use in different areas. Updating the PRL can improve the phone’s ability to connect to local networks and avoid roaming charges. CDMA is a type of cellular technology that uses code division multiple access to transmit data over radio frequencies. MDM is an acronym for mobile device management, which is a type of software solution that allows remote management and security of mobile devices. GPS is an acronym for global positioning system, which is a satellite-based navigation system that provides location and time information

The frequency bands that 802.11b and 802.11g operate in are 2.4GHz bands, which allow for longer range but lower speed than higher frequency bands such as 5GHz or 6GHz bands used by newer standards such as 802.11a/n/ac/ax.

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple disks into a logical unit to improve performance, reliability, or both. There are different types of RAID levels that use different methods of data distribution and redundancy.

RAID 0 is a level that stripes data across multiple disks without any redundancy. It offers the highest performance but no fault tolerance. If any disk fails, the entire array is lost.

RAID 1 is a level that mirrors data across two disks. It offers the lowest performance but the highest fault tolerance. It can survive the failure of one disk.

RAID 5 is a level that stripes data across multiple disks with parity information. It offers a balance between performance and fault tolerance. It can survive the failure of one disk, but not two or more disks.

RAID 10 is a level that combines RAID 1 and RAID 0. It creates a striped array of mirrored pairs. It offers high performance and high fault tolerance. It can survive the failure of one disk in each pair, or multiple disks in different pairs.

Therefore, if the server administrator wants to rebuild the array to withstand a potential multidrive failure in the future, RAID 10 is the most likely choice.

A burning smell on a desktop computer is a serious issue that indicates a hardware malfunction or failure. It can be caused by overheating, a faulty power supply, a malfunctioning motherboard, or a short circuit12. If left unchecked, it can damage the components, cause a fire, or harm the user.

The first thing the technician should do when troubleshooting a burning smell on a desktop computer is to unplug the computer from the power source. This will stop the flow of electricity and prevent further damage or fire. The technician should also wear protective gloves and eye wear to avoid contact with any hot or hazardous parts.

The other options are less likely to be the first step in troubleshooting, because:

•Locating a fire extinguisher is a good precaution, but it should not be done before unplugging the computer. The fire extinguisher should only be used if there is visible smoke or flames coming from the computer, and only after unplugging it and ensuring that it is safe to do so.

•Calling the fire department is an extreme measure that should only be done if there is an actual fire that cannot be controlled by the fire extinguisher. It should not be done before unplugging the computer and trying to identify and fix the problem.

•Removing the desktop cover is a necessary step to inspect the internal components and find the source of the burning smell. However, it should not be done before unplugging the computer, as it can expose the technician to live wires and electric shocks.

For more information and tips on how to troubleshoot a burning smell on a desktop computer, you can visit these links:

•How to find the source of a burning smell in my computer?

•Burning Smell From PC? 10 Reasons Why It Could Happen

One of the possible causes of a laptop randomly turning off is liquid damage, which can cause short circuits, corrosion, and overheating of the internal components1. Liquid damage can be hard to detect, especially if the laptop has been dried or cleaned after the spill2. However, one of the indicators of liquid damage is the presence of small sticker paper within the device that changes color from red to blue3.

These stickers are called liquid contact indicators (LCIs), and they are designed to show if a device has been exposed to water or other liquids3. LCIs are usually red when dry, but they turn blue or purple when wet3. LCIs are often placed near the ports, battery, keyboard, and motherboard of laptops and other electronic devices3. LCIs can help technicians diagnose liquid damage and determine if the device is covered by warranty or not3.

The technician is unable to access the company portal website, but other websites work fine. This suggests an issue with resolving the specific URL of the company portal, which is a function of DNS.

Here's why other options are not the most likely cause:

DHCP reservations: This is not relevant as the issue persists even when the technician tries a different workstation, indicating a problem beyond individual device configuration.

Static IP addresses: Similar to DHCP reservations, static IPs are not likely the cause as both affected workstations are experiencing the issue.

Default gateway: While the default gateway is necessary for internet access, other websites are working, making it less likely to be the root cause.

DHCP (Dynamic Host Configuration Protocol) is a network service that automatically assigns IP addresses and other configuration parameters to devices that request them. DHCP simplifies the management of IP addresses and avoids conflicts and errors67. An APIPA (Automatic Private IP Addressing) is a feature of Windows that assigns a default IP address in the range of 169.254.x.x to a device when it cannot obtain a valid IP address from a DHCP server. An APIPA indicates that there is a problem with the DHCP service or the network connectivity between the device and the DHCP server89. Therefore, the technician should investigate the DHCP service first to check if it is running, configured correctly, and has enough available IP addresses to assign. The other services are not directly related to the IP address assignment. RADIUS (Remote Authentication Dial-In User Service) is a protocol that provides centralized authentication, authorization, and accounting for network access10. AAA (Authentication, Authorization, and Accounting) is a framework that controls the access and usage of network resources11. DNS (Domain Name System) is a service that resolves domain names into IP addresses12.

References

6: What is DHCP (Dynamic Host Configuration Protocol)? - Definition from WhatIs.com

7: How DHCP works - Windows Server | Microsoft Docs

8: What is APIPA (Automatic Private IP Addressing)? - Definition from WhatIs.com

9: How to Fix an IP Address Conflict

10: What is RADIUS (Remote Authentication Dial-In User Service)? - Definition from WhatIs.com

11: What is AAA (authentication, authorization, and accounting)? - Definition from WhatIs.com

12: What is DNS (Domain Name System)? - Definition from WhatIs.com

The correct answer is B. Analyze the error logs.

Error logs are files that record the events and errors that occur on a server or a network device. They can provide valuable information about the cause and the time of the outage, as well as any warnings or alerts that preceded it. Analyzing the error logs can help the administrator narrow down the possible sources of the problem and identify the best course of action to resolve it.

The first step in troubleshooting a network is to identify the problem1. As a part of this step, the administrator should gather information about the current state of the network using the network troubleshooting tools that are available1. One of these tools is the error log viewer, which can be accessed through the server’s operating system or a network monitoring software. The administrator should look for any entries that indicate a failure, a crash, a timeout, or an exception in the error logs. The administrator should also note the date and time of the entries, as well as the severity and the frequency of the errors.

The other options are less likely to be the first step in troubleshooting, because:

•Documenting the results is an important step in troubleshooting, but it should be done after identifying and resolving the problem, not before. Documenting the results can help the administrator keep track of the actions taken, the changes made, and the outcomes achieved. It can also help prevent future problems by providing a reference for best practices and lessons learned1.

•Checking the physical connections is another important step in troubleshooting, but it should be done after analyzing the error logs, not before. Physical connections are the cables and ports that link the server to other devices on the network. They can affect the quality and stability of the network signal. If the error logs do not indicate any software or configuration issues, then checking the physical connections can help determine if there is any damage or interference in the hardware2.

•Upgrading the server firmware is a possible solution for some network problems, but it should not be done as a first step in troubleshooting, unless there is a clear indication that the firmware is outdated or corrupted. Firmware is a type of software that controls the basic functions of a hardware device. Upgrading the firmware can improve performance, security, and compatibility, but it can also introduce new bugs or conflicts with other software or hardware components. Therefore, upgrading the firmware should be done with caution and only after backing up data and settings3.

For more information and tips on how to troubleshoot network issues, you can visit these links:

•A Guide to Network Troubleshooting - CompTIA

•What is Network Troubleshooting? How to Fix Network Issues - SolarWinds

•Network Troubleshooting - Methodology, Steps & Techniques - DNSstuff

Explore

The correct answer is C. OLED.

OLED stands for Organic Light-Emitting Diode, and it is a type of display technology that uses organic compounds to create light and color. Unlike LCD (Liquid Crystal Display) or Plasma displays, OLED does not require a backlight or a filter to produce images. This means that OLED can offer higher contrast, wider color gamut, and better viewing angles than other display types.

LCD displays use liquid crystals that are sandwiched between two polarizing filters and illuminated by a backlight. The liquid crystals can change their orientation and block or allow light to pass through the filters. LCD displays can have different panel types, such as IPS (In-Plane Switching), VA (Vertical Alignment), or TN (Twisted Nematic), which affect the color accuracy, response time, and viewing angles of the display.

Plasma displays use gas-filled cells that are electrically charged to create plasma, which emits ultraviolet light. The ultraviolet light then excites phosphors that emit visible light and color. Plasma displays can produce deep blacks and high contrast, but they are also prone to image retention, screen burn-in, and high power consumption.

VGA stands for Video Graphics Array, and it is not a display type but a video interface standard that was introduced in 1987. VGA can transmit analog signals from a computer to a monitor, but it has low resolution and limited color depth compared to modern digital standards such as HDMI or DisplayPort.

Therefore, OLED is the best display type for graphic designers who want the most accurate color spectrum and the widest viewing angles. OLED displays can also be thinner and lighter than LCD or Plasma displays, which makes them ideal for laptops. However, OLED displays are also more expensive and less durable than other display types, and they may suffer from image retention or burn-in over time.

Hyperthreading is a feature of some CPUs that allows them to execute two threads (sequences of instructions) simultaneously on each core. Hyperthreading can improve the performance of CPU-intensive tasks, such as data analytics, by increasing the utilization of CPU resources and reducing idle time. The technician should verify that hyperthreading is enabled in the BIOS settings of the workstation.

Optical media, such as CDs, DVDs, or Blu-ray discs, are a suitable choice for backing up a large collection of DVDs and photos in the most economical way. Optical media are inexpensive, widely available, and have a long shelf life. They can store large amounts of data, up to 50GB on a dual-layer Blu-ray disc, and can be easily labeled and organized. Optical media are also less prone to mechanical failure, data corruption, or accidental deletion than hard disk drives (HDDs) or solid state drives (SSDs).

The other options are not as economical or suitable for this purpose. A 5,400rpm HDD is a slow and noisy type of HDD that has moving parts that can wear out or break. A HDD also consumes more power and generates more heat than an SSD. A M.2 NVMe SSD is a fast and compact type of SSD that uses a PCIe interface to transfer data. However, an SSD is more expensive than an HDD or optical media, and has a limited number of write cycles before it degrades. A SAS RAID array is a complex and costly system that uses multiple HDDs or SSDs connected by a Serial Attached SCSI (SAS) interface to provide redundancy, performance, or both. A RAID array requires a RAID controller, a compatible motherboard, and a dedicated power supply.

A spam gateway is a software solution that filters email messages based on various criteria, such as sender, recipient, subject, content, attachments, and URLs. A spam gateway categorizes incoming network messages as spam or non-spam, and either blocks, quarantines, or delivers them accordingly. A spam gateway can help protect email servers and users from malicious or unwanted emails, such as phishing, malware, or advertising.

A. Serves as a repository for email routing logs. This is not the primary function of a spam gateway. Email routing logs are records of the path and status of email messages as they travel through the network. Email routing logs can help troubleshoot email delivery issues, but they do not filter or categorize email messages.

B. Blocks unrequested ICMP packets from external networks. This is not the primary function of a spam gateway. ICMP (Internet Control Message Protocol) packets are used to communicate network information, such as errors, requests, or replies. Blocking unrequested ICMP packets from external networks can help prevent network scanning or denial-of-service attacks, but it does not filter or categorize email messages.

D. Mitigates DDoS attacks. This is not the primary function of a spam gateway. DDoS (Distributed Denial-of-Service) attacks are attempts to overwhelm a network or server with a large amount of traffic from multiple sources. Mitigating DDoS attacks can help maintain network availability and performance, but it does not filter or categorize email messages.

RFID stands for Radio Frequency Identification, and it is a technology that uses electromagnetic fields to identify and track objects that have RFID tags attached to them. RFID tags are small devices that store information and can be read by RFID readers. RFID is most likely used to control door access because it allows for contactless and convenient authentication of authorized personnel. For example, an employee can use an RFID card or key fob to unlock a door by holding it near an RFID reader installed on the door. The reader will scan the tag and verify its ID number with the access control system, which will grant or deny access based on the predefined rules and permissions. RFID is a common and widely used type of door access control system, as it offers security, efficiency, and flexibility.

The best option to help the administrator secure the corporate resources is B. Biometric scanner.

A biometric scanner is a device that can authenticate a user’s identity based on their physical or behavioral characteristics, such as fingerprint, iris, face, voice, or signature. A biometric scanner can provide a high level of security and convenience for accessing corporate laptops, as it can prevent unauthorized users from accessing the devices and eliminate the need to remember passwords .

The other options are not the best options for this scenario. A Trusted Platform Module (TPM) is a chip that can store encryption keys and other sensitive data on a laptop. A TPM can enhance the security of data and devices, but it does not limit access to authorized users by itself. A TPM can work with a password or a biometric scanner to provide multifactor authentication . A laptop lock is a device that can physically secure a laptop to a desk or other object using a cable and a lock. A laptop lock can deter theft or tampering, but it does not prevent unauthorized users from accessing the laptop if they have the password or the key. Encryption is a process that can protect data on a laptop by transforming it into an unreadable format using a key. Encryption can prevent unauthorized users from accessing or modifying the data, but it does not prevent them from accessing the laptop itself.

The output from the cable tester indicates that there is an open fault in the cable, which means that one or more of the wires in the cable are not connected properly or are broken. The open fault affects the wires 3, 4, and 6, which are used for transmitting and receiving data in Ethernet networks. The open fault can cause network connectivity issues, such as no link, slow speed, or packet loss12.

To resolve this issue, the technician should use a crimper and a punchdown tool, which are tools that are used to attach connectors to cables or wires to patch panels. A crimper is a tool that squeezes or crimps a connector, such as an RJ-45, to the end of a cable, ensuring that the wires are securely inserted into the pins of the connector. A punchdown tool is a tool that pushes or punches a wire into a slot on a patch panel, creating a connection between the wire and the panel. Both tools can be used to fix or replace the faulty wires or connectors that cause the open fault12.

The other options are not as effective or relevant as a crimper and a punchdown tool. A loopback plug is a tool that is used to test the functionality of a network port or device, by sending and receiving signals from the same port or device. A loopback plug can help diagnose network problems, such as faulty ports or devices, but it cannot fix the open fault in the cable12. A network tap is a tool that is used to monitor or capture network traffic, by creating a copy of the data that passes through a network link. A network tap can help analyze network performance, security, or troubleshooting, but it cannot fix the open fault in the cable12. A toner probe is a tool that is used to trace or identify a cable or wire, by sending and detecting an audible tone along the cable or wire. A toner probe can help locate or label network cables or wires, but it cannot fix the open fault in the cable12. A Wi-Fi analyzer is a tool that is used to scan or measure wireless networks, by displaying information such as signal strength, channel, encryption, etc. A Wi-Fi analyzer can help optimize or troubleshoot wireless networks, but it cannot fix the open fault in the cable12.

A router is a network device that connects multiple networks together and directs data packets to their intended destinations. This includes directing packets to networks outside of the local area network (LAN). Routers use routing tables to determine the best path for data packets to travel.

Hubs and switches operate within a single LAN and are not capable of routing packets to external networks.

Bridges can connect two LANs together, but they do not have the intelligence to route packets to external networks.

Therefore, only routers are capable of directing packets to networks outside of the LAN.

This option requires the user to enter a PIN code or swipe a smart card before the printer releases their print job. This way, the user can verify their identity and ensure that no one else can access their sensitive documents.

The other options are not as secure or effective as user authentication. SMB settings are used to share files and printers over a network, but they do not provide a secure method of releasing print jobs. Audit logging records the details of each print job, but it does not prevent unauthorized access to the printed documents. Wired connection reduces the risk of wireless interference or hacking, but it does not guarantee that the print jobs are only retrieved by the intended recipient.

A patient record portal is a web-based application that allows patients to access their health information, such as medical history, test results, prescriptions, and appointments. A patient record portal needs to be secure, reliable, and compliant with the health data regulations of the country or region where it operates1.

The type of cloud that best describes the type of cloud a healthcare company should use for a patient record portal is D. Private. A private cloud is a cloud computing model that is dedicated to a single organization and provides exclusive access and control over its resources and data2. A private cloud can offer the following benefits for a patient record portal:

Enhanced security and privacy: A private cloud can protect the sensitive health data from unauthorized access or breaches by using encryption, firewalls, authentication, and other security measures. A private cloud can also comply with the health data regulations, such as HIPAA in the US or GDPR in the EU, by ensuring that the data is stored and processed within the jurisdiction of the organization3.

Improved performance and reliability: A private cloud can optimize the speed and availability of the patient record portal by using dedicated servers, network bandwidth, and storage capacity. A private cloud can also ensure that the patient record portal can handle high demand and traffic without compromising its quality or functionality3.

Greater customization and flexibility: A private cloud can tailor the patient record portal to the specific needs and preferences of the organization and its patients by using customized applications, interfaces, and features. A private cloud can also scale up or down the resources and services of the patient record portal as needed without affecting its performance or cost3.

The most likely cause of the issue is a defective inverter. An inverter is a device that converts the direct current (DC) power from the laptop battery or adapter to the alternating current (AC) power that the LCD backlight bulb needs. The backlight bulb is a fluorescent lamp that illuminates the LCD screen and makes the image visible. If the inverter is defective, it may not provide enough power to the backlight bulb, or it may stop working intermittently. This can result in a dim, dark, or blank screen, even though the LCD panel is still functioning and displaying a faint image.

To troubleshoot a defective inverter, the technician can follow these steps:

Connect an external monitor to the laptop and check if the image is displayed normally. If the external monitor works fine, it means that the laptop video card and driver are not the cause of the issue.

Shine a flashlight into the LCD screen and look for a faint image. If the image is visible, it means that the LCD panel is not the cause of the issue.

Check the inverter cable and connector for any damage, loose connection, or corrosion. The inverter cable is a thin wire that runs from the laptop motherboard to the inverter board, which is usually located at the bottom of the LCD screen. The inverter connector is a small plug that connects the inverter cable to the inverter board. The technician can try to reseat the inverter cable and connector, or replace them if they are faulty.

Check the inverter board for any damage, burn marks, or blown fuses. The inverter board is a small circuit board that contains the inverter and other components. The technician can try to test the inverter board with a multimeter, or replace it if it is defective.

A router is a device that can dynamically distribute an IP address to the devices connected to its network using a protocol called DHCP (Dynamic Host Configuration Protocol). DHCP allows a router to automatically assign an IP address and other network configuration information to a device when it joins the network, without requiring manual intervention from the administrator. A router can also act as a gateway between different networks, such as a local area network (LAN) and the internet1.

A hub is a device that connects multiple devices on a network and forwards data packets between them. However, a hub does not assign IP addresses or perform any routing functions. A hub operates at the physical layer of the OSI model and does not understand IP addresses or other network protocols.

A switch is a device that connects multiple devices on a network and forwards data packets between them based on their MAC addresses. A switch can improve the performance and security of a network by reducing collisions and isolating traffic. However, a switch does not assign IP addresses or perform any routing functions. A switch operates at the data link layer of the OSI model and does not understand IP addresses or other network protocols.

An injector is a device that provides power to another device over an Ethernet cable, such as a wireless access point or a security camera. This is also known as Power over Ethernet (PoE). An injector does not assign IP addresses or perform any routing functions. An injector operates at the physical layer of the OSI model and does not understand IP addresses or other network protocols.

The answer is A. High availability and B. Elasticity.

High availability is the ability of a system to remain operational and accessible with minimal or no downtime, even in the event of failures, disasters, or disruptions. High availability can be achieved by designing a system that has redundancy, fault tolerance, and disaster recovery capabilities. For example, a cloud engineer can design a system that replicates data and resources across multiple regions, zones, or availability domains, and uses load balancing and failover mechanisms to distribute the workload and handle failures gracefully12.

Elasticity is the ability of a system to scale up or down automatically in response to changes in demand or utilization. Elasticity can be achieved by designing a system that can dynamically allocate and deallocate resources based on predefined metrics, policies, or triggers. For example, a cloud engineer can design a system that uses auto-scaling groups, horizontal or vertical scaling strategies, and on-demand or spot instances to optimize the performance and cost of the system32.

By implementing high availability and elasticity, a cloud engineer can ensure that the solution is able to immediately fail over to another region in case of an outage and also scale up in the event of high utilization. These are two important aspects of building reliable and scalable cloud architectures. Therefore, options A and B are the correct answers.

The first step to troubleshoot a dim laptop display is to check the settings of the laptop display, such as the brightness level, the power plan, and the adaptive brightness feature. These settings can affect the brightness of the screen and can be adjusted by the user or by Windows automatically. If the settings are not optimal for the user’s preference or environment, the screen may appear too dim even at full brightness. Therefore, the technician should check and modify these settings before trying other solutions.

The most likely component that is failing and causing the PC to overheat is D. CPU fan. The CPU fan is a vital part of the cooling system that prevents the CPU from overheating by blowing air over the heatsink and dissipating the heat. If the CPU fan is faulty, noisy, or clogged with dust, it can reduce the airflow and cause the CPU temperature to rise12. This can result in poor performance, instability, or shutdowns of the PC.

The other components are less likely to be the cause of overheating. RAM, motherboard, and SSD do not generate as much heat as the CPU and usually do not require fans to cool them down1. They may overheat if there is poor ventilation in the case or if they are defective, but they are not as common as a failing CPU fan.

Therefore, the correct answer is D. CPU fan. This is the most likely component that is failing and causing the PC to overheat.

One of the benefits of virtualization is that it allows you to create and manage multiple virtual machines (VMs) on a single physical computer. This can be used to enhance security by centralizing all user desktops on a server, rather than storing them on individual user machines. This way, the user desktops can be isolated from each other and from the host machine, preventing malware infections, data breaches, and unauthorized access. Additionally, the user desktops can be easily backed up, restored, updated, and monitored by the administrator, reducing the risk of data loss and downtime.

This type of virtualization is called desktop virtualization, and it separates the desktop environment from the physical hardware the user interacts with1. The user can access their virtual desktop from any device, such as a laptop, tablet, or smartphone, using a remote display protocol. The user experience is similar to using a local desktop, but with improved security and manageability.

A virtual sandbox is an isolated environment that mimics the characteristics of a real system, but does not affect or interact with it1. A virtual sandbox can be used to run potentially unsafe or malicious code and observe its behavior without risking harm to the host machine or network2. This is useful for cybersecurity researchers who want to test and analyze malware samples, such as viruses, worms, ransomware, etc., and understand how they work and how to prevent or mitigate them3.

Memory modules are physical components that store data and instructions for the computer to access and process. Memory modules have different specifications and features, such as type, speed, capacity, voltage, and form factor. These specifications and features must be compatible with the motherboard and the processor of the computer, otherwise the memory modules may not work properly or cause errors.

In this scenario, the technician is working to replace a single DDR3 RAM module on a laptop that has two occupied slots. DDR3 stands for Double Data Rate 3, and it is a type of memory technology that offers faster performance and lower power consumption than its predecessors. DDR3 RAM modules have different variants, such as DDR3L, DDR3U, or DDR3R, which have different voltage requirements. For example, DDR3L operates at 1.35V, DDR3U operates at 1.25V, and DDR3R operates at 1.5V.

When the technician tries to turn on the laptop, the computer starts beeping and does not pass POST. POST stands for Power-On Self-Test, and it is a process that checks the hardware components and functionality of the computer before loading the operating system. If POST detects an error or a failure, it may produce a series of beeps or codes to indicate the problem. The number and pattern of beeps or codes may vary depending on the manufacturer or model of the computer.

The technician double-checks the newly installed RAM and notices a motherboard message indicating low voltage. This means that the motherboard is not receiving enough power from the memory module to operate normally. This could indicate that the memory module is not compatible with the motherboard or the processor, or that it is defective or damaged. The most likely cause of this issue is that the technician installed an unsupported memory module that has a lower voltage than what the motherboard or the processor requires.

To resolve this issue, the technician should remove the newly installed RAM module and replace it with a compatible one that has the same voltage as the existing ones. The technician should also check the specifications and features of the motherboard and the processor to ensure that they support the type, speed, capacity, and form factor of the memory modules. The technician should also follow proper safety precautions when handling memory modules, such as wearing an anti-static wrist strap, avoiding physical damage or static discharge, and aligning the notches correctly.

The issue is related to interference from the microwave, which operates at 2.4GHz, the same frequency as some Wi-Fi channels. To avoid this interference, the technician should configure the Wi-Fi access point (AP) to use a 5GHz band, which has more channels and less interference from other devices. Changing the Wi-Fi operation channel may not solve the problem if the microwave interferes with multiple channels. Increasing the power output of the AP may not overcome the interference and may cause more interference to other devices. Changing the SSID to hidden does not affect the interference at all, and may make it harder for users to connect to the network. References: https://www.comptia.org/blog/what-is-wifi-6-and-why-is-it-important

The best way to clean up the toner that spilled into the printer is to use an ESD-safe vacuum. An ESD-safe vacuum is a special type of vacuum that has a filter that traps toner particles and prevents them from escaping into the air. An ESD-safe vacuum also has a grounding wire that prevents static electricity from building up and damaging the printer’s components. Toner is electrically conductive and can cause short circuits or sparks if it contacts sensitive parts of the printer. Therefore, using an ESD-safe vacuum is the safest and most effective method to remove the toner from the printer.

Other methods, such as a magnetic duster, compressed air, or a damp cloth, are not recommended for cleaning up toner spills. A magnetic duster is a device that uses a magnet to attract toner particles, but it can also damage the printer’s components that rely on magnetism, such as the drum or the fuser. Compressed air can blow the toner around and create a cloud of dust that can be harmful to breathe or contaminate other parts of the printer. A damp cloth can smear the toner and make it harder to remove, as well as cause corrosion or rust on the printer’s metal parts.

ECC stands for Error Correction Code, which is a type of memory that can detect and correct data errors that may occur during processing or transmission. ECC memory is commonly used in servers that handle sensitive or critical information, such as payment information online, because it can reduce the risk of data corruption, system crashes, or security breaches12.

DDR4 is a generation of DDR technology, which stands for Double Data Rate. DDR4 memory is faster and more power-efficient than its predecessors, but it does not necessarily have ECC functionality. DDR4 memory can be either ECC or non-ECC1.

VRAM is Video RAM, which is a type of memory that is dedicated to storing graphics data for display. VRAM is usually found on graphics cards or integrated graphics processors, not on servers3.

SODIMM is Small Outline DIMM, which is a type of memory module that has a smaller size and lower profile than regular DIMMs. SODIMMs are typically used in laptops, notebooks, or other compact devices, not on servers3.

To pair a Bluetooth speaker with a smart device, the user needs to enter the PIN code that is provided by the speaker manufacturer or displayed on the speaker itself. This is a security measure to prevent unauthorized pairing and access. Enabling and configuring MFA, synchronizing data to the cloud, or enabling location services are not required for Bluetooth pairing.

The first step in troubleshooting any network issue is to identify the problem and gather information from the user and the device. Reviewing the network settings in the OS can help the technician verify if the laptop is configured correctly to connect to the wireless network, such as the SSID, security type, password, IP address, DNS server, etc. This can also help the technician rule out any software or driver issues that might prevent the laptop from connecting to the network. This is a logical and simple step that can be done before attempting any other actions that might affect the network infrastructure or other devices.

The best way to improve the efficiency of the process of formatting and reconfiguring a development PC after every application test is complete is to implement a sandbox. A sandbox is a virtual environment that isolates the application from the rest of the system, allowing the developer to test the application without affecting the main operating system, files, or settings. A sandbox can also be easily reset, deleted, or duplicated, saving the time and effort of formatting and reconfiguring the PC. A sandbox can also provide security benefits, such as preventing malware or bugs from spreading to the system or the network.

Other options, such as installing an SSD, disabling hyperthreading, or enabling hardware acceleration, may improve the performance of the PC, but they do not address the issue of formatting and reconfiguring the PC after each test. An SSD (solid state drive) is a storage device that uses flash memory instead of spinning disks, and it can offer faster data access, lower power consumption, and less noise and heat. Hyperthreading is a feature of some CPUs (central processing units) that allows each core to run two threads simultaneously, increasing the multitasking and parallel processing capabilities of the PC. Hardware acceleration is a technique that uses the GPU (graphics processing unit) or other specialized hardware to perform some tasks faster than the CPU, such as rendering graphics, video, or audio.

The Unified Extensible Firmware Interface (UEFI) is the setting that should be checked when a computer is not booting from a flash drive containing an OS image. UEFI is a modern firmware that replaces the traditional BIOS and includes a "Secure Boot" feature that can prevent unauthorized operating systems from loading during the system's boot process. This security feature might be the reason the computer cannot access the flash drive before loading the OS. Disabling Secure Boot or adjusting the boot order within the UEFI settings can allow the system to boot from the flash drive. This is supported by the CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly in sections 1.4 "Given a scenario set up and configure accessories and ports of mobile devices" and 4.0 "Virtualization and Cloud Computing", emphasizing the importance of UEFI settings in boot processes and virtualization .

The most likely cause of the failure is A. Thermal paste was not used.

Thermal paste, also known as thermal grease or thermal compound, is a substance that is applied between the CPU and the heat sink to improve the heat transfer and cooling of the CPU. Thermal paste fills the gaps and irregularities between the CPU and the heat sink, creating a better contact and reducing the thermal resistance .

According to some web search results , some signs and symptoms of not using thermal paste or using it incorrectly are:

•The CPU overheats and slows down or shuts down to prevent damage

•The CPU fan spins faster and louder to try to cool down the CPU

•The PC performance drops or becomes unstable

•The PC crashes or displays errors or blue screens

To fix this issue, the technician should apply thermal paste properly between the CPU and the heat sink, following these steps :

•Turn off the PC and unplug it from the power source

•Open the PC case and locate the CPU fan and heat sink

•Remove the CPU fan and heat sink from the motherboard

•Clean the surfaces of the CPU and heat sink with a lint-free cloth and alcohol

•Apply a small amount of thermal paste (about the size of a grain of rice) in the center of the CPU

•Reattach the heat sink and CPU fan to the motherboard, making sure they are aligned and secured

•Close the PC case and plug it back to the power source

The GPU needs additional power, the memory is insufficient, or the motherboard is incompatible are not likely causes of the failure, since they would not cause the PC to overheat and shut down after a few minutes. The GPU needs additional power if it has a high power consumption that exceeds the capacity of the power supply or the PCIe slot. The memory is insufficient if it cannot handle the applications or tasks that are running on the PC. The motherboard is incompatible if it does not support the CPU, RAM, or other components that are installed on it. These issues may cause poor performance, errors, or crashes, but not overheating and shutting down.

Rapid elasticity is the ability of a cloud service to scale up or down the resources (such as virtual servers, storage, bandwidth, etc.) according to the demand of the users. This is an efficient way to handle unusually high web traffic usage, as it allows the company to provision more virtual servers when needed and release them when not needed, without wasting resources or paying for unused capacity. Rapid elasticity also improves the performance and availability of the web service, as it can adjust to the fluctuations in traffic and avoid overloading or downtime.

References

Rapid Elasticity in Cloud Computing: On-Demand Scaling for Business

Chapter 4: Virtualization and Cloud Computing

Allow listing is a security technique that allows only specific IP addresses or domains to access a network or a service. By adding the office IP address as an exception, the company can prevent two-factor authentication from being triggered when users are connected to the office Wi-Fi, since the office network is considered trusted. This way, users will only be prompted for two-factor authentication when working outside of the office, which enhances security.

VRAM (Video Random Access Memory) is a special-purpose memory type used by graphics controllers to store image data that is displayed on the screen. VRAM is faster and more expensive than regular RAM, and it allows the graphics controller to access the image data directly without involving the CPU or the system memory. VRAM can improve the performance and quality of graphics-intensive applications, such as video editing, gaming, and 3D rendering.

Speed is the most important consideration. Striping without parity, also known as RAID 0, is a RAID configuration that splits data across multiple disks without any redundancy. This improves the performance of read and write operations, as multiple disks can work in parallel. However, this also increases the risk of data loss, as any disk failure will result in losing all data on the array. Therefore, striping without parity is suitable for situations where speed is prioritized over reliability. According to the CompTIA Core1 objectives, one of the advantages of RAID 0 is increased speed. A research paper on RAID performance also confirms that RAID 0 has the highest throughput among all RAID levels.

The correct answer is C. Check the RAID drive status LEDs.

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple physical disks into a logical unit that provides improved performance, reliability, or both1. RAID can be implemented using hardware or software, and there are different levels of RAID that use different methods of data distribution and redundancy1.

One of the common issues with RAID is disk failure, which means that one or more of the disks in the array stop working properly. Disk failure can affect the performance and availability of the network fileshares, depending on the RAID level and the number of failed disks2. For example, RAID 0, which uses striping to split data across multiple disks, has no redundancy and will lose all data if any disk fails. RAID 1, which uses mirroring to duplicate data on two disks, can tolerate one disk failure and still function. RAID 5, which uses striping with parity to distribute data and error correction information across three or more disks, can also tolerate one disk failure and still function1.

One of the ways to detect disk failure is to check the RAID drive status LEDs, which are lights that indicate the health and activity of each disk in the array. Different RAID controllers may have different LED patterns and colors, but generally, a green LED means that the disk is working normally, a red LED means that the disk has failed or is offline, an amber LED means that the disk is degraded or rebuilding, and a blinking LED means that the disk is active or busy34.

The first step that a technician should perform when troubleshooting network fileshare issues is to check the RAID drive status LEDs to see if any disk has failed or is degraded. This can help identify the cause of the problem and determine the appropriate solution. For example, if a disk has failed in a RAID 1 or RAID 5 array, the technician can replace the failed disk and rebuild the array to restore performance and redundancy. If a disk has failed in a RAID 0 array, the technician will need to restore the data from a backup2.

The other options are not the best steps to perform first. Defragmenting the files on the network share may improve performance by reducing fragmentation, but it will not solve the problem if there is a disk failure in the RAID array. Asking the users to perform a network speed test may help diagnose network issues, but it will not help identify disk issues in the RAID array. Starting the process of rebuilding the array may be necessary after replacing a failed disk, but it should not be done before checking the RAID drive status LEDs.

A limited wireless range after replacing the wireless card could indicate that the antenna is not properly connected to the card, or that the antenna is damaged or obstructed. According to the web search results, some possible steps to troubleshoot and verify the antenna’s connection are:

Open the laptop case and locate the wireless card and the antenna wires. Make sure that the wires are securely attached to the card’s connectors, and that they are not loose or broken12.

Check the position and orientation of the antenna. Make sure that it is not blocked by any metal objects, walls, or other sources of interference. Adjust the angle or location of the antenna if possible to improve the signal strength3.

Replace the antenna with a new one or a compatible one from another device. Test the wireless range and performance with the new antenna2.

The first step in troubleshooting any network connectivity issue is to identify the scope and source of the problem. The technician should check if any infrastructure changes have been made during the user’s absence, such as updates, patches, configuration changes, or hardware replacements. These changes could affect the network settings, firewall rules, permissions, or compatibility of the user’s device or the server. The technician should also verify if other users or devices can access the server or if the problem is isolated to the user’s device. By determining if any infrastructure changes have been made, the technician can narrow down the possible causes and formulate a theory to test.

References

Chapter 5: Hardware and Network Troubleshooting

How to fix HTTP 500 internal server error?

Remote desktop connection: An internal error has occurred

A load balancer is a network device or service that distributes incoming network traffic across multiple servers, based on various criteria, such as availability, capacity, performance, or location. A load balancer can ensure that the servers’ resources will be utilized efficiently, as well as improve reliability, scalability, and security. A load balancer can be hardware-based or software-based, or a combination of both. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 79)

The most likely explanation for the distorted image on the projector is that the projector’s aspect ratio is set incorrectly. The aspect ratio is the ratio of the width to the height of the image, and it affects how the image is displayed on the screen. If the aspect ratio of the projector does not match the aspect ratio of the laptop, the image may appear stretched, squashed, cropped, or letterboxed.

To fix the distorted image, the technician should follow these steps:

Check the aspect ratio of the laptop and the projector. The aspect ratio of the laptop can be found in the display settings of the operating system, such as Windows or Mac OS. The aspect ratio of the projector can be found in the user manual or the on-screen menu of the projector. Common aspect ratios are 4:3, 16:9, and 16:10.

Adjust the aspect ratio of the projector to match the aspect ratio of the laptop. The technician can use the remote control or the buttons on the projector to access the on-screen menu and select the appropriate aspect ratio option. Some projectors may have a dedicated aspect ratio button on the remote control or the projector itself.

Verify that the image is displayed correctly on the screen. The technician can use the zoom, focus, or keystone buttons on the projector or the remote control to fine-tune the image quality and alignment.

A digitizer is a device that converts analog signals, such as touch or pressure, into digital signals that can be processed by a computer. A digitizer is usually embedded in the screen of a smartphone or tablet, and it works with a compatible stylus to enable drawing and writing on the screen1.

There are different types of digitizers and styluses, such as capacitive, resistive, active, and passive. Capacitive digitizers and styluses work by detecting changes in the electric field on the screen when the stylus touches it. Resistive digitizers and styluses work by detecting changes in the resistance on the screen when the stylus presses it. Active digitizers and styluses work by using an electromagnetic field to communicate between the stylus and the screen. Passive digitizers and styluses work by using a special material on the tip of the stylus that mimics the human finger2.

Not all digitizers and styluses are compatible with each other. For example, an active stylus will not work with a capacitive or resistive digitizer, and vice versa. A passive stylus will work with any digitizer, but it will not have any advanced features, such as pressure sensitivity or tilt control2.

SAS (Serial Attached SCSI) is an interface type that supports high-speed data transfer and high-performance hard drives, such as 15,000rpm drives. SAS drives are commonly used in servers that require fast access and reliability. IDE (Integrated Drive Electronics), eSATA (external SATA), and SATA (Serial ATA) are not suitable for 15,000rpm drives, as they have lower speed and performance.

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

TPM stands for Trusted Platform Module, which is a hardware component that securely stores encryption keys and other sensitive data12. TPM can be used to enable hard drive encryption, which is a technology that encrypts the data stored on a hard drive using sophisticated mathematical functions34. Hard drive encryption protects the data from unauthorized access in case the hard drive is lost, stolen, or tampered with.

The problem in this scenario is that the battery charger is not a USB device, but a device that plugs into a USB port to draw power. Therefore, it does not have a unique identifier that can be recognized by the peripheral security software, which is designed to prevent unauthorized USB devices from accessing the company’s network or data. The security software cannot add the battery charger to its whitelist, and may block its power supply or generate alerts.

The best solution for this problem is to provide a USB to AC adapter for the battery charger, which is a device that converts the USB power output to an AC power input that can be plugged into a wall outlet. This way, the battery charger does not need to connect to the docking station or the computer, and does not trigger the peripheral security software. The user can still charge the camera’s battery without compromising the company’s security policy.

The other options are not advisable because they either do not solve the problem or create new risks. Option B, adding a powered USB hub to the docking station, may not work if the security software also monitors the hub’s ports and detects the battery charger as an unknown device. Option C, disabling the peripheral security software for this user only, is a very bad idea because it exposes the user’s computer and the company’s network to potential attacks from malicious USB devices. Option D, replacing the battery charger with a USB device that has a unique identifier, is unnecessary and costly, and may not be compatible with the camera’s battery.

The best solution for the developer is D. Sandbox environment.

Client-side virtualization is a technology that allows users to run multiple operating systems and applications on the same device, without affecting the host system or the network1. A sandbox environment is a type of client-side virtualization that creates a secure and isolated space for testing, debugging, or experimenting with code, without risking any damage or interference to the rest of the system2.

A sandbox environment can provide several benefits for the developer, such as23:

•It can simulate different scenarios and conditions for the code, such as different operating systems, browsers, devices, network settings, etc.

•It can protect the code from external threats, such as malware, hackers, or unauthorized access.

•It can prevent the code from affecting other applications or processes on the device or the network, such as consuming resources, causing errors, or leaking data.

•It can allow the developer to easily revert any changes or restore the original state of the system, if something goes wrong.

Therefore, a sandbox environment can provide the best solution for the developer who wants to write code in a setting isolated from other infrastructure to avoid negative impacts of experimental code.

A network tap is a device that can be used to monitor and analyze the traffic and data that pass through a network. A network tap can be inserted between two network devices, such as a switch and a router, and capture the packets that flow in both directions. A network tap can then send a copy of the packets to another device, such as a laptop or a server, for inspection and troubleshooting. A network tap can help diagnose and resolve network issues, such as performance, security, or configuration problems.

A network tap is the least disruptive tool for checking the status of a local network device, because it does not interfere with the normal operation of the network. A network tap does not alter or block the packets that it captures, and it does not introduce any latency or noise to the network. A network tap can also operate in stealth mode, which means that it is invisible to the network devices and cannot be detected by hackers or attackers.

The correct answer is A. Bluetooth.

Bluetooth is a wireless technology that allows devices to communicate with each other over short distances. It is commonly used for connecting wireless headsets, speakers, keyboards, mice, and other peripherals to mobile phones, laptops, and other devices.

To use a Bluetooth device with a mobile phone, the user needs to enable Bluetooth on both devices and pair them together. Pairing is a process of exchanging security codes and creating a trusted connection between the devices. Once paired, the devices can automatically connect when they are in range and turned on.

If the user is experiencing an issue when trying to use a wireless headset with a mobile phone, the first thing to check is whether Bluetooth is enabled on both devices. If Bluetooth is turned off, the devices will not be able to connect or communicate with each other.

To enable Bluetooth on a mobile phone, the user can follow these steps:

•Check in quick settings: Select the Network, Sound, or Battery icons ( ) on the right side of the taskbar, look for the Bluetooth quick setting, then select Bluetooth to turn it on. You’ll see “Not connected” if your Windows 11 device isn’t connected to any Bluetooth accessories.

•Check in Settings: Select Start > Settings > Bluetooth & devices . Make sure Bluetooth is turned on.

These steps are based on Windows 11 operating system1. The exact steps may vary depending on the type and model of the mobile phone and its operating system.

If Bluetooth is enabled on both devices but they still cannot connect, the user can try some other troubleshooting steps, such as:

•Turn off your Bluetooth device, wait a few seconds, then turn it back on.

•Make sure your Bluetooth device is in range of your mobile phone.

•Remove the Bluetooth device from your mobile phone’s list of paired devices, then add it again.

•Update the Bluetooth driver on your mobile phone or the firmware on your Bluetooth device.

•Restart your mobile phone or reset your Bluetooth device.

For more details and tips on how to fix Bluetooth problems in Windows 112 or other operating systems1, you can visit the links provided.

A cellular card is a device that allows a laptop to connect to the internet using a cellular network, such as 4G or 5G. A cellular card can provide internet access when the user travels and does not have access to a Wi-Fi network. A cellular card may require a subscription plan from a cellular service provider. A Wi-Fi extender is a device that boosts the signal of an existing Wi-Fi network, but it does not provide internet access by itself. Bluetooth is a wireless technology that allows devices to communicate over short distances, but it does not provide internet access either. GPS is a satellite-based system that provides location and navigation information, but it does not provide internet access as well. References: https://www.comptia.org/blog/what-is-a-cellular-card

The answer is C. Clean the air filter.

A flashing LED code on a projector usually indicates a problem with the projector’s hardware, such as the lamp, the fan, the temperature sensor, or the air filter. According to the web search results, some possible causes and solutions for this problem are:

Projector is too hot: Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects. Clean or replace the air filter. Make sure the environmental temperature is not too hot12.

Projector has overheated and turned off: Leave it turned off to cool down for five minutes. Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects. Clean or replace the air filter. If operating the projector at high altitude, turn on High Altitude Mode12.

Low air flow through the projector or air filter: Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects. Clean or replace the air filter12.

The correct answer is B. Gather additional details.

According to the CompTIA troubleshooting process for the A+ certification exams1, the technician should gather additional details after testing a theory that is incorrect. This step helps to identify the problem more accurately and establish a new theory of probable cause. The other options are not appropriate for this stage of the troubleshooting process. Documenting the findings, escalating the problem, and identifying user changes are steps that should be done later in the process, after determining the cause and implementing a solution1.
